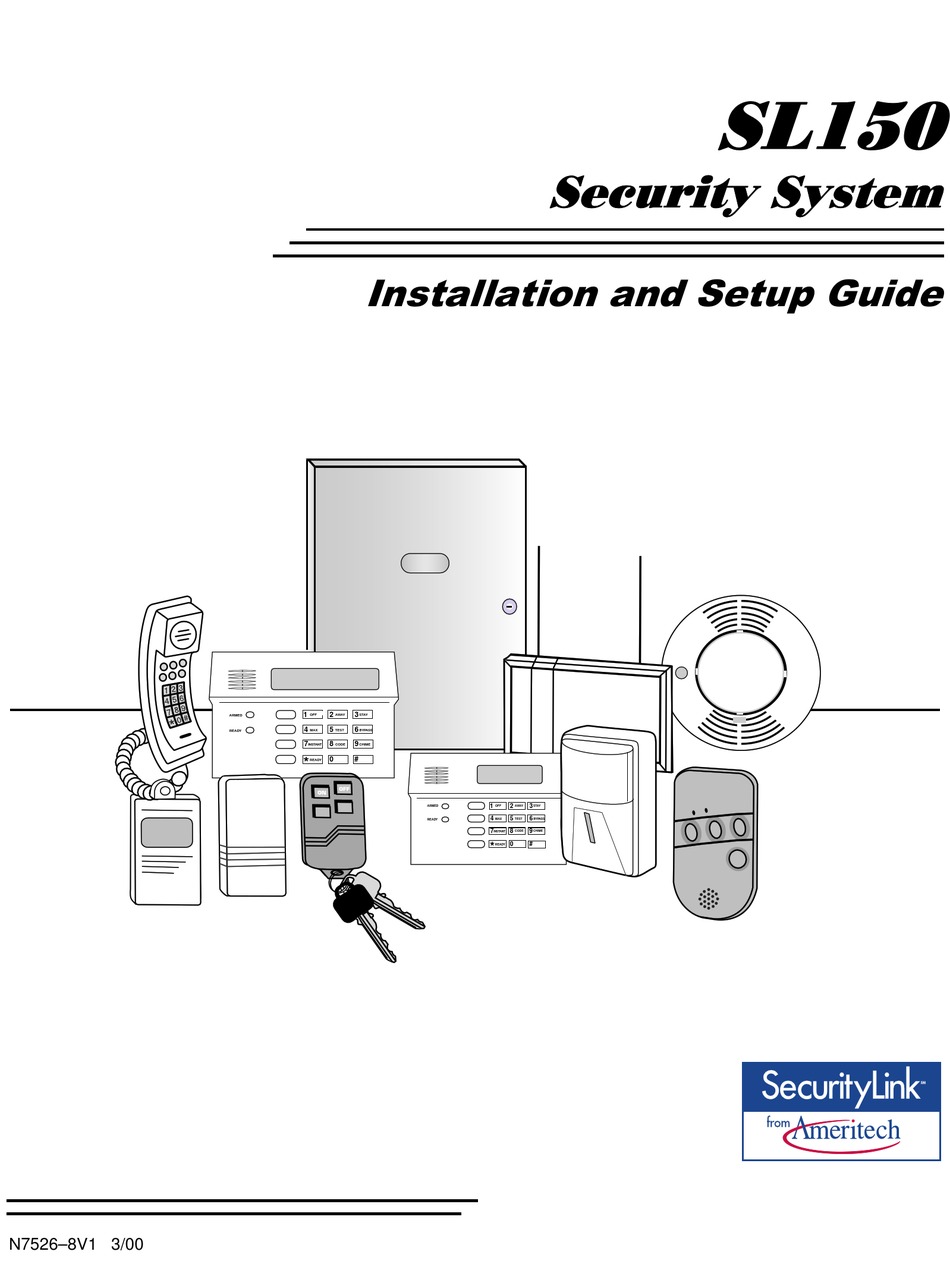

N7526–8V1 3/00
,QVWDOODWLRQDQG6HWXS*XLGH
1
2
3
OFF
AWAY
STAY
ARMED
4
5
6
READY
MAX
TEST
BYPASS
7
8
9
INSTANT
CODE
CHIME
0
*
#
READY
6HFXULW\6\VWHP
2
1
3
ARMED
OFF
AWAY
STAY
4
5
6
READY
MAX
TEST
BYPASS
7
8
9
INSTANT
CODE
CHIME
0
*
#
READY
6/

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SL150 and is the answer not in the manual?

Questions and answers

Lawrence Struck
May 20, 2025

How can I bypass the Phone Line?

0
1 comments:
Mr. Anderson
May 24, 2025

To bypass the answering machine on the Security Link SL150, set field Q95 to a value of 15. This allows the phone module to seize the line even if an answering machine is present. If a 4285/4286 VIP Module is installed, the user should call, let it ring 1 to 3 times, hang up, then call again to access the phone module.

This answer is automatically generated

0

Summary of Contents for Security Link SL150

  • Page 1 6/ 6HFXULW\6\VWHP ,QVWDOODWLRQDQG6HWXS*XLGH AWAY STAY ARMED READY TEST BYPASS INSTANT CODE CHIME READY ARMED AWAY STAY READY TEST BYPASS INSTANT CODE CHIME READY N7526–8V1 3/00...

  • Page 3: Recommendations For Proper Protection

    RECOMMENDATIONS FOR PROPER PROTECTION The Following Recommendations for the location of Fire and Burglary Detection Devices Help Provide Proper Coverage for the Protected Premises. Recommendations for Smoke and Heat Detectors With regard to the number and placement of smoke/heat detectors, we subscribe to the recommendations contained in the National Fire Protection Association's (NFPA) Standard #72 noted below.

  • Page 4: Table Of Contents

    Table of Contents Table of Contents List of Figures ..............................vii Conventions Used In This Manual ....................... viii SECTION 1 Introduction ..........................1–1 General Description............................1–1 Features................................1–1 SECTION 2 Installing the Control.........................2–1 Mounting the Cabinet .............................2–1 Installing the Lock (if used) ..........................2–1 Mounting the Control's Circuit Board Alone in the Cabinet ................2–2 Mounting Control and RF Receiver Circuit Boards Together in the Cabinet ..........2–2 Standard Phone Line Connections .........................2–4 Wiring the AC Transformer ..........................2–5...
  • Page 5 Table of Contents SECTION 8 4285 & 4286 VIP Module ......................8–1 About the 4285 & 4286 VIP Module .......................8–1 Installing the Phone Module...........................8–1 Programming the 4285/4286 VIP Module ......................8–4 Checking 4285/4286 VIP Module Operation....................8–4 SECTION 9 External Sounders ........................9–1 Compatible Sounders............................9–1 NFPA Requirements............................9–1 Sounder Connections and Power ........................9–2 Sounder Supervision ............................9–2...
  • Page 6 Table of Contents SECTION 18 Zone Lists ..........................18–1 About Zone List Menu Mode .........................18–1 Zone List Displays ............................18–1 Pager 1 Reporting - Zone List 06 ........................18–2 Pager 2 Reporting - Zone List 07 ........................18–2 SECTION 19 Alpha Descriptor Programming..................19–1 About Alpha Descriptor Programming......................19–1 Zone Descriptors ............................19–1 Programming Zone Descriptors (Program Menu Mode 82) ..............19–1...

  • Page 7: List Of Figures

    Figure 21. Long Range Radio Connections ......................10–1 Figure 22. Connection of AAV Unit When Not Using a 4285/4286 VIP Module ...........11–2 Figure 23. Connection of AAV Unit When Also Using a 4285 or 4286 VIP Module........11–2 Figure 24. SL150 Summary of Connections................Inside Back Cover...

  • Page 8: Conventions Used In This Manual

    Conventions Used In This Manual Before you begin using this manual, it is important that you understand the meaning of the following symbols: A UL note includes specific information that must be followed if you are installing this system for a UL Listed application.

  • Page 9: Section 1 Introduction

    • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • General Description The SL150 is a security system control that supports up to 38 zones, including eight basic hardwired zones (1 through 8) and a maximum of 30 expansion zones. These expansion zones may include up to eight hardwired zones, or up to 30 wireless zones if hardwired zones are not used.
  • Page 10 SL150 Installation and Setup Guide Security Codes • One Installer code for entire system (user 1) • One Master code for entire system (user 2) • 12 Secondary User codes (users 3–14) • One Babysitter code (user 15). • One Duress Code (user 16).
  • Page 11 Section 1 - Introduction Optional Phone Module • Supports the Ademco 4285/4286 VIP Module (refer to Section 8 for further information). • Provides access to the system via on-premises or off-premises phones for arming, disarming, etc., plus control of relay outputs and Powerline Carrier devices. Paging Feature If programmed, the paging feature allows certain system conditions to be reported to two pagers, if desired.
  • Page 12 SL150 Installation and Setup Guide Dynamic Signaling Feature This control features Dynamic Signaling Delay and Dynamic Signaling Priority message reporting when Long Range Radio is used. This feature, which is programmed in data fields 54 and 55, is designed to reduce the number of redundant reports sent to the central station.

  • Page 13: Section 2 Installing The Control

    S E C T I O N Installing the Control • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • In This Section Mounting the Cabinet Standard Phone Line Connections...

  • Page 14: Mounting The Control's Circuit Board Alone In The Cabinet

    SL150 Installation and Setup Guide Before installing the cabinet's contents, remove the metal cabinet knockouts required for wiring entry. Do not attempt to remove the knockouts after the circuit board has been installed. Mounting the Control's Circuit Board Alone in the Cabinet To mount the circuit board alone in the cabinet, follow these steps: 1.

  • Page 15: Figure 3. Mounting The Pc Board And Rf Receiver Together In The Cabinet

    Section 2 - Installing the Control 5. Swing the base of the board into the mounting clips and secure it to the cabinet with the accompanying screws (see Detail B). 6. Insert the top of the control's board into the slot in the clips and position two long (red) clips at the lower edge of the board (see Detail C).

  • Page 16: Standard Phone Line Connections

    SL150 Installation and Setup Guide Standard Phone Line Connections The wiring connections shown here are not applicable if the4285/4286 VIP Module is used. Refer to Section 8: 4285/4286 VIP Module for information regarding phone line connections, which are different than those shown here.

  • Page 17: Wiring The Ac Transformer

    Section 2 - Installing the Control Wiring the AC Transformer 1321 Transformer Wire the 1321 Transformer to terminals 1 and 2 on the control board. See wiring table below to determine wire gauge. Use caution when wiring the transformer to the control panel to guard against blowing the fuse inside the transformer (the fuse is nonreplaceable).

  • Page 18: Installing The Backup Battery

    1. Place the 12-volt backup battery in the control cabinet. 2. Attach red and black wires on the battery connector cable as follows: a. Red to the positive (+) battery terminal on the control board (see Figure 24. SL150 Summary of Connections for location, if necessary).

  • Page 19: Section 3 Installing Remote Keypads

    S E C T I O N Installing Remote Keypads • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • In This Section Keypads That May Be Used Supplementary Power for Additional Keypads...

  • Page 20: Mounting The Keypads

    SL150 Installation and Setup Guide The length of all wire runs must not exceed 1500 feet (457m) when unshielded quad conductor cable is used (750 feet if shielded cable is used). This restriction is due to the capacitive effect on the data lines when quad cable is used.

  • Page 21: Preliminary Checkout Procedure

    1. Temporarily connect a 2000-ohm end-of-line resistor across each of the basic hardwired zones 1–8, as shown in the SL150 Summary of Connections diagram. Without actual zone wiring or EOL resistors connected, the keypads will not display the “Ready”...
  • Page 22 SL150 Installation and Setup Guide 3–4...

  • Page 23: Section 4 Basic Hardwired Zones 1-8

    Wiring Burglary and Panic Devices to Zones 1–8 To wire burglary and panic devices to zones 1-8, perform the following steps, referring to Figure 24. SL150 Summary of Connections at the back of this manual. 1. Connect sensors/contacts to the hardwired zone terminals (8 through 20).

  • Page 24: Figure 8. 2-Wire Smoke Detector Connected To Zone 1

    SL150 Installation and Setup Guide 2. If an EOL resistor is presently connected across zone 1 terminals, remove it. The EOL resistor must be connected across the loop wires at the last detector In UL installations, only zone 1 may be used as a fire zone. In addition, an Ademco Model 610–7 must be used as the end-of-line resistor at the last detector.

  • Page 25: Figure 9. 4-Wire Smoke Detector Connections (Zones 2-7)

    Section 4 – Basic Hardwired Zones Remove 2000 ohm EOL resistor if connected across the selected zone terminals. You must connect the EOL resistor across the loop wires at the last detector. To supervise power, we recommend the use of a System Sensor No. A77-716B Supervisory Module.

  • Page 26: Figure 10. Glassbreak Detector Connections To Zone 8

    SL150 Installation and Setup Guide Wiring 2-Wire Latching Glass Break Detectors On Zone 8 Use zone 8 for connection of compatible 2-wire latching-type glass break detectors. After an alarm, the first code + OFF turns off the siren and disarms the system; the second code + OFF clears the memory of alarm and resets the glassbreak detector.

  • Page 27: Remote Keyswitch (Zone 7)

    Section 4 – Basic Hardwired Zones Remote Keyswitch (Zone 7) An optional remote 4146 keyswitch for remote arming and disarming of the system can be installed in this system. Included here are instructions for connecting the keyswitch, the necessary programming required, plus a description of how the keyswitch operates in the system.

  • Page 28: Figure 11. Keyswitch Wiring Without The 4300 Transformer

    SL150 Installation and Setup Guide 9-PIN 1 2 3 4 5 6 7 8 9 CONNECTOR ON CONTROL PANEL 4146 KEYSWITCH 4142TR CABLE (ARMED) YELLOW THESE WIRES NOT CONNECTED IF 4300 INTERFACE (READY) TRANSFORMER IS GREEN NOT BEING USED WHITE...
  • Page 29 Section 4 – Basic Hardwired Zones Programming For The Remote Keyswitch 1. Using a 2-line Alpha keypad, enter the programming mode by entering: Installer code + 8 + 0 + 0 keys. If RF zones, wired expansion, or a keyswitch will be used, data fields 22 RF SYSTEM, WIRED ZONE EXPANSION and 30 KEYSWITCH ENABLE must be programmed as required prior to continuing.

  • Page 30: Programming Basic Hardwired Zones

    SL150 Installation and Setup Guide Typical summary display A summary display will appear, showing the data for zone 07 that was just programmed. If it is programmed HW: 1 satisfactorily, press [ ] to continue. The next request is to enter an Alpha descriptor for zone P r o g r a m A l p h a ? 7.
  • Page 31 Section 4 – Basic Hardwired Zones 3. Fault and then restore every contact or sensor on each zone individually to ensure that it is being monitored by the system. Each time a zone is faulted, the keypad should display the number of the faulted zone.
  • Page 32 SL150 Installation and Setup Guide 4–10...

  • Page 33: Section 5 Wired Zone Expansion

    S E C T I O N Wired Zone Expansion • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • In This Section Installing Zone Expansion Units Programming Wired Expansion Zones...

  • Page 34: Figure 13. Wiring Connections - 4219 Expansion Module

    SL150 Installation and Setup Guide DIP SWITCH FOR SETTING ADDRESS AND ZONE A 4-PIN CONSOLE PLUG RESPONSE TIME (CONNECTIONS SAME AS TB2) 4219 DATA OUT TO CONTROL (–) GROUND REED (TAMPER) (+) 12VDC SWITCH DATA IN FROM CONTROL TAMPER JUMPER...

  • Page 35: Programming Wired Expansion Zones

    Section 5 –Wired Zone Expansion Programming Wired Expansion Zones Each zone must be programmed into the system using either the 56 Zone Programming mode or the 58 Expert Programming mode, either of which assigns characteristics that define the way the system responds to faults on that zone. Refer to Section 14: Zone Response Type Definitions and Section 16: Zone Programming for specific instructions on programming wired expansion zones.
  • Page 36 SL150 Installation and Setup Guide 5–4...

  • Page 37: Section 6 Wireless Expansion (5800 System)

    • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • About Wireless Expansion In addition to its basic wired zones, the SL150 control supports up to 30 wireless zones using an appropriate 5881 (5882 in Canada) type RF receiver. The actual number of zones supported depends on whether you are using a wired zone expander module.

  • Page 38: Installing The 5881/5882 Receiver

    SL150 Installation and Setup Guide Installing the 5881/5882 Receiver RF System Installation Advisories Follow the guidelines below when installing the RF receiver. (Disregard if the receiver is mounted in the control cabinet • Place the RF receiver in a high, centrally located area for best reception.

  • Page 39: Installing The 5800Tm Module

    Terminal 7 BLUE: (if present) Not Used Do NOT cut any of the jumpers on the 5800TM when using it with the SL150. For additional information, refer to the 5800TM’s instructions. Jam Detection and Reporting When field 22, option 4 (see Data Field Descriptions) is selected, a 5800 series receiver detecting an RF jam condition will send an RF Receiver Jam Detect report (Contact ID 344) to the Central Station.
  • Page 40 SL150 Installation and Setup Guide For button transmitters (RF “keys”), such as the 5801, 5804, and 5804BD, you must assign a unique zone number to each individual button used on the transmitter. Each button on the transmitter also has a pre-designated loop or input number, which is automatically displayed on the keypad.
  • Page 41 Section 6 - Wireless Expansion Some transmitters (e.g., 5802, 5802CP) contain long-life but non-replaceable batteries, and no battery installation is required. At the end of their life, the complete unit must be replaced (and a new serial number enrolled by the control). Button-type transmitters (such as 5801, 5802, 5802CP) should be periodically tested for battery life.

  • Page 42: Series Transmitters Table

    SL150 Installation and Setup Guide 5800 Series Transmitters Table Also refer to Appendix A for transmitter input loops/button locations. Model Description Input Type and Special Notes 5801 Wireless Panic Enroll as “3” for RF (supervised), or “4” for UR (unsupervised).

  • Page 43: Installing 5800 Series Transmitters

    Section 6 - Wireless Expansion Installing 5800 Series Transmitters The following should be performed after the transmitters have been enrolled into the system. To be sure reception of the transmitter's signal at the proposed mounting location is adequate, perform a Go/No Go Test. Go/No Go Test Mode The Go/No Go Tests will verify adequate RF signal strength from the proposed transmitter location.
  • Page 44 SL150 Installation and Setup Guide 6–8...

  • Page 45: Section 7 Relay Outputs & Powerline Carrier Devices

    S E C T I O N Relay Outputs & Powerline Carrier Devices • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • In This Section About Relays and Powerline Carrier Devices Powerline Carrier Devices...

  • Page 46: Figure 16. 4229 Connections To Control Panel

    SL150 Installation and Setup Guide 3. Connect the desired field wiring to the unit's relay contact terminals. Supervision 4204 and 4229 modules are supervised against removal. CHECK and ZONE 09 will be displayed if a module is disconnected from the control’s terminals (4, 5, 6, and 7). CHECK and ZONE 09 will also be displayed if the module cover is removed and the tamper jumper is installed.

  • Page 47: Powerline Carrier Devices

    Section 7 - Relay Outputs & Powerline Carrier Devices SWITCH 4 2 0 4 A D D R E S S S E T T I N G S ("—" means "OFF") NUMBER — — — — — — — —...

  • Page 48: Programming Relay Outputs

    Figure 18. 4300 Transformer Wiring Connections Programming Relay Outputs In the SL150, each device must be programmed as to how to act (ACTION), when to activate (START), and when to deactivate (STOP). Refer to the programming procedures for 80 and...

  • Page 49: Section 8 4285 & 4286 Vip Module

    About the 4285 & 4286 VIP Module The 4285 or 4286 VIP Module is an add-on accessory for the SL150 that permits access to the security system via a TouchTone phone (either on-premises or by a call-in when away). The 4286 VIP Module has the additional capability of controlling thermostat(s) and providing external speaker output.
  • Page 50 SL150 Installation and Setup Guide If you are also using an Audio Alarm Verification (AAV) unit, refer to Section 11: Audio Alarm Verification (AAV) Unit for the wiring connections required when you are using both a phone module and an AAV unit. If you are not using an AAV unit, follow the wiring connections instructions in this section for the phone module.

  • Page 51: Figure 19. 4285/4286 Vip Module Wiring Connections

    Section 8 - 4285/4286 VIP Phone Module 4285/4286 VIP MODULE WIRING NOTES: • Wire the phone module exactly as shown, using a direct-connect cord and RJ31X jack. • If touch-tones are not heard when pressing keys following phone access to the security system via an on-premises phone, try reversing the pair of wires connected to terminals 3 and 4 on either phone module and the pair of wires connected to terminals 21 and 22 on the control.

  • Page 52: Programming The 4285/4286 Vip Module

    SL150 Installation and Setup Guide Programming the 4285/4286 VIP Module You must program the system for use with the 4285 or 4286 VIP Module. This includes assigning a phone code and selecting words from the alpha vocabulary. Refer to the programming sections for specific programming details.

  • Page 53: Section 9 External Sounders

    • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • Compatible Sounders The following table lists external sounders that are compatible with the SL150: Model...

  • Page 54: Sounder Connections And Power

    SL150 Installation and Setup Guide Sounder Connections and Power The SL150 provides a 12VDC output, which can power external alarm sounders (bells or sirens; see table of compatible sounders on previous page). This output will activate a sounder when an alarm occurs.

  • Page 55: Section 10 Long Range Radio

    S E C T I O N Long Range Radio • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • In This Section About Long Range Radio Dynamic Signaling Feature...

  • Page 56: Dynamic Signaling Feature

    SL150 Installation and Setup Guide Dynamic Signaling Feature This control panel features Dynamic Signaling Delay and Dynamic Signaling Priority message reporting when Long Range Radio is used. This feature, which is programmed in data fields 54 and 55, is designed to reduce the number of redundant reports sent to the central station.

  • Page 57: Section 11 Audio Alarm Verification (Aav) Unit

    S E C T I O N Audio Alarm Verification (AAV) Unit • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • In This Section About Audio Alarm Verification Wiring Connections...

  • Page 58: Figure 22. Connection Of Aav Unit When Not Using A 4285/4286 Vip Module

    SL150 Installation and Setup Guide CONTROL EARTH EAGLE 23 24 25 GROUND SUPPLIED CABLE RED (R) GREEN (T) RJ31X GREY (R) BROWN (T) CONTROL/ DIALER HEADER 4204 RELAY 1 BROWN SHOWN TO PREMISES HANDSET INCOMING DIP Switch PHONE LINE NO NC C •...

  • Page 59: Section 12 Final Power-Up

    S E C T I O N Final Power-Up • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • In This Section Earth Ground Connections Connecting the Backup Battery...

  • Page 60: Battery Tests

    Red to the positive (+) battery tab on the control board b) Black to the negative ( – ) battery tab on the control board. Refer to Figure 24. SL150 Summary of Connections (SOC) diagram for location of the (+) and (–) battery tabs on the control board.

  • Page 61: Section 13 Mechanics Of Programming

    S E C T I O N Mechanics of Programming • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • In This Section About Programming Interactive Mode Programming...

  • Page 62: Entering Program Mode

    SL150 Installation and Setup Guide Entering Program Mode You may use one of the following methods: a) Press [ ] and [#] keys at the same time within 50 seconds after power is applied to the control; or b) After power-up, enter 4 1 1 2 (Installer code) + 8 0 0.

  • Page 63: Loading Factory Defaults

    Section 13 - Mechanics Of Programming Loading Factory Defaults The control panel is shipped from the factory loaded with its factory defaults. To reload the factory defaults at any time, enter the Programming mode, press 97, then exit the Programming mode. Do not press 97 to load defaults if any programming has been done previously—data already programmed into the system will be changed! This includes the primary and secondary subscriber account numbers (fields 43 and 44), which will be set to their factory defaults...
  • Page 64 SL150 Installation and Setup Guide 13–4...

  • Page 65: Section 14 Zone Response Type Definitions

    This zone type is usually assigned to sensors or contacts on doors through which primary entry and exit will take place. The SL150 will annunciate faster beeps during the last 10 seconds of the exit delay. This zone type provides a secondary Entry Delay whenever the Type 02 zone is faulted if the panel is armed in the AWAY or STAY mode.
  • Page 66 SL150 Installation and Setup Guide Type 04 This zone type gives a delayed alarm (using the programmed entry/exit time) if the entry/exit zone is faulted first. Otherwise this Interior Follower zone type gives an instant alarm. This zone type is active when the panel is armed in the AWAY and MAXIMUM modes.
  • Page 67 Section 14 - Zone Response Type Definitions Type 10 This zone type gives Entry Delay (using the programmed entry time), if tripped when the panel is armed in the AWAY mode. Entry Interior w/Delay Delay begins whenever sensors in this zone are violated, regardless of whether or not an Entry/exit Delay zone was tripped first.
  • Page 68 SL150 Installation and Setup Guide 14–4...

  • Page 69: Section 15 Data Field Descriptions

    Defaults (where applicable) are indicated in the programming form. The following pages list all data fields in the SL150 in numerical order. If you have performed the programming instructions that were included with the installation of each of the peripheral devices covered in previous sections, this table will simply serve as a reference for all data fields in the system.
  • Page 70 SL150 Installation and Setup Guide WIRED ZONE EXPANSION 0 = no expander module connected 1 = 4219 connected 2 = 4229 connected 3 = 4204 connected CHIME BY ZONE 0 = no (chimes on fault of any entry/exit or perimeter zone when chime mode...
  • Page 71 Section 15 -Data Field Descriptions 30 KEYSWITCH ENABLE (ZONE 7) 0 = disable; 1 = enable A keyswitch can only be used on zone 7. See Section 4–Basic Hardwired Zones for installation details. 31 SINGLE ALARM SOUNDING PER ZONE (per armed period) 0 = no limit on alarm sounding per zone 1 = limit alarm sounding to once per arming period for a given zone UL installations: Must be 0 (no limit)
  • Page 72 SL150 Installation and Setup Guide CONFIRMATION OF ARMING DING 0 = no ding 1 = confirmation ding after arming system 2 = confirmation ding after arming from RF button type units or RF keypad only (ding occurs when the system receives the RF transmission) Confirmation of arming is ½-second external sounder “ding”...
  • Page 73 Section 15 -Data Field Descriptions PHONE SYSTEM SELECT If Central Station is NOT on a WATS line: 0 = Pulse dial, 1 = Tone dial If Central Station IS on a WATS line: 2 = Pulse dial, 3 = Tone dial REPORT FORMAT 7 | 7 0 = 3+1, 4+1 Ademco LOW SPEED STANDARD...
  • Page 74 SL150 Installation and Setup Guide SESCOA/RADIONICS SELECT 0 = Radionics (0–9, B–F reporting) 1 = SESCOA (0–9 only reporting) Select 0 for all other formats. 54 DYNAMIC SIGNALING DELAY (DSD) See chart below This field enables you to select the time the panel should wait for acknowledgment from the first reporting destination before it attempts to send a message to the second destination.
  • Page 75 Section 15 -Data Field Descriptions Report codes can be programmed using the interactive 56 Zone Programming TO PROGRAM Mode or 58 Expert Mode, or codes can be entered in data fields 59 - SYSTEM STATUS AND RESTORE The following is a set of guidelines to be used for programming report codes. The actual report code digits that you enter depend upon the particular installation, and REPORT CODES should be in agreement with you and the central station office receiving the signals.
  • Page 76 SL150 Installation and Setup Guide TROUBLE REPORT CODE (See box on previous page) 1 | 0 This will be sent if a zone goes into trouble. BYPASS REPORT CODE (See box on previous page) 0 | 0 This will be sent when a zone is manually bypassed.
  • Page 77 Section 15 -Data Field Descriptions BYPASS RESTORE REPORT CODE 0 | 0 See box on a previous page. This is sent when a zone that has been bypassed is unbypassed. 0 | 0 AC RESTORE REPORT CODE This is sent when AC power has been restored after an AC power outage. See box on a previous page.
  • Page 78 SL150 Installation and Setup Guide PAGER REPORTS 0 = No reports sent Pgr 1 Pgr 2 1 = Open/close for all users 3 = Open/close for users 5-16 and wireless key zones entered in zone list 6/7 4 = All alarms and troubles...
  • Page 79 Example: To select “log Alarm/Alarm Restore” and “log Open/Close,” enter 9 (1 + 8); to select all events, enter #15. The SL150 system can record up to 48 events in a history log. The types of events to be logged are selectable. At any time, the downloader operator can then upload the log and view or print out all or selected categories of the log.
  • Page 80 SL150 Installation and Setup Guide 91 OPTION SELECTION 0 = not using AAV 2 = Macros (speed key) 4 = an Audio Alarm Verification (AAV) unit is connected to the system 8 = enable Exit Delay restart 12 = both AAV and Exit Delay Restart...
  • Page 81 Section 15 -Data Field Descriptions RING DETECTION COUNT FOR DOWNLOADING 15 = number of rings before control picks up phone line – Refer to the chart below and program this field accordingly. Phone Answering Down- Field 95 Module Machine loading Set for value other than 0 (1–14).
  • Page 82 SL150 Installation and Setup Guide 15–14...

  • Page 83: Section 16 Zone Programming

    S E C T I O N Zone Programming ( 56/ 58 Menu Mode) • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • In This Section About Zone Programming To Remove a Zone...
  • Page 84 SL150 Installation and Setup Guide È Zone Number Zone Type (ZT): Enter the Zone Type response (or change it, if necessary). 10 Zone Type Each zone must be assigned to a zone type, which defines the way Perimeter Ç in which the system responds to faults in that zone.
  • Page 85 Section 16 -Zone Programming Serial number Entry and Loop Number Entry. 10 INPUT S/N: Used only when enrolling wireless transmitters. A 0 2 2 - 4 0 6 4 1 a. Transmit two open and close (or close and open) sequences. If Note: The [A] and [B] keys using a button-type transmitter, press and release the button may be used to move the...

  • Page 86: 58 Expert Programming Mode Procedures

    SL150 Installation and Setup Guide To Delete a Serial To delete an existing serial number, enter 0 in the loop number → Number field. The serial number will change to 0's. 10 INPUT S/N: A 0 0 0 - 0 0 0 0 If 0 was entered in error, simply re-enter the loop number or press [#], and the serial number will return to the display.
  • Page 87 Section 16 -Zone Programming Enter the first digit of the zone number to be programmed. In ZT RC IN: the example at the left where zone 10 is to be programmed, the – – – : – first digit 1 is entered, followed by the 2nd digit 0. The display will show dashes, as shown at left.

  • Page 88: To Remove A Zone

    SL150 Installation and Setup Guide The prompt to confirm appears. This prompt will only appear 10 XMIT TO CONFIRM if the first prompt on page 16-4 was answered “Yes.” To confirm, PRESS TO SKIP activate the loop input or button that corresponds to this zone.

  • Page 89: To Delete A Transmitter Serial Number

    Section 16 -Zone Programming will not be deleted if the zone is temporarily disabled by answering “No” to the previous prompt. If only the physical transmitter is to be removed or changed (that is; its serial number deleted, as when replacing a unit that has a nonremovable battery), it can be done in 56 Zone Programming Mode, as indicated next.
  • Page 90 SL150 Installation and Setup Guide ENTER START ZONE 6. The system will search for the highest zone number available, 00 = QUIT subtract the number of consecutive zones required for the ↑ device (four zones in the case of the 5804 and 5804BD), and...
  • Page 91 Section 16 -Zone Programming Wireless Key Predefined Default Templates GREEN/YELLOW LOOP 3 GREEN/YELLOW YOU MUST PROGRAMME LOOP 2 THIS BUTTON BUTTON B LOOP 2 RED/YELLOW LOOP 4 RED/YELLOW LOOP 1 BUTTON C LOOP 4 (YOU MUST PROGRAM BUTTON A LOOP 3 THIS BUTTON) BUTTON D LOOP 1...
  • Page 92 SL150 Installation and Setup Guide 16–10...

  • Page 93: Section 17 Output Device Programming

    S E C T I O N Output Device Programming ( 80 and 81 Menu Mode • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • In This Section Programming Options Defined Programming Output Relays and Powerline Carrier Devices...
  • Page 94 SL150 Installation and Setup Guide 2. Zone List (ZL) is a group of zones to which the event applies in order to activate a particular device. Note that there are 3 output device-related zone lists that can be programmed in 81 Menu mode; when the selected event (alarm, fault or trouble) occurs in any zone in the selected Start zone list (1, 2, or 3), activation of the selected device will Start.

  • Page 95: Programming Output Relays And Powerline Carrier Devices

    Section 17 -Output Device Programming If a relay is energized before a 4-wire smoke detector is reset, the relay will be stopped by the interruption of Aux. Power that resets the smoke detector. If this is not desired, supply power to the relay unit from another 12V power source (e.g., the same source that is powering external equipment through the relay contacts).
  • Page 96 SL150 Installation and Setup Guide If a zone type or system operation will be used to START the device 02 Start: Zn Typ action, enter the appropriate 2-digit code (see table that follows). If Not Used not, enter 00. Press to continue.
  • Page 97 Section 17 -Output Device Programming arming status of the system. To program this, do the following: 1. In 80 Interactive mode, choose Output Device 01 and program the Action (A) to be “2” (Close and stay closed). The Event you want to start the Device action is a fault, so program 2 in (EV).
  • Page 98 SL150 Installation and Setup Guide 17–6...

  • Page 99: Section 18 Zone Lists

    S E C T I O N Zone Lists ( 81 Menu Mode) • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • In This Section About Zone List Menu Mode Pager 1 Reporting - Zone List 06...

  • Page 100: Pager 1 Reporting - Zone List 06

    SL150 Installation and Setup Guide Pager 1 Reporting - Zone List 06 Pager 1 reporting is an option that must be set up using zone list 06, and entering the appropriate zones that will report to Pager 1, independent of the report code enabled.

  • Page 101: Section 19 Alpha Descriptor Programming

    List shown in boldface type. The phone module will not provide annunciation of the other words. If a 4285/4286 VIP Module is added to an existing SL150 system, the alpha descriptors presently in the system should be reprogrammed, selected from those words shown in boldface type in the Alpha Vocabulary List.
  • Page 102 SL150 Installation and Setup Guide 2. Press 82. P r o g r a m A l p h a ? The Program Alpha? prompt will appear. 0 = N o , 1 = Y e s 0 0 3. Press 1 (Yes).

  • Page 103: Adding Custom Words

    Section 19 - Alpha Descriptor Programming 9. Press 6 to accept the selected word. Z N 0 1 B A C K NOTE: If these are the only words you are using for the D O O R descriptor, press 8 instead of 6 to save them in memory. Ç...
  • Page 104 SL150 Installation and Setup Guide 5. Press 8 to save the custom word(s) and return to the “CUSTOM WORD ?” display. Repeat Steps 2–5 for other custom words to be entered. To change a custom word, just overwrite it. If no more are to be entered now, press 0 to return to the Descriptor entry.
  • Page 105 Section 19 - Alpha Descriptor Programming ALPHA VOCABULARY LIST (For Entering Zone Descriptors) (Word Space) • 064 DUCT • 114 LOADING • 168 SHED • 226 – A – LOCK SHOCK • 227 – E – • 001 LOOP • 170 SHOP •...
  • Page 106 SL150 Installation and Setup Guide 19–6...

  • Page 107: Section 20 Macros (Speedkey)

    S E C T I O N Macros (SpeedKey) • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • About Macros (SpeedKey) Macro Key Programming •...
  • Page 108 When defining speedkey sequences, do NOT use the [#] key to represent Quick Arming. The SL150 system uses the entered code in response to the prompt to initiate commands in a speedkey sequence, so the Quick Arm key is unnecessary. The system interprets the use of the [#] key in a speedkey sequence as its designated function only 20–2...

  • Page 109: Section 21 Remote Programming And Control (Downloading)

    Equipment Required The following equipment is required for remote programming and downloading: At the premises: SL150 and SL6160 keypad At the installer's office/Stay: An IBM PC-compatible computer and one of the following modems: – BizComp Intellimodem 1200 w/volume –...

  • Page 110: Initial Download

    – Hayes Smartmodem 1200B Internal Modem (Rev. 1.2 or higher) – Hayes external Optima 24 Plus FAX96 Modem – Practical Peripherals PM14400FXSA COMPASS® Downloader Software (at revision level supporting the SL150) Appropriate interconnecting cables Initial Download For initial downloading, enter [Installer code] + # + 5. This sets field 95 to 4 rings, and system to “no call-back”...

  • Page 111: Section 22 System Communication

    S E C T I O N System Communication • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • In This Section Report Code Formats Panel Communication with Central Station...
  • Page 112 SL150 Installation and Setup Guide 3+1 and 4+1 Standard Formats Comprise a 3- (or 4-) digit subscriber number and a single digit report code (e.g. Alarm, Trouble, Restore, Open, Close, etc). 3+1 and 4+1 Expanded Formats Comprise a 3- (or 4-) digit subscriber number, and a two-digit report code.
  • Page 113 Section 22 - System Communication The Ademco Contact ID reporting format comprises a 10-digit subscriber account number, 1- digit event qualifier (“new” or “restore”), 3-digit event code, and 3-digit zone number, user number, or system status number, as follows: Ademco Contact ID Reporting takes the following format: CCCCCCCCCC Q EEE ZZZ where: CCCCCCCCCC = Customer ID (subscriber account number)
  • Page 114 SL150 Installation and Setup Guide 22–4...

  • Page 115: Section 23 System Operation

    S E C T I O N System Operation • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • In This Section Security Codes 4285/4286 VIP Module...

  • Page 116: Keypad Functions

    SL150 Installation and Setup Guide Notes: • All Master and Secondary User codes permit access to the system for arming, disarming, etc. • The Installer code can disarm the system only if it was used to arm it. • Babysitter code is User code No. 15; it can disarm the system only if that code (or the installer code) was used to arm it.
  • Page 117 Section 23 - System Operation Wired keypads contain the following dedicated quick arming keys : No security code is required to arm the system using the A, B, or C keys. However, a security code is always required to disarm the system. A = arm AWAY B = arm STAY C = arm INSTANT (if not programmed for Macros)
  • Page 118 SL150 Installation and Setup Guide Exit Error Alarm Displays (if programmed) • A display of CANCELED ALARM or CA and a zone indication will appear if an exit or interior zone contained a fault during closing at the time the Exit Delay ended (e.g., exit door left open), but the system was disarmed during the Entry Delay time.
  • Page 119 Section 23 - System Operation Telephone Line Failure A display of CHECK 94 (on fixed-word keypads) or TELCO FAULT (on alpha keypads) indicates that a monitored telephone line (if programmed in field 92) has been cut (or disconnected). Depending on how the system was programmed, the keypad may also produce a trouble sound, and the external sounder may be activated.
  • Page 120 SL150 Installation and Setup Guide 23–6...

  • Page 121: Section 24 Testing The System

    S E C T I O N Testing the System • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • In This Section Test Procedure •...
  • Page 122 SL150 Installation and Setup Guide a. TRANSMITTER SNIFFER MODE Make sure the system is disarmed before trying to enter this mode. Press [Installer code] + # + 3 on the keypad. This initiates a procedure to verify that all transmitters have been properly programmed.

  • Page 123: Section 25 Troubleshooting Guide

    POSSIBLE CAUSE REMEDY Transmitter signal not 1a. Transmitter or 5881/5882 not properly Check or change transmitter's battery. received at 5881/5882. SL150 powered. Check 's AC power. 1b. If transmitter is 5827/5827BD, House 1b. Check code switches inside transmitter. Must match with RF House Code...
  • Page 124 2d. Program prefix or access code into the prefix or access code. SL150. 2e. Telephone call to central monitoring 2e. SL150 system cannot work in this station requires operator assistance. situation. Does not arm properly. 3a. READY light not on.

  • Page 125: Contacting Technical Support

    Section 25 – Troubleshooting Guide 602.( '(7(&725 SYMPTOM POSSIBLE CAUSE REMEDY Detector alarms, no 1a. Dust, dirt in sensing chamber. 1a. Clean unit's sensing chamber with apparent reason. vacuum cleaner per unit's instructions. 1b. Improper location. 1b. See unit's instructions for locations to avoid.
  • Page 126 SL150 Installation and Setup Guide 25–4...

  • Page 127: Section 26 Specifications & Accessories

    • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • Specifications SL150 SECURITY CONTROL 12-1/2” W x 14-1/2” H x 3” D (318mm x 368mm x 76mm) 1.
  • Page 128 SL150 Installation and Setup Guide SL6150 REMOTE KEYPADError! Bookmark not defined. 1. Physical: 6-1/2” W x 5-7/8” H x 1-5/16” D (150mm x 124mm x 33mm) Voltage Input: 12VDC; Current Drain: 40 mA Standby; 2. Electrical: 70mA with ARMED LED lit, LCD backlit and sounder on.

  • Page 129: Accessories (Compatible Devices)

    Section 26 Specifications & Accessories 4204 RELAY MODULE 1. Physical: 6-1/2” W x 4-1/4” H x 1-1/4” D (169mm x 108mm x 32mm) 2. Electrical: Voltage Input: 12VDC; Current Drain: 15mA (Relays off) 180mA (Relays on) 3. Interface Wiring: To control panel's keypad connection points 4.
  • Page 130 SL150 Installation and Setup Guide Ademco 747 Self-contained 12-volt siren (driver built-in) for indoor wall mount. 747F available for flush mounting. Self-contained siren (driver built-in) for indoor wall mount. UL Ademco 747UL Listed. Siren driver with 6 jumper-selected sound outputs. Rated at Ademco 744 119dB with use of an 8-ohm 30 watt speaker.

  • Page 131: 5800 Series Transmitter Input Loop Identification

    A P P E N D I X 5800 RF System Wireless Transmitters • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • 5800 Series Transmitter Input Loop Identification All of the transmitters illustrated on the next page have one or more unique factory-assigned input (loop) ID codes.
  • Page 132 SL150 Installation and Setup Guide A–2...

  • Page 133: Appendix B Regulatory Agency Statements

    A P P E N D I X Regulatory Agency Statements • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • UL NOTICE: This is a “Grade A”...
  • Page 134 SL150 Installation and Setup Guide Regulatory Agency Statements (Continued) FEDERAL COMMUNICATIONS COMMISSION (FCC) Part 68 STATEMENT This equipment complies with Part 68 of the FCC rules. On the front cover of this equipment is a label that contains, among other information, the FCC registration number and ringer equivalence number (REN) for this equipment.

  • Page 135: Appendix C Warnings And Limitations

    A P P E N D I X Warnings and Limitations • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • WARNING! THE LIMITATIONS OF THIS ALARM SYSTEM While this System is an advanced design security system, it does not offer guaranteed...
  • Page 136 SL150 Installation and Setup Guide Limitations of This Alarm System (Continued) • Alarm warning devices such as sirens, bells or horns may not alert people or wake up sleepers if they are located on the other side of closed or partly open doors. If warning devices are located on a different level of the residence from the bedrooms, then they are less likely to waken or alert people inside the bedrooms.

  • Page 137: Index

    Index • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • 1011BE12M............
  • Page 138 Index AC Restore Report Code........15–9 Battery Connector Cable ........12–2 AC Transformer ............ 2–5 Battery Life............6–4 Accessories ............26–3 Battery Size Calculation........12–1 Battery Standby Formula ........12–2 Addressable Keypad ..........8–1 Addressable Keypads........... 3–1 Battery,Sealed Lead Acid ........26–1 ADEMCO 1011BE12M ......... 9–1 Bell Failure (CHECK 70)........23–5 ADEMCO 702............
  • Page 139 Index Deleting a Serial Number ........16–7 FCC Registration No...........26–1 deleting the zone list........... 18–1 Fire Alarm Sounding ..........4–3 Description............1–1 Fire Sounder Timeout .........15–3 Fixed-Word Keypads: ........1–1, 3–1 Device Address ............ 5–1 dI..............3–3, 12–1 Forced Bypass............15–1 Dialer Delay (Burg/Fire)........15–5 glass break detectors ...........4–4 Dialer Programming..........
  • Page 140 Index Memory-of-Alarm..........4–3 POWER LED ............3–3 model 112............. 4–5 Power Up in Previous State........15–4 Model Numbers ............viii Powerline Carrier Device ..1–2, 7–1, 17–3, 17–4 Powerline Carrier devices........13–2 Modem..............13–1 MODEM COMM ..........21–2 Practical Peripherals...........21–2 momentary switch..........4–5 Preliminary Checkout..........3–3 Monitored Telephone Line........
  • Page 141 Index Sescoa/Radionics Select........15–6 Transmitter Loop...........6–3 Setting Program Fields to Default Values..15–13 Transmitter Sniffer Mode ......24–2, 25–1 Silent Burglary ............ 14–3 Transmitter Supervision........6–4 Trouble by Day ...........14–2 Silent Panic............23–3 Single Alarm Sounding ........15–3 Trouble Condition ..........23–4 Sirens ..............9–2 Trouble Report Code ..........15–8 Site-Initiated Remote Programming ....
  • Page 142 Index Index-6...
  • Page 143 BATTERY FUSE 24 HR BATTERY STANDBY REQUIRED FOR FIRE ADEMCO 4219 SET UNIT’S DIP TO AUX PWR INSTALLATIONS. USE 12V, 17.2AH BATTERY FOR REPLACEMENT, WIRED EXPANSION MODULE 9-PIN CONNECTOR SWITCH FOR OUTPUT (8 ADD'L EOLR WIRED ZONES) BLK – FOR 500mA AUX POWER. SEE INSTRUCTIONS. USE SAME VALUE USED FOR 4300 DEVICE...

  • Page 144: Limited Warranty

    LIMITED WARRANTY Alarm Device Manufacturing Company, a Division of Pittway Corporation, and its divisions, subsidiaries and affiliates (“Seller”), 165 Eileen Way, Syosset, New York 11791, warrants its products to be in conformance with its own plans and specifications and to be free from defects in materials and workmanship under normal use and service for 24 months from the date stamp control on the product or, for products not having an Ademco date stamp, for 12 months from date of original purchase unless the installation instructions or catalog sets forth a shorter period, in...
