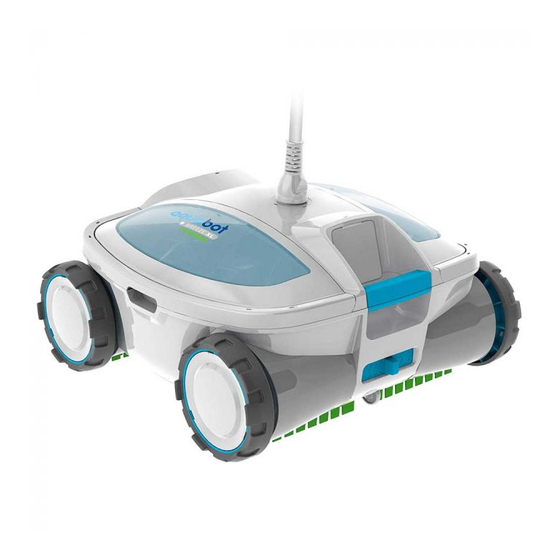

- Page 1 820420 BREEZE XLS ROBOTIC POOL CLEANER SETTINGS AND TROUBLESHOOTING GUIDE PLEASE READ CAREFULLY BEFORE USING YOUR POOL CLEANER Aqua Products, Inc 282 Grove Avenue Cedar Grove, NJ 07009 United States...
-
Page 2: Power Supply
product settings and troubleshooting WArnings WArning: Do not turn the Power Supply on, unless the pool cleaner is in the water. WArning: Do not operate your machine while people swim in the pool. WArning: The Power Supply must be placed at least 12 feet / 4 meters from the pool’s edge at all times! See diagram below. WArning: To prevent possible electric shock hazard this unit must be connected to an RCD (Residual Current Device) with a related residual operating current not exceeding 30mA. - Page 3 product settings and troubleshooting To set the preferred turning radius move the slider product settings either to the left or right . See the diagram below. AdJusting the AXle Your cleaner moves about your pool by way of an adjustable axle. This adjustable axle is controlled by a slider that is located on the front of the cleaner.
- Page 4 product settings and troubleshooting product settings re-instAlling Filter bAsKets AFter cleAning After you have cleaned the filter baskets, you’ll need to re-install them back into the cleaner. Make sure the channels on the basket are clear of any debris or they won’t close completely. Carefully slide them back into the cleaner so they are secure.
- Page 5 product settings and troubleshooting pAssiVe AgitAtor brush (select models) Select models have passive agitator brushes. These brushes are not moving parts or powered by your cleaner. It is meant to pass over your pool floor and agitate dirt and debris in order to get vacuumed up into the cleaner. NOTE: Please do not attempt to remove this brush.
- Page 6 product settings and troubleshooting WArnings WArning: Do not turn the Power Supply on, unless the pool cleaner is in the water. WArning: Do not operate your machine while people swim in the pool. / OFF WArning: The Power Supply must be placed at least 12 feet / 4 meters from the pool’s edge at all times! See diagram below.
- Page 7 Aqua Products, Inc 282 Grove Avenue Cedar Grove, NJ 07009 United States...
