Ness 104-464 NIP200 User Manual

Ness 104-464 NIP200 User Manual

Full hd anti-vandal dome ip camera
Hide thumbs Also See for 104-464 NIP200:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Installation Manual, Quick Manual
104-464 NIP200
Full HD Anti-Vandal Dome IP Camera
User's MANUAl
www.ness.com.au
REV1.5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 104-464 NIP200 and is the answer not in the manual?

Questions and answers

Related Manuals for Ness 104-464 NIP200

Summary of Contents for Ness 104-464 NIP200

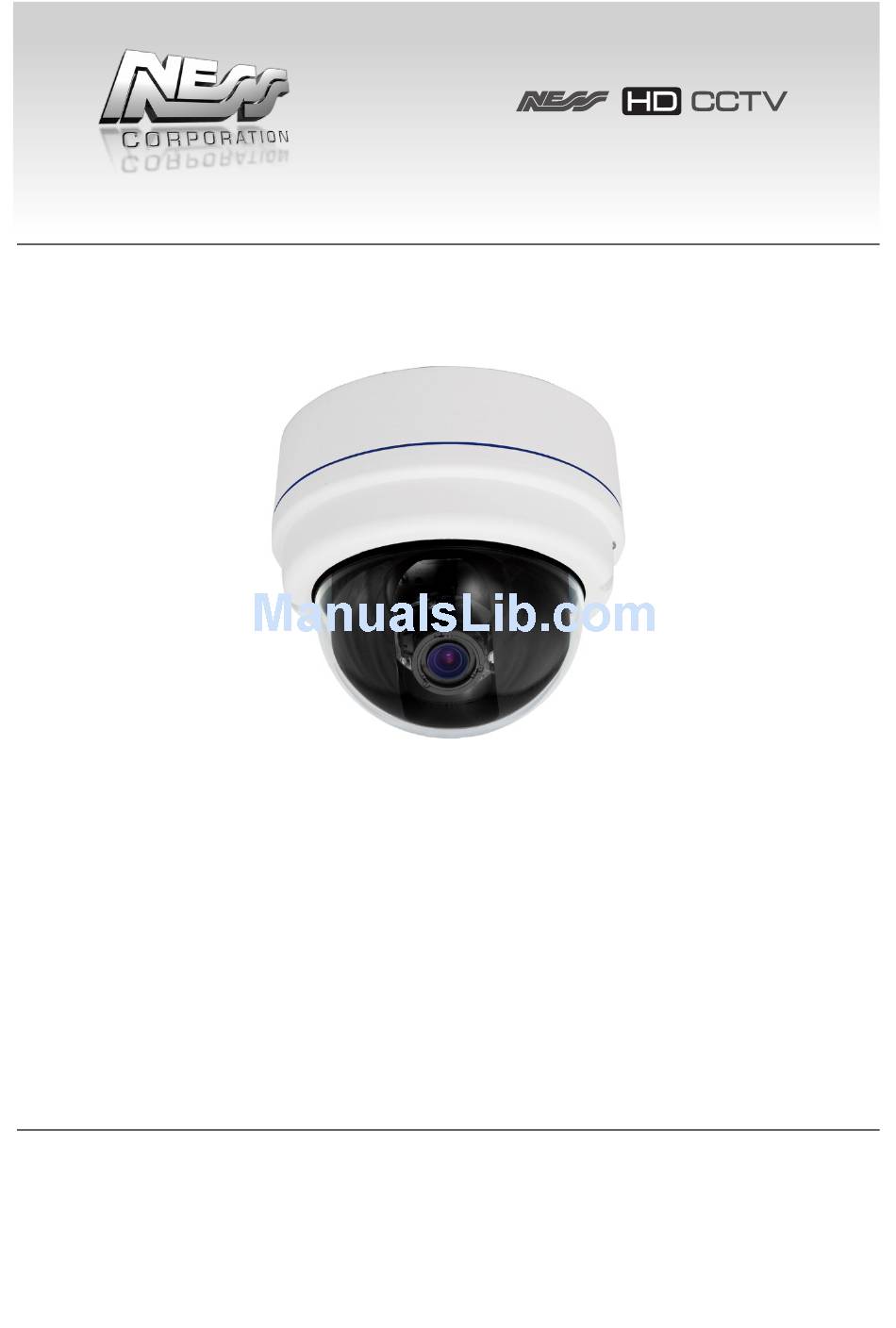

  • Page 1 104-464 NIP200 Full HD Anti-Vandal Dome IP Camera User’s MANUAl www.ness.com.au REV1.5...
  • Page 2 All rights reserved. No part of this publication may be reproduced, transmitted or stored in a retrieval system in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of Ness. Ness reserves the right to make changes to features and specifications at any time without prior notification in the interest of ongoing product development and improvement.

  • Page 3: Table Of Contents

    Table of Contents Overview ..........................2 Features ........................2 Package Contents ....................... 3 Dimensions ........................5 Connectors ........................6 Camera Cabling ........................7 Connect Power ......................7 Connect Ethernet Cable....................7 Connect Alarm I/O ....................... 7 System Requirements......................8 Access Camera ........................9 Setup Video Resolution ......................

  • Page 4: Overview

    Overview The IP Camera features decent low light performance, high resolution up to 5 Megapixel, various video resolution combination, multiple video compression formats, etc. It also supports true day / night and 3DNR function, which display clear images in low light conditions. Moreover, the proprietary SPQ (Smart Picture Quality) function allows delivering quality images especially under intensive motion and low light conditions.

  • Page 5: Package Contents

    Package Contents Please check the package contains the following items listed below. Indoor Camera Package Contents Vandal Proof DC Jack Cable & Power Terminal Block Fixed Dome IP Camera Rubber Washers (×6) Security Torx Self Tapping Screws Plastic Screw Anchors (×4) (×4) Quick Guide...
  • Page 6 Outdoor Camera Package Contents DC Jack Cable & Power Terminal Block Vandal Proof Fixed Dome IP Camera Security Torx Hexagon Screw-M8*16 (x1) Spring Washer (×1) Pendant Tube Washer (×1) Rubber Washer (×1) (bundled software and documentation) Quick Guide...

  • Page 7: Dimensions

    Dimensions The IP Dome Camera’s dimensions are shown below. Indoor Top View Side View Outdoor Top View Side View...

  • Page 8: Connectors

    Connectors The diagram below shows the IP Camera’s reset button and various connectors. Definition for each connector will be given as follows. Connector Definition Remarks Reset Button Restore to factory default Analog Video Output GND (Input－) Input＋ Alarm I/O Alarm connection Output－...

  • Page 9: Camera Cabling

    Camera Cabling Please follow the instructions below to complete IP Camera connection. Connect Power Please refer to Section: Connectors. Alternatively, connect the Ethernet cable to the camera’s PoE port and plug the other end of the cable into a PoE switch. NOTE: If using PoE, make sure Power Sourcing Equipment (PSE) is in use in the network.

  • Page 10: System Requirements

    System Requirements To perform the IP Camera via web browser, please ensure your PC is in good network connection, and meet system requirements as described below. Items System Requirement ® ® 1. Intel Pentium M, 2.16 GHz or ® Personal Computer Intel Core 2 Duo, 2.0 GHz...

  • Page 11: Access Camera

    Access Camera For initial access to the IP Camera, users can search the camera through the installer program: DeviceSearch.exe, which can be found in “DeviceSearch” folder in the supplied CD. Device Search Software Setup Step 1: Double click on the program Device Search.exe. After its window appears, click on the <Device Search>...
  • Page 12 Additionally, users can change the IP Camera’s network property, either DHCP or Static IP directly in the device finding list. Refer to the following section for changing the IP Camera’s network property. Example of Changing IP Camera’s Network Property Users can directly change an IP Camera’s network property, ex. from static IP to DHCP, in the finding device list.
  • Page 13 The download procedure of DC Viewer software is specified as follows. Step 1: In the DC Viewer installation window, click on <Next> to start installation. Step 2: The status bar will show the installation progress. After the installation is completed, click on <Finish> to exit the installation process. Step 3: Click on <Finish>...
  • Page 14 Motorized Model Image and Focus Adjustment The image displays on the Home page when successfully accessing to the IP Camera. Adjust zoom and focus as necessary to produce a clear image. Note: Please refer to Full HD Multiple Streams IP Camera Menu Tree for more button function detail.

  • Page 15: Setup Video Resolution

    Setup Video Resolution Users can setup Video Resolution on Video Format page of the user-friendly browser-based configuration interface. Video Format can be found under this path: Streaming> Video Format. The default value of Video Resolution is as below: H.264- 1920 x 1080 (15 fps) + H.264- 1280 x 720 (30 fps) 2M Real time H.264- 1920 x 1080 (30 fps) + H.264 720 x 480 (30 fps) For more Video Resolution combination detail, please refer to...

  • Page 16: Configuration Files Export/ Import

    Configuration Files Export/ Import To export/ import configuration files, users can access the Maintenance page on the user-friendly browser-based configuration interface. The Maintenance setting can be found under this path: System> Maintenance. Users can export configuration files to a specified location and retrieve data by uploading an existing configuration file to the IP Camera.

  • Page 17: Appendix A: Technical Specifications

    Appendix A: Technical Specifications Camera 2M Real time Image Sensor 1/2.7” Progressive CMOS Effective Pixels 1920(H) x 1080(V) 0.2 lux (Color) Minimum Illumination 0.02 lux (B/W) White Balance Manual / AWB/ ATW Shutter Speed 1~ 1/10000 sec. Lens Lens Vari-focal / Motorized Vari-focal / Motorized / 3x AF Focal Length 3~9 mm...
  • Page 18 Mechanical Working distance up to 25 m Built-in IR Wavelength 850 nm Illuminator* Number of LEDs LED Indicator Power / Link / ACT Alarm 4 Pin Terminal Block Power 3 Pin Terminal Block Connectors Ethernet RJ-45 Analog Video 1.0 Vp-p / 75 Ω, BNC Audio Line in, Line out General...
  • Page 19 Camera Image Sensor 1/2.7” Progressive CMOS Effective Pixels 2048(H) x 1536(V) 2592(H) x 1944(V) 0.2 lux (Color) Minimum Illumination 0.02 lux (B/W) White Balance Manual / AWB/ ATW Shutter Speed 1~ 1/10000 sec. Lens Lens Vari-focal / Motorized Vari-focal / Motorized Focal Length 3~9 mm 3.6 ~ 9 mm...
  • Page 20 Mechanical Working distance up to 25 m Built-in IR Wavelength 850 nm Illuminator* Number of LEDs LED Indicator Power / Link / ACT Alarm 4 Pin Terminal Block Power 3 Pin Terminal Block Connectors Ethernet RJ-45 Analog Video 1.0 Vp-p / 75 Ω, BNC Audio Line in, Line out General...

  • Page 21: Appendix B: Delete The Existing Dc Viewer

    Appendix B: Delete the Existing DC Viewer For users who have installed the DC Viewer in the PC previously, please first remove the existing DC Viewer from the PC before accessing to the IP Camera. Deleting the DC Viewer In the Windows <Start Menu>, activate <Control Panel>, and then double click on <Add or Remove Programs>.

  • Page 22: Appendix C: Setup Internet Security

    Appendix C: Setup Internet Security If ActiveX control installation is blocked, please either set Internet security level to default or change ActiveX controls and plug-ins settings. Internet Security Level: Default Step 1: Start the Internet Explorer (IE). Step 2: Click on the <Tools> tab on the menu bar and select <Internet Options>. Step 3: Click on the <Security>...

  • Page 23: Appendix D: Video Resolution

    Appendix D: Video Resolution 2M- Quad Streams H.264 + H.264 + H.264 + H.264 / MJPEG H.264-1 H.264-2 H.264-3 H.264-4 / MJPEG 720 x 480 (15 fps) 352 x 240 (30 fps) 1280 x 1024 (15 fps) 640 x 480 (15 fps) 352 x 240 (30 fps) 352 x 240 (30 fps) 352 x 240 (30 fps)
  • Page 24 H.264 + H.264 + H.264 + H.264 / MJPEG H.264-1 H.264-2 H.264-3 H.264-4 / MJPEG 720 x 480 (30 fps) 1280 x 720 (15 fps) 640 x 480 (30 fps) 352 x 240 (30 fps) 720 x 480 (30 fps) 800 x 600 (15 fps) 640 x 480 (30 fps) 800 x 600 (30 fps)
  • Page 25 H.264 + H.264 + H.264 + H.264 / MJPEG H.264-1 H.264-2 H.264-3 H.264-4 / MJPEG 720 x 480 (30 fps) 1280 x 720 (15 fps) 640 x 480 (30 fps) 1280 x 720 (30 fps) 352 x 240 (30 fps) 720 x 480 (30 fps) 1280 x 720 (15 fps) 800 x 600 (30 fps)
  • Page 26 H.264 + H.264 + H.264 + H.264 / MJPEG H.264-1 H.264-2 H.264-3 H.264-4 / MJPEG 640 x 480 (30 fps) 352 x 240 (30 fps) 1024 x 768 (30 fps) 352 x 240 (30 fps) 352 x 240 (30 fps) 800 x 600 (30 fps) 352 x 240 (30 fps) 720 x 480 (30 fps)

  • Page 27: Triple Streams

    2M- Triple Streams H.264-1 + H.264-2 + H.264-3 / MJPEG H.264-1 H.264-2 H.264-3 / MJPEG 800 x 600 (15 fps) 720 x 480 (15 fps) 1280 x 1024 (15 fps) 640 x 480 (15 fps) 352 x 240 (30 fps) 1280 x 720 (15 fps) 800 x 600 (15 fps) 1280 x 720 (15 fps)
  • Page 28 H.264-1 + H.264-2 + H.264-3 / MJPEG H.264-1 H.264-2 H.264-3 / MJPEG 1280 x 720 (30 fps) 352 x 240 (30 fps) 1024 x 768 (30 fps) 352 x 240 (30 fps) 800 x 600 (30 fps) 720 x 480 (30 fps) 800 x 600 (30 fps) 640 x 480 (30 fps) 352 x 240 (30 fps)

  • Page 29: Dual Streams

    2M- Dual Streams H.264-1 + H.264-2 / MJPEG H.264-1 H.264-2 / MJPEG BNC SUPPORT 1280 x 1024 (15 fps) 1280 x 720 (30 fps) 1024 x 768 (30 fps) 1920 x 1080 (15 fps) 800 x 600 (30 fps) 720 x 480 (30 fps) √...

  • Page 30: Real Time / 3M / 5M- Quad Streams

    2M Real time / 3M / 5M- Quad Streams H.264 + H.264 + H.264 + H.264 / MJPEG H.264-1 H.264-2 H.264-3 H.264-4 / MJPEG 720 x 480 (10 fps) 352 x 240 (10 fps) 640 x 480 (10 fps) 720 x 480 (10 fps) 640 x 480 (10 fps) 352 x 240 (10 fps) 2592 x 1944 (10 fps)
  • Page 31 H.264 + H.264 + H.264 + H.264 / MJPEG H.264-1 H.264-2 H.264-3 H.264-4 / MJPEG 720 x 480 (15 fps) 1280 x 720 (15 fps) 640 x 480 (15 fps) 352 x 240 (30 fps) 720 x 480 (30 fps) 800 x 600 (15 fps) 640 x 480 (30 fps) 800 x 600 (30 fps)
  • Page 32 H.264 + H.264 + H.264 + H.264 / MJPEG H.264-1 H.264-2 H.264-3 H.264-4 / MJPEG 720 x 480 (30 fps) 1280 x 720 (15 fps) 640 x 480 (30 fps) 1280 x 720 (30 fps) 352 x 240 (30 fps) 720 x 480 (30 fps) 1280 x 1024 (15 fps) 800 x 600 (30 fps)
  • Page 33 H.264 + H.264 + H.264 + H.264 / MJPEG H.264-1 H.264-2 H.264-3 H.264-4 / MJPEG 800 x 600 (30 fps) 352 x 240 (30 fps) 720 x 480 (30 fps) 352 x 240 (30 fps) 1280 x 720 (30 fps) 640 x 480 (30 fps) 352 x 240 (30 fps) 352 x 240 (30 fps)
  • Page 34 H.264 + H.264 + H.264 + H.264 / MJPEG H.264-1 H.264-2 H.264-3 H.264-4 / MJPEG 800 x 600 (30 fps) 352 x 240 (30 fps) 720 x 480 (30 fps) 720 x 480 (30 fps) 640 x 480 (30 fps) 800 x 600 (30 fps) 352 x 240 (30 fps) 640 x 480 (30 fps)

  • Page 35: Real Time / 3M / 5M- Triple Streams

    2M Real time / 3M / 5M- Triple Streams H.264-1 + H.264-2 + H.264-3 / MJPEG H.264-1 H.264-2 H.264-3 / MJPEG 720 x 480 (10 fps) 720 x 480 (10 fps) 640 x 480 (10 fps) 2592 x 1944 (10 fps) 352 x 240 (10 fps) 640 x 480 (10 fps) 640 x 480 (10 fps)
  • Page 36 H.264-1 + H.264-2 + H.264-3 / MJPEG H.264-1 H.264-2 H.264-3 / MJPEG 1280 x 720 (30 fps) 1280 x 1024 (15 fps) 800 x 600 (30 fps) 720 x 480 (30 fps) 1280 x 1024 (30 fps) 640 x 480 (30 fps) 352 x 240 (30 fps) 1280 x 1024 (15 fps) 1280 x 720 (15 fps)
  • Page 37 H.264-1 + H.264-2 + H.264-3 / MJPEG H.264-1 H.264-2 H.264-3 / MJPEG 800 x 600 (30 fps) 720 x 480 (30 fps) 800 x 600 (30 fps) 640 x 480 (30 fps) 352 x 240 (30 fps) 720 x 480 (30 fps) 800 x 600 (30 fps) 720 x 480 (30 fps) 640 x 480 (30 fps)

  • Page 38: Real Time / 3M / 5M- Dual Streams

    2M Real time / 3M / 5M- Dual Streams H.264-1 + H.264-2 / MJPEG H.264-1 H.264-2 / MJPEG BNC SUPPORT 720 x 480 (10 fps) 2952 x 1944 (10 fps) 640 x 480 (10 fps) 352 x 240 (10 fps) *The resolution is for 5M Model only.

  • Page 39: Real Time / 3M / 5M- Single Stream

    2M Real time / 3M / 5M- Single Stream H.264 Only BNC SUPPORT 2592 x 1944 (10 fps)* 2048 x 1536 (15 fps)** 1920 x 1080 (30 fps) Low Latency*** 1920 x 1080 (30 fps) √ 1280 x 1024 (30 fps) √...
