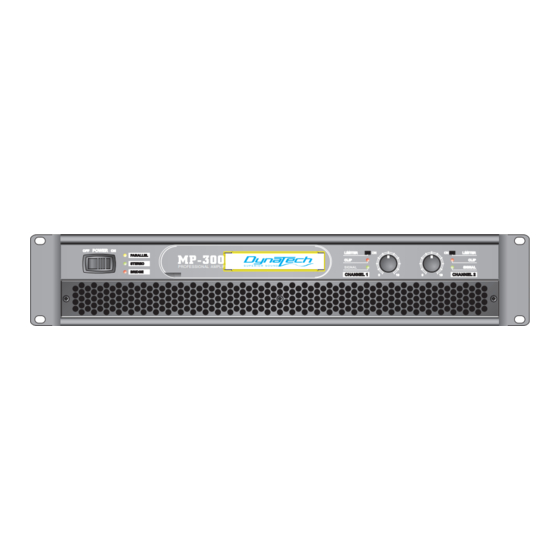

Dynatech MP-3000 Owner's Manual

Professional power amplifiers mp series
Hide thumbs
Table of Contents

Advertisement

Quick Links

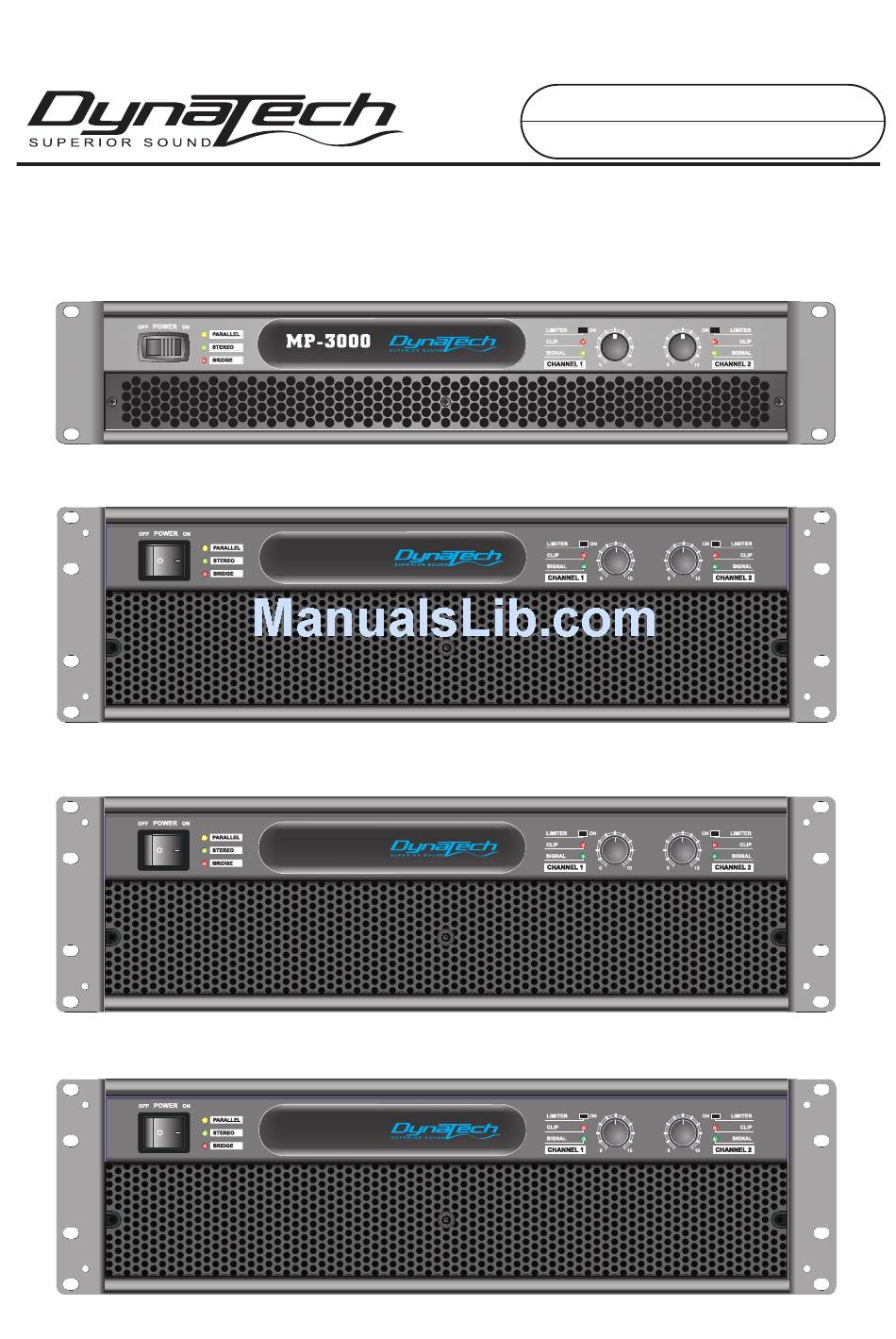

PROFESSIONAL POWER AMPLIFIERS
OWNER`S MANUAL
PROFESSIONAL AMPLIFIER
MP-4000
PROFESSIONAL AMPLIFIER
PROFESSIONAL AMPLIFIER
MP-5000
PROFESSIONAL AMPLIFIER
MP-7000
PROFESSIONAL AMPLIFIER
MP SERIES
MP-3000 (2U MODEL)
MP-4000 MP-5000 MP-7000 ( 3U MODEL)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MP-3000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dynatech MP-3000

Summary of Contents for Dynatech MP-3000

  • Page 1 MP SERIES MP-3000 (2U MODEL) MP-4000 MP-5000 MP-7000 ( 3U MODEL) PROFESSIONAL POWER AMPLIFIERS OWNER`S MANUAL PROFESSIONAL AMPLIFIER MP-4000 PROFESSIONAL AMPLIFIER PROFESSIONAL AMPLIFIER MP-5000 PROFESSIONAL AMPLIFIER MP-7000 PROFESSIONAL AMPLIFIER...

  • Page 2: Important Precautions

    MP SERIES Important Precautions MP-3000 (2U MODEL) PROFESSIONAL POWER AMPLIFIERS MP-4000 MP-5000 MP-7000 ( 3U MODEL) Important Precautions 10.Power down & disconnect units from 20.Non-use periods. The power cord of This symbol is used to alert the oper- ator to follow important operating...

  • Page 3: Table Of Contents

    MP SERIES Table of Contents MP-3000 (2U MODEL) PROFESSIONAL POWER AMPLIFIERS MP-4000 MP-5000 MP-7000 ( 3U MODEL) Table of Contents Page 1.Front Views & Rear Views 2.Introduction 3.Unpacking 4.Installation and Mounting 5.Front Panel 6.Rear Panel 7.Operation 8.Mode Selection 9.Protection 10.Specifications...
  • Page 4 MP SERIES Front Views & Rear Views MP-3000 (2U MODEL) PROFESSIONAL POWER AMPLIFIERS MP-4000 MP-5000 MP-7000 ( 3U MODEL) MP-3000(2U MODEL) Front & Rear View Front width 19inch 483mm Front height 3.5inch 89mm INPUT PUSH TO RESET POWER AMPLIFIER FREQUENCY FREQUENCY BAL.

  • Page 5: Professional Power Amplifiers

    Be sure to save the carton and all packing materials for the carrier's inspection. If your packing materials are in good condition, please save them. If you ever need to ship the unit back to DynaTech or an authorized service center, you should use only the original factory packing.

  • Page 6: Front Panel

    Mode. 4. DynaTech Logo and Model No. MP series have 4 type model MP-4000/MP-5000/MP7000 (3U model) /MP-3000(2U model). 5. Fan Inlet Grills and Filter. MP Series amplifiers are cooled by two rear-mounted fans. Cool air from front grills are filtered and flows over the heat sinks and exhausts to back side .

  • Page 7: Rear Panel

    MP SERIES Rear Panel MP-3000 (2U MODEL) PROFESSIONAL POWER AMPLIFIERS MP-4000 MP-5000 MP-7000 ( 3U MODEL) Rear Panel INPUT PUSH TO RESET POWER AMPLIFIER FREQUENCY FREQUENCY BAL. WOOF WOOF 20Hz 200Hz STEREO 20Hz 200Hz BRIDGE PARALLEL NORMAL NORMAL ~220VAC 50Hz 1800 WATTS Serial No.:...
  • Page 8 MP SERIES Rear Panel MP-3000 (2U MODEL) PROFESSIONAL POWER AMPLIFIERS MP-4000 MP-5000 MP-7000 ( 3U MODEL) 16. Mode Selection Switch. This recessed, three-position switch configures the amplifier for Stereo, Parallel or Bridged Mode oper- ation. Amplifiers are factory-configured for Stereo Mode. See section on Mode Selection for more information.

  • Page 9: Operation

    Connecting Inputs. Use either the XLR or 1/4-inch input connectors on the rear to supply audio signals to your DynaTech MP Series amplifier. Both connectors accept balanced and unbalanced audio connections. (The MP Series amplifiers are configured standard with "Pin 2 hot"...

  • Page 10: Mode Selection

    MP SERIES Mode Selection MP-3000 (2U MODEL) PROFESSIONAL POWER AMPLIFIERS MP-4000 MP-5000 MP-7000 ( 3U MODEL) Mode Selection The three-position, recessed Mode Select switch (located on the rear panel) configures the amplifier for either Stereo, Parallel or Bridged Mono Mode. Amplifiers are factory-configured for Stereo Mode.

  • Page 11: Stereo Mode Connections

    MP SERIES Mode Selection MP-3000 (2U MODEL) PROFESSIONAL POWER AMPLIFIERS MP-4000 MP-5000 MP-7000 ( 3U MODEL) Stereo Mode Connections Ch.2 Ch.1 input input INPUT PUSH TO RESET POWER AMPLIFIER FREQUENCY FREQUENCY BAL. WOOF WOOF 20Hz 200Hz STEREO 20Hz 200Hz BRIDGE...

  • Page 12: Parallel Mode Connections

    MP SERIES Mode Selection MP-3000 (2U MODEL) PROFESSIONAL POWER AMPLIFIERS MP-4000 MP-5000 MP-7000 ( 3U MODEL) Parallel Mode Connections Ch.1 input INPUT PUSH TO RESET POWER AMPLIFIER FREQUENCY FREQUENCY BAL. WOOF WOOF 20Hz 200Hz STEREO 20Hz 200Hz BRIDGE PARALLEL NORMAL...

  • Page 13: Bridge Mode Connections

    MP SERIES Mode Selection MP-3000 (2U MODEL) PROFESSIONAL POWER AMPLIFIERS MP-4000 MP-5000 MP-7000 ( 3U MODEL) Bridge Mode Connections Ch.1 input INPUT PUSH TO RESET POWER AMPLIFIER FREQUENCY FREQUENCY BAL. WOOF WOOF 20Hz 200Hz STEREO 20Hz 200Hz BRIDGE PARALLEL NORMAL...

  • Page 14: Protection

    MP SERIES Protection MP-3000 (2U MODEL) PROFESSIONAL POWER AMPLIFIERS MP-4000 MP-5000 MP-7000 ( 3U MODEL) Protection Limiter The MP series comes with a built-in limiter. When the input signal overloads, the “CLIP LED’s” indicate a signal overload, at this time, the master volume should be lowered to reduce distortion. If the input gain level is not reduced the built-in limiter will activate.
  • Page 15 MP SERIES MP-3000 (2U MODEL) PROFESSIONAL POWER AMPLIFIERS MP-4000 MP-5000 MP-7000 ( 3U MODEL) MODEL NO. MP-3000 MP-4000 MP-5000 MP-7000 Output Power: 2 ohm,1 khz 1% THD 1200w RMS Per Ch. 1700w RMS Per Ch. 2300w RMS Per Ch. 3000w RMS Per Ch.
  • Page 16 Sonotone Electronics Tel:+91-22-26613499 Fax:+91-22-26614600...
