PRECAUTION Do not open or modify Do not adjust the camera's internal circuits or power supply modules, as it may cause damage to the unit. For internal set up and repair, please consult our dealer. Do not put objects inside the unit Do not put metal objects or flammable substance inside the camera for it may cause damage to the unit.

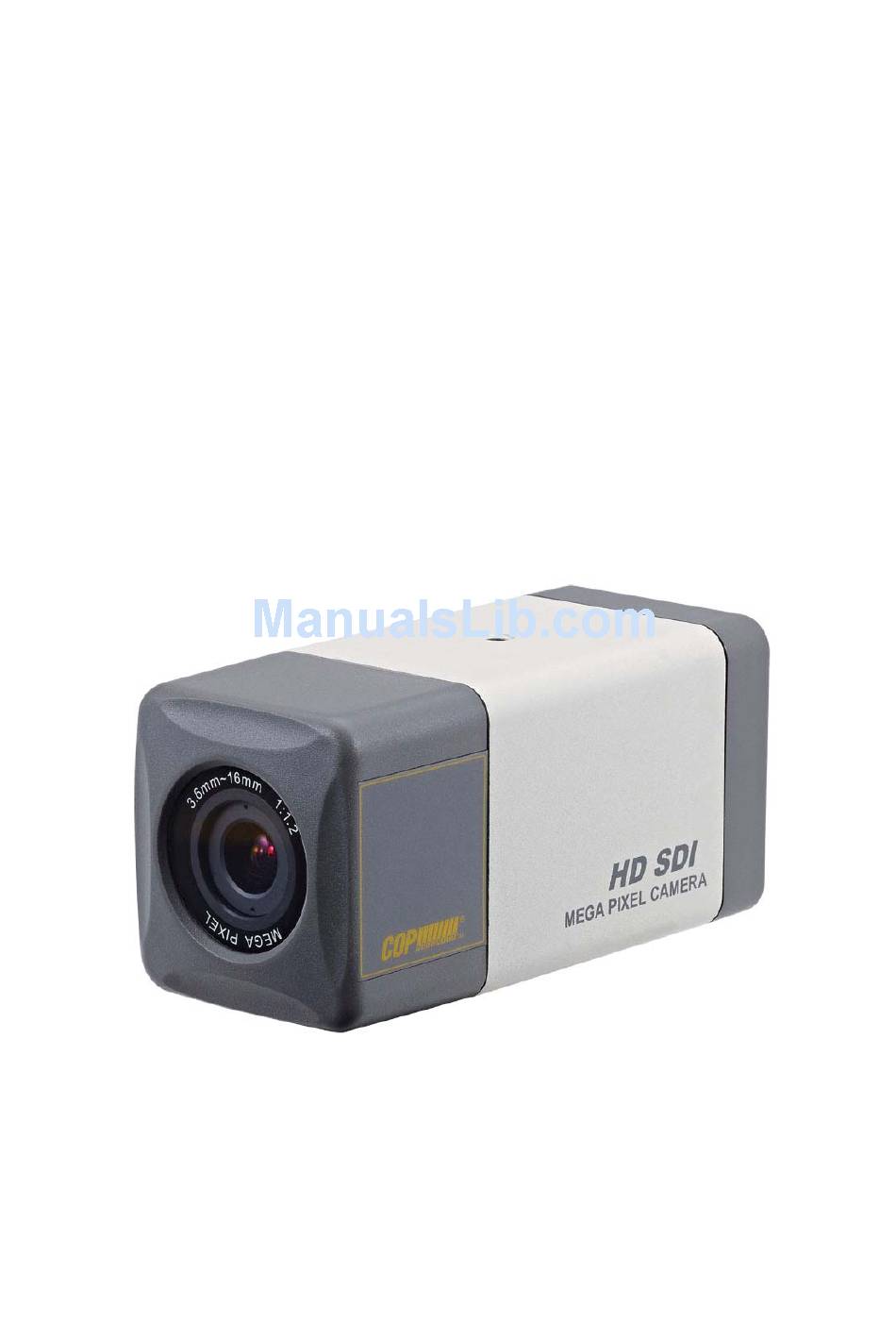

FEATURES MODEL:15-CAH22V HD-SDI and CVBS Dual Video Outputs Wide Dynamic Range (WDR) Adaptive Contrast Enhancement (ACE) Support fog reduce / high light compensation (HLC) Build-in Motorized Vari-focal Lens Build-in Hi-Quality Mage-Pixel Lens Build-in ICR Module With D/N Function Build-in OSD Function...
SPECIFICATIONS MODE NO. 15-CAH22V TV System NTSC / PAL Image Sensor 1/3-inch CMOS image Sensor (Hi-Res) Total Pixel size 2010(H) ×1108(V) Effective Pixel size 1944(H) ×1092(V) Lens Motorized Vari-focal Auto IRIS Lens 3.6~16mm Scanning system Progressive Synchronization Internal Digital output:...
Page 6
FUNCTION Backlight control ON / OFF (Set up area to control BLC function) ON / OFF (Auto GAIN Control) ON / OFF (Adaptive Contrast Enhancement) *When ACE is on, WDR and Defog function can’t turn on. ON / OFF (Wide Dynamic Range) *When WDR is on, ACE and Defog function can’t turn on.
Page 7
Control key and function 1. POWER INPUT (DC 12V) 2. RS-485 KEYBOARD CONTROL:15-AU50EH,15-AU50H,15-AU50ES... 3. ICR TRIGGER ICR FILTER CONTROL BY EXTERNAL WITH NO/NC 4. VBS OUTPUT 5. SDI OUTPUT 6. POWER LED (GREEN) 7. FUNCTION LED (YELLOW) 8. OSD / FUNCTION SWITCH Press ▲▼...
OSD Menu Operation Instruction ◆ Main Menu MENU MODEL D&N EXPOSURE WHITE BAL IMAGE INTELLIGENCE SPECIAL FUNC DISPLAY EXIT Functions can be setup using Menu Key of Pelco protocol. The menu consists of the “Main Menu” and “Sub Menu”. The main menu is displayed where 6 camera functions can be selected. To the push of each main menu selection, the sub-menu is displayed.
Page 9
◆ EXPOSURE MENU EXPOSURE MODEL D&N BRIGHTNESS l-------i-------l 0 EXPOSURE LENS WHITE BAL SHUT SPEED AUTO IMAGE FLICKERLESS INTELLIGENCE SPECIAL FUNC DISPLAY WDR/BLC EXIT DAY&NIGHT SMART IR RETURN ◈ BRIGHTNESS : Adjust brightness level ► 0(dark) ~ 20(bright) steps ◈ LENS : Select LENS type ►...
Page 10
► BLC ▷ AREA: Control BLC area according to light condition. ▷ POS-X: Adjust the window X-Axis position ▷ POS-Y: Adjust the window Y-Axis position ▷ SIZ-X: Adjust the window X-Axis size ▷ SIZ-Y: Adjust the window Y-Axis size When WDR is ON, ACE and DEFOG function will be off. ◈...
◆ WHITE BAL MENU WHITE BAL MODEL D&N EXPOSURE AUTO WHITE BAL CHROMA l-------i-------l 0 IMAGE RETURN INTELLIGENCE SPECIAL FUNC DISPLAY EXIT ◈ AWB: Select WHITE BALANCE mode ► AUTO / PRESET / MANUAL / INDOOR / OUTDOOR ▷ AUTO: Automatically adjusts color according to the available lighting. ▷...
Page 12
◆ IMAGE MENU IMAGE MODEL D&N SHARPNESS EXPOSURE MIRROR WHITE BAL FREEZE IMAGE E.ZOOM INTELLIGENCE SPECIAL FUNC DISPLAY AUTO EXIT D.COMPRESS GAMMA 0.50 RETURN ◈ SHARPNESS: Adjust sharpness level ► 0 ~ 10 steps ◈ MIRROR: Select a flip mode ►...
Page 13
◈ GAMMA : Select GAMMA ► 0.45 / 0.50 / 0.55 / 0.6 / 0.65 ◆ INTELLIGENCE MENU INTELLIGENCE MODEL D&N EXPOSURE PRIVACY WHITE BAL MOTION IMAGE RETURN INTELLIGENCE SPECIAL FUNC DISPLAY EXIT ◈ PRIVACY: Hide an area you want to hide on the screen ►...
Page 14
◆ SPECIAL FUNC MENU SPECIAL FUNC MODEL D&N SHADING DET EXPOSURE SHADING WHITE BAL DEFECT DET IMAGE DEFOG INTELLIGENCE SYSTEM NTSC SPECIAL FUNC HD FORMAT 1080P DISPLAY EXIT CVBS COMM DEFAULT RETURN ◈ SHADING DET : Sets the shading calibration that the lens will perform. Only occurs when the entire screen is viewed in white light.
◈ COMM : Set up the camera ID, baud rate, protocol ▷ ID : Select the camera ID ► 1 ~ 255 ▷ BAUD RATE : Select serial communication speed ► 2400 / 4800 / 9600 / 19200 / 38400 / 57600 / 115200bps ▷...
