Page 1: User Manual

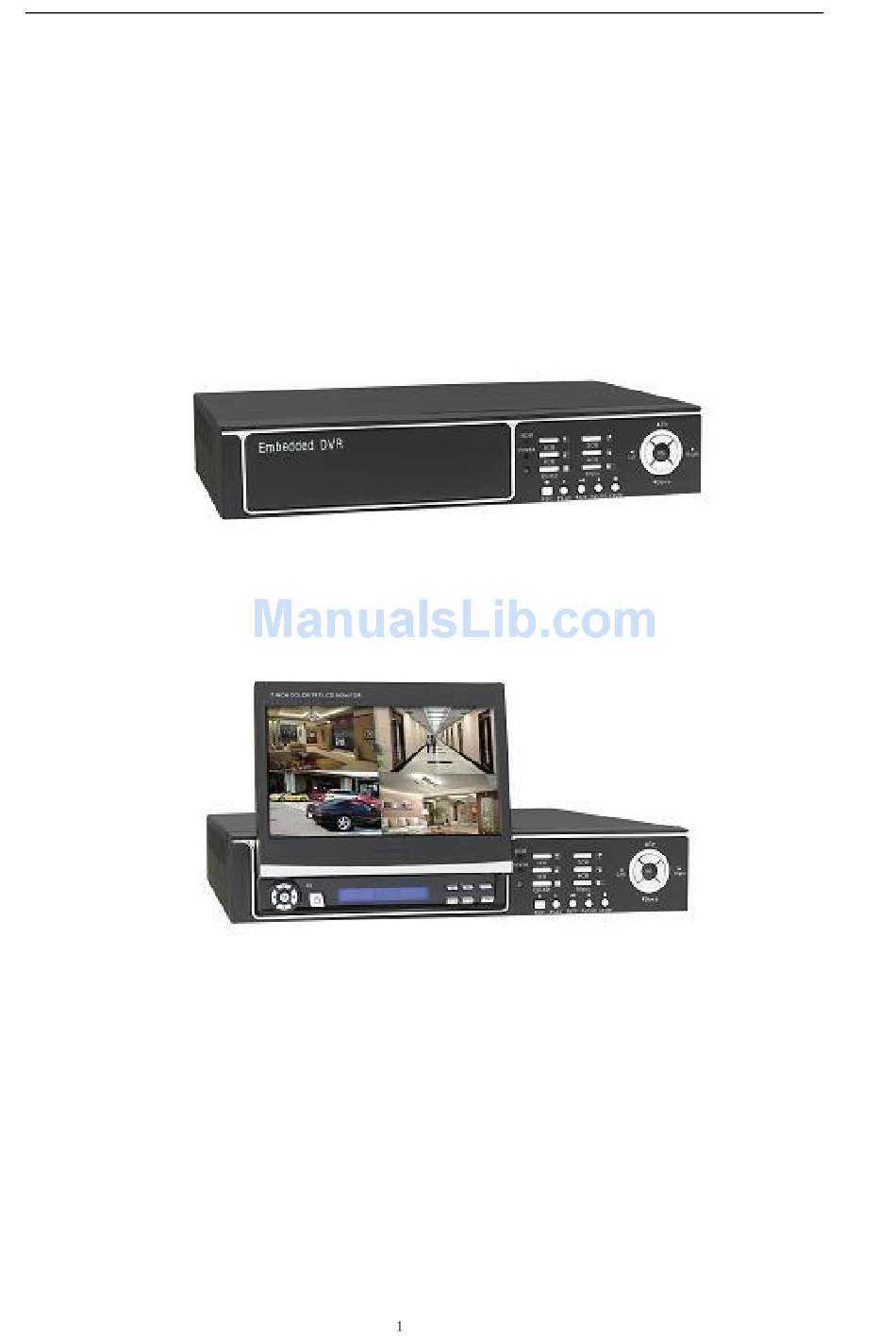

USER MANUAL DVR-8204/ 8204V / 8204SV DVR-8204T/ 8204ST Patent No. (200730174963.4) Design and specification will be occurred subject to change without notice! -
Page 2: Table Of Contents
5.7 IE direct X Remote Tool………………….……….……..27 Chapter 6 Upgrade...……………….…….……………...…….………...27 Appendix 1 DVR Back panel …………………………………...…….….33 Appendix 2 Alarm. Relay. PTZ Ports Contents ……….…….……….…34 Appendix 3 8204 CBR Stat. ……………………………………………..35 Appendix 4 Panel Illumination..............35 Appendix 5 Remote Control Illumination…………………..….………..37 Solution to DVR’S Problems…………………………….………….…..39... -
Page 3: Chapter 1 Introduction
Chapter 1 Introduction Embedded DVR is designed into embedded structure, possess characteristic of high definition, low cost, steady capability, simple operation etc. Support 4ch audio/video real time detection and kinescope, is use in the public and diversified private houses of super market. Park. -
Page 4: Chapter 2 Features
● Built -in 7 inch hidden LCD monitor, convenient for using (China Patent NO.200730174963.4) Chapter 2 Features... - Page 5 8204 8204V 8204S 8204SV SPECIFICATION Operation System Embedded Linux Compression Motion-JPEG NTSC: 4CH BNC Input/1CH BNC output. 1CH S-video output Video I/O PAL: 4CH BNC Input/1CH BNC output. 1CH S-video output Audio I/O 4CH BNC Input/ 1CH BNC Output NTSC:120 FPS(4*30 FPS )
- Page 6 8204T 8204ST -SPECIFICATION Operation System Embedded Linux Compression MJPEG NTSC: 4CH BNC Input/1CH BNC output. 1CH S-video output Video I/O PAL: 4CH BNC Input/1CH BNC output. 1CH S-video output Audio I/O 4CH BNC input/ 1CH BNC output NTSC:120 FPS(4*30 FPS ) Displaying Speed PAL: 100 FPS(4*25 FPS ) NTSC:30 FPS...
-
Page 7: Chapter 3 Instruction
6.5KG/4.9KG G.W/N.W: 330*230*60mm Size(L*W*H) Chapter 3 Instructions Windows is the Host Computer’s style, the system will display the menu related information when you move the mouse to operation interface, but if the mouse left, the menu will hide them. Special Note: All the DVR we sell is with PS/2, which is convenient for you to operate. - Page 8 “abc”: Bad command or file name”, then press “OK” several times until you can see the “8204>” 2) Input MAC address(if were 00:16:17:30:C9:3A), operation as follows: Input the order after DOS prompt “8204>” as below: 8204>setmac00:16:17:30:C9:3A Then will see the following information:...
- Page 9 or go to this edit box, press the enter key go into the fettle of edit. You can do like this: a) Can use the fluctuation key to rejigger content in cursor or press the mouse right and left key to rejigger it. b) Use the right and left key can move the position of sensor.
-
Page 10: Network
The system offer “Apply to” button press this to have configuration copy function. Support copies the configuration of current page to the option place. For example: RecordAfter setting relative configuration of Channel 1 in RecParam menu interface, select Channel2 on right side of “Apply to” CH2,Click “Apply to” to realize copy configuration information from Channel 1 to Channel 2. - Page 11 After open Multicast, the formerly connected client server will cut automatically. Have to reconnect to view surveillance image. System would not support public browse if open Multicast. Be likely to induce local area network busy. 3.1.2 PPPoE Network PPPoE use for setting PPPoE Dail connect. Input user and Password, then press OK.
-
Page 12: Hdd
IE Port: 3180 Then the Router should setting as follow: Thereinto, 54000 – 54030 is data transfer Port 6610 is command communication Port 3180 is IE Port The 3 all needed. Suppose Router address is 211.1.91.114. After setting, wide area network visit 2700 board as follow http://211.1.91.114:3180 Note Can not open PPPoE if use Port mapping, or it work abnormally. - Page 13 System can only recognize the main HDD when 2 HDD installed not matching.
-
Page 14: Record
3.3 Record The System contains 4 recording mode: Recording by hand, Schedule recording, recording parameter and image parameter. The following is guide for how to use each recording mode. 4 recording mode use same image setting: Record RecPara. The parameter description as follow: 3.3.1 Rec Parameter setting ●... - Page 15 Record----Image Para it is available to set brightness, contrast, and saturation and channel name of the picture. 3.3.3 Manual Rec Starting Rec: Record---Manual Rec, choosing the record channel as “V”, press the key OK and the relative channel start to record. On the preview page, you can see the record sign of the relative channel, on the Record---Manual Rec interface you can see the channel has changed to Rec or RETR.
-
Page 16: Playback
channels. 3.4 Playback Search Files Input inquirement conditions on the Search Files page in Playback, search condition contains: channel number, record style, and starting and end time of record, press Search key to search relative record file, and the system will return the right record file note. - Page 17 pause playing files, click it will switch to play normally. “■”is used to retreat play backing files. “▲”is used to increase volume. “▼”is used to reduce volume. Board and Remote Control operation: PLAY key is used to control speed, BACK key is used to control reverse speed, PAUSE key is used to pause/play files.
- Page 18 ” “is used to retreat play backing files. Board and Remote Control operation: PLAY key is used to control speed, BACK key is used to control reverse speed, PAUSE key is used to pause/play files. STOP key is used to retreat play backing files. When playback, If is defaulted by all channels, clicking the right key of mouse will close control list, if clicking the left key of mouse at relative channel place, it will increase the picture to D1, click it again, it will return to CIF.
-
Page 19: Alarm
recording , the playback will stop automatically .So sometimes like this problem will be happened, Audio playback without audio output or the audio disappear suddenly during playback, because audio recording start at the same time Only select file display then audio display can process, Time display can’t support audio display ... - Page 20 motion detection, green means not need check Mouse action .click the left mouse button to select / cancel the motion detection area, click right mouse button to save and exit after setting, click the middle button to cancel the setting and exit. Panel and remote operation: panel or remote menu button can select /cancel motion detection area, Top ,bottom, left, right button can shift to select grid, click enter button to save setting and exit, click stop button to cancel setting and exit.
-
Page 21: Ptz
valid. Click ok button to save when finish it Panel and remote operation: Switch the shift Note: 1. The default time of alarm is 24 hours each day 2. Can also set the time of motion detection and video loss 3.6 PTZ PTZ menu use for setting as 485 parameter, there are 4 protocols are available: b01, Samsung, pelco -d and pelco-p... - Page 22 VGA resolution select the corresponding resolution of monitor to set . PIP Config PIP Config is picture in picture function, with setting of background and foreground access .The first selection frame is the foreground access number, the second is the back ground access number Through mouse clicks PIP shortcut icon button or by the PIP button of remote and panel to start PIP function .Click the mouse right button or the Ch1~Ch4, QUAD button to exit PIP function ...
-
Page 23: Chapter 4 Screen
3.9.6Shutdown Operation to shutdown . reset and logout as per the instruction SystemShutdown 3.9.7About System version to find system version as per the instruction SystemAbout Chapter 4 Monitor 7 inch LCD monitor (16:9TFT LCD) Note only press“ ” to start 1.direction(M)stands for menu;... -
Page 24: Function Setting
1. BRIGHT 1 ~ 100 2. COLOR 1 ~ 100 3. CONTRAST 1 ~ 100 4. SHARPNESS 1 ~ 100 1 Press “MENU” to enter into setup interface 2 Press “←” “→” to select contents 3 Press up and down can choose the segment ... -
Page 25: System Setting
3. GAME 4 : 3 System setting Press Menu to choose system setting color system . Voice system. Game Press up and down to choose segment Press left and right to choose operation item Press Menu to sign out system setting Item Description 1. -
Page 26: Chapter 5 Ie Operations
Item Description 1. SLEEP 0~240 2. TIME -- : -- 24 hours 3. OFF TIME -- : -- 24 hours 4. ON TIME -- : -- 24 hours Note: LCD Monitor is an extractable high-tech precise product. Not allow you to touch screen when it’s working. In order to keep long life-time that It’s better to close when there is no need for it over one hour. -
Page 27: Real Monitor
5.3 Real Monitor Click “Real-monitor “to enter main interface. It will remind you to install DirectX when first entering the real time recording. (Pleas allow program pop up when system is going to block) IE security level is available to set default after IE’s installation. Real Monitor Main Interface Picture 2 Real Monitor Main Screen ... - Page 28 Picture 3 Real Monitor Operation From the picture 3, we can select the above channel by mouse, and then you can select CIF or Half D1 from resolution settings, and complete it at last. Notice Please keep the same resolution between server and IE, or the picture will be abnormal.(Like as: server is CIF, client is Half D1, it will only have half picture, or server is Half D1, client is CIF, it will have no picture, but only have data transmission)
-
Page 29: Remote Search
Click “stop” Click “resolution” to choose same resolution with server Click “play” to start monitor Notice All the operations in this menu are only for selected channel. 5.4 Remote Search Click “Remote Search” to enter main interface, as picture 4 in the following. Input search requirements, then click “search”, system will find your required record files. -
Page 30: Ptz Setting
5.6 PTZ Setting Click “PTZ Setting” to enter main screen as picture 5 as below: Please select required channel number, then do the settings as required, and click “Ok” to complete it. Picture 5 PTZ Setting 5.7 IE DirectX Remove Tool Chapter 6 Update They are two ways for DVR update: SATA and USB. -
Page 31: Chapter 6 Upgrade
Please according the following messages press “STOP” will enter boot loader alternation interface as follows: Files for SATA Upgrade:... - Page 32 Put the upgrade files “update.img” in U: / & split tool “SplitImage.exe” in a same content. Then running “SplitImage.exe”, there will be two files “fs.zip” & “linux2.zip” for SATA upgrade. Downloading “fs.zip” file. Delete primary file under “boot loader” input command: del 6 ...
- Page 33 Upgrade “boot loader” usually no need upgrade Under “boot loader” input command mt Switch to upgraded files under PC end command model, then input command: tftp -i 192.168.1.166 put bootloader.bin After files transfer done, Under “boot loader” input command g. ...
- Page 34 v1.1 SATA upgrade system...
- Page 35 v1.1 Download “fs.zip” Delete primary file under “bootloader” input command: del 6 under “bootloader” input command fx 6 romfs 0x7f0C0000 0xd00000 -acz According super terminal TXD: select: “send” “send files”choose files “fs.zip”, then choose “Xmodem”protocol, then press send. Download files “kernel”: ...
- Page 36 v1.1 Download “Kernel” sketch map:...
-
Page 37: Appendix 1 Dvr Back Panel
3. Audio out: audio sign output, can connect with all kind of audio equipments; 4. Video out: video sign output, can connect with TV, MONIOTR and so on; 5. VGA: VGA port system: such as MONITOR( 8204/8204T/8204ST have no VGA function);... -
Page 38: Appendix 2 Alarm. Relay. Ptz Ports Contents
v1.1 8. USB: support USB2.0, to backup and upgrade; 9. NET: internet port; 10. N/P : Means PAL or NTST ; 11. DC 12V: for adaptor; 12. ON/OFF: the power switch. Appendix 2. Alarm, Relay, PTZ ports contents Illumination GND grounding wire; ALMIN 1 4 1-4CH alarm in;... -
Page 39: Appendix 3 8204 Cbr Stat
Appendix 3. 8204 CBR Stat. Stat. way Choose one more complex but quiet picture, and then do the pictures setup that on the server. And can browse each channel through IE browser, Stat. the CBR through DU Meter. Choose one channel to count the yard speed under the condition of full frames. - Page 40 v1.1 DVR-8204T/8204ST Number Appellation Function illumination name it shows four channels on the screen Figure bond CH 1-4 when backup by time, it shows four channels backup, to switch to QUAD to start-up picture switch automatically QUAD Four picture when backup by time, it used to resume to QUAD enter the menu When motion detects setup, it means pitch...
-
Page 41: Appendix 5 Remote Control Illumination
v1.1 to switch functions setup in the menu can edit different numerical value change password choose documents when searching move cursor position when motion detect setup or time setup Used to switch to channel 1 when browse the website or backup by time. to switch functions setup in the menu can edit different numerical value change password... - Page 42 v1.1 Number Appellation Function illumination name to swicth functions setup in the menu can edit different numerical value change password choose documents when searching Direction move cursor position when motion detect setup or time setup Used to switch to channel 2 when browse the website or backup by time.
- Page 43 v1.1 to switch functions setup in the menu can edit different numerical value change password choose documents when searching RIGHT move cursor position when motion detect setup or time setup Used to switch to channel 4 when browse the website or backup by time. means OK Means pitch on or cancel means display the recording files that...
-
Page 44: Solution To Dvr's Problems
v1.1 Solution to DVR’s problem Question: why no pictures display on the monitor? Answer Check the video output line, does it well-connected? And does the monitor is AV input? If the monitor is well-connected, please check whether the main control board is with power, if not, please checks the adaptor (power) output. - Page 45 v1.1 battery. Question: after long time working, the LCD has no pictures or maybe other problems. Why? Answer: Please you can renew system and re- startup the DVR. If with other questions or problems, please contact with our company directly, we will try our best to help you.
