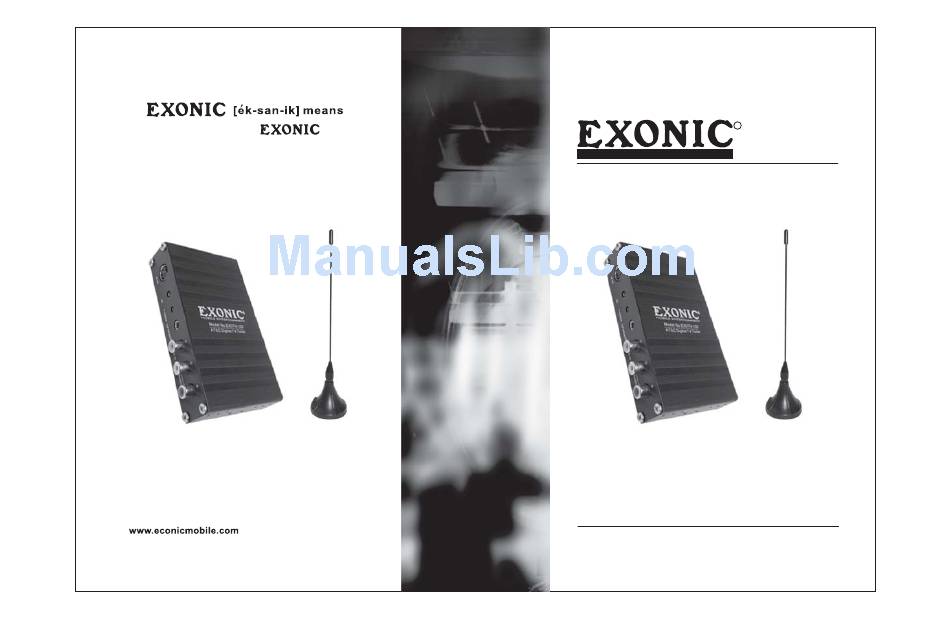

- Page 1 In Car Audio, Sonic Excellence by Mobile Entertainment MOBILE ENTERTAINMENT INSTRUCTION MANUAL EXDTV-100 EXONIC Mobile Entertainment Buena Park, CA. 90621 U.S.A. ATSC Digital TV Tuner with Antenna 1TINSE104---003...
-
Page 3: Table Of Contents
Specification Contents Key code of remote controller Safety Instruction Key NO . Function Data code Customer code POWER Main Features/Accessories MUTE 807F Remote Control Unit (RCU) IC:TT6222-1/ Install Instruction NEC6122 Starting CH & CC Setup CC Customer Parental Control -/-- V-Chip &... -
Page 4: Safety Instruction
Safety instruction Specification Connector: Power Cable And Jack 6Pins: 1.DC+12~24V Input 5.GND 2.ACC 6.GND Output WARNING 3.NC Please read the following instructions carefully. 4.DC+12~24V Output (2A MAX) * Do not expose the receiver to rain, moisture, direct sunlight or do not For IR Extension Box Audio Output:2 RCA Jacks (R/L) place it near a heater. -
Page 5: Main Features/Accessories
Specification Main features Tuner: R Input FULL BAND 57MHz ~ 803MHz * Compliant with ATSC A/52 and QAM ITU-T J.83 ANNEX B 64/256 Input Impedance * Use high performance ATSC/QAM demodulator Signal Level -81dBm ~ -25dBm * Provide antenna power supply function for pair use with Connector Type F Terminal active antenna... - Page 6 Remote control unit(RCU) Other Functions - POWER: Program List 1. Program List: witch the receiver between stand-by Label Skip Enter channel in the program list WGB-SD & on modes PBS-HD Select item in the program list - MUTE 2-10 WGBH-DX POWER MUTE Mute the audio output...
-
Page 7: Remote Control Unit(Rcu)
System Setting Remote control unit(RCU) System Setting - CH(+ / - ): 1. OSD Langue: Select the OSD Langue System Setting hange channels sequentially up or OSD Langue English options: English, Spanish and French. Audio Langue English down in viewing mode and move to default: English Format Normal... -
Page 8: Install Instruction
Install instruction Canada Ratings FRONT POWER LED Note: blocking a rating affects all the higher ratings, so that IR RECEIVER blocking "13 ans+" in the example above automatically UPGRADE PORT blocks "16 ans+"and "18 ans+", whatever previous state of these ratings was. If a password is defined while a TV program warning is received for the current channel, POWER UPGRADE... -
Page 9: Starting
Canada Ratings Starting Canada English Ratings Main Menu 1.Press the power switch on R/C unit to Auto Search switch on the converter box. And press 1. C-18+: CH Setup CC Setup Switch the check box between Parental Control the menu key to go auto search Canada English Ratings System S tting Vi e w... -
Page 10: Ch & Cc Setup
CH & CC Setup USA TV Content Ratings CH Setup CH Setup PG View Enable Channel 1. View Enable: Vi e w E n a b l e Vi e w 1. Select the program in the channel Vi e w Skip Switch the check box between view. -
Page 11: Cc Customer
CC Customer USA TV Content Ratings CC Customer CC Customer 1. Y to MA: CC Size Standard USA TV Content Ratings 1. CC Size: CC Font Font0 Switch the check box between view CC Opacity Solid View CC Color White CC size options: Small ,Standard and View or block. -
Page 12: Parental Control
Parental Control V-Chip & Movie Ratings Setting Parental Control V-chip Setting V-chip Setting Before enter Parental Control menu, please enter the in order for the 1. Movie Ratings: Movie Ratings child not to change any settings on the Parental Control. USA TV Content Ratings Enter Movie Ratings sub-menu Canada English Ratings...
