Summary of Contents for 3Bays PD- 5201

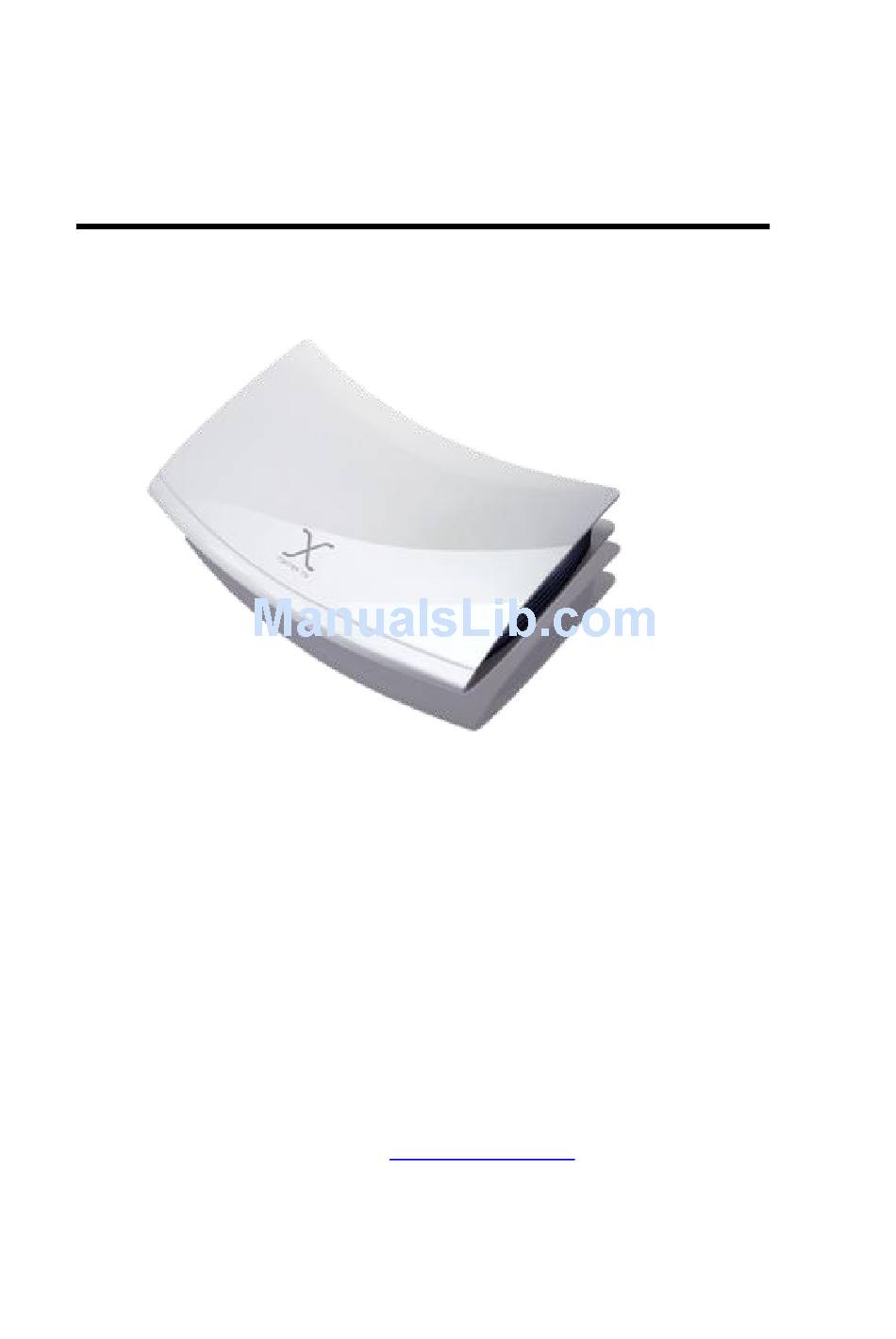

- Page 1 User manual English version PD- 5201 3Bays PDXtraTV Technical support, please visit: www.3Bayslife.com Page 1...
-
Page 2: Table Of Contents
Content Page Accessories in the box Terms and conditions Installation 1. PDXtraTV back view 2. Power connection 3. HDMI cable connection 4. Internet connection and network status 5. Keyboard and mouse installation Operation guide 1. Wireless mouse and keyboard 2. Standby mode 3. - Page 3 Location & security Applications Accounts and sync Privacy SD card & device storage settings Search Language & keyboard Accessibility Date & time About device Web widgets in home screen 1. Add the web widget 2. Delete the web widget on home screen 3.
-
Page 4: Accessories In The Box
Accessories in the box • Main unit • Power adaptor • HDMI cable • LAN cable • AA Battery • 2.4GHz dongle • Wireless mouse • Wireless keyboard + 2 pcs AAA batteries • Mouse pad • Quick start guide 2.4GHz Wireless AA battery... -
Page 5: Terms And Conditions
Terms and conditions • Please read all the information in this manual or any other literature included in the box before using the device. Please keep this manual for future reference. • Operate the device only as intended. Do not use for any other purpose. •... -
Page 6: Installation
Installation 1. PDXtraTV back view MicroSD card USB 2.0 port Standby button Power input LAN port HDMI port 2. Power connection AC input When power on, blue LED is lighted ON. • LED lights in blue color, main unit is powered ON. •... -
Page 7: Hdmi Cable Connection
3. HDMI cable connection Select the correct AV channel in your TV Example: When you connect HDMI1 port in your TV, please select HDMI1 input from your TV remote control. 4. Internet connection and network status You can find the network status indication at the top-right handed corner. When you have connected HDMI cable and LAN cable, you can plug in the power adaptor to boot PDXtraTV. -
Page 8: Keyboard And Mouse Installation
5. Keyboard and mouse installation Put 1pcs AA battery in mouse Put 2pcs AAA battery in keyboard Switch ON the mouse by sliding the power button at the back of mouse. Red LED will be lighted ON. Plug-in the 2.4GHz dongle (where is at the back of mouse) into PDXtraTV USB port. -
Page 9: Operation Guide
Operation guide 1. Wireless mouse and keyboard Wireless mouse key assignment Enter button Back button Select / confirm function Go to previous screen Option button Option menu (when pressing down) Enter button ＋ Back button Rolling up/down “X” key function Wireless keyboard function key assignment F1 –... -
Page 10: Standby Mode
Adjust sound volume Key zoning design Key zoning Design You can press any key in your key zone area or using mouse points to the web page. It will go to the corresponding website. 2. Standby mode You can press the Standby button at the back of unit. The LED will be switched to orange color. -
Page 11: Power Off Pdxtratv
4. Power off PDXtraTV Unplug the power adaptor of PDXtraTV, the unit can’t be powered off. 5. “X” menu Left click on the mouse when pointing to “X” icon on screen. Or, you can click the “X” button on keyboard. Or, you can press Left button and Right button simultaneously on mouse. -
Page 12: F1- F12 Short-Cut Keys
6. F1- F12 short-cut keys You can one click on mouse when pointing to the corresponding applications over the icons. Note: You can find all the installed applications from F9 and select your favorite application. Change the short-cut applications You can press and hold your favorite app until showing the home screen. You need to drag the app over the icons where you want on the home screen. -
Page 13: Wow Market
7. WoW Market WoW Market serves as an applications center for you to download and manage your applications. You can have the most convenient way to install applications in there. You have to register a new account when starting to use WoW Market, please following the instructions to login your account or register a new account. -
Page 14: Settings
8. Settings 1. Go to F9, select Settings icon. 2. Or, you can go to “X” menu and select Settings Ethernet configuration 1. Click to enable / disable the Ethernet connection. 2. Click to go to configure the Ethernet connection of PDXtraTV. Page 14... -
Page 15: Sound
Sound Adjust the volume of media and notification. Display 1. Animation: Select and show what window animation you want. 2. Rescale Display: Adjust the display boundary of your TV. Settings Display Rescale Display； Point the mouse to upper-left corner of the red box； iii. -
Page 16: Location & Security
Location & security Select device administrators: Add or remove device administrators Applications 1. Unknown sources: Enable / disable to allow install of non-Market applications Your device and personal data are more vulnerable to attack by applications from unknown sources. You agree that you are solely responsible for any damage to your device or loss of data that may result from using these applications. -
Page 17: Accounts And Sync
Accounts and sync 1. Background data: Applications can sync, send, and receive data at any time. 2. Auto-sync: Applications sync data automatically. Privacy Factory data reset: Erases all data on device. • Your Google account • System and application data and settings •... -
Page 18: Accessibility
Accessibility Date & time Automatic & Date sync Use network-provided values Set date Adjust the date manually Set timezone Adjust the time zone manually Set time Adjust the time manually Use 24-hour format Select to use 12-hour / 24-hour format to display Set date format Select the format to display the date It can’t be set date, timezone, time when enabling “Automatic &... -
Page 19: Web Widgets In Home Screen
Web widgets in home screen 1. Add the web widget Select “Android widget” Please point to the blank area on the home screen, long press the left button on mouse. You can select “Android widget” and choose what kind of widgets you want. -
Page 20: Delete The Web Widget On Home Screen
2. Delete the web widgets on the home screen Trash icon 長按 鼠標指向相對快捷網頁，在鼠標上 長按左鍵，將網頁放進垃圾筒內。 Click and held the deleted item on home screen, drag the deleted item to the right-hand side “Trash” icon. Page 20... -
Page 21: Categories
3. 6 categories Web browser 7 kinds of bookmarks are found from F1 – F7 folder for quick selection. example, news, online media, online shopping, sports, etc. Photo: Photo player Video: Video player with related online streaming apps Music: Music player with related online streaming apps Internet Radio: Support different regions internet radio channels Game: Preloaded game apps... -
Page 22: Bookmark Management
4. Bookmark management Go to the webpage, press the roller button, the Option menu can be shown. You can find the preset categories. iii. You can choose which category to store the bookmark. Page 22... -
Page 23: Operation Of Web Browsing
Operation of web browsing 1. Web assistant Point to the blank area on the webpage, web assistant will be shown on the top of webpage when clicking and moving the mouse cursor. Web assistant consists of 9 functions, please find the functions as below: Functions of web assistant: F1: zoom-out F2: zoom-in... -
Page 24: Help And Notification
2. Help and notification You can learn more about the operation of PDXtraTV when you select “?” icon (Help menu). You can find the “?” icon from the left-bottom corner on the screen. Page 24... -
Page 25: Frequent Asked Questions
Frequent Asked Questions 1. If you find abnormal operation in PDXtraTV, please check the following items: Check the power source from your TV Check the power source from PDXtraTV (LED lights in blue color) Check the HDMI cable connections which is in the selected TV channel ...
