Summary of Contents for Lindemann Musicbox 10

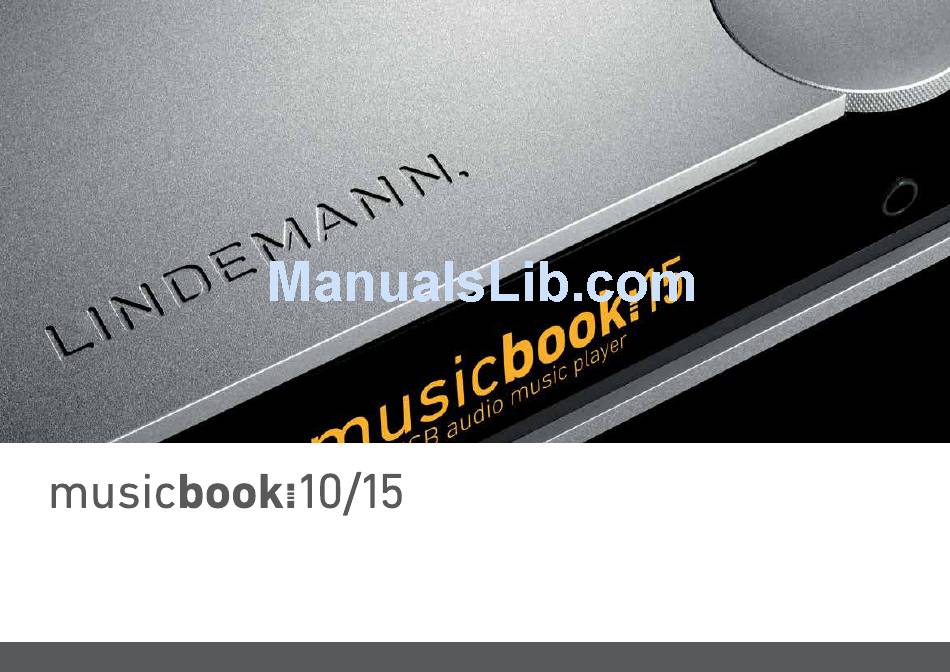

- Page 1 Listen. Relax. Enjoy. User manual www.lindemann-audio.com www.lindemann-audio.com...
-
Page 2: Table Of Contents
Congratulations on your purchase of this device and thank you for choosing Scope of delivery ⠸ a LINDEMANN product. We hope you enjoy listening to music during long evenings with your favorite recordings. With the musicbook series, you Front view ⠸... -
Page 3: Important Safety Information
Read this user manual carefully. Carefully observe all NOTES. The manual is designed to help you to prop- erly use your new Lindemann product so that you can enjoy all its fea- tures. Keep this user manual for future reference. -
Page 4: Scope Of Delivery
Scope of delivery musicbook 10/15 ⠸ musicbook 10/15 USB audio music player. The musicbook 10/15 is a ⠸ streamer (also called a UPnP audio renderer) with integrated preamplifier and CD player*. Infrared remote control IR remote control with integrated lithium-ion battery, rechargeable. ⠸... -
Page 5: Front View
High-quality CD player (musicbook 25 only) for playing CDs. High reliability and very ⠸ low-jitter digital signal. CD-text capable. All CD functions can be controlled via IR remote. Stand-by button for switching the device on and off. Very low power consumption in operation due to ⠸ intelligent power supply. www.lindemann-audio.com... -
Page 6: Rear View
Rear view Balanced (XLR) and unbalanced (RCA) outputs, which can be used independently and simultaneously. Load-stable power output levels for the operation of long cables, for example ⠸ to connect powered speakers or subwoofers. Fixed Line Out (can be turned on in the Settings menu) for fixed output voltage for integration into existing systems. -
Page 7: Ir Remote Control
Search buttons for the forward and backward search function. ⠸ ⠸ Skip buttons for skipping to the next/previous track. ⠸ Play/Pause button for playing and pausing the CD. USB mini jack for charging the lithium-ion battery. ⠸ The charging state can be called up with the Info button. www.lindemann-audio.com... - Page 8 Connection variant I musicbook 10/15 with powered loudspeakers ⠸ Connection of the powered speakers via the balanced outputs Connection of the powered speakers via the unbalanced outputs Connection variant I: The easiest way to enjoy music with the musicbook 10/15 is to connect powered preamplifier, multiple connection options for analog and digital sources, and the loudspeakers.
-
Page 9: Connection Variants
Since both outputs can be operated simultaneously, a power amplifier ⠸ loudspeakers or small to medium standing speakers, this amplifier delivers the finest and a subwoofer can be connected to the device, for example. in sound with ultra-low power consumption. An intelligent signal detector automatically www.lindemann-audio.com... - Page 10 Connection variant III musicbook 10/15 in combination with an existing hi-fi system ⠸ Connection variant III: If you already have a complete hi-fi system with preamplifier or integrated amplifier, only work in headphones mode. Thanks to the multiple connection options for analog you can connect the musicbook 10/15 to an analog input of the amplifier.
-
Page 11: Connecting To A 11 ⠸ Computer
After the successful installation the musicbook 10/15 will replace the internal ⠸ the playbackof DSD64 and DSD128. All you need a high-quality USB cable and a compu- soundcard of the computer. ter loaded with a suitable playback software. www.lindemann-audio.com... -
Page 12: Digital And Analog
Selection of digital and analog inputs musicbook 10/15 ⠸ With the musicbook 10/15, 4 digital and 2 analog inputs are available to you. They can be selected in two different ways: Using the IR remote control • • Using the multifunction control wheel on the musicbook 10/15 The inputs can be named individually in the settings menu. -
Page 13: Cd Function
• Stop the CD: press for > 1 sec. • Repeat one (repeat a track). • Repeat all (repeat the entire album). • Eject the CD: press for > 1 sec. again. • Volume (- / +). • Mute. www.lindemann-audio.com... -
Page 14: Usb-Audio Interface
USB port of your computer. Click on the <Sound> settings in the control panel on. A detailed installation guide is available on our website. of the PC. Define the musicbook, which is shown as <LINDEMANN HighResAudio>, as your default output device and set the desired resolution and sample rate ma- •... -
Page 15: Settings
Confirm with the OK button. • Confirm with the OK button. • Use the SET buttons SET up and SET down to select the desired input. • Confirm with the OK button. • The following appears on the display. www.lindemann-audio.com... - Page 16 Settings musicbook 10/15 ⠸ Balance Digiout The balance function is used to regulate volume differences at the listening position To reduce interference sources, the two digital outputs (optical and coaxial) are if this position is not in the optimal location for sound. For this purpose, different switched off in the factory.
- Page 17 – the Fixed Line Out function must be set to Off, since the maximum output voltage could otherwise cause severe damage to the loudspeakers. The Fixed Line Out function is turned off by default. www.lindemann-audio.com...
-
Page 18: Technical Specifications
Technical specifications musicbook 10/15 Overview Full metal housing (6.5 mm wall thickness) with high-quality multifunction control wheel. Highest quality SMD components such as close-tolerance metal film resistors and film Monochrome, optically bonded OLED display with nearly 180° viewing angle. High-quality, capacitors. - Page 19 THD & noise: < 0.0005% (@ 0 dBFS). • THD & noise: < 0.0005% @ 2.50V output. • Dynamic range: > 125dB. • Resolution: 352.8 / 384kHz, 32bit. • Digital filter: Minimum phase filter with “apodizing” characteristic. • Output voltage: 2.50V @ 0dBFS. www.lindemann-audio.com...
- Page 20 Lindemann audiotechnik GmbH 82152 Krailling Germany Tel.: +49 (0) 89-891 36 79-0 Fax: +49 (0) 89-891 36 79-29 info@lindemann-audio.com 07.2014...
