Summary of Contents for Brammo Empulse

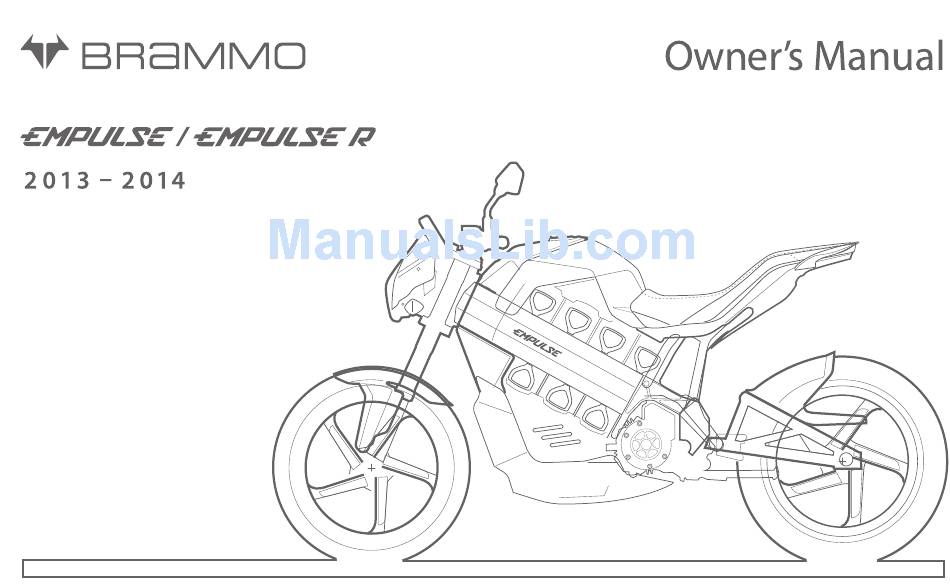

  • Page 1 Owner’s Manual Manual del Propietario...
  • Page 3 Please take the time to read this owner’s manual and familiarize yourself with all the information that we have prepared for you before riding your new Brammo Empulse. The manual contains important data and instructions intended to assist you in gaining maximum use and satisfaction from your Empulse’s capabilities.
  • Page 4 A warning alerts you to potential hazards that could result in either or distributed in any way, including by e-mail or other electronic injury to you or others, or damage to your Empulse. Always heed this means, without the express prior written consent of Brammo, Inc., information.

  • Page 5: Table Of Contents

    What to do if you have a flat tire, blown fuse, or in case of an accident. The location and function of indicators, gauges, and controls on your Also a listing of warnings and error codes reported by your Empulse and Empulse, plus operating instructions for various controls and features, what they mean.

  • Page 6: Motorcycle Safety

    Important Information because they are not looking for them. To make yourself more Your Empulse will provide many years of service and pleasure if you visible, wear bright, reflective clothing, position yourself so other take responsibility for your own safety and understand the drivers can see you, signal before turning or changing lanes, and use challenges you can experience while riding.

  • Page 7: Important Information

    WARNING • Do not pull a trailer or sidecar with your Empulse. This Empulse Improper accessories or modifications can cause a crash in which was not designed for these attachments, and their use can you can be seriously hurt or killed.
  • Page 8 Important Information SAFETY LABELS Certification Label Safety labels on your Empulse either warn you of potential hazards that could cause serious injury or provide important safety information. Read these labels carefully and don’t remove them. Note: If a label comes off or becomes hard to read, contact your Brammo Authorized Dealer for a replacement.

  • Page 9: Controls And Instruments

    Location of Controls HANDLEBARS Controls and Instruments Location of Controls 1. Headlight high beam flash 2. Headlight high/low beam 3. Ignition switch 4. On/Off switch 5. Front brake 6. Throttle 7. Start button Operating mode (Normal/Sport) 8. Horn 9. Turn signals 10.
  • Page 10 Location of Controls OTHER CONTROLS 1. Rear brake pedal 3. Kickstand 2. Gear shifter Controls and Instruments...
  • Page 11 Gauges, Indicators, and Displays 1. Tachometer The tachometer needle will swing to maximum RPM and then zero when the Empulse powers up. Note: If the tachometer needle does not zero, contact your Brammo Authorized Dealer as soon as possible. 2. Drive-enabled/gear shift indicators •...
  • Page 12 All indicators will light for a few seconds and then turn off when the thermal operating limit. Illumination of the indicator will be Empulse powers up. The ON indicator will then light and remain on. accompanied by a THERMAL CUTBACK message on the LCD.
  • Page 13 LIQUID CRYSTAL DISPLAY (LCD) 5. Gear selected 6. Information - press the mode button to cycle through the When the Empulse powers up, the LCD will temporarily show all following functions. black so you can make sure it is functioning properly. The LCD •...
  • Page 14 Note: The key can be removed in the Off, Lock and Park positions. 1. Off No electrical circuits function. 2. On Insert the key and turn clockwise to the On position. The Empulse powers up. Drive mode can be engaged. Controls and Instruments...
  • Page 15 Controls and Features LEFT HANDLEBAR 3. Turn signal switch The turn signal switch is used to signal a turn or a lane change. To operate, move the switch all the way in the proper direction and release it. The appropriate turn signal lights will start blinking and an indicator will flash on the instrument cluster.
  • Page 16 NORMAL and SPORT modes. 1. On/Off switch When the Empulse is in SPORT Mode, the LCD will display the SPORT The On/Off switch is used to turn the motor controller On and Off. indicator. There is no indicator shown on the LCD when the Empulse Before powering up the Empulse, ensure that the switch is in the Off is in NORMAL mode.

  • Page 17: Setting The Time

    SETTING THE TIME Setting the Time The time and date on your Empulse were set at the factory to Pacific Standard Time. If you need to adjust the time on your Empulse: 1. Connect the charging connector to the Empulse and a wall outlet.

  • Page 18: Before Riding

    50% of the riders killed in motorcycle crashes have been drinking. DON’T DRINK AND RIDE! Helmets and Eye Protection Before you ride, you need to make sure you and your Empulse are WARNING both ready. To help get you prepared, this section discusses how to...

  • Page 19: Are You Ready To Ride

    Developing your riding skills is an ongoing process. Even if you have ridden other motorcycles, take time to become familiar with how this motorcycle works and handles. Practice riding the Empulse in a safe area to build your skills. Do not ride in traffic until you get accustomed to the Empulse’s controls and feel comfortable with its...
  • Page 20 Use an air pressure gauge to check the tire pressures. See “Tire • Gauges and indicators Pressures”, page 64. Also look for signs of excessive wear or Power up the Empulse and check for normal operation of the damage to the tires and wheels. gauge and indicators.

  • Page 21: Load Limits And Guidelines

    Follow all load limits and other loading guidelines in this manual. Follow these guidelines whenever you carry cargo: How much weight you put on your Empulse, and how you load it, • Check that both tires are properly inflated. are important for your safety. Any time you ride with a passenger or •...

  • Page 22: Basic Operation And Riding

    2. The kickstand must be up. 3. The Start/Off switch must be in the On position. The drive system on the Empulse will not be enabled unless these conditions are satisfied. If the Empulse’s drive system is enabled and one of these conditions is not satisfied, e.g., the kickstand is down, the drive system will be disabled.
  • Page 23 8. Press and hold the Start button for approximately two seconds WARNING to put the Empulse in Drive mode. Once the Empulse is in Drive mode, the throttle is live; use extreme caution if the Empulse is not in N (Neutral). Basic Operation and Riding...
  • Page 24 Selecting a Gear CLUTCH GEAR SHIFTER LEVER Selecting a Gear The transmission is a six speed sequential gear box. Neutral is 1. Slowly pull the clutch lever towards the handlebar grip to fully located between second and third gear. The currently selected gear disengage the clutch.
  • Page 25 Note: Remember that N (Neutral) is positioned between 2nd and 3rd Empulse works and handles. Practice in a safe area until you build your gears. skills and get accustomed to the Empulse’s size and weight.
  • Page 26 Unlike a gas powered bike where you select a gear to keep the engine speed as low as possible for the terrain, the optimum motor speed for the Empulse is between 4000 and 6000 RPM regardless of WARNING the gear you are in or the current road speed.
  • Page 27 Braking BRAKES Braking Your Empulse is equipped with front and rear disc braking systems that are hydraulically activated. Depressing the brake pedal applies the calliper on the rear brake disc. As a general rule, the front braking system provides about 70% of total stopping power.
  • Page 28 BRAKING DOS AND DON’TS • Applying the brakes too hard may cause the wheels to lock and slide, reducing control of your Empulse. If this happens, release the brake controls, steer straight ahead until you regain control, then reapply the brakes more gently.
  • Page 29 • Set the Start/Off switch to the Off position. This will switch off the drive system. You will need to follow the procedure for enabling the drive system before you can ride the Empulse. See “ENABLING THE DRIVE SYSTEM”, page 20.
  • Page 30 If you Locking the Steering Lock must park on a hill, back the rear tire downhill against the curb with the Empulse at a 45-degree angle to the curb. KICKSTAND Use the kickstand to support the Empulse while parked.
  • Page 31 • Always take the ignition key with you. • Always use the steering lock, even if you’re parking for just a minute or two. A thief can easily push an unlocked Empulse to a waiting truck. • In addition to the steering lock, use a good-quality anti-theft device made specifically to lock a motorcycle to a secure object.

  • Page 32: Charging And Battery Care

    28 onboard cell stacks. Each • Charge battery modules fully if your Empulse has been stored for cell has a nominal cell voltage of 3.7 volts for a total battery stack more than a month.
  • Page 33 • The wall outlet should be RCD protected. The Empulse was supplied with a Level 1 charging cable that • The extension cord should be RCD protected connects between the bikes J1772 connector and a standard 110V •...
  • Page 34 EV charging stations are typically connected to a higher voltage (240V) and are classed as a Level 2 charger. Charging the Empulse from a Level 2 charger will take less time than when using the supplied charging cable.
  • Page 35 Your Empulse is designed to take a charge from any J1772 electric vehicle charger (Level 1 - 110V or Level 2 - 240V). 1. Position your Empulse as close as possible to an available AC wall outlet. 3. Plug the J1772 charging connector into the charging receptacle on the Empulse.
  • Page 36 The SoC is indicated in the upper left corner of the LCD. The LCD also CHARGING TIME displays the estimated time left to charge the Empulse to 100%. The amount of time it takes to fully charge the Empulse is dependent upon the remaining battery charge level and the STOPPING THE CHARGE PROCESS available electricity supply (amperage and voltage).
  • Page 37 At low SoC, high current demands from the battery can cause A key part of the Empulse is the BPM15/90 battery system, the the voltage to drop quickly resulting in less power being BMP15/90 is a “smart” battery module and communicates voltages,...

  • Page 38: Servicing And Maintaining Your Empulse

    WARNING • To help prevent the Empulse from falling over, park it on a firm, Never run the motor during any service task; there is always the risk level surface, using the kickstand or a maintenance stand to of clothing, limbs, or tools coming into contact with rotating provide support.
  • Page 39 Service and Maintenance Requirements THE IMPORTANCE OF MAINTENANCE SERVICING YOUR EMPULSE To help keep your Empulse in good shape, this section of the owner’s WARNING manual includes a maintenance schedule for required service, a list of periodic checks you should perform at least once a month, and Improperly maintaining your Empulse or failing to correct a problem step-by-step instructions for specific maintenance tasks.
  • Page 40 Empulse, or as Throttle Freeplay often as once a week if you ride frequently or for long distances. It’s a •...
  • Page 41 Brammo Authorized Dealer knows owner. your Empulse best and is fully equipped to maintain and repair it. If you decide to do your own maintenance, use only Brammo Parts or Make sure whoever performs the maintenance completes the their equivalents for repair or replacement to ensure the best quality appropriate record.
  • Page 42 Service and Maintenance Requirements Maintenance Schedule The following table summarizes the types of inspections and servicing recommendations for your Empulse. Both the pre-ride inspection and the scheduled maintenance at the recommended intervals are necessary to ensure safe and dependable performance. The periodic checks provide additional confidence in your Empulse’s performance.
  • Page 43 √ √ √ √ √ √ √ √ • Adjust headlight beam if needed (*) Kickstand • Check operation √ √ √ √ √ √ √ √ Page 66 • Apply all-purpose grease to pivot Servicing and Maintaining Your Empulse...
  • Page 44 Page 64 • Inspect tread depth • Look for cracks or damage Wheels • Inspect for out of round, or dents √ √ √ √ √ √ √ √ Page 64 • Replace if necessary (**) Servicing and Maintaining Your Empulse...
  • Page 45 • Inspect clutch plates and springs (*) Should be serviced by your Brammo Authorized Dealer, unless you have the proper tools, service data and are mechanically qualified. (**) In the interests of safety, we recommend these items be serviced only by your Brammo Authorized Dealer.

  • Page 46: Component Locations

    Component Locations HANDLEBARS Component Locations 1. Clutch lever 2. Clutch fluid reservoir 3. Front brake fluid reservoir 4. Front brake lever 5. Throttle Servicing and Maintaining Your Empulse...
  • Page 47 Component Locations LEFT-HAND SIDE OF THE EMPULSE 1. Fuse box (under upper body panel) 2. Front brake caliper 3. Kickstand 4. Drive chain Servicing and Maintaining Your Empulse...
  • Page 48 Component Locations RIGHT-HAND SIDE OF THE EMPULSE 1. Rear brake fluid reservoir 2. Fuse box (under upper body panel) 3. High voltage connector (behind upper body insert) 4. Rear brake caliper 5. Rear suspension spring 6. Transmission oil - drain plug 7.

  • Page 49: Body Panels

    SEAT 1. Position the seat on the Empulse and make sure the seat tongue is inserted into the mounting bracket. 2. Fit the seat retaining bolt and washers and tighten to 8 Nm.
  • Page 50 Note: Always store body panels face up to prevent the painted surfaces from becoming scratched. Installation 1. Carefully position the upper body panel on the Empulse and make sure it is correctly located under the upper body insert. Note: When positioning the panel, make sure that no harnesses or cables will be trapped between the panel and the frame.
  • Page 51 5. Remove the upper body insert. the frame. Installation 1. Position the upper body insert on the Empulse and make sure it is correctly located around the charging connector. Note: When positioning the panel, make sure that no harnesses or cables will be trapped between the panel and the frame.
  • Page 52 2. Loosely install the retaining bolts to correctly align the panel to the frame and body panel. 3. Tighten the four bolts to 1 Nm. Servicing and Maintaining Your Empulse...
  • Page 53 BATTERY SAFETY DISCONNECT Maintenance WARNING High voltage (103.6V nominal) exists on your Empulse; use extreme caution when working with or around any battery terminals, cables, bus bars, or other high voltage components. Brammo recommends that you always disconnect the Battery Safety Disconnect before working on any of the electrical systems.
  • Page 54 Maintenance THROTTLE Your Empulse is equipped with a fly-by-wire electronic throttle. There is no throttle cable or throttle freeplay to inspect or adjust. Inspection WARNING A sticking throttle could result in a runaway condition that could cause a crash in which you can be seriously hurt or killed. If your throttle is sticking, determine what is causing the sticking and remedy the problem before riding your Empulse.
  • Page 55 Note: Factory setting= three full turns in from the full out position. Compression damping (left fork) - rotate the adjuster screw clockwise to stiffen the damping (+) and counter-clockwise to soften it (-). Note: Factory setting= two full turns out from the full in position. Servicing and Maintaining Your Empulse...
  • Page 56 Maintenance Front Forks - Empulse R Rebound damping - rotate the adjuster screw clockwise to stiffen the damping (+) and counter-clockwise to soften it (-). Spring preload adjustment nuts. Adjusting the preload lets you change the “unloaded” sag of the suspension system Note: Factory setting= two full turns out from the full in position.
  • Page 57 Maintenance Rear Shock 3. Rebound damping (Empulse R only) - rotate the adjuster clockwise to stiffen the damping (H) and counter-clockwise to soften it (S). Note: Factory setting= 1.25 turns from full in position. 1. Spring pre-load - adjust the spring pre-load by rotating the two pre-load rings: •...
  • Page 58 PRECAUTIONS”, page 36. system. Place your Empulse in an upright position on a firm, level surface. As the brake pads wear, the brake fluid levels will drop. A leak in either of the systems will also cause the level to drop. Frequently inspect the systems to ensure there are no fluid leaks.
  • Page 59 Rear brake fluid reservoir: The fluid level should be above the MIN mark. If your inspection indicates a low fluid level, have your Brammo Authorized Dealer add the recommended brake fluid. Do not add or replace brake fluid yourself, except in an emergency. If you do add fluid, have your Brammo Authorized Dealer check the system as soon as possible.
  • Page 60 Note: Before commencing any work on your Empulse, refer to “SAFETY WARNING PRECAUTIONS”, page 36. Place your Empulse in an upright position on a firm, level surface. Clutch fluid is highly toxic; keep containers sealed and out of the reach of children. If accidental consumption of fluid is suspected, seek medical attention immediately.
  • Page 61 It is recommended that the transmission oil is drained when the transmission is at its normal operating temperature. Prior to draining the oil, ride the Empulse for at least 10 minutes before stopping and removing the ignition key. 1. Position a drain pan below the transmission.
  • Page 62 Maintenance Refilling the transmission oil The transmission should be filled with the Empulse standing on level ground and supported on the kickstand. 1. Fill the transmission with approximately 1.0L (1 quart) of Synthetic 10W-30 API GL-1 Motorcycle oil (wet clutch approved).
  • Page 63 Avoid getting grease, oil, or dirt on the disc or pad 1. Park your Empulse on a firm, level surface. surfaces. 2. Support the Empulse securely and raise the front wheel off the ground using a safety stand or a hoist. 7. Loosen the two left-side front axle pinch bolts.
  • Page 64 Removal 1. Park your Empulse on a firm, level surface. 2. Support the Empulse securely and raise the rear wheel off the ground using a safety stand or a hoist. 9. Using a 27 mm wrench or socket, remove the front axle nut.
  • Page 65 Note: If a torque wrench was not used during installation, see your Installation Brammo Authorized Service Agent as soon as possible to verify proper 1. Position the rear wheel between the swing arm and install the assembly. Improper assembly may lead to loss of braking capability.
  • Page 66 Always check air pressure when your tires are “cold” – after the Using tires that are excessively worn or improperly inflated can cause Empulse has been parked for at least three hours. If you check air an accident in which you can be seriously hurt or killed. Follow the pressure when your tires are “warm”...
  • Page 67 Brammo Authorized Dealer. Brammo Authorized Dealer before the tread depth at the center reaches the following limits: The tires that came on your Empulse were designed to match the performance capabilities of your Empulse and provide the best Front 1.5 mm (0.06 inch)
  • Page 68 2. Check the kickstand spring for damage or loss of tension. 3. Check the kickstand system cut-off: • Power up the Empulse in drive mode (see “ENABLING THE DRIVE SYSTEM”, page 20). • Raise the kickstand. The drive system should be enabled.
  • Page 69 DRIVE CHAIN Inspection Note: The tension of the drive chain should be checked (and adjusted, if Note: Before commencing any work on your Empulse, refer to “SAFETY necessary) every 300 miles (500 km) PRECAUTIONS”, page 36. The Empulse should be supported using a rear wheel stand when A 86-link (2014 models: 84 link) 520 ISO X-Ring Chain connects the checking the chain tension.
  • Page 70 It is recommended you repeat the measurement several times to get Adjustment an average value for the chain deflection in case there are any tight 1. Place the Empulse on a rear wheel stand with the ignition switch spots on the chain. in the Off position.
  • Page 71 Note: If a torque wrench is not used during installation, see your Apply as directed on can. Use a rag to Brammo Authorized Dealer as soon as possible to verify proper prevent over spray on the Empulse, assembly. Improper assembly may lead to loss of braking capability.
  • Page 72 If you discover a loose battery cable on one of the battery modules contact your Brammo Authorized Service Agent. Note: In order to maximize the life of the batteries, Brammo highly recommends cycling the batteries (discharged to 30% SoC or less and then charged to 100% SoC) every three months.
  • Page 73 Avoid products that contain harsh detergents or chemical solvents that could damage the metal, paint, and plastic on your Empulse. 9. As a precaution, ride your Empulse at a slow speed and apply the brakes several times. This will help dry the brakes and restore Park in a shady area.
  • Page 74 Avoid stiff brushes, steel wool, or cleaners containing abrasives or chemical compounds. After washing, rinse with plenty of water and dry with a clean cloth. If the paint is chipped, apply touch-up paint. Servicing and Maintaining Your Empulse...

  • Page 75: Storage And Transportation

    3. Inflate the tires to their recommended pressures. See “Tire Pressures”, page 64. WARNING 4. Store your Empulse in a dry, unheated area that is away from After reconnecting the Battery Safety Disconnect, the Empulse must sunlight and has minimal daily temperature variation.
  • Page 76 Transporting Your Empulse TRANSPORTATION INFORMATION Transporting Your Empulse If your Empulse needs to be transported, it should be carried on a motorcycle trailer or a truck or trailer with a flatbed area. Do not tow your Empulse. When contacting a towing or transporting service, be sure to ask if they have a flatbed area, loading ramp, or power ramp to safely lift the Empulse.

  • Page 77: Taking Care Of The Unexpected

    Should you ever have a problem while riding, please follow these guidelines: • Always put personal safety first. • Do not continue riding if you are hurt or your Empulse is not in safe riding condition. • Take time to assess the situation and your options before deciding what to do.

  • Page 78: If You Have A Flat Tire

    WARNING The use of a temporary tire repair kit to repair a puncture is not recommended. Riding your Empulse with a temporary tire repair can be risky. If the temporary repair fails, you could crash and be seriously injured or killed.

  • Page 79: If A Fuse Blows

    Only use replacement fuses of the same rating and type, or fuses of matching specification. Using an incorrect fuse may result in damage to the Empulse’s electrical system and can result in a fire. All of the electrical circuits on your Empulse have fuses to protect them from damage caused by excess current flow (short circuit or overload).
  • Page 80 WARNING To prevent the risk of an electric shock, always make sure that the ignition switch is in the Off position and the key is removed. Never work on the Empulse if the charging cable is connected. Fuse Rating Circuit protected...
  • Page 81 If you decide you are capable of riding safely, carefully inspect your Empulse for damage and determine if it is safe to ride. Check the tightness of critical nuts and bolts securing such parts as the handlebars, control levers, brakes, and wheels.

  • Page 82: If You Lose Your Key

    Your Empulse was supplied with two keys. Brammo recommends that you keep one key in a safe location, as a spare, in case you misplace the other. If one or both keys are lost, contact your Brammo Authorized Dealer for replacement options. Taking Care of the Unexpected...
  • Page 83 WARNING AND ERROR MESSAGES System Warning and Error Codes Your Empulse has the ability to detect warning and error conditions. These warnings and errors are designed to alert you, the rider, that a condition exists that is out of specification.
  • Page 84 System Warning and Error Codes Code Message Description SERVICE REQ'D B40 SYSTEM FAULT B40 BMS Back in Idle Mode SERVICE REQ'D B41 SYSTEM FAULT B41 Battery Fault: Isolation measurement failed RECHARGE REQUIRED B53 Battery Fault: Critically discharged warning SERVICE REQ'D B54 SYSTEM FAULT B54 Battery Fault: Over Volt warning SERVICE REQ'D B55...
  • Page 85 System Warning and Error Codes Code Message Description SERVICE REQ'D D22 Motor Controller -- Battery Voltage Too High SERVICE REQ'D D24 Motor Controller -- Controller error or contactor coil error SERVICE REQ'D D25 Motor Controller -- Contactor Error SERVICE REQ'D D26 Motor Controller -- Controller Error SERVICE REQ'D D29 Motor Controller -- CAN error...
  • Page 86 System Warning and Error Codes Code Message Description SERVICE REQ'D S61 Motor Controller -- Controller in Preoperational Mode SERVICE REQ'D S65 Motor Controller -- Sequence Fault (usually, throttle was not closed when controller powered on) SERVICE REQ'D S69 SYSTEM FAULT S69 Motor Controller -- Entering cutback SERVICE REQ'D S70 SYSTEM FAULT S70...
  • Page 87 System Warning and Error Codes Code Message Description SERVICE REQ'D S98 SYSTEM FAULT S98 Motor Controller -- Mosfet s/c M1 Bottom SERVICE REQ'D S99 SYSTEM FAULT S99 Motor Controller -- Mosfet s/c M3 Bottom SERVICE REQ'D V1 SYSTEM FAULT V1 VCU Temperature Too High SERVICE REQ'D V3 SYSTEM FAULT V3...
  • Page 88 System Warning and Error Codes Code Message Description HEADLIGHT OFF Headlights off in Drive Mode ACCELERATOR STUCK? Accelerator Deflected -- should be at 0 position COME TO FULL STOP Vehicle Speed not zero when throttle switch was turned on CYCLE THROTTLE SW Throttle Switch on at power up SERVICE MODE Diagnostic Cable Connected...
  • Page 89 System Warning and Error Codes Brammo DDC™ Brammo DDC™ (Dynamic Data Collection) records key motorcycle parameters at 1Hz (1 sample/second) for analysis and service support. The data is recorded onto a USB drive located beneath the seat. When your motorcycle is serviced Brammo technicians and...

  • Page 90: Identification Numbers

    Technical Information Identification Numbers The Vehicle Identification Number (VIN) and motor serial number are required when you register your Empulse. They may also be required when ordering replacement parts. Vehicle Identification Number (VIN) The motor serial number is located on a label on the underside of the motor.
  • Page 91 Identification Numbers Transmission Serial Number RECORD OF IDENTIFICATION NUMBERS For your convenience, record the VIN and motor serial number in the spaces below. VIN: Motor/Transmission Serial Number: The transmission serial number is stamped on the lower left face of the transmission case - visible behind the kickstand. Technical Information...

  • Page 92: Specifications

    Specifications DIMENSIONS Specifications Length 2 065 mm 81.3 in Width (bar end-to-bar end) 808 mm 31.8 in Height (highest portion of the dash) 1 082 mm 42.6 in Wheelbase 1 473 mm 58.0 in Ground Clearance 1 854 mm 7.3 in Technical Information...
  • Page 93 38 Tooth Chain 520 X-ring chain (2013 models: 86 link, 2014 models: 84 link) BATTERIES Battery Type Brammo Power BPM 15/90 Lithium-ion (NCM Chemistry) Number of Modules Battery Pack Capacity 9.31 kWh (nominal), 10.2 kWh (max) Battery Pack Voltage 103.6 V (nominal)
  • Page 94 Specifications WHEELS AND TIRES Wheels: - Front 17” x 3.5” Marchesini - Rear 17” x 5.5” Marchesini Tires: 2013 Models: 2014 Models: - Front 120-70 ZR17, 58W Avon 3D Ultra Sport 120-70 ZR17, 58W ContiSportAttack2 - Rear 180-50 ZR17, 73W Avon 3D Ultra Sport 180-55 ZR17, 73W ContiSportAttack2 Tire Pressures (Cold): 2013 Models:...
  • Page 95 Specifications REPLACEMENT LIGHT BULBS Headlight H4 - Halogen 55/60W Bulb Brake/Tail Light 12V 21/5W Bulb Turn Signals 12V 18W Bulb License Plate Light 12V 5W Bulb Front Parking Light 12V 4W Bulb APPROVED FLUIDS Fluid Specification Transmission Oil Synthetic 10W-30 API GL-1 Motorcycle oil (wet clutch approved) Brake Fluid Use any proprietary brand of brake fluid meeting DOT 4 specification Clutch Fluid...
  • Page 96 Manual, Brammo’s only obligation is to have the defect either • Battery and Motor Warranty: 24 months repaired or replaced, at Brammo’s option, with a new part or the equivalent without charge for parts and labor, at an authorized Brammo Warranty dealer, if such defec t is attributable to fault y material or workmanship at the time of manufacture.
  • Page 97 TO THE FULLEST EXTENT PERMITTED BY LAW, THE PRECEDING tires, clutch plates, tubes, brake lines, and chains, due to wear WARRANTY IS THE ONLY WARRANTY GIVEN BY BRAMMO FOR THE and tear from operation of the vehicle and not as a result of a VEHICLE, AND THE VEHICLE OTHERWISE IS SOLD “AS IS”.
  • Page 98 Warranty Owner’s Warranty Responsibilities It is the responsibility of each owner to: 1. Obtain from the Authorized Brammo Empulse Dealer from whom the vehicle was purchased: • A signed copy of the sales registration form indicating the pre- delivery inspection has been completed in accordance with the manufacturer’s instructions;...
  • Page 99 Product quality and customer satisfaction are critical ingredients to Brammo Empulse models for the duration of the warranty period. the success of Brammo. This information is designed as a tool to help you understand how to efficiently service our products by working...

  • Page 100: Reporting Safety Defects

    National Highway Traffic Safety Administration (NHTSA) in addition to notifying Brammo Inc. If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety defect exists in a group of vehicles, it may order a recall and remedy campaign.

  • Page 101: Maintenance Record

    Maintenance Record MAINTENANCE RECORD Maintenance Record Maintenance Record 3,000 miles (4,800 km) After you have had your Empulse serviced, please make sure that the Odometer reading: Date: appropriate maintenance record has been completed. Notes: Use the space under “Notes” to record issues you want to remind yourself about or mention at the next service.
  • Page 102 Maintenance Record 12,000 miles (19,200 km) 21,000 miles (33,600km) Odometer reading: Date: Odometer reading: Date: Notes: Notes: Performed by: Performed by: 15,000 miles (24,000 km) 24,000 miles (38,400 km) Odometer reading: Date: Odometer reading: Date: Notes: Notes: Performed by: Performed by: 18,000 miles (28,800 km) 27,000 miles (43,200 km) Odometer reading:...
  • Page 103 Maintenance Record 30,000 miles (48,000 km) 39,000 miles (62,400 km) Odometer reading: Date: Odometer reading: Date: Notes: Notes: Performed by: Performed by: 33,000 miles (52,800 km) 42,000 miles (67,200 km) Odometer reading: Date: Odometer reading: Date: Notes: Notes: Performed by: Performed by: 36,000 miles (56,600 km) 45,000 miles (72,000 km)
  • Page 104 Maintenance Record 48,000 miles (76,800 km) 57,000 miles (91,200 km) Odometer reading: Date: Odometer reading: Date: Notes: Notes: Performed by: Performed by: 51,000 miles (81,600 km) 60,000 miles (96,000 km) Odometer reading: Date: Odometer reading: Date: Notes: Notes: Performed by: Performed by: 54,000 miles (86,400 km) Odometer reading:...
