Summary of Contents for Great Stuff RoboReel

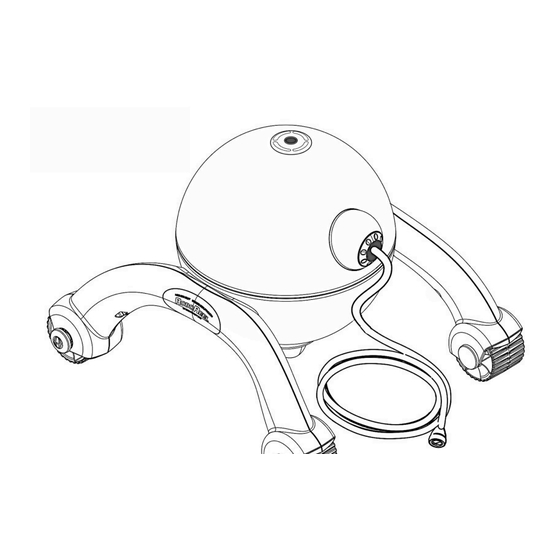

- Page 1 RoboReel ® Water Hose Reel ™ Great Stuff , Inc. _________________ User Guide and Warranty _________________ WWW.ROBOREEL.COM Customer Service: 888-GR8-STUFF (888-478-7883) CS@ROBOREEL.COM ...
-
Page 2: Table Of Contents
™ Great Stuff, Inc. (“GSI”) has made every effort to identify trademarked properties and owners on this page. All brands and product names used in this document are for identification purposes only and may be trademarks or registered trademarks of their respective companies. - Page 3 Release Water Pressure Before Winding: Please remove any non-RoboReel nozzles (if you are using your own) from the end of the hose before • retracting the hose, and make sure that the unit does not wind in while water is still flowing. Doing so will ensure that no pressure builds up in the hose during retraction, which will increase the longevity of your reel.
-
Page 4: Important S Afety I Nformation
CAUTION: Do not attempt to modify or service the hose reel or any of its components for which Great Stuff™, Inc (GSI) has not provided servicing instructions. Doing so voids the warranty. -
Page 5: Parts
2. Parts 2.1 Overview Faucet Adapter Strain Relief Hose Water Valve Water Valve Battery Pack Connection Hose ® NeverKink Watering Hose Retract Button Tow Rope Hose End Connector Remote Control Fireman’s Nozzle Main Battery Figure 1 Main Battery Charger ... -
Page 6: Hoses
CAUTION: If the hose is cut or damaged use only a GSI-supplied replacement hose. Do not splice the hose because it may prevent the Hose Reel from retracting properly. Splicing the hose voids the Hose Reel warranty. 2.4 Remote Control RoboReel includes one Remote Control. See Section 4 for instructions. 2.5 Batteries The following batteries are included with the Hose Reel: Main Battery (12-volt). -
Page 7: Before F Irst U Sing T He H Ose R Eel
3. Before F irst U sing t he H ose R eel 3.1 Charge and Install Main Battery The Main Battery should arrive with the RoboReel fully charged. However, it is recommended that you charge the Battery for a minimum of 6 hours prior to first using the Hose Reel. -
Page 8: Install Water Valve Battery Pack
Figure 4b 3.2 Install Water Valve Battery Pack Unscrew the Battery Pack cap to remove the Battery Pack (Figure 5). Insert the 4 AA batteries into Battery Pack. Align the Battery Pack so that the 2 interior contacts are closest (up) to the hose connector. (See Figure 5) Using care, insert the Battery Pack into the Water Valve. -
Page 9: How To Attach Tow Rope And Engage Brakes
3.3 How to Attach Tow Rope and Engage Brakes CAUTION: Do not move the Hose Reel by pulling the hose itself or by pulling the Hose Cone (1 in Figure 6) on the unit. Before moving the unit, attach the Tow Rope to the notches located on the inside of either the front or rear set of legs (See Figure 6). - Page 10 Extract the hose by pulling it toward the area needing water. As the hose begins to be extracted, it becomes easier to pull. This is the forward assist feature. The RoboReel® will also rotate 360º allowing you to water large areas without having to move the unit.
-
Page 11: Program W Atering S Chedule
12. Press the Home button on the Remote Control or the Retract Button on the unit to retract the hose completely. If water is still flowing, pressing either button will turn off water flow before the hose retracts. NOTE: The Remote Control may be stored inside the RoboReel when not in use. ... -
Page 12: Programming
Home Button Pressing the Home button turns off the water and retracts the hose. • If the hose is already retracting, pressing the Home button will stop retraction. • Pressing the Home button also cancels an active watering program and retracts the hose. •... -
Page 13: Possible Programming Scenarios
4.3 Possible Programming Scenarios Scenario Button Result Number of Button Presses Sequence You need to fill the pool for 2 hours. Timer 2 hours of immediate (= 6 x 20 minutes) watering, followed by hose retraction. Home Water You will be away for the weekend Timer 40 minutes of immediate and have a new tree or shrub that... -
Page 14: Storing/Winterizing The Hose Reel
Repeat steps 5 and 6 until no water drains from the bottom of the Hose Reel. Remove the Main Battery and plug it into the Battery Charger. Keep it plugged in to the charger until you are ready to use the RoboReel again. Store the Hose Reel and accessories. -
Page 15: Synchronize H Ose R Eel A Ccessories
If the Remote Control or the Water Valve needs to be replaced, only that new device must be re-synchronized with the unit in order for the RoboReel to function correctly. -
Page 16: Troubleshooting
Faucet Adapter • Water Valve • Remote Control • NeverKink® Hose • Strain Relief Hose • Hose Brush • Brush Retainer • Battery Release Latch • Coin Cell Batteries • Parts Top Cover • Main System Board • O-Rings • Tow Rope •... - Page 17 Issues Possible Solutions Hose Reel OR Replace the Retract Button battery • This is normal to ensure the hose is not retracted with • Water dribbling from nozzle full water pressure. Ensure water is turned on at the faucet OR •...
-
Page 18: S Pecifications
“retract” button on the unit or on the Remote Control is engaged), once the defective product is returned to Great Stuff, Great Stuff will (at Great Stuff’s sole discretion) (1) repair the product at no charge, using new parts or parts equivalent to new in performance and reliability, (2) exchange the product with a product that is new or equivalent to new in performance and reliability and is at least functionally equivalent to the original product, or (3) refund the purchase price of the product. -
Page 19: F Cc R Egulations
(b) cosmetic damage, including but not limited to scratches, dents, and broken plastic; (c) damage caused by use of the RoboReel® Hose Reel with any other product; (d) damage caused by accident, abuse, misuse, liquid, flood, fire, earthquake or other external causes;... -
Page 20: Declaration Of Conformity
™ Great Stuff, Inc. (“GSI”) has made every effort to identify trademarked properties and owners on this page. All brands and product names used in this document are for identification purposes only and may be trademarks or registered trademarks of their respective companies.
