Summary of Contents for Technoware ERA LCD 0.65
-

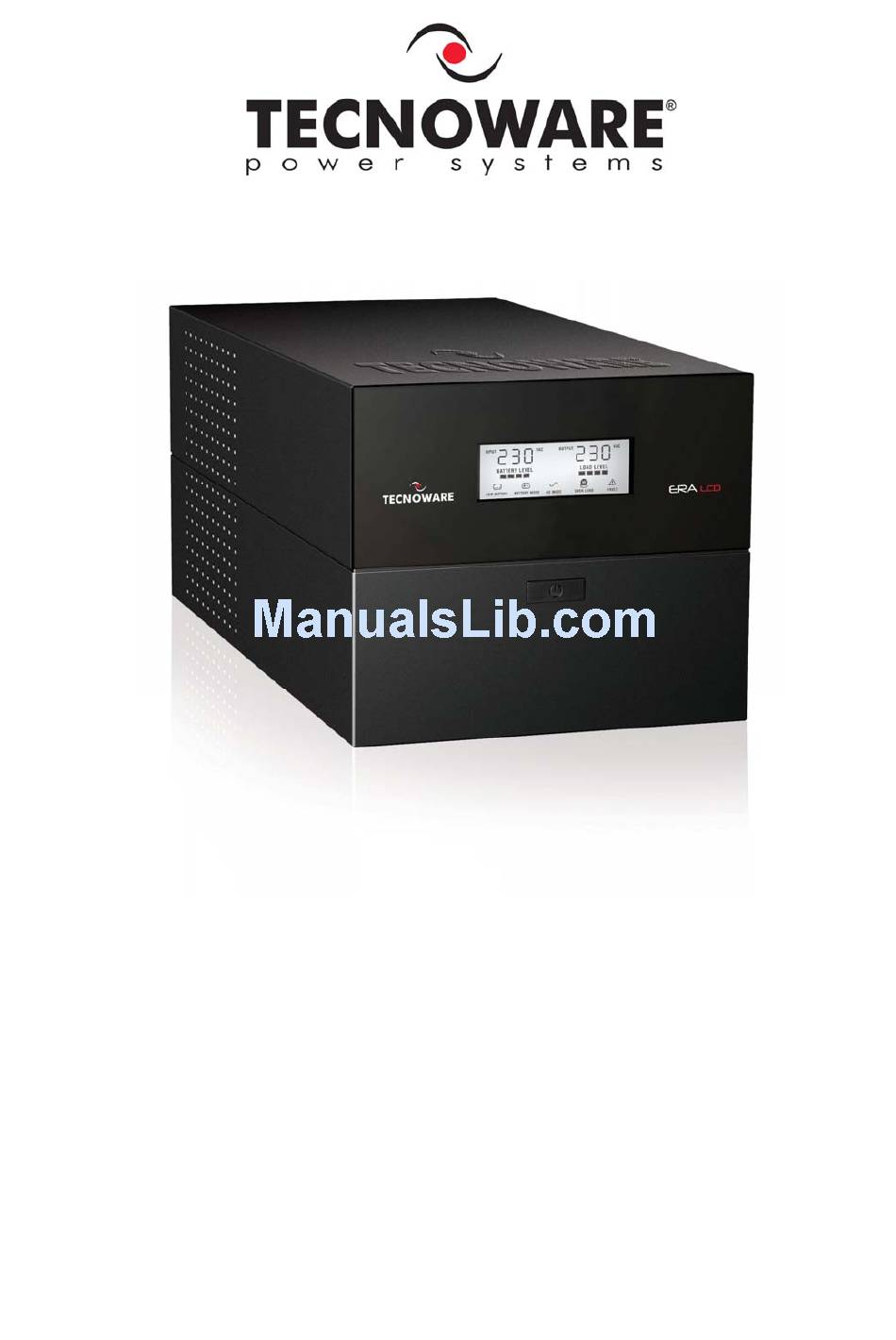

Page 1: Uninterruptible Power Supply

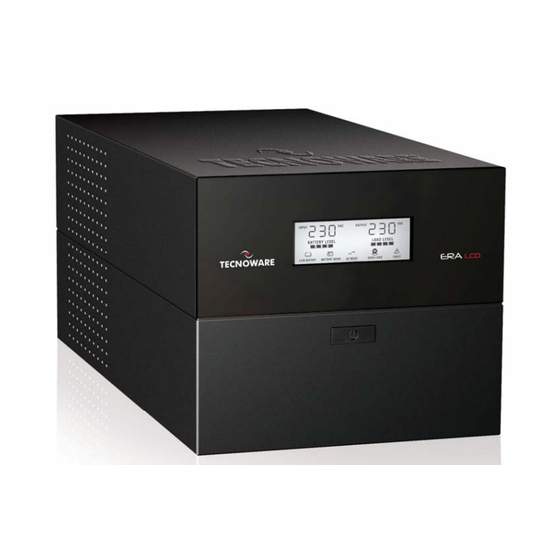

Uninterruptible Power Supply ERA LCD 0.65 ERA LCD 0.85 ERA LCD 1.1 User’s manual... -
Page 3: Table Of Contents
No part of this manual may be reproduced, even partially, without the authorisation of TECNOWARE s.r.l. TECNOWARE s.r.l. reserves the right to change specifications at any time and without notice. UPS ERA LCD 0.65 – 0.85 – 1.1 User’s manual... -
Page 4: Safety Warnings
Install the UPS indoors, in a protected, clean and moisture-free environment. Do not expose to the direct sun light. Do not keep liquids, flammable gases or corrosive substances near the UPS. User’s manual UPS ERA LCD 0.65 – 0.85 – 1.1... -
Page 5: Introduction
• ERA LCD 0.65 (650 VA) • ERA LCD 0.85 (850 VA) • ERA LCD 1.1 (1100 VA) In this manual ERA LCD will simply be referred to as UPS. UPS ERA LCD 0.65 – 0.85 – 1.1 User’s manual... -
Page 6: General Characteristics
Do not keep liquids, flammable gases or corrosive substances near the unit. • Install the UPS on a properly tiled floor. Avoid the installation on a floor that is not tiled flat. User’s manual UPS ERA LCD 0.65 – 0.85 – 1.1... -
Page 7: External Description
LCD display provides information about Input and Output Voltage, Battery Level percentage, Load Level percentage, functioning modes, alarm and fault conditions. ON/OFF button: enables the user to turn ON/OFF the UPS. Figure 1 – Front panel UPS ERA LCD 0.65 – 0.85 – 1.1 User’s manual... -
Page 8: Lcd Display
BATTERY MODE: this icon is on to indicate the UPS is working in Battery mode. LOW BATTERY: is on to indicate the Low Battery condition. OVER LOAD: is on to indicate the Overload condition. FAULT: is on to indicate the Fault condition. User’s manual UPS ERA LCD 0.65 – 0.85 – 1.1... -
Page 9: Rear Side
In case of anomaly to the AC line (black-out), ONLY the UPS Output receptacles (black colour, #3) continue supplying the correct power to all connected equipment. Please connect all the non-critical devices to the UPS Output receptacles. UPS ERA LCD 0.65 – 0.85 – 1.1 User’s manual... -
Page 10: Electrical Installation And First Start Up
TECNOWARE. TECNOWARE declines any responsibility if this warning is disregarded. Disregard for these warnings may lead to a risk of electric shock to operators. User’s manual UPS ERA LCD 0.65 – 0.85 – 1.1... -
Page 11: Functioning
After a complete discharge, the UPS needs 4 hours to recharge completely the batteries. The UPS recharges batteries automatically if it works in Normal mode or if it is off and connected to the AC Input Line. UPS ERA LCD 0.65 – 0.85 – 1.1 User’s manual... -
Page 12: Load Control
The USB signals are all isolated through photo-couplers from the dangerous voltages that are present inside the UPS. Connecting to the Web site www.tecnoware.com, it is possible to download, free of charge, the update UPS management Software, compatible with the most popular Operative Systems User’s manual UPS ERA LCD 0.65 – 0.85 – 1.1... -
Page 13: Technical Characteristics
14 x 12 x 28 cm Net Weight 5,5 Kg 6 Kg 6,5 Kg Technical data may change without prior notice (*) Connect the printers to the ONLY FILTERED Output sockets UPS ERA LCD 0.65 – 0.85 – 1.1 User’s manual... -
Page 14: Maintenance
Disconnect the battery wires and gently extract the battery from the case. The new battery must be exactly the same type as the original one. Put inside the new battery and connect it as the original one. Reassemble the case cover. User’s manual UPS ERA LCD 0.65 – 0.85 – 1.1... -
Page 15: Operator Safety
Please give the following information to the Technical Service: Model and serial number of the UPS, which can be found on the nameplate on the rear of the UPS. Description of anomaly. UPS ERA LCD 0.65 – 0.85 – 1.1 User’s manual... - Page 16 Install correctly the specific Software for your Computer’s correctly installed Operative System. If the described anomalies should continue despite the advised troubleshooting, or should they manifest in any other form, please contact: TECNOWARE SERVICE www.tecnoware.com User’s manual UPS ERA LCD 0.65 – 0.85 – 1.1...
-
Page 17: Conformity To The European Directives
The batteries cannot be disposed as an urban waste, but must be treated in conformity with 2006/66/CE European Directive; any violation is indictable with financial sanctions as established into 2006/66/CE European Directive. UPS ERA LCD 0.65 – 0.85 – 1.1 User’s manual... - Page 20 TECNOWARE s.r.l. www.tecnoware.com...
