Summary of Contents for Unique-sky UB-353

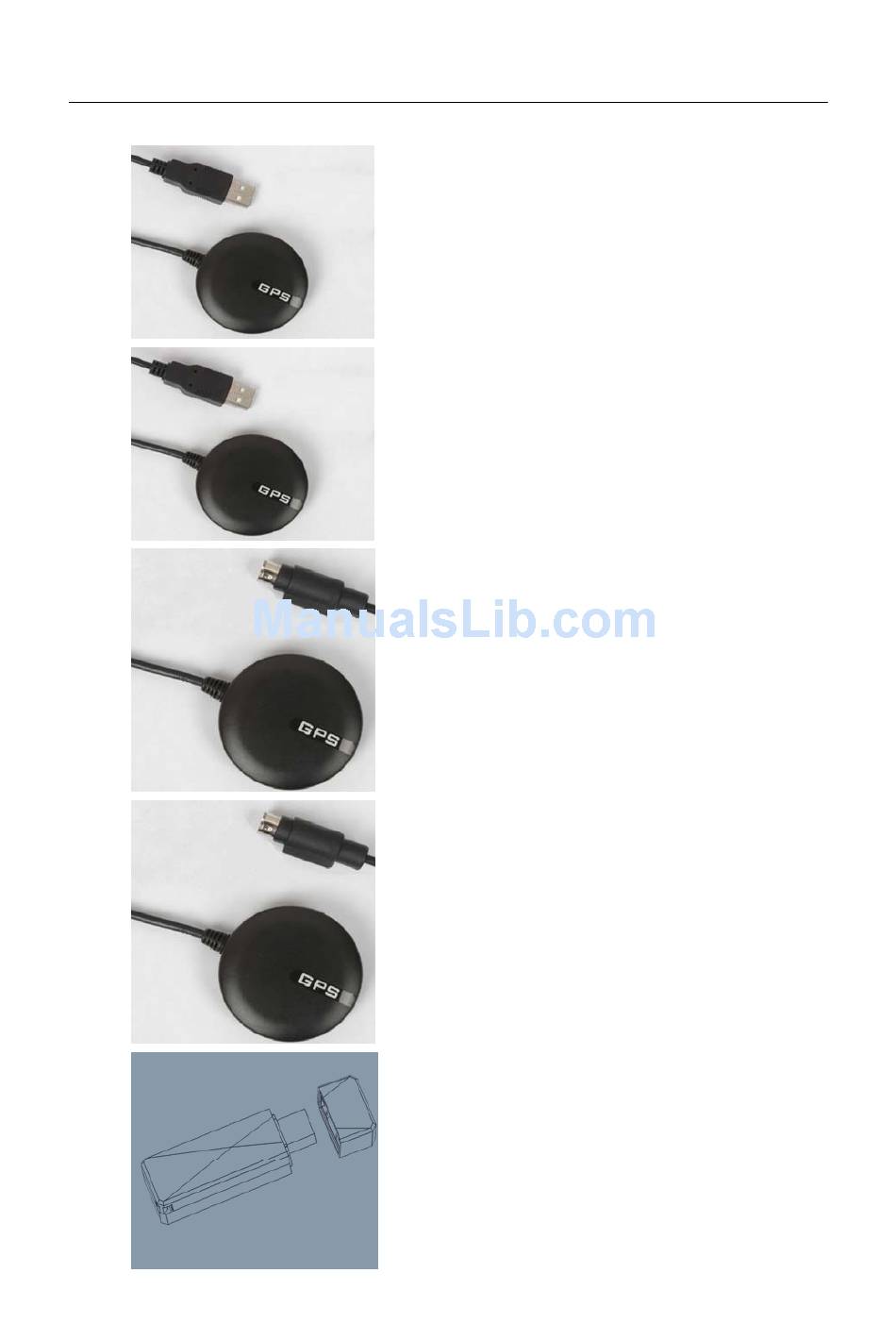

- Page 1 GPS Receiver User’s Guide V1.0 GPS Receiver UB-353(ublox 5 USB G-mouse US-330U(ublox 5 USB G-mouse) UB-355(ublox 5 PS/2 G-mouse) US-330R(ublox 5 PS/2 G-mouse) US-520(ublox 5 USB Dongle)
- Page 2 DOCUMENT REVISIONS REV NO. DATE DESCRIPTION APPROVED 09-16-2010 Initial document fm.hu PAGE 1 OF 14...
-
Page 3: Table Of Contents
GPS RECEIVER Table of Contents PACKAGE CONTENTS .....................3 SYSTEM REQUIREMENTS ....................3 WELCOME...........................3 1. GETTING STARTED....................3 2. INSTALLING THE WINDOWS USB DRIVER TO YOUR LAPTOP ......5 3. INSTALLING THE LINUX USB DRIVER..............6 4. COM PORT VERIFICATION..................7 5. INITIALIZING YOUR GPS RECEIVER................7 6. -
Page 4: Package Contents
- Driver CD-ROM with User’s Guide and test utility for WINDOWS and Linux* ∗ WIN Users please refer to the root directory on the included CD-ROM for installation instructions and drivers. SYSTEM REQUIREMENTS The Unique-sky USB GPS receivers requires a Windows, with a CD- ROM*, USB port, and NMEA compatible navigation software. - Page 5 GPS RECEIVER From within your mapping, or navigation software (including the supplied GPS Information utility), you will need to manually configure the selection of the COM port to what was assigned to the GPS receiver so that proper communication between the GPS receiver and mapping program can occur. Most all software requires that you manually configure the COM port setting for any GPS device you use.
-
Page 6: Installing The Windows Usb Driver To Your Laptop
GPS RECEIVER 2. INSTALLING THE WINDOWS USB DRIVER TO YOUR LAPTOP Place the product CD-ROM into your CD-ROM drive. Auto-run should detect the CD bring up the following screen below. Click on the button titled “Install USB Driver” from the main screen as shown above. Or should your “Auto-Run”... -
Page 7: Installing The Linux Usb Driver
GPS RECEIVER 3. INSTALLING THE LINUX USB DRIVER About to installing the linux USB driver,Please refer to ” USB_with_LINUX(GPS.G4-CS- 07059).pdf “document in the \MANUAL\ directory of the included CDROM. PAGE 6 OF 14... -
Page 8: Com Port Verification
GPS RECEIVER 4. COM PORT VERIFICATION (ONLY FOR USB VERSION) Once your USB Driver has been installed, you will need to confirm which COM Port your PC has assigned to it in order to properly configure any software that will be utilizing the GPS data being received. -
Page 9: Using / Testing Your Gps Receiver
GPS RECEIVER 6. USING / TESTING YOUR GPS RECEIVER Once the GPS receiver’s driver and your personal mapping software have been installed and configured properly, you can begin to use your navigation system by plugging the GPS into your laptop’s USB port or PS/2 port and launching your mapping software. If you don’t have a mapping, or navigation software, we’ve included a GPS test utility called “u-center”... -
Page 10: Faq's
GPS RECEIVER NOTE: Configuration (or selection) of an assigned COM port for the GPS device from within your mapping or charting software must be completed whenever using a software for the first time. 7. FAQ’s I am not getting GPS data into my application. Check your DEVICE MANAGER to confirm the COM Port number assigned to the GPS Receiver (it will be listed under the PORTS (COM &... -
Page 11: Contact Information
GPS RECEIVER resellers, these units are WAAS/EGNOS enabled unless otherwise stated. Accuracy can be up to 2 meters with WAAS enabled and 2.5 meters 2D RMS WAAS disabled What is ideal GPS environment? The GPS requires an open, clear view of the sky. Buildings, covered parking areas, tunnels and dense foliage can cause the GPS receiver to be unable to get a location fix. -
Page 12: Safety And Legal Notices
GPS RECEIVER 9. SAFETY AND LEGAL NOTICES Please read this section carefully before using the GPS receiver We will not accept any responsibility whatsoever for accidents resulting from failure to observe common sense precautions. Your personal judgment, traffic regulations, and common sense must always take precedence over any directions produced by GPS receiver or the mapping software WARNING: Make sure that the GPS receiver is secure and does not interfere with driving... -
Page 13: Limited Warranty
GPS RECEIVER 10. LIMITED WARRANTY We warrants product hardware against manufacturing defects in material and workmanship under normal use for a period of one (1) year from the original date of purchase (unless the product states otherwise), and only when purchased from a recognized “authorized dealer”. Products purchased from any unauthorized source, such as unauthorized e-Bay resellers, will not qualify for free warranty service/support and may require the end-user to pre-pay fees associated with, but not limited to the support, repair, replacement and shipping of the product to and from the service center. -
Page 14: Ub353/Us330U/Us520 Specifications
GPS RECEIVER 11. UB-353/US330U/US520 SPECIFICATIONS General Chipset UBX G5010 Frequency L1, 1575.42 MHz code C/A code Channels 50 channel Sensitivity -160 dBm Accuracy Position Autonomous:<2.5m average SBAS:<2.0m average Velocity 0.1 m/s Acquisition Time Aided start <1second,average Reacquisition <1second,average Hot start... -
Page 15: Ub355/Us330R Specifications
GPS RECEIVER 12. UB355/US330R SPECIFICATIONS General Chipset UBX G5010 Frequency L1, 1575.42 MHz code C/A code Channels 50 channel Sensitivity -160 dBm Accuracy Position Autonomous:<2.5m average SBAS:<2.0m average Velocity 0.1 m/s Acquisition Time Aided start <1second,average Reacquisition <1second,average Hot start 1seccond,average Cold start 29second,average...
