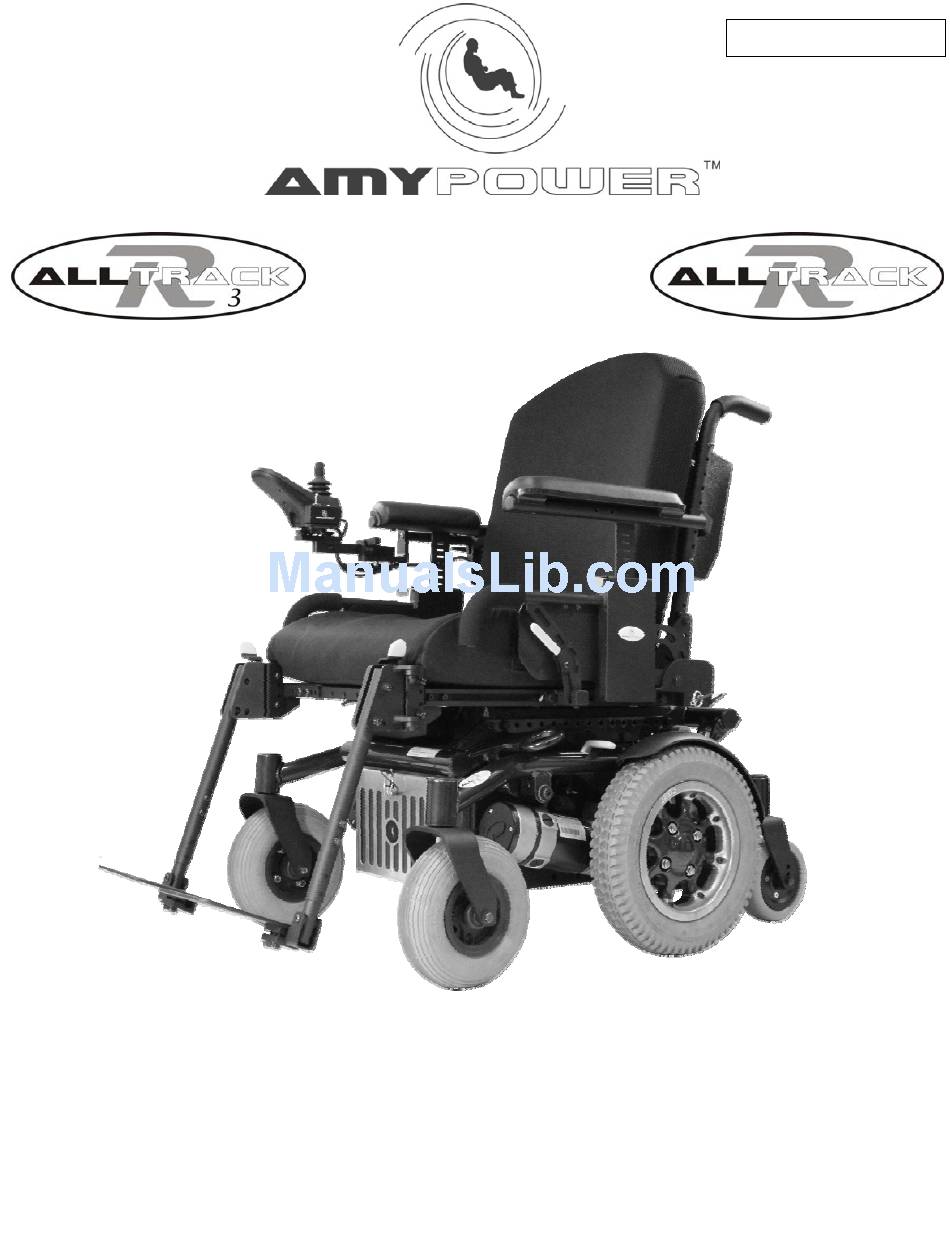

- Page 1 Part Number: G-0017 OWNER’S MANUAL ALLTRACK R3 & R Series Power Wheelchair Supplier: This manual must be given to this wheelchair user. User: Before using this wheelchair, please read this entire manual and save it for future reference.
-
Page 2: Introduction
Address: R-Net input output module R-Net on-board programming manual R-Net Omni technical manual VR2 wheelchair control system VR2 attendant module Telephone: PPIA programming and diagnostics Fax: Serial #: Date/Purchased: AMYPOWER ALLTRACK R3 & R SERIES - Owner’s Manual (Rev. A) -
Page 3: Table Of Contents
3. What we will do ............... N. CG Tilt Power Accessory ............4. What you must do ............O. 11” Seat Lift Power Accessory ..........5. Notice to Consumer ............AMYPOWER ALLTRACK R3 & R SERIES - Owner’s Manual (Rev. A) -
Page 4: Your Chair And Its Parts

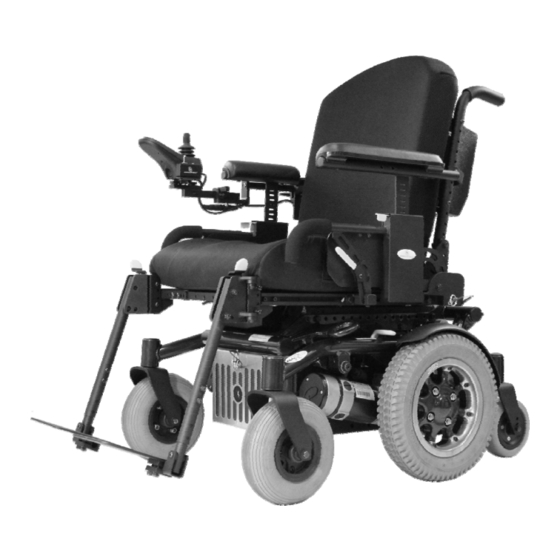

YOUR AMYPOWER ALLTRACK R3 OR R POWER WHEELCHAIR AND ITS PARTS Armrest Joystick Seat Pan Front Hanger Caster Tire Foot Plates Backrest Push Handle Free-wheel Release Lever Seat Frame Drive Wheels Base Frame Caster Fork Headrest Base Chair User Weight Limits*... -
Page 5: Notice -Read Before Use
1. EMI means: electromagnetic (EM) interference (I). EMI comes from radio wave sources such as radio transmitters and transceivers. (A “transceiver” is a device that both sends and receives radio wave signals). AMYPOWER ALLTRACK R3 & R SERIES - Owner’s Manual (Rev. A) -
Page 6: What Effect Can Emi Have
2. The higher the immunity level, the less the risk of EMI. It is believed that a 20 V/m immunity level will protect the power wheelchair user from the more common sources of radio waves. AMYPOWER ALLTRACK R3 & R SERIES - Owner’s Manual (Rev. A) -
Page 7: General Warnings
When you do 3. When not in use, keep your chair in a clean dry so the chair will not have brakes. place. AMYPOWER ALLTRACK R3 & R SERIES - Owner’s Manual (Rev. A) -
Page 8: Changes And Adjustments
Do so only if you are sure it is safe. Stop if one or both main wheels lose traction. If this occurs, you may lose control of your chair or fall. AMYPOWER ALLTRACK R3 & R SERIES - Owner’s Manual (Rev. A) -
Page 9: Center Of Balance
2. Never reach or lean if you must move forward in your seat to do so. Always keep your buttocks in contact with the backrest. AMYPOWER ALLTRACK R3 & R SERIES - Owner’s Manual (Rev. A) -
Page 10: To Reduce The Risk Of Falls, Tip-Over, Or Loss Of Control
4. You may need to add a section at the top or bottom to avoid a lip or drop-off. 5. Ramp must be sturdy. Add bracing if needed, so ramp does not “bow ” when you ride on it. AMYPOWER ALLTRACK R3 & R SERIES - Owner’s Manual (Rev. A) -
Page 11: Warnings: Components & Options
Use a hand pump (or low volume air pump) to inflate tires. Use a tire gauge to check pressure. 5. Driving over sharp objects may cause damage to pneumatic tires and tubes. AMYPOWER ALLTRACK R3 & R SERIES - Owner’s Manual (Rev. A) -
Page 12: Positioning Belts
2. Sling fabric will deteriorate with age and use. Look for fraying, thin spots, or stretching of fabric at rivet holes. Replace fabric as required. 3. Be aware that washing may reduce flame retardation of the fabric. AMYPOWER ALLTRACK R3 & R SERIES - Owner’s Manual (Rev. A) -
Page 13: Cg Tilt Power Accessory
It may shift and interfere with the driver 3. ALWAYS secure this chair so that it cannot roll or shift. 4. Do not use any chair that has been involved in a motor vehicle accident. AMYPOWER ALLTRACK R3 & R SERIES - Owner’s Manual (Rev. A) -
Page 14: Battery Removal
To remove footrest, press quick-release lever (e). b. Rotate footrest outward and lift. 3. Height Adjustment a. Remove both bolts (f) in the hanger frame tube. b. Reposition the footrest. c. Re-tighten all bolts (f). AMYPOWER ALLTRACK R3 & R SERIES - Owner’s Manual (Rev. A) -
Page 15: Elevating Legrests (Optional)
2. Continue pushing down until the joystick bracket is fully retracted. 3. To bring back, pull the joystick firmly towards you until it gets back in its locked position. AMYPOWER ALLTRACK R3 & R SERIES - Owner’s Manual (Rev. A) -
Page 16: Dual Post Height Adjustable Armrest
Reinstall the front bolts and tighten both bolts securely. Make sure back canes and pivot plate cannot slide out of the side rails when in tilt position for example. AMYPOWER ALLTRACK R3 & R SERIES - Owner’s Manual (Rev. A) -
Page 17: Operating Guide
Turn the lever (A) towards the center of the chair to return to the drive position. NOTE- If the lever is difficult to disengage, rock the wheelchair slightly from front to rear and/or push against the chair while moving the lever. AMYPOWER ALLTRACK R3 & R SERIES - Owner’s Manual (Rev. A) -
Page 18: Performance Control Settings
C. Once you have accessed the seating mode in your joystick, you must pull the toggle to activate the power option, and push the toggle in the opposite direction to return to the static mode. AMYPOWER ALLTRACK R3 & R SERIES - Owner’s Manual (Rev. A) -
Page 19: Power Tilt Operation
15 degrees, have the wheelchair or power tilt system serviced by an authorized dealer or qualified technician. AMYPOWER ALLTRACK R3 & R SERIES - Owner’s Manual (Rev. A) -
Page 20: Power Seat Lift Operation
30% of its original settings, have the wheelchair or power seat lift system serviced by an authorized dealer or qualified technician. AMYPOWER ALLTRACK R3 & R SERIES - Owner’s Manual (Rev. A) -
Page 21: Power Tilt / Seat Lift Combo Operation
25% of its original settings, have the wheelchair or power seat lift system serviced by an authorized dealer or qualified technician. AMYPOWER ALLTRACK R3 & R SERIES - Owner’s Manual (Rev. A) -
Page 22: Power Recline Operation
/ recline limit. The total tilt and recline angle should be limited prior to contact between the shroud and the tilt actuator. AMYPOWER ALLTRACK R3 & R SERIES - Owner’s Manual (Rev. A) -
Page 23: Power Elevating Front Riggings Operation
1 second and push the same button until the desired center mount angle is achieved and release. AMYPOWER ALLTRACK R3 & R SERIES - Owner’s Manual (Rev. A) -
Page 24: Manual Recline Operation
Once desired recline angle is attained, release the recline lever. AMYPOWER ALLTRACK R3 & R SERIES - Owner’s Manual (Rev. A) -
Page 25: Adjustments
AMYPOWER ALLTRACK R3 & R SERIES - Owner’s Manual (Rev. A) -
Page 26: Troubleshooting Guide For Power Seating
WRONG CHARGER IS USED MAKE SURE YOU ARE USING BURNS EVERY THE BATTERY CHARGER TROUBLE WITH THE POWER TIME I TRY TO PROVIDED WITH YOUR INTERFACING CABLE CHARGE THE WHEELCHAIR BATTERIES AMYPOWER ALLTRACK R3 & R SERIES - Owner’s Manual (Rev. A) -
Page 27: Batteries
This will damage the cord. wrenches to 60 in-lbs (6.8 N.m). Never open a charger or attempt to repair it yourself. Return a defective charger back to your supplier. AMYPOWER ALLTRACK R3 & R SERIES - Owner’s Manual (Rev. A) -
Page 28: Charging Batteries
Clean the paint finish with mild soapy water monthly. Protect the paint with a coat of non-abrasive auto wax every 6 months. AMYPOWER ALLTRACK R3 & R SERIES - Owner’s Manual (Rev. A) -
Page 29: Battery Maintenance
Inspect upholstery for wear Residual air pressure in tires can cause severe Service by authorized supplier injury. Make sure you release all air in tire before attempting to service or repair tires. AMYPOWER ALLTRACK R3 & R SERIES - Owner’s Manual (Rev. A) -
Page 30: Amypower Limited Warranty
One (1) year from the first consumer purchase, and Repair or replacement of the defective part only. This warranty gives you certain legal rights. You may also have other rights that vary from state to state. AMYPOWER ALLTRACK R3 & R SERIES - Owner’s Manual (Rev. A)
