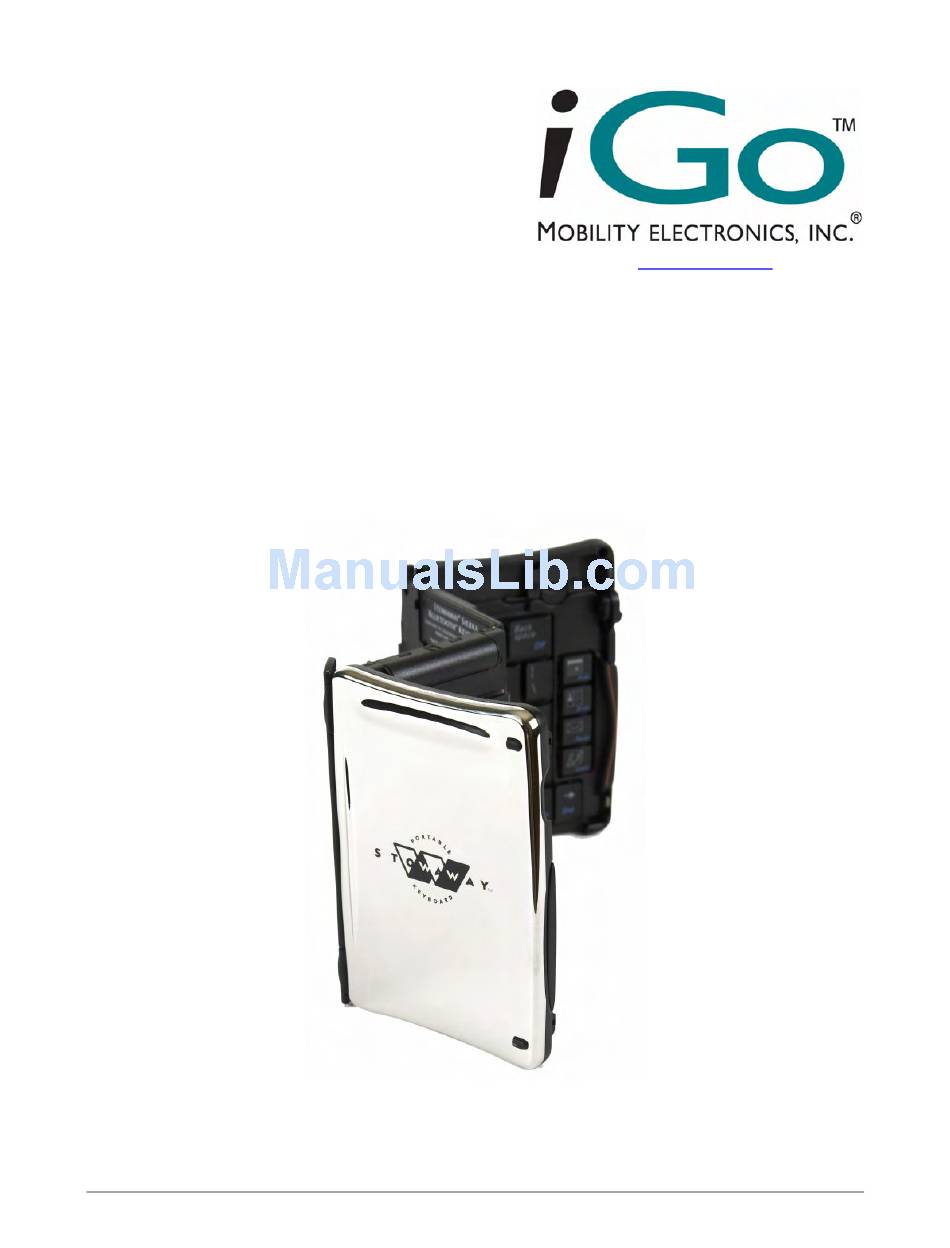

- Page 1 www.igo.com ™ ® ® Stowaway Bluetooth Keyboard Owner’s Manual Symbian UIQ Mobile Devices Keyboard Driver: 1.21 Stowaway Bluetooth Owner’s Manual for Symbian UIQ Page 1...
-
Page 2: Table Of Contents
Setting up the Keyboard ...3 Before You Begin...3 Installing the Software...3 Keyboard Description...4 Configuring the Keyboard to your Device...5 Secure Connections ...5 Unsecure Connections ...8 Other Features ...8 Reconnecting the Stowaway keyboard ...11 Automatic Reconnection from Waiting Mode ...12 Customizing Your Keyboard ...13 Keyboard Control Panel ...13 Disabling the Stowaway keyboard ...14 Secure Connection Overview ...14... -
Page 3: Setting Up The Keyboard
Setting up the Keyboard Before You Begin Before you install the Stowaway keyboard software for Symbian UIQ mobile devices: Disable or remove any other keyboard applications that you have previously installed on your mobile device. (Refer to the User’s Guide included with your mobile device for instruction on how to do this.) Ensure there is at least 250 KB of memory on your mobile device. -
Page 4: Keyboard Description
Keyboard Description Stowaway Bluetooth Owner’s Manual for Symbian UIQ Page 4... -
Page 5: Configuring The Keyboard To Your Device
Configuring the Keyboard to your Device NOTE: The Bluetooth connection between the mobile device and keyboard must be set up through the Stowaway keyboard driver. 1. A Secure connection requires authentication by entering the same passkey (passcode) on the mobile device and then on the keyboard. - Page 6 3. After you tap Enable BT, the Stowaway keyboard application will enable the Bluetooth system software (Bluetooth Stack) on your mobile device, and will begin searching for the keyboard. Stowaway Bluetooth Owner’s Manual for Symbian UIQ 2. The status tab offers buttons to enable or disable your keyboard.
- Page 7 5. Next, type the same Passkey number on the Stowaway keyboard. When finished, press the <Enter> key on your keyboard. 7. If the passkey is not entered correctly, the connection will fail. In this case you will need to repeat steps 3-5 from above. NOTE: Please, make sure that the passkey is entered on your mobile device first, tap Done (twice), and then follow with the...
-
Page 8: Unsecure Connections
UNSECURE CONNECTIONS 1. If several Stowaway keyboards happen to be nearby and in Discoverable mode, the scan will display all of these devices in a list. Compare the keyboard ID (Bluetooth address) printed on the back of the keyboard with the IDs in the list and select the desired keyboard to connect to. - Page 9 NOTE: The keyboard will display a RED LED above the <0> key to show when the battery does not have enough power for the Bluetooth radio to function. 3. After the Stowaway keyboard is enabled, you can test the connection by typing on the keyboard.
- Page 10 5. About tab – Provides the version of the Stowaway software installed on your mobile device. Stowaway Bluetooth Owner’s Manual for Symbian UIQ 4. The Keys tab allows you to assign applications or files to open with the < Fn> + <number>...
-
Page 11: Reconnecting The Stowaway Keyboard
Reconnecting the Stowaway keyboard The above steps establish the Bluetooth wireless connection and bonding between the mobile device and the keyboard for the first time. Keyboard character input should be enabled as long as the connection is maintained. Despite a high degree of reliability, the Bluetooth connection could break for many reasons: The keyboard will power off when the right key panel is slid out and the Bluetooth connection will be lost. -
Page 12: Automatic Reconnection From Waiting Mode
Even when disconnected, the mobile device and the keyboard remain bonded. The keyboard will only reconnect to the bonded mobile device and the mobile device will only listen to the bonded keyboard. To break the bond press the Discoverable button for approximately 1 second or until the green LED flashes quickly. -
Page 13: Customizing Your Keyboard
Customizing Your Keyboard Keyboard Control Panel On the Status tab: The Status tab allows you to turn on/off access to the keyboard, and gives access to the other application features. Tap Enable BT to turn access on and Disable BT to turn access off. The keyboard status window allows you to monitor connection status. -
Page 14: Disabling The Stowaway Keyboard
Disabling the Stowaway keyboard When the Stowaway keyboard is no longer needed, you may disable the keyboard driver by tapping Disable BT on the Status tab. The BT Disabled message will then be displayed on the Status page. NOTE: Disabling the Bluetooth keyboard will not automatically turn off the Bluetooth radio. -
Page 15: Keyboard Status Light
Keyboard Status Light When the keyboard is open and the right panel is slid in, there is a light above the <0> key that indicates the status of the keyboard. When the keyboard status light flashes a fast green light (approx. once per second) it is in Discoverable mode. -
Page 16: Using The Stowaway Keyboard
Using the Stowaway keyboard Character Input • Commands joined by a dash “–” mean that the key combination must be pressed in order and with all keys held down at the same time. Commands joined by a plus “+” mean that the key following the “+” •... -
Page 17: International And Extended Character Set
International and Extended Character Set Character Description å Dot accent Å Dot accent ¢ Cents â, ê, î, ô, û Circumflex accent Â, Ê, Î, Ô, Û Circumflex accent æ æ Æ Æ œ œ Œ Œ ß Beta ä, ë, ï, ö, ü, ÿ Dieresis accent (umlaut) Ä, Ë, Ï, Ö, Ü, Ÿ... -
Page 18: Frequently Asked Questions
Frequently Asked Questions Q: My keyboard and handheld are in-range and powered on, why won’t they reconnect after a key press? A: The current Bluetooth settings on your mobile device may preclude an automatic reconnection. Determine if your Bluetooth software requires paired devices to be Authenticated, or whether your current Bluetooth operating mode permits devices to connect. -
Page 19: Legal Notices
Legal Notices Mobility California, Inc. and its affiliates shall not be liable for technical or editorial errors or omissions contained herein or for special, indirect, incidental or consequential damages whatsoever in connection with the furnishing, performance, or use of this material. The information in this document is provided “as is”... -
Page 20: Warranty
Warranty Mobility California warrants this product against defects in materials and workmanship under normal use for a period of one (1) year from the date of original retail purchase. Mobility California’s and its suppliers’ entire liability, and your exclusive remedy, if you discover a defect and return the product with proof of purchase to Mobility California during the warranty period, is that Mobility California will, at its option, repair, replace, or refund the purchase price of the product to you at no charge. - Page 21 Obtaining Warranty Service Customer must contact Mobility California within the applicable warranty period to obtain warranty service authorization. Dated proof of original purchase will be required for warranty service, repair, or replacement. Products or parts shipped by Customer to Mobility California must be sent postage-paid and packaged appropriately for safe shipment.
-
Page 22: Important Battery Information
Important Battery Information • Keep battery away from children. • Always replace old, weak or worn-out batteries promptly and recycle or dispose of them properly. Before inserting a new battery, the battery compartment should be cleaned. If fluid from the battery comes into contact with skin or clothes, flush with water immediately. -
Page 23: Important Notes About Bluetooth Devices
Important Notes about Bluetooth Devices The Stowaway keyboard can emit radio frequency (RF) energy whenever the green LED is flashing. Care should be taken when used around medical devices or equipment. For specific information, consult with the product manufacturer or your physician before use. To stop interference, close the keyboard or remove its battery. - Page 24 Wireless Regulatory Information The Stowaway device must be used in strict accordance with the manufacturer's instructions as described in the user documentation that comes with the product. For country-specific approvals, see Radio approvals. Mobility California, Inc. is not responsible for any radio or television interference caused by unauthorized modification of the device, or the substitution or attachment of connecting cables and equipment other than that specified by Mobility California, Inc.
- Page 25 FCC Notices This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 26 FCC Identification Information The following information is provided on the device or devices covered in this document in compliance with FCC regulations: • Model number(s): STBT01 • Company name: Mobility Electronics, Inc. 9918 Via Pasar San Diego, California 92126 United States of America 1.858.880.2225 IC Notice This Class B digital apparatus complies with Canadian ICES -003.
- Page 27 Europe – CE Declaration of Conformity EN 301 489-1 (2004), EN 301 489-17 (2002), EN 300 328-1 (2001), EN 300 328-2 (2001), EN 60950 (2001) English Hereby, Mobility California, Inc. declares that this STBT01 is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.
- Page 28 Swedish Härmed intygar Mobility California, Inc. att denna STBT01 står I överensstämmelse med de väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG. Danish Undertengnede Mobility California, Inc. erklærer herved, at følgende udstyr STBT01 overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF.
- Page 29 France Some areas of France have a restricted frequency band. The worst case maximum authorized power indoors is: 10 mW for the entire 2.4 GHz band (2400 MHz–2483.5 MHz). 100 mW for frequencies between 2446.5 MHz and 2483.5 MHz (NOTE— Channels 10 through 13 inclusive operate in the band 2446.6 MHz to 2483.5 MHz).
-
Page 30: Features And Technical Specifications
Features and Technical Specifications • Small, foldaway design makes it easy to put in your pocket or briefcase. • Simple connection compatibility with your Mobile device via Bluetooth. • 5 row design for greatest comfort and ease of use. • Full size QWERTY keyboard layout for optimum comfort while typing. Meets ISO/IEC Specification 9995 for full-size keyboards.
