Summary of Contents for Igo PPC 6700

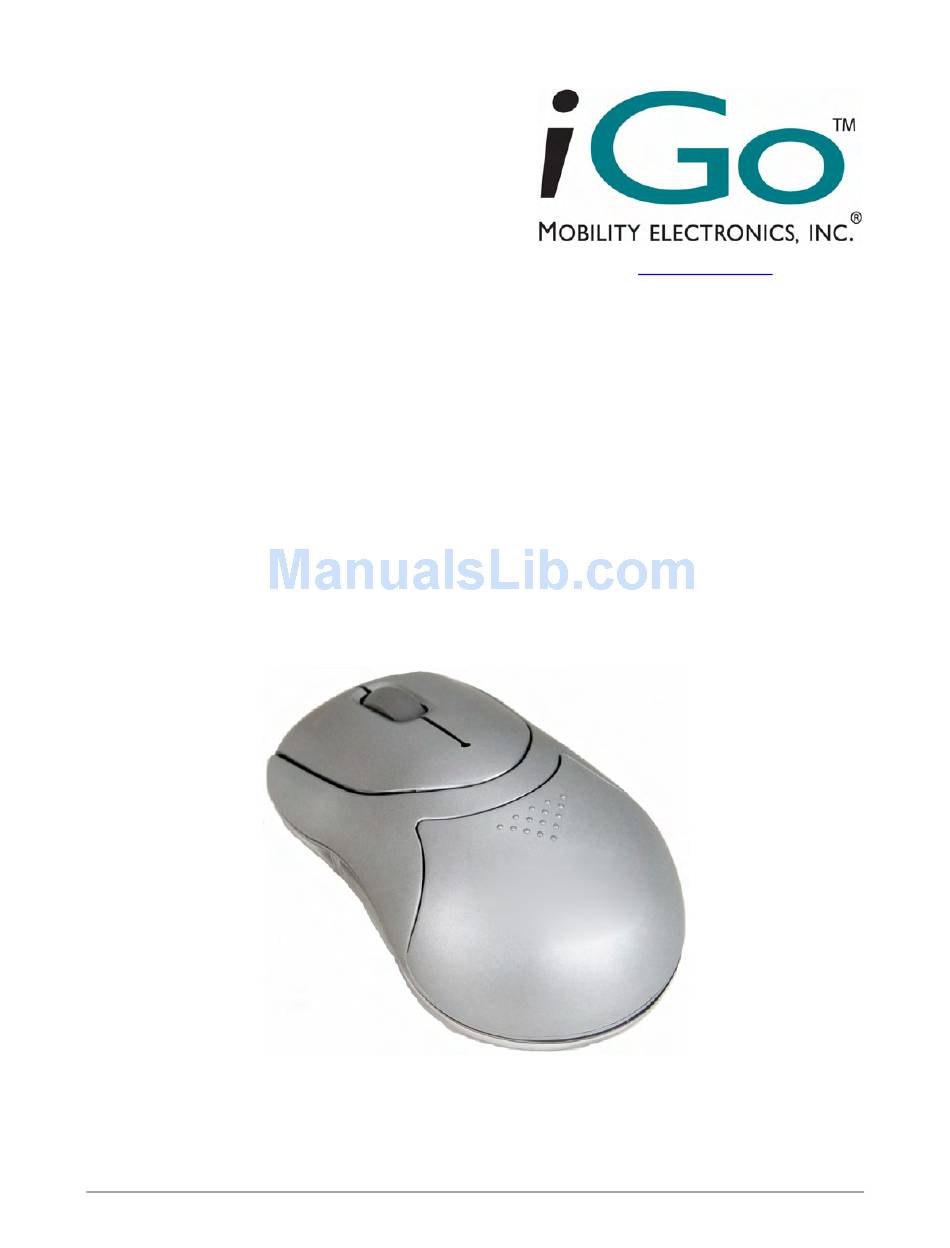

- Page 1 ™ ® Stowaway ® Bluetooth Mouse Owner’s Manual ™ Pocket PC 2003/Windows Mobile Apple Macintosh OS X ® Microsoft Windows XP Mouse/Keyboard Driver: Stowaway 4.51 Stowaway Bluetooth Mouse Owner’s Manual Page 1...
-
Page 2: Table Of Contents
Installing the Mouse with Macintosh OS X...3 Before You Begin...3 Creating a Paired Connection with your Macintosh ...3 Installing the Mouse for Use with Windows XP ...4 Before You Begin...4 Creating a Paired Connection with your PC...4 Setting up the Mouse with Pocket PC ...5 Before You Begin...5... -
Page 3: Installing The Mouse With Macintosh Os X
2. Refer to the instructions included with the Bluetooth Setup Assistant on the process for Pairing Devices. 3. Power on the Stowaway Mouse by switching the Power switch to ON and press the Discoverable button to make it detectable by the Bluetooth software on your Macintosh. -
Page 4: Installing The Mouse For Use With Windows Xp
2. Refer to the instructions included with your Bluetooth software on the process for Pairing Devices. 3. Power on the Stowaway Mouse by switching the Power switch to ON and press the Discoverable button to make it detectable by the Bluetooth software on your PC. -
Page 5: Setting Up The Mouse With Pocket Pc
Setting up the Mouse with Pocket PC Before You Begin Before you install the Stowaway keyboard and mouse software for Pocket PC 2003/Windows Mobile 5.0 PDAs: ActiveSync 4.0 or greater is required to install the keyboard driver application. Disable or uninstall any other keyboard or mouse applications that you have previously installed on your mobile device. -
Page 6: Configuring The Mouse To Your Device
3. Select Yes at the next screen to reset the PDA and apply the pointer mode. Stowaway Bluetooth Mouse Owner’s Manual 2. The Select mouse pointer mode screen will display for selecting Enhanced or Safe pointer mode: a. Enhanced mode – Works for most PDAs. - Page 7 5. On Pocket PC devices with Windows Mobile 5.0 you may see a screen warning that the Stowaway Mouse driver will not work with the built-in Bluetooth Keyboard driver. You must tap Disable built-in HID driver in order for the mouse to work correctly.
- Page 8 9. Once a mouse is detected, the application will begin Verifying connection by prompting you to move the mouse and click in the red box provided. This will verify that the correct mouse is being connected to your PDA. If you cannot...
- Page 9 12. If the Bluetooth scan or connection fails, ensure the mouse is Discoverable and tap Connect again. If the connection still fails: a. Power cycle the mouse (turn off and on), make it Discoverable, and tap Connect. b. Or, reset the PDA, make the mouse discoverable, and tap Connect.
- Page 10 13. If the mouse has previously been connected with your Pocket PC but you have pressed the Discoverable mode button during normal use, the mouse will lose its bond with your handheld device. Tap Connect to reestablish the bond. 15. The Mouse Status Page displays the mouse battery status.
- Page 11 If the mouse driver fails to detect a supported Bluetooth stack during the initial setup or at a later time (e.g. after power on), it will display the Bluetooth system not detected message on the Connection page. This should not happen on Pocket PC devices with a built-in Widcomm stack version 1.4.x or later or Microsoft stack,...
-
Page 12: Reconnecting The Stowaway Mouse
When any of these conditions occurs, the connection will be lost and the software will switch to waiting mode. To restore the connection, make sure the mouse and Pocket PC device are powered on and in range, then press a mouse button. See... -
Page 13: Bluetooth Accessibility
Bluetooth Accessibility For those using Windows Mobile 2003 or a non-Microsoft Bluetooth stack, there are two Bluetooth settings that affect how the mouse and the mobile device connect. If your Stowaway Mouse software returns to waiting mode, and pressing a mouse button will not trigger reconnection with the PDA, this... -
Page 14: Customizing Mouse Functions
Customizing Mouse Functions Once the mouse software is installed on the Pocket PC device, you may customize the options. A mouse icon corner of the screen while using Calendar, Contacts, or other applications. Tap the mouse icon on the bottom toolbar to display the Mouse Control Panel. -
Page 15: Mouse Control Panel
To start a Stowaway Mouse connection, tap Connect. To disable an existing connection, tap or mouse click on Disable. To set Power efficient mode and Mouse pointer mode, tap or click on Advanced. This will open another screen where you can choose from Auto, On, or Off Power efficient mode, and Enhanced or Safe Mouse pointer mode. -
Page 16: Disabling The Stowaway Mouse
During connection, the Pocket PC device searches the Bluetooth radio band until it finds the mouse. Once completed, each time the Pocket PC device and mouse are powered on within range of each other, the devices will be reconnected with a simple mouse click. Once connected, the mouse leaves Discoverable mode, and will not be detected by other devices. -
Page 17: Using The Stowaway Mouse
Note: Retain one mouse button for the Mouse Click, and customize the remaining two buttons via the Mouse tab. Following are a few of the tasks you can customize to mouse buttons: On-Screen Button and Application Launching OK/Close Window or Application... -
Page 18: Menu And Toolbar Navigation
To activate a program’s menu bar at the bottom of the Pocket PC device screen and select a main menu item: • Mouse click on the menu title, then move the mouse and click on the menu item, or submenu you want to activate. -
Page 19: Frequently Asked Questions
Bluetooth accessibility settings, Bluetooth Accessibility. Q: What should I do when I try to use the mouse and nothing happens? • Verify that the Pocket PC has an adequate battery charge. • Verify that the Stowaway Mouse batteries do not need replaced. - Page 20 Bluetooth mouse and tap OK. NOTE: Some Bluetooth components may not work with the mouse. If you are not able to connect to the mouse, you may have to return to the Mouse page, tap Enable again, select Stowaway Bluetooth Mouse, tap Setup, and then select another Bluetooth component.
-
Page 21: Legal Notices
Microsoft Corporation. Other trademarks and trade names may used in this document to refer to either the entities claiming the marks and names or their products. No proprietary interest in other trademarks and trade names is claimed. Stowaway Bluetooth Mouse Owner’s Manual Page 21... -
Page 22: Warranty
DAMAGES. Because some jurisdictions do not permit the exclusion or limitations set forth above, they may not apply in all cases. This warranty is governed by the laws of the State of California. Stowaway Bluetooth Mouse Owner’s Manual Page 22... - Page 23 Mobility California 10 South Third Street Fifth Floor San Jose, California 95113 United States of America www.igo.com Registering Your Product To register your Stowaway keyboard product, please visit www.thinkoutside.com/registration/registration.html and complete the online form. Stowaway Bluetooth Mouse Owner’s Manual Page 23...
-
Page 24: Important Battery Information
• Relax your shoulders and keep your elbows at your sides. Adjust your work area so that you don’t have to stretch to reach the mouse. • Adjust your position so that you can avoid placing your wrists on a sharp edge. -
Page 25: Important Notes About Bluetooth Devices
Care should be taken when used around medical devices or equipment. For specific information, consult with the product manufacturer or your physician before use. To stop interference, power off the mouse or remove its batteries. The Stowaway Bluetooth Mouse should not be used on any aircraft. - Page 26 Mobility California, Inc. and its authorized resellers or distributors are not liable for any damage or violation of government regulations that may arise from the user failing to comply with these guidelines. Stowaway Bluetooth Mouse Owner’s Manual Page 26...
- Page 27 This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instruction for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Stowaway Bluetooth Mouse Owner’s Manual Page 27...
- Page 28 This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instruction for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Stowaway Bluetooth Mouse Owner’s Manual Page 28...
- Page 29 Dutch Hierbij verklaart Mobility California, Inc. dat het toestel MSBT01 in overeenstemming is met de essentiële eisen en de andere relevante bepalingen van richtlijn 1999/5/EG. Stowaway Bluetooth Mouse Owner’s Manual Page 29...
- Page 30 Šiuo Mobility California, Inc. deklaruoja, kad šis MSBT01 atitinka esminius reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas. Latvian Ar šo Mobility California, Inc. deklarē, ka MSBT01 atbilst Direktīvas 1999/5/EK būtiskajām prasībām un citiem ar to saistītajiem noteikumiem. Stowaway Bluetooth Mouse Owner’s Manual Page 30...
- Page 31 100 mW in the 2446.5–2483.5 MHz band. Use outdoors on public property is not permitted. In the departments listed below, for the entire 2.4 GHz band: Maximum authorized power indoors is 100 mW. Maximum authorized power outdoors is 10 mW. Stowaway Bluetooth Mouse Owner’s Manual Page 31...
-
Page 32: Features And Specifications Summary
• User-programmable button shortcuts for faster access to applications. • On-screen menu and toolbar navigation via mouse • Does not draw power from your Pocket PC device. • Easy glide pads underneath the mouse for ease of movement. • Included travel pouch and two AAA batteries. Dimensions:...
