Dartel LJ-100 User Manual

Dartel phone
Hide thumbs
Table of Contents

Advertisement

Quick Links

User guide

LJ-100
Please read these instructions
carefully before use and keep
this User Guide for future
reference!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LJ-100 and is the answer not in the manual?

Questions and answers

Summary of Contents for Dartel LJ-100

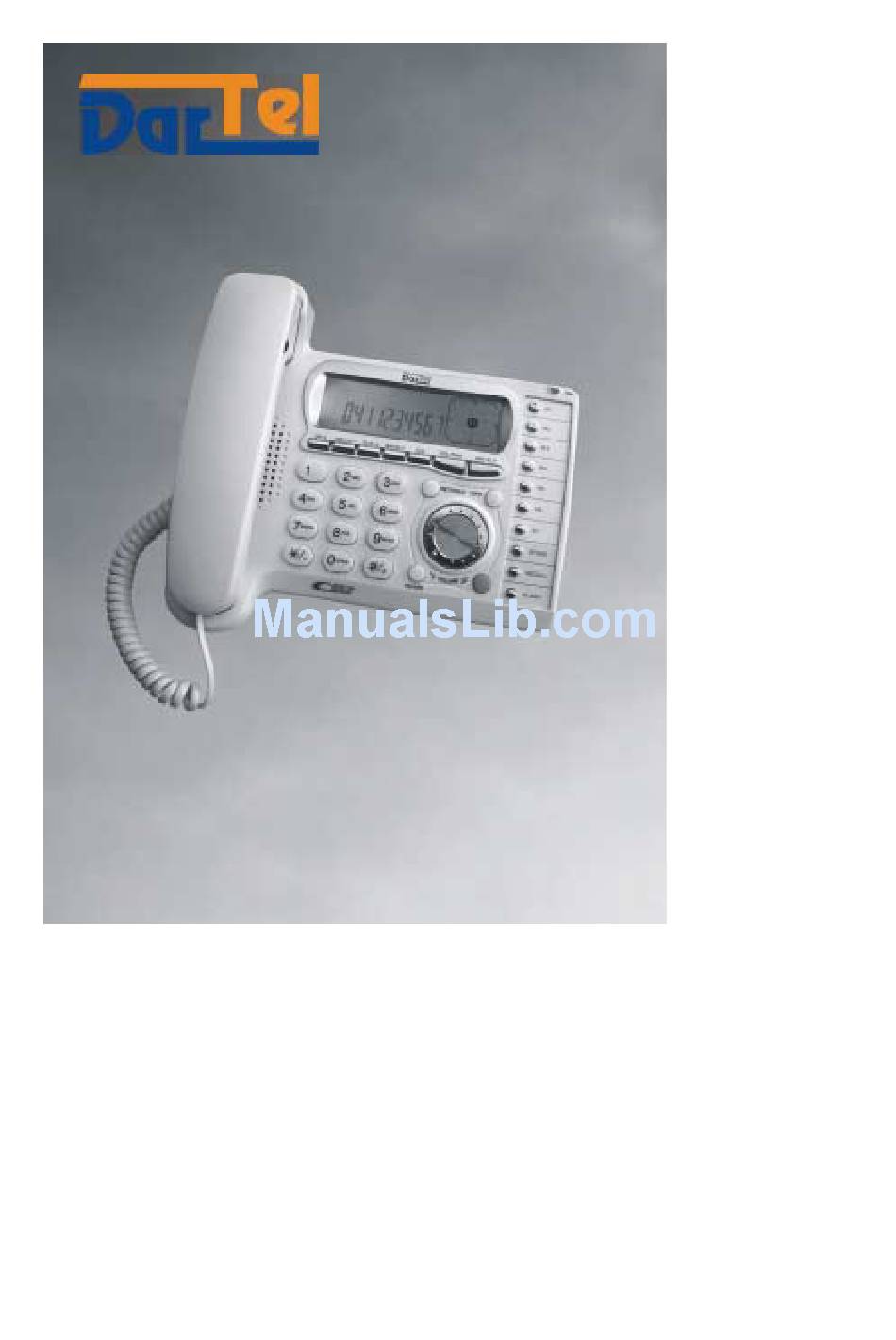

  • Page 1: User Guide

    User guide LJ-100 Please read these instructions carefully before use and keep this User Guide for future reference!
  • Page 2 User Guide LJ-100 Please read these instructions carefully before use and keep this User Guide for future reference.

  • Page 3: Table Of Contents

    Contents LJ-100 Contents I. Introduction..................Telephone features................Function button index................II. Getting started................... How to connect the batteries..............How to mount the stand…………………………………………………… How to connect the handset and telephone line........How to set the dial mode for your type of telephone exchange....

  • Page 4: Introduction

    I. Introduction LJ-100 I. Introduction Important! Please read these instructions carefully before use and keep this User Guide for future reference. Telephone components supplied: telephone set (base unit + handset), handset cord, line cord, stand, user guide, guarantee card. Telephone features ♦...
  • Page 5 I. Introduction LJ-100 ♦ 2-way speaker function ♦ 2-way speaker volume rotary switch ♦ Pre-dial function ♦ Flash ♦ 16 types of ringer sound selectable (8 melody ringers) ♦ Ringer volume control ♦ „Don’t disturb” function ♦ Music on hold ♦...

  • Page 6: Function Button Index

    I. Introduction LJ-100 Function button index 1. NEW indicator 2. M1...M7 buttons 3. Display 4. DEL/TIME button 5. BRT/SLP button 6. VIP/P button 7. VOLUME HI/LOW rotary switch 8. STORE button 9. RECALL button 10. FLASH button 11. SP-PHONE button 12.
  • Page 7 I. Introduction LJ-100 Note! The line sockets TEL OUT, TEL IN, the RINGER Hi/Low switch, the DIAL MODE T/P switch, the DC9V socket, the handset socket are located on the side of the base unit. In addition, on the bottom of the base unit, is the socket for blocking telephone numbers.

  • Page 8: Ii. Getting Started

    II. Getting started LJ-100 II. Getting started How to connect the batteries Remove the cover of the battery ♦ compartment on the underside of the base unit. ♦ Fit three 1,5V AA batteries, ♦ Replace the battery compartment cover. Note! Instead of batteries, the adaptor to the DC9V socket, which is placed on the side of the base unit can be connected.

  • Page 9: How To Connect The Handset And Telephone Line

    II. Getting started LJ-100 How to connect the handset and telephone line Plug one end of the coiled handset cord into the handset and the other end into the socket on the side of the telephone. Insert the base unit’s telephone line plugs into the PTT wall socket and telephone socket TEL IN as shown on the illustration.

  • Page 10: Iii. Using The Telephone

    III. Using the telephone LJ-100 III. Using the telephone How to set the display contrast The setting factory is 3. To set the display contrast: ♦ BRT/SLP press the SET/HOLD button, until the display will show the right setting for you.

  • Page 11: Ringer Volume Control

    III. Using the telephone LJ-100 month: press the 2 button, the next digit will start to flash, press the 7 button. ♦ After setting the day, the first digit indicating the hours will start to flash. Use the keypad to enter the right digits. For example, if you want to set 16.00:...

  • Page 12: 2-Way Speaker Function

    III. Using the telephone LJ-100 To select one ringer melody: SET/HOLD ♦ press the SET/HOLD button. The display will show - 0 1 2 3 4 5 6 7 -. ♦ Press the 7 button. The display will show an actual setting rING 09. The ringer melody will be played.

  • Page 13: How To Make A Call

    III. Using the telephone LJ-100 How to make a call To make a call: ♦ lift the handset from the base unit ♦ press the SP-PHONE button. The display will show the timer. SP-PHONE ♦ When the PTT on-line signal is heard, the required number should be dialed.

  • Page 14: Out Memory

    III. Using the telephone LJ-100 OUT memory Your telephone can store 30 the most recently dialed numbers in the OUT memory. They can be reviewed by pressing the OUT/X button in standby mode. Each number may consist of up to 16 digits.

  • Page 15: Redial Function

    III. Using the telephone LJ-100 ♦ Press the DEL/TIME button twice. The number will be removed. DEL/TIME To delete the all numbers: ♦ Press the OUT/X button. ♦ Press and hold the DEL/TIME button until - - - End - - - is displayed. After several seconds, the telephone will return to standby mode.

  • Page 16: How To Set A Pause

    III. Using the telephone LJ-100 To enter a pause: ♦ lift the handset or press the SP-PHONE button. SP-PHONE ♦ Enter the access code for an outside line, for example 0. ♦ Press the VIP/P button to enter a pause.

  • Page 17: Memory

    III. Using the telephone LJ-100 will automatically be able to hear music. This function may be used, for example, in offices while a client is on hold. To switch the hold music on: ♦ inform the person on the other end of the line about a music pause.
  • Page 18 III. Using the telephone LJ-100 ♦ Enter the number, to be stored in the memory. The number will be displayed. PQRS WXYZ OPER Note! The pause can be stored in the memory by pressing VIP/P button. ♦ Press the STORE button a second time.
  • Page 19 III. Using the telephone LJ-100 Two-touch memory To store a number in the memory: ♦ press the STORE button. The display will STORE show INPUt CodE_. ♦ Enter the number, to be stored in the memory. The number will be displayed.

  • Page 20: Flash Function

    III. Using the telephone LJ-100 Note! 1. Storing a number in the memory automatically deletes any previous number kept under the individual code number you choose. 2. The stored numbers can be reviewed in the standby mode. To display the number from the...

  • Page 21: How To Lock Telephone Numbers

    III. Using the telephone LJ-100 How to transfer a call. To transfer a call from one internal number FLASH to another: ♦ press the FLASH button. ♦ Enter the number, to which you want to PQRS WXYZ transfer the call.
  • Page 22 III. Using the telephone LJ-100 2. Press the 5 button. The display will show 123. 3. Press the 1 button to set the first alarm. The display will show symbol AL 1OFF. Alarm is off. PQRS WXYZ 4. Press the */. button to switch alarm on.

  • Page 23: Don't Disturb" Function

    III. Using the telephone LJ-100 Note! The alarm will only function when the batteries are located in the battery compartment or the base unit is connected to a power supply. To switch the alarm off, set the AL 1OFF symbol by pressing the */. button.

  • Page 24: Calculator

    III. Using the telephone LJ-100 Calculator Your telephone may be used as calculator. To switch the calculator on/off press the CAL button. After pressing this button, the display will show the digit Below is a description of all button functions: ♦...

  • Page 25: Clip (Caller Id)- Calling Line Identification Presentation

    IV. Clip (Caller ID)- Calling line identification presentation LJ-100 IV. Clip (Caller ID)- calling line identification presentation Note! CLIP function is only available if you have subscribed to the relevant TP S.A. services or those of another Provider. If more information is required, please contact the BOK (Customer Service Office) office in your area..

  • Page 26: How To Delete Clip Numbers

    IV. Clip (Caller ID)- Calling line identification presentation LJ-100 To review all numbers: press the UP/+ button, the display will show the number stored in the first memory location. After next pressing the UP/+ button, the display will show date and time.

  • Page 27: How To Make A Call From The Clip Memory

    IV. Clip (Caller ID)- Calling line identification presentation LJ-100 Press the VIP/P button. The display will show the VIP symbol. The above steps can be repeated for the next number. VIP/P VIP/P If no further buttons are pressed, the telephone will return to standby mode after several seconds.

  • Page 28: How To Set The Prefix

    IV. Clip (Caller ID)- Calling line identification presentation LJ-100 on, the prefix will be added and the number will be dialed automatically. ♦ Replace the handset or press the SP-PHONE SP-PHONE button to end the call. How to set the prefix To enter the prefix: ♦...
  • Page 29 IV. Clip (Caller ID)- Calling line identification presentation LJ-100 To enter the local area code: ♦ press the SET/HOLD button. The display SET/HOLD will show - 0 1 2 3 4 5 6 7 -. ♦ Press the 4 button. The display will show ArEA - - - - -.

  • Page 30: Connecting The Headphone

    V. Connecting the headphone LJ-100 V. Connecting a headphone The telephone is equipped with a socket, which allows a headphone to be connected.

  • Page 31: Vi. Help

    VI. Help LJ-100 VI. Help Please read this Troubleshooting Guide in case of difficulty. ♦ No signal in the the handset: check that the telephone is connected to the telephone line. ♦ No dial tone: check that the telephone is connected to...

  • Page 32: Important Advice

    VI. Help LJ-100 Important advice ♦ Never use your telephone during a thunderstorm. Unplug it from the telephone line and the mains socket when there are storms in your area ♦ The telephone should not be installed near a sink, bath or shower. Electrical appliances can cause serious injury if the user is wet or standing in water.
  • Page 33 Declaration of Conformity (CE) LJ-100 DECLARATION OF CONFORMITY MANUFACTURER'S NAME: Przedsiębiorstwo “DARTEL” ADDRESS: 29-100 Włoszczowa, Podlipie 26 TYPE OF PRODUCT: Corded phone PRODUCT NAME: LJ-100 We inform, our products conform to the requirements of the following Directives and Norms: 1) Radio & Telecom Terminal Equipment Directive 99/5/EEC,...
