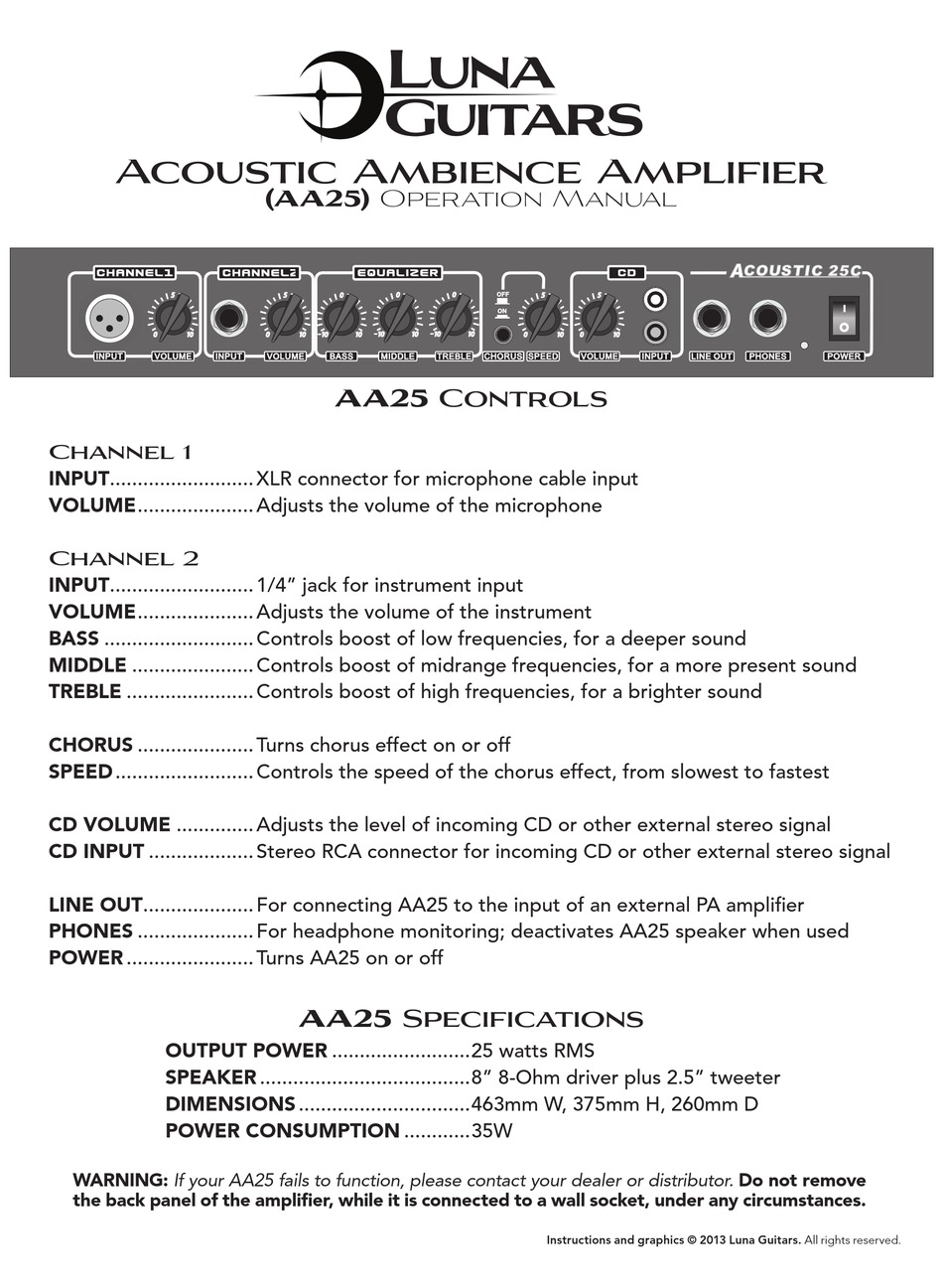

Luna Guitars AA25 Operation Manual

Acoustic Ambience Amplifier

Channel 1

INPUT .......................... XLR connector for microphone cable input
VOLUME ..................... Adjusts the volume of the microphone

Channel 2

INPUT .......................... 1/4" jack for instrument input
VOLUME ..................... Adjusts the volume of the instrument
BASS ........................... Controls boost of low frequencies, for a deeper sound
MIDDLE ...................... Controls boost of midrange frequencies, for a more present sound
TREBLE ....................... Controls boost of high frequencies, for a brighter sound
CHORUS ..................... Turns chorus effect on or off
SPEED ......................... Controls the speed of the chorus effect, from slowest to fastest
CD VOLUME .............. Adjusts the level of incoming CD or other external stereo signal
CD INPUT ................... Stereo RCA connector for incoming CD or other external stereo signal
LINE OUT .................... For connecting AA25 to the input of an external PA amplifier
PHONES ..................... For headphone monitoring; deactivates AA25 speaker when used
POWER ....................... Turns AA25 on or off
OUTPUT POWER .........................25 watts RMS
SPEAKER ......................................8" 8-Ohm driver plus 2.5" tweeter
DIMENSIONS ...............................463mm W, 375mm H, 260mm D
POWER CONSUMPTION ............35W
WARNING: If your AA25 fails to function, please contact your dealer or distributor. Do not remove
the back panel of the amplifier, while it is connected to a wall socket, under any circumstances.
(AA25) Operation Manual

AA25 Controls

AA25 Specifications

Instructions and graphics © 2013 Luna Guitars. All rights reserved.
