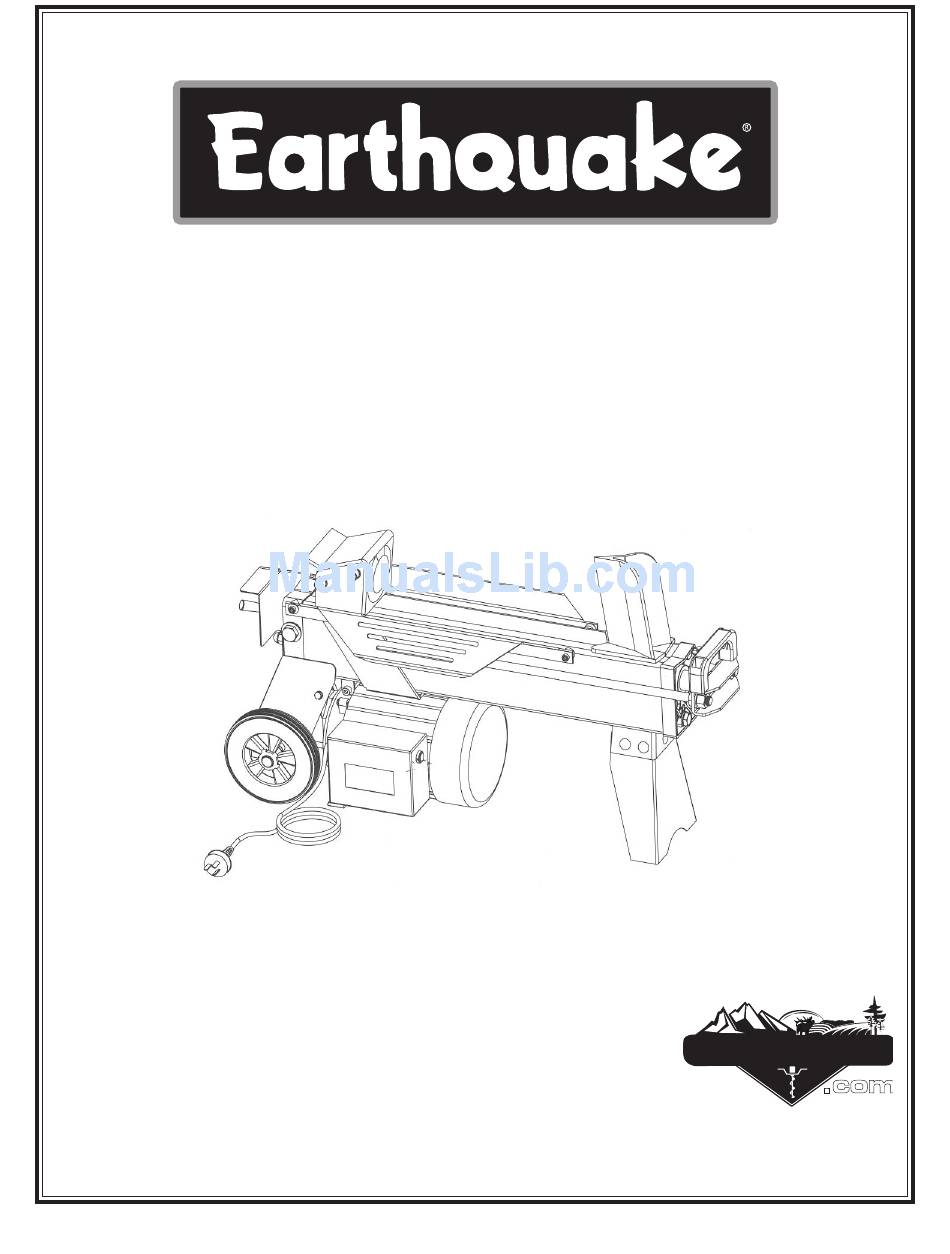

- Page 1 OPERATOR’S MANUAL & PARTS W1000 4-TON Mini Electric Log Splitter ARDISAM .com OMW1000 Rev. 8/9/07 2007 Ardisam, Inc. All Rights Reserved.
- Page 2 One Year Limited Warranty that the splitter meets high standards for usability and The Ardisam, Inc., Manufacturing Company warrants this Earthquake Mini Electric Log Splitter to be durability. With proper care, your log splitter will provide free from defects in material and/or workmanship.
- Page 3 • Maintain the log splitter according to directions and must read the instructions carefully and be familiar with the controls. schedule, included in this Earthquake Operator’s Manual. • Check your log splitter before turning it on. Keep This symbol signifies important safety instructions, which, if not followed could guards in place and in working order.
- Page 4 SAFETY DECAl connection, and a regulation differential switch upstream. Ground the log splitter. Prevent body contact with The Earthquake Mini Electric Log Splitter has been de- ground surfaces: pipes, radiatiors, ranges, refridgerator signed and manufactured to provide you with the safety enclosures, etc.
- Page 5 SpECIFICATIONS AND ElECTRICAl REQUIREMENTS ApplICATION CONDITIONS ElECTRICAl REQUIREMENTS The Earthquake Mini Electric Log Splitter has been Connect the main leads to a standard 110V ±10% elec- designed as a home use model only. It is designed for trical supply which has protection devices under-voltage, operating under ambient temperatures between 40°...
- Page 6 Page 6 ARDISAM EARTHQUAKE, Division of Ardisam, Inc. 800-345-6007 .com...
- Page 7 OpERATION lOG SplITTER OpERATION The Earthquake Mini Electric Log Splitter requires the use of both hands to operate. The user’s left hand hydraulic controls the hydraulic control lever, while the right hand contol lever controls the pushbutton switch. The log splitter will freeze upon absence of either hand.
- Page 8 BP Energol HLP-HM 22 ShARpENING WEDGE When the log splitter wedge becomes dull and/or worn, sharpen the wedge using a fine-toothed file and smooth any burrs or crushed areas along the cutting edge. Page 8 ARDISAM EARTHQUAKE, Division of Ardisam, Inc. 800-345-6007 .com...
- Page 9 3. Tighten the oil drain bolt with dipstick 3. Oil drain bolt with dipstick is not tight 4. Contact the dealer 4. Hydraulic control valve assembly and/or seal(s) worn Page 9 ARDISAM EARTHQUAKE, Division of Ardisam, Inc. 800-345-6007 .com...
- Page 10 W1000 MINI ElECTRIC lOG SplITTER bREAkDOWN MINIMUM ORDER ........................$10.00 Page 10 ARDISAM EARTHQUAKE, Division of Ardisam, Inc. 800-345-6007 .com...
- Page 11 W1000 MINI ElECTRIC lOG SplITTER pARTS lIST Key # Part # Description Qty. Key # Part # Description Qty. 300101 CYLINDER ............1 300146 O-RING ............5 300102 O-RING, PISTON ..........1 300147 O-RING ............2 300103 PISTON ............1 300148 SPRING, SLIDING SLEEVE ......
- Page 12 ARDISAM .com Visit www.ardisam.com and discover more innovations that will benefit you throughout the year. Earthquake, Division of Ardisam, Inc. 1690 Elm Street; P.O. Box 666 Cumberland, Wisconsin 54829 800-345-6007 · Fax (715) 822-2223 E-mail: info@ardisam.com...
