Summary of Contents for Starbox ST–2350 RES

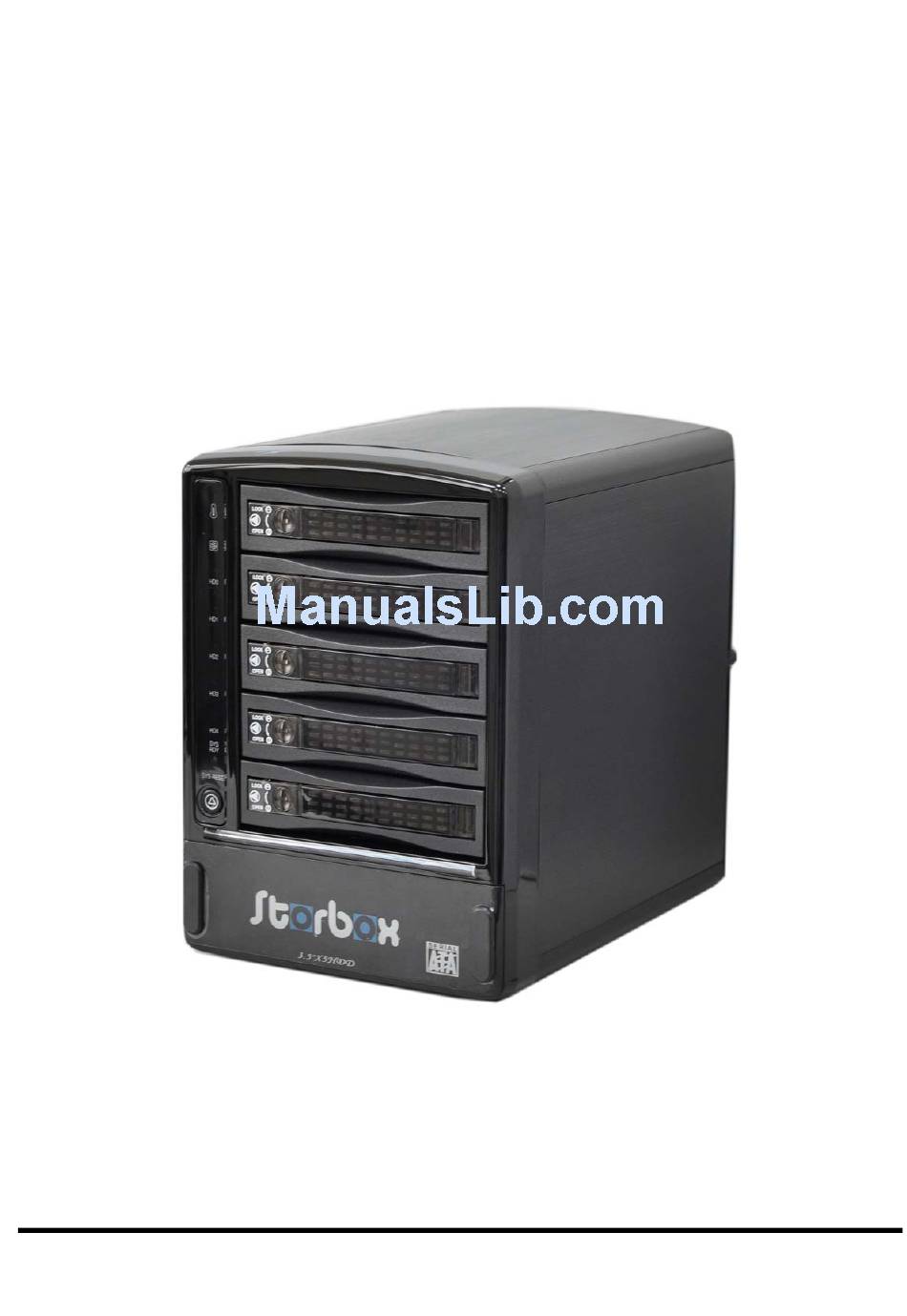

- Page 1 ST – 2350 RES SATA RAID User Manual New revolution of 5-bay Raid Enclosure Page 1...
-
Page 2: Table Of Contents
Contents 1.Features of product .......................3 2.DIP Switch and RAID Mode cross reference ...............5 2.1 RAID 0 for High Performance ....................5 2.2 RAID 1 (Mirror) for High Security ..................6 2.3 Stripe + Mirror (RAID 10) for High Performance and High security .......6 2.4 Clone ............................7 2.5 JBOD (Concatenating)............... -
Page 3: Features Of Product
1. Features of product Aluminum Frame, Aluminum cover Interface support SATA-І, SATA-ІІ, SATA-III High performance transfer rate up to 1.5Gbps, 3.0Gbps Plug & play ,hot swappable AC Power control Easy RAID setting by DIP switch & apply (change mode) switch LED indicators(for System Ready ,HDD Error, HDD Access, Temperature ,fan) 8x8 Fan X 2—... -
Page 4: Figure 2 Figure
Figure 1 Figure 2 Figure 3 ---Front Panel---(see Figure 4 Page 4... - Page 5 D1:Temperature LED [ Normal : Green, Failed :Red ] D2:Fan LED : [ Normal : Green, Failed :Red ] D3---D7: LED for HDD Access and failure (Green LED lights on while HDD is linking. And Green LED is blinking while HDD accessing. The LED will turn red when HDD failed.
-
Page 6: Dip Switch And Raid Mode Cross Reference
2. DIP Switch and RAID Mode cross reference User can configure any RAID mode as below by DIP switch and apply change by change mode switch. Dip Switch RAID Mode RAID 0(Single) RAID 10 JBOD (Large) RAID 3 Clone RAID 5 Reserved Normal (Single) Note: When DIP Switch is set to RAID 10 ----... -
Page 7: Raid 1 (Mirror) For High Security
2.2 RAID 1 (Mirror) for High Security RAID 1 (or Mirror) is the replication of data onto separate hard disks in real time to ensure continuous availability. Take a RAID 1 system with two hard disks as an example, data in a hard disk will be exactly the same as the data in another hard disk. -
Page 8: Clone
2.4 Clone This mode is useful especially when users would like to copy data from a hard drive to several hard drives at the same time. Clone ’ s action is similar to RAID 1. However, all of the hard disks will be the mirrors. -
Page 9: Parity Protection
2.6 Parity Protection XOR engine in 2350RES generate parity block. In RAID 3 mode, Parity Block will be stored in the same hard drive. While in RAID 5 mode, Parity Block will be spread over all of the different hard drives.
