Summary of Contents for SEA BEYOND INT’L T-REX

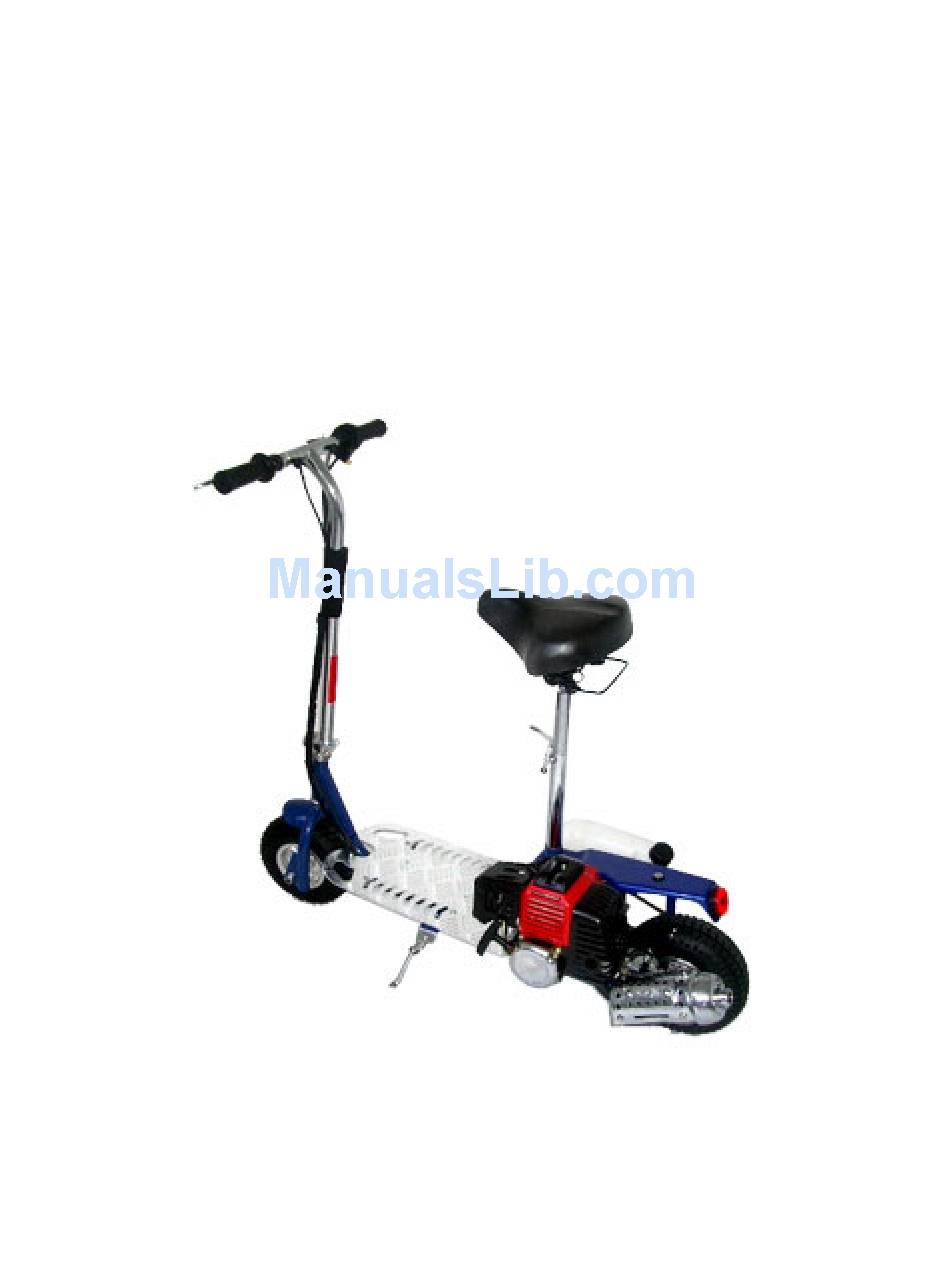

- Page 1 T-REX 601A/W 43CC GAS POWERED SCOOTER USER MANUAL BOOK...
-
Page 2: Table Of Contents
Table of content Important Safety Precautions Quick Start Guide Brake Adjustment Guide Chain Adjustment Guide Carburetor Adjustment Guide Steering Column Adjustment Trouble Shooting Easy Step Installation... -
Page 3: Important Safety Precautions
Important Safety Precautions Please operate your scooter with the following safety instructions. This scooter should only be ridden by persons with excellent vision, balance, coordination, reflex muscle tone, strength, and the good reaction to sudden incident. 1. Please read the manual and all safety notice carefully, understand its functions, maintenance and operating procedures completely before using the scooter. -
Page 4: Brake Adjustment Guide
BRAKE ADJUSTMENT GUIDE Often the disc brakes on our gas scooters will require adjusting. Do each step below and check and see if the brakes are adjusted correctly after each step. There is no need to complete all the steps if only one or two adjustments fix them. Usually the first Step One: This usually fixes any problems. -
Page 5: Chain Adjustment Guide
Chain Adjustment Guide Proper chain adjustment is important for performance and safety. If the chain is adjusted too tightly it will bind and prematurely wear the chain and cause reduced performance. If the chain is too loose it may jump teeth or fall off the sprocket. STEP ONE: Check the chain. -
Page 6: Carburetor Adjustment Guide
CARBURETORS ADJUSTMENT GUIDE Sometimes the carburetors aren't quite adjusted correctly from the factory. If your scooter isn't quite going as fast as it should, or it won't idle, then you probably need to adjust your carburetor. It's easy to adjust one. Just follow these steps: Step One: Remove the air filter cover. -
Page 7: Steering Column Adjustment
Steering Column Adjustment: To tighten: Loosen small set screw on top nut, take big crescent wrench and turn nut clockwise. Be careful not to over tighten. Lift the front of the scooter off the ground. Push the handle bar in one direction or the other. It should swing freely. If it just stops and doesn't swing in one direction then back again it is too tight. - Page 8 I'm having trouble starting my Please read our starting guide first. If it still won't gas powered scooter. start, you may need to adjust your carburetor. What is the best way to start it? Please read the section ‘adjust you carburetor” for details.
- Page 9 Try using the large adjustment cylinder... it is The disc is straight but the brake assembly is not. The front brake silver... should fix the problem. is straight and works. Also the cable pulls the lever and it hits the engine. We tried adjusting the cable with no results.
-
Page 10: Easy Step Installation
Thanks for buying one of these great T-REX scooters! There are 10 easy steps to putting your scooter together. Please read the instruction carefully before you start riding scooter. Easy Step Installation 1. Unpack the scooter by opening the top of the box and remove the loose parts at the top. - Page 11 4. Attach the handlebar ends with the thumb screws. See the photo so you put the right end on the right side. Note: The front axle is pointing backwards as packed. 5. Attach seat post and seat. Insert the seat post fully into the sleeve until it hits the bottom, then tighten the strap.
- Page 12 SEA BEYOND INT’L INC LOS ANGELES, CALIFORNIA UNITED STATES OF AMERICA...
