Swing-N-Slide PB 8243 Assembly Instructions Manual

Chesapeake
Hide thumbs Also See for PB 8243:

Advertisement

Quick Links

Download this manual

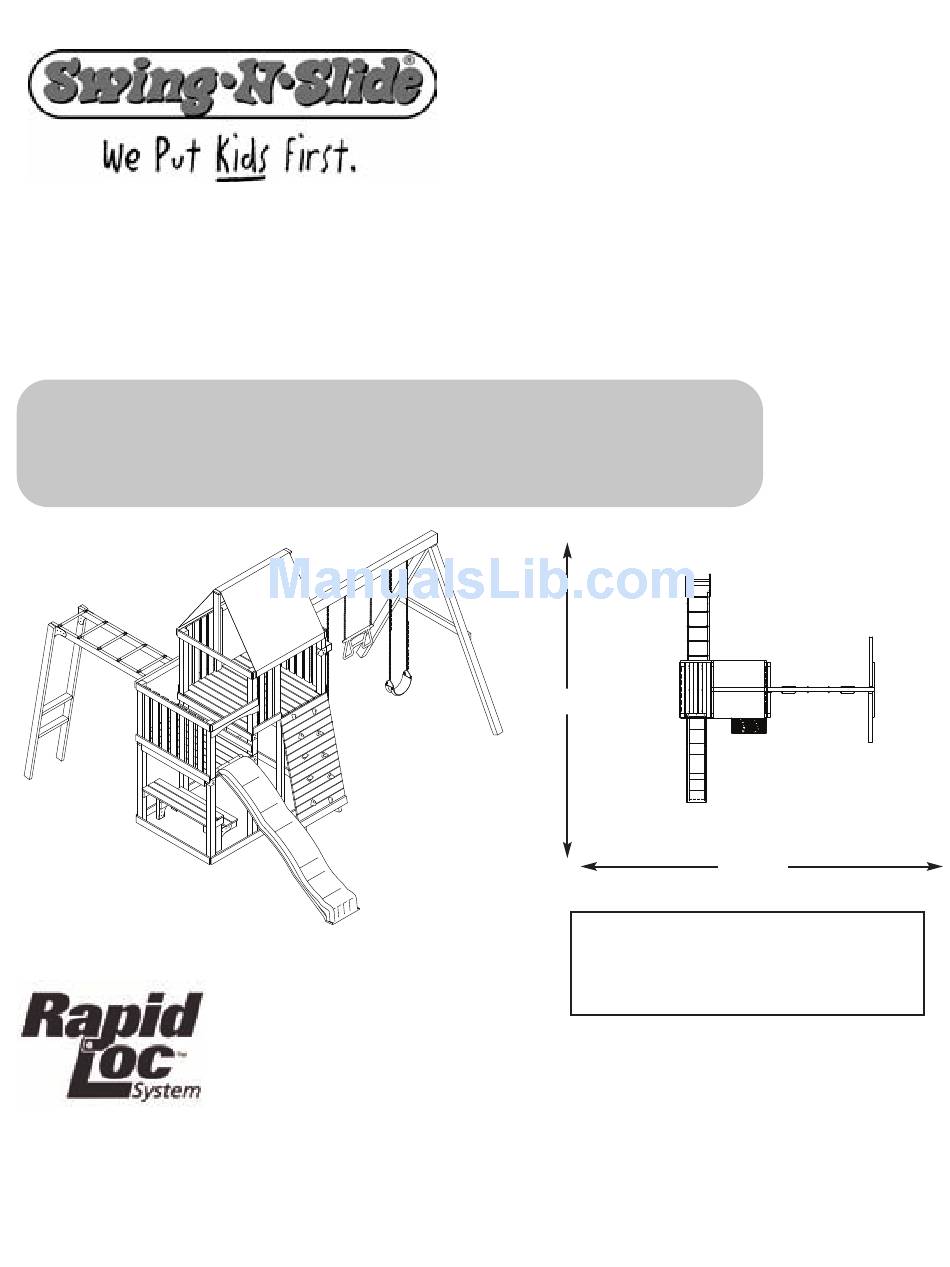

PB 8243
Chesapeake
TM
check out http://www.swing-n-slide.com/planupdates.html
for updates to these instructions
For more information, visit this link:
http://www.swing-n-slide.com
28'-6''
26'-6''
No. of Children: Up to 12
Min. Use Zone: 26 -1/2' x 28-1/2'
Set Dim. 14-1/2 'W x 16-1/2 'L x 11'H
Est. Building Time: 5-10 hr.
ASSEMBLY INSTRUCTIONS
Swing•N•Slide • 1212 Barberry Drive • Janesville, Wisconsin 53545
Visit our web site at: www.swing-n-slide.com or call us at 1-800-888-1232

Advertisement

loading
Need help?

Need help?

Do you have a question about the PB 8243 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Swing-N-Slide PB 8243

Summary of Contents for Swing-N-Slide PB 8243

  • Page 1 Min. Use Zone: 26 -1/2' x 28-1/2' Set Dim. 14-1/2 'W x 16-1/2 'L x 11'H Est. Building Time: 5-10 hr. ASSEMBLY INSTRUCTIONS Swing•N•Slide • 1212 Barberry Drive • Janesville, Wisconsin 53545 Visit our web site at: www.swing-n-slide.com or call us at 1-800-888-1232...
  • Page 2 When the equipment is taken out of service, it must be disassembled and disposed of in such a way that no unreasonable hazards will exist at the time the set is discarded. Important! Additional Safety Instructions for all Swing-N-Slide Playground Equipment. Save this instruction sheet in the event the manufacturer needs to be contacted.
  • Page 3 This product is intended for single family home/residential use only and not intended for use in any public setting. Placement in any public setting constitutes a misuse of this product. IMPORTANT! ADDITIONAL REQUIRED SAFETY INSTALLATION INSTRUCTIONS According to ASTM requirements, all kits must be anchored to the ground and, if the unit has a climbing rope, the rope end must be anchored to the ground. If soil conditions permit stakes to be pulled out easily, cementing into ground is necessary.
  • Page 4 TOOLS REQUIRE HAMMER ELECTRIC DRILL SAFETY GLASSES CARPENTER'S SQUARE TAPE MEASURE & DUST MASK (2) 1/2'' panhead screws (74) 2" lag screw (6) Tarp Washers (4) 1-3/4'' panhead srews (39) 1'' Truss Screws (6) 3/4'' screws (14) Loc-Nuts (4) 5/16''Hex Head Lag Screws (127) 1-1/4'' screws (4) 1/4'' flat washers (32) 1-1/4'' lag screws...
  • Page 5 AGES 2-10 YEARS For Home / Residential Use ONLY 1212 Barberry Drive Janesville, WI 53545 (6) Extra-Duty 1-800-888-1232 www.swing-n-slide.com Swing Hangers (1) Green Tarp (1) Name Plate (1) T20 Torx® Bit (4) Step Brackets Note: (2 Left, 2 Right) (2) 'L' Brackets...
  • Page 6 (4) Anchor-It Straps (1) Ring-Trap Combo (4) Anchor-It (9) Metal Rungs (8) Climbing Rocks w/ Hardware (4) Safety Handles (2) Extra Duty-Swing Seats...
  • Page 7 CHESAPEAKE DESIGN (1) 1'' x 3'' x 23-1/2'' (1) 1'' x 4'' x 6-1/4'' (1) 1'' x 4'' x 11'' (1) 1'' x 4'' x 18'' (1) 1'' x 4'' x 20-1/2'' (1) 1'' x 4'' x 25-3/4'' (22) 1'' x 4'' x 30'' (1) 1'' x 4'' x 30'' (14) 1'' x 4'' x 34'' (2) 1'' x 4'' x 36-1/2''...
  • Page 8 How to select the correct fastener Use these 2 pictorial guides to help select the correct fastener(s) for the lumber attachment you are making. Each diagram will highlight the correct number of fasteners to use, and where to attach them. 1'' x 4'' or 2'' x 4'' to 3'' x 3'' 2-1/2'' screws Apply 2 1/2"...
  • Page 9 Understanding how the Bracket System Works Example of a Shelf-Loc bracket connection. Shelf-Loc Bracket CORRECT! Wrap-Loc WRONG! Brackets ''clipped'' brackets NOT interlocked! Example of a Shelf-Loc bracket connection. Look for ''TOP'' stamp on bracket for correct orientation. Top of bracket Introduction to the Bracket system Wrap-Loc 1.
  • Page 10 Look for ‘’TOP’’ stamp on brackets while installing. Frame 1 onstruction 2'' Lag Screws per joint Fig.1 3'' x 3'' x 94'' 2'' Lag Screws per joint 82-1/2'' 1-1/4'' Lag Screws per joint 1-1/4'' Lag Screws per joint 59-1/4'' A. Frame 1 Construction 1-1/4'' Lag screw 1.
  • Page 11 •WARNING• Avoid splitting your lumber by offsetting your screws at least 3/4’’ from edge. Frame 1 onstruction Fig.1a Double check to make sure structure is square 2-1/2'' screws per joint 2-1/2'' screws per joint 62-3/4'' 2-1/2'' screw 27'' A. Frame 1 Construction cont. 2.
  • Page 12 Look for ‘’TOP’’ stamp on brackets while installing. Fig.2 Frame 2 onstruction 1-1/4'' Lag Screws per joint 3'' x 3'' x 94'' 1-1/4'' Lag Screws per joint 59-1/4'' 47-1/4'' B. Frame 2 Construction 1. Measure and position brackets on 3'' x 3'' as shown in (Fig.2). 1-1/4'' Lag screw...
  • Page 13 Frame 2 onstruction Fig.2a Double check to make sure structure is square 2-1/2'' screws per joint 2-1/2'' screws per joint 53'' 2-1/2'' screw B. Frame 2 Construction cont. 2. Attach 1'' boards as shown in (Fig. 2a).
  • Page 14 Look for ‘’TOP’’ stamp on brackets while installing. Fig.3 Frame 3 onstruction 3'' x 3'' x 78'' 1-1/4'' Lag Screws 1-1/4'' Lag per joint Screws per joint 47-1/4'' B. Frame 3 Construction 1. Measure and position brackets on 3'' x 3'' as shown in (Fig. 3). 1-1/4'' Lag screw...
  • Page 15 Frame 3 onstruction Fig.3a Double check to make sure structure is square 2-1/2'' screws per joint 2-1/2'' screws per joint 47-1/4'' B. Frame 3 Construction cont. 2-1/2'' screw 2. Attach 1'' boards as shown in (Fig. 3a).

  • Page 16: Frame Construction

    Fig. 4 2-1/2'' screws per joint 94'' Top of Board To Ground 2-1/2'' screws per joint D. Frame Construction 2-1/2'' screw 1. Install support boards as shown above.
  • Page 17 Fig. 5 Double check to make sure structure is square 2-1/2'' screws per joint 2-1/2'' screws per joint 2-1/2'' screw D. Frame Construction cont. 1. Attach Frame Two as shown above.
  • Page 18 Tip: Flex brackets to make installation of Fig. 6 2'' x 4'' easier Fig. 6a Approx. 1/4'' Fig. 6b 1-1/4'' Lag (2) 1-1/4'' lag screws 2'' Lag (3) 2'' lag screws per bracket NOTE: Upper screws are (2) 1-1/4'' Lag Screws, Lower screws are (3) 2'' Lag Screws.
  • Page 19 Fig. 7 2-1/2'' screws per joint 78'' F. Frame 3 Construction 1. Measure and position 1'' x 4'' and 2'' x 4'' as shown in (Fig.7). 2-1/2'' screw...
  • Page 20 Fig. 8 2-1/2'' screws Double check to make per joint sure structure is square 2-1/2'' screws per joint 78'' 2-1/2'' screws per joint G. Install Frame 3 1. Install Frame 3 by securing 2'' x 4'' and 1'' x 4'' boards as 2-1/2'' screw shown in (Fig.
  • Page 21 Tip: Flex brackets to make installation of 2'' x 4'' easier Fig. 9 Fig.10 Approx. 1/4'' Fig.10a 1-1/4'' Lag 2'' Lag NOTE: Upper screws are (2) 1-1/4'' Lag Screws, Lower screws are (3) 2'' Lag Screws. (2) 1-1/4'' lag screws (3) 2'' lag screws per bracket H.
  • Page 22 Fig. 11 2-1/2'' screws per joint 2-1/2'' screws per joint 12'' Fig. 11a 2-1/2'' screws per joint NOTE: There must be a 1/2'' Nominal Gap between all deck boards. H. Lower Deck Boards 1. Install 1’’ x 4’’ deck boards as shown in (Fig. 11). 2.
  • Page 23 Fig. 12 SLIDE MOUNT 2-1/2'' screws per joint Fig. 12a SLIDE MOUNT 1-1/4'' screws 1-1/4'' screw 2-1/2'' screw I. End Cap Boards 1. Attach 1'' x 4'' End Cap boards as shown in (Fig. 12), (Fig 12a). UNDER DECK VIEW...
  • Page 24 Fig. 13 Fig. 13a 2-1/2'' screws per joint 2-1/2'' Screws per joint Install Deck and Support Boards 1. Install Lower Deck Support Board as shown in (Fig. 13). 2. Install 1’’ x 4’’ deck boards and 2'' x 4'' support 2-1/2'' screw board as shown in (Fig.
  • Page 25 Fig. 14 2-1/2'' screws per joint NOTE: There must be a 1/2'' Nominal Gap between all deck boards. J. Install DeckSupports 1. Install (10) 1'' x 4'' Deck Boards as shown in (Fig. 14). 2-1/2'' screw Fig. 14a 2'' lag screws per joint 2'' Lag screw Install Swing Beam Support...
  • Page 26 Fig. 15 92'' H. Swing Beam Drill Locations A-FRAME 86-1/2'' 1. Tap Wood Loc Washer and Carriage Bolt into swing beam at locations shown in (Fig. 15a). 80-3/4'' 77'' Fig. 15a 64-3/4'' 61'' 54-3/4'' 6-1/2'' CARRIAGE BOLT 51'' 94'' WOOD LOC WASHER 38-3/4'' 35''...
  • Page 27 Fig. 16 WASHER LOC-NUT WASHER LOC-NUT Q. Swing Beam Drill Locations 1. Flip 3'' x 5-1/2'' Swing Beam so Carriage Bolts point downward as shown in (Fig. 16). 2. Install the swing hanger onto the beam by sliding over two carriage bolts (refer to (Fig. 15) for placement) and apply two washers and two loc-nuts per Swing Hanger.

  • Page 28: A-Frame Assembly

    Fig. 17 3-1/2'' FACE R. A-Frame Assembly (8) 2-1/2’’ Screws 1. layout 3-1/2'' x 4’’s and 2'' x 4'' as shown in (Fig. 17) and (Fig. 17a). 2. Align EZ Frame Bracket with face of 4'' x 4''s. 3. Secure EZ Frame Bracket with (8) 2-1/2'' screws to 3-1/2'' x 4''s 3-1/2'' FACE making sure they are flush with each...
  • Page 29 Fig. 18 Washer 2-1/2'' screws Loc-Nut 2-1/2'' screw S. A-Frame Assembly cont. 1. Align EZ-Frame Bracket with carriage bolts on Swing Beam as shown in (Fig. 15). 2. Attach A-Frame beam to Swing Beam using (2) washers and (2) Loc-Nuts and 2 screws as shown in (Fig. 18). 3.
  • Page 30 Fig. 19 T. Swing Beam Attachment. 1. Position Split-Brackets on 4'' x 4'' x 47-1/2'' as shown in (Fig. 19). 2. With the help of others, lift A-Frame and Swing Beam Assembly and center onto unit as shown in (Fig. 19a). 3.
  • Page 31 NOTE: There must be a 2-1/4'' Fig. 20 Nominal Gap between all barrier boards. 1-1/4'' screws per joint 1-1/4'' screw Install Barrier Boards 1. Install boards as shown in (Fig. 20). Space boards evenly.
  • Page 32 Fig. 21 Fig. 22 2-1/2'' screws per joint 1-1/4'' screws per joint 2-1/2'' screws per joint 2'' x 4'' Must Be Secured From Outside Barrier NOTE: There must be a 1'' Nominal Gap between all barrier boards. 2-1/2'' screw 1-1/4'' screw V.
  • Page 33 Fig. 23 NOTE: There must be a 1-1/2'' Nominal Gap between all barrier boards. 1-1/4'' screws per joint Fig. 24 1-1/4'' screws per joint 2'' x 4'' Must Be Secured From Outside Barrier 1-1/4'' screw V. Barrier Boards 1. Install barrier boards evenly spaced as shown in (Fig.
  • Page 34 Fig. 25 2'' screws per joint 2'' screws 2-1/2'' screws 2'' screw 2-1/2'' screw V. Taro Support Boards 1. Install 2'' x 4'' and 1'' x 4'' tarp support boards as shown in (Fig. 25).
  • Page 35 Fig. 26 Fig. 26a 3/4'' screw 3/4’’ Y. Install Tarp. 1. Install tarp as shown in (Fig. 26). 2. Secure tarp in six locations (Fig 26a).
  • Page 36 Fig. 27 2-1/2'' screws per joint 2-1/2'' screw V. Climbing Wall Support Board 1. Install 2'' x 3'' Climbing Wall support board as shown in (Fig. 27).
  • Page 37 Fig. 28 Climbing Wall. 1. Attach (14) 1'' x 4'' boards to (2) 2'' x 4'' boards and install on unit as shown in (Fig. 28). 2. Attach (1) 2'' x 4'' board as shown in (Fig. 28). 3. Attach Climbing Wall to unit as shown in (Fig.
  • Page 38 Fig. 29 2-1/2'' Deck Screws (2 per joint) 2-1/2'' screw Rung Ladder Support 1. Install 2'' x 3'' Rung Ladder Support as shown in (Fig. 29).
  • Page 39 Fig. 30 2-1/2'' Screws per joint 2'' Lag Screws (2 per rung) Rung Ladder 2'' Lag screw 1. Install Ladder Rungs as shown in (Fig. 30). 2. Install 1'' x 4'' gap filler so that top of board is 2-3/4'' below the bottom of the deck support as shown in 2-1/2'' screw (Fig.
  • Page 40 Fig. 31a Fig. 31 2-1/2'' Deck Screws per joint 2-1/2'' Deck Screws per joint 1-1/4'' screw Fig. 31b 2-1/2'' screw Picnic Table 1'' x 4'' x 11'' 1. Install 2'' x 4'' boards as shown in (Fig. 31). 2. Attach 1'' x 4'' boards as shown in (Fig. 31a). Make certain to evenly space boards.
  • Page 41 Fig. 32a Fig. 32 2-1/2'' Deck Screws per joint 1'' Truss Head Screws Boomerang per joint Brackets 2-1/2'' screw 1''Truss Head Fig. 32b screw Double check to make sure structure is square Picnic Bench 1. Using (2) ‘Boomerang brackets’ Install 2'' x 4'' boards as shown in (Fig.
  • Page 42 BOARD INVENTORY: Identify the illustrated boards below to build your Monkey Bars set. 19-1/4" (2) 2" x 4" x 19-1/4'' 60" (2) 2" x 4" x 60'' 94" (2) 2" x 4" x 94'' Fig. 33 2" x 4" x 60" 2"...
  • Page 43 Left Side Right Side Fig. 35 22 1/4 2'' x 4'' x 94'' 2'' x 4'' x 94'' 2-1/2'' screws 2-1/2'' screws per joint per joint Ladder Rung 2''x4''x19-1/4'' Ladder Rung 39 1/8 39 1/8 38 9/16 38 9/16 2''x4''x19-1/4'' 25 1/8 25 1/8 24 9/16...
  • Page 44 Fig. 37 2-1/2'' screws per joint 2-1/2'' screw Crowning Arch 1. Install 1'' x 4'' Arched board as shown in (Fig. 37).
  • Page 45 P. Safety Handles. Fig. 38 1. Mount safety handles in the ladder and climbing wall openings approximately 11'' above the deck surface (Fig. 38). washer 11" 1-3/4'' Panhead screw Anchor-It S. Anchor-It Installation. Fig. 38a Flat Washer Instructions for Anchoring Swing•N•Slide Activity Centers 1.

  • Page 46: Slide Installation

    Fig. 39 W. Slide Installation. 1. Install Slide centered in the provided opening as shown in (Fig. 39). 2. Attach Stake to end of slide as shown in (Fig. 39a). 1'' Truss Screw Use truss head screws to to secure slide to deck. Fig.
  • Page 48 Questions???... Call our Customer Service Department at 1-800-888-1232 © PlayCore Inc. 2009 Printed In USA LA 5996...
