Summary of Contents for Tangent MCS-600

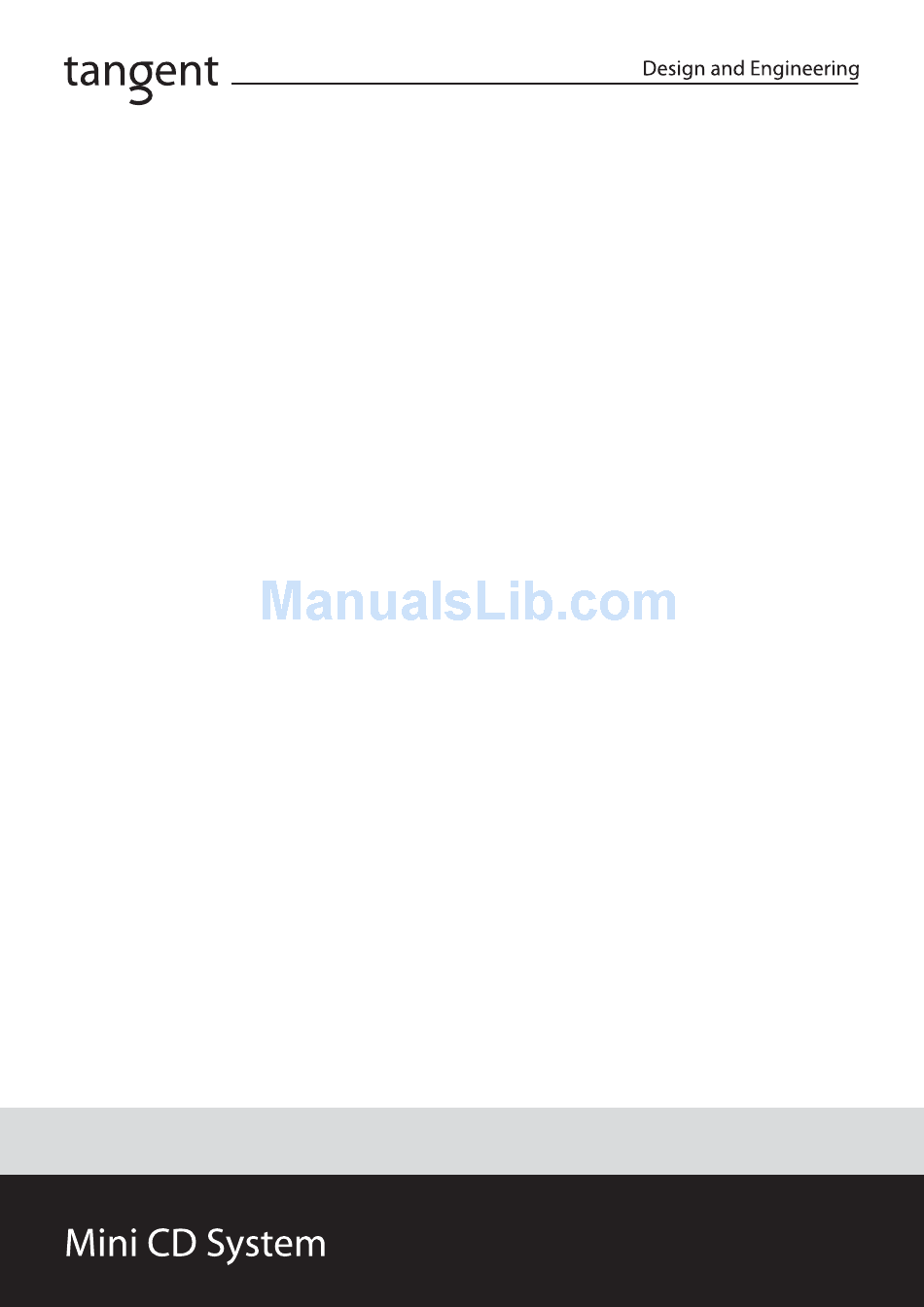

- Page 1 MCS-600 Instruction manual...
- Page 2 This operation manual supplies all the information that you need to have about your Tangent MCS-600. Please read this operation manual carefully before you start using the unit!
-
Page 3: Table Of Contents
CONTENTS Safety precautions Important safety instructions Important information Connection to the mains Front and rear panel functions Front panel functions Rear panel functions Remote control Installation of batteries Using the remote control Remote control functions Connections Connection of speakers Rear panel connections Front panel connections Using the radio Connecting an antenna... -
Page 4: Safety Precautions
SAFETY PRECAUTIONS A triangle with a lightning symbol draws the user's attention to "dangerous voltage" without insulation in the cabinet which may be high enough to entail a risk of electric shock. A triangle with an exclamation mark draws the user's attention to important instructions for use and maintenance in the enclosed manual, which should be studied. -
Page 5: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS WARNING: IT IS IMPORTANT THAT YOU READ AND OBSERVE BOTH THE INSTRUCTIONS IN THIS MANUAL AND THE INSTRUCTIONS ON THE UNIT. KEEP THIS MANUAL FOR FUTURE REFERENCE. This unit was designed and manufactured with a view to providing maximum safety for the user. Incorrect use of the unit may cause electrical shock or fire. -
Page 6: Spare Parts
IMPORTANT SAFETY INSTRUCTIONS Lightning Damage Unplug the unit for additional protection during thunder or Unplug the unit and contact qualified technicians in the when the unit is not used for prolonged periods. This will following cases: prevent damage to the unit from lightning and power surges. A) If the power cord or the plug is damaged. -
Page 7: Important Information
IMPORTANT INFORMATION Handling instructions Condensation - The top and back panel of the unit may become warm after Condensation may occur in the following cases: prolonged use. This is not due to a defect. - Turn off the power when the unit is not used. - When the unit is moved directly from a cold to a warm place. -
Page 8: Connection To The Mains
CONNECTION TO THE MAINS Connection to the mains POWER Model: MCS-600 Power rating: AC 220V - 240V~50Hz Max Power Consumption:120W CLASS 1 LASER PROCUCT ANTENNA SPEAKER 6-8OHM RIGHT LEFT AUDIO LOOP 220-240V ~50Hz REC OUT TAPE IN AUX 1 IN... -
Page 9: Front And Rear Panel Functions
FRONT AND REAR PANEL FUNCTIONS VOLUME MCS-600 Mini CD System POWER STANDBY TUNING STATION SOURCE REPEAT PHONES LINE IN AUX 2 13 14 Front panel functions The points below contains a brief description of the front panel buttons, inputs and outputs. For more detailed descriptions of the functions and connections, please see the following pages of the manual. -
Page 10: Rear Panel Functions
FRONT AND REAR PANEL FUNCTIONS Rear panel functions POWER Model: MCS-600 Power rating: AC 220V - 240V~50Hz Max Power Consumption:120W CLASS 1 LASER PROCUCT ANTENNA SPEAKER 6-8OHM RIGHT LEFT AUDIO LOOP 220-240V ~50Hz REC OUT TAPE IN AUX 1 IN... -
Page 11: Remote Control
Direct the remote control at the sensor on the front panel of the unit. When the remote control signal is received, the unit reacts accordingly. The remote control works within a range of 6 metres. VOLUME MCS-600 Mini CD System POWER STANDBY... -
Page 12: Remote Control Functions
TREBLE BALANCE LOUDNESS DISPLAY REPEAT MCS-600 1. Power 5. DVD Press the power button to set the receiver into standby. Press this button to select the DVD input on the rear The standby LED will turn red. Press the power button panel. - Page 13 REMOTE CONTROL 9. Tuning and Station buttons 22. Tuner Tuning +/-: Use this button to manually search up and Press this button to choose the built in tuner. Press it down in frequency for radio stations. again to change between FM and AM. 23.
-
Page 14: Connections
CONNECTIONS Connecting speakers Left front Right front POWER Model: MCS-600 Power rating: AC 220V - 240V~50Hz Max Power Consumption:120W CLASS 1 LASER PROCUCT ANTENNA SPEAKER 6-8OHM RIGHT LEFT AUDIO LOOP 220-240V ~50Hz REC OUT TAPE IN AUX 1 IN DVD IN... -
Page 15: Rear Panel Connections
(stereo 2RCA-2RCA). Choose the source by pressing the button on the remote that fits the wanted input. Note: Do not plug in the mains power lead or turn on the unit all connections have been made. VOLUME MCS-600 Mini CD System POWER STANDBY TUNING... -
Page 16: Using The Radio
You can also turn the TUNING button on the To tune in channels on the MCS-600, you have three options: front panel of the receiver to manually tune up or down in frequency. -
Page 17: Rds (Radio Data System)
TREBLE BALANCE memory will preserve the radio presets and sound adjustments for approximately one week/7 days. LOUDNESS DISPLAY REPEAT DISPLAY If the power is disconnected for more than one week, the radio presets and sound adjustments will be erased. MCS-600... -
Page 18: Troubleshooting Guide
TROUBLESHOOTING To determine any problem with your receiver, always check the most obvious possible causes first. If your problem still remains after your having checked the items below, consult your nearest dealer. Possible solution Problem Possible cause Amplifier Switch the left and right front speakers to obtain When listening to stereo the front speakers are The left and right front speakers have been reversed. -
Page 19: Specifications
TECHNICAL SPECIFICATIONS AUDIO SECTION Audio Power Output 2 x 60W Output Impedance FRONT (L/R) 4-8 ohm Total Harmonic Distortion Less than 0.2% LINE INPUT Input Sensitivity/Impedance 200mV/47kohms Frequency Response 20Hz~20KHz +0.5/-3dB Tone Control Range BASS +/- 10dB TREBLE +/- 10dB Signal-Noise Ratio 90dB WOOFER OUTPUT... - Page 20 Service hotline +45 9641 1599 For further information please visit our website: www.tangent-audio.com Item no. 40527...
