Table of Contents

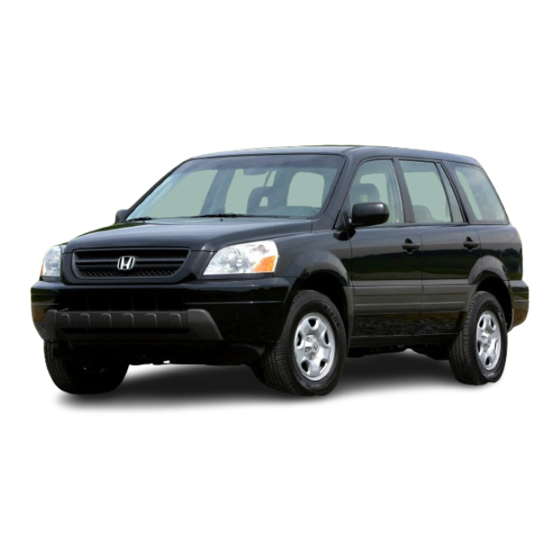

Summary of Contents for Honda 2005 Pilot

Page 1: Table Of Contents
2005 Pilot Online Reference Owner's Manual Use these links (and links throughout this manual) to navigate through this reference. For a printed owner's manual, click on authorized manuals or go to www.helminc.com. Contents Introduction ............................A Few Words About Safety.........................
Page 2 The information and specifications included CITY STATE/PROVINCE ZIP CODE/ in this publication were in effect at the time of approval for printing. Honda Motor Co., POSTAL CODE Ltd. reserves the right, however, to V. I. N. discontinue or change specifications or...
Page 3: Introduction
This One of the best ways to enhance the enjoyment of your new Honda is to information is intended to help you read this manual. In it, you will learn how to operate its driving controls and avoid damage to your Honda, other convenience items.
Page 4: A Few Words About Safety
Main Menu A Few Words About Safety Your safety, and the safety of others, You will find this important safety information in a variety of forms, is very important. And operating this including: car safely is an important on the vehicle. Safety Labels responsibility.
Page 5: Important Handling Information
Main Menu Important Handling Information Your Pilot has higher ground clearance than a passenger vehicle designed for use only on pavement. Higher ground clearance has many advantages for off-highway driving. It allows you to travel over bumps, obstacles, and rough terrain.
Page 6: Your Vehicle At A Glance
Main Menu Your Vehicle at a Glance SHIFT LEVER (A/T) (P. 160) INSTRUMENT PANEL (P. 57) GAUGES (P. 66) AUDIO SYSTEM (P. 106) POWER DOOR LOCK SWITCHES (P. 78) MIRROR CLIMATE CONTROL CONTROLS SYSTEM (P. 100) (P. 89) POWER WINDOW SWITCHES (P.
Page 7: Your Vehicle At A Glance
Main Menu Your Vehicle at a Glance HEADLIGHTS/TURN SIGNALS HORN HAZARD WARNING MOONROOF BUTTONS (P. 71) (P. 73) BUTTON (P. 92) VTM-4 LOCK (P. 164) LIGHT CONTROL PASSENGER AIRBAG SWITCH OFF INDICATOR (P. 97) (P. 31) VSA OFF SWITCH (P. 172) REAR WINDOW DEFOGGER (P.
Page 8 Main Menu...
Page 9: Driver And Passenger Safety
Main Menu Driver and Passenger Safety This section gives you important Additional Information About Your All Children Should Sit in the information about how to protect Seat Belts ......... Back Seat ......... yourself and your passengers. It Seat Belt System Components . The Passenger’s Front Airbag shows you how to use seat belts.
Page 10: Important Safety Precautions
Main Menu Table of Contents Important Safety Precautions You’ll find many safety Be Aware of Airbag Hazards Control Your Speed recommendations throughout this While airbags can save lives, they Excessive speed is a major factor in section, and throughout this manual. crash injuries and deaths.
Page 11 Main Menu Table of Contents Your Vehicle’s Safety Features Your vehicle is equipped with many features that work together to protect you and your passengers during a crash. (10) Some features do not require any action on your part. These include a strong steel framework that forms a safety cage around the passenger compartment;...
Page 12 Main Menu Table of Contents Your Vehicle’s Safety Features Help keep you from being thrown Seat Belts Your vehicle is equipped with seat against the inside of the vehicle belts in all seating positions. and against other occupants. Not wearing a seat belt properly increases the chance of serious Your seat belt system also injury or death in a crash, even...
Page 13 Main Menu Table of Contents Your Vehicle’s Safety Features Airbags The most important things you need to know about your airbags are: Airbags do not replace seat belts. They are designed to supplement the seat belts. Airbags offer no protection in rear impacts, or minor frontal or side collisions.
Page 14 Main Menu Table of Contents Your Vehicle’s Safety Features, Protecting Adults and Teens The rest of this section gives more Protecting Adults and Teens Close and Lock the Doors detailed information about how you After everyone has entered the can maximize your safety. vehicle, be sure the doors and Introduction The following pages provide...
Page 15: Protecting Adults And Teens
Main Menu Table of Contents Protecting Adults and Teens Locking the doors also helps prevent Adjust the Front Seats The National Highway Traffic Safety an outsider from unexpectedly Administration and Transport opening a door when you come to a Canada recommend that drivers stop.
Page 16 Main Menu Table of Contents Protecting Adults and Teens Adjust the Seat-Backs Sitting too close to a front Reclining the seat-back too far airbag can result in serious can result in serious injury or injury or death if the front death in a crash.
Page 17 Main Menu Table of Contents Protecting Adults and Teens Adjust the Head Restraints Fasten and Position the Seat Belts Insert the latch plate into the buckle, Improperly positioning head then tug on the belt to make sure the restraints reduces their effectiveness and you can be belt is securely latched.
Page 18 Main Menu Table of Contents Protecting Adults and Teens This spreads the forces of a crash RELEASE over the strongest bones in your BUTTON upper body. Improperly positioning the seat belts can cause serious injury or death in a crash. Make sure all seat belts are properly positioned before driving.
Page 19 Main Menu Table of Contents Protecting Adults and Teens Maintain a Proper Sitting Sitting improperly can increase the Never place the shoulder portion of a Position chance of injury during a crash. For lap/shoulder belt under your arm or This could cause After all occupants have adjusted example, if an occupant slouches, behind your back.
Page 20 Main Menu Table of Contents Protecting Adults and Teens In addition, an occupant who is out of When driving, remember to sit Advice for Pregnant Women position in the front seat can be upright and adjust the seat as far seriously or fatally injured in a crash back as possible while allowing full by striking interior parts of the...
Page 21 Main Menu Table of Contents Protecting Adults and Teens Additional Safety Precautions Do not put any accessories on seat Do not attach or place objects on Devices intended to improve Objects on Never let passengers ride in the belts. the front airbag covers. occupant comfort or reposition the the covers marked ‘‘SRS AIRBAG’’...
Page 22: Additional Information About Your Seat Belts
Main Menu Table of Contents Additional Information About Your Seat Belts To unlock the belt, push the red Seat Belt System Components Lap/Shoulder Belt Your seat belt system includes lap/ The lap/shoulder belt in the center PRESS button on the buckle. Guide shoulder belts in all eight seating seat of the second and third row the belt across your body so that it...
Page 23 Main Menu Table of Contents Additional Information About Your Seat Belts If the shoulder part of the belt is Automatic Seat Belt Tensioners The tensioners can also be activated pulled all the way out, the locking during a collision in which the front mechanism will activate.
Page 24 Honda provides a lifetime warranty on seat belts for U.S. models. See your Honda Warranty Information booklet for details.
Page 25: Additional Information About Your Airbags
Main Menu Table of Contents Additional Information About Your Airbags Airbag System Components Your airbag system includes: Two SRS (Supplemental Restraint System) front airbags. The driver’s (10) airbag is stored in the center of the steering wheel; the front passengers’ airbag is stored in the dashboard.
Page 26 Main Menu Table of Contents Additional Information About Your Airbags Automatic front seat belt Weight sensors that monitor the An indicator on the instrument tensioners (see page weight on the front passenger’s panel that alerts you that the seat. These automatically turn off passenger’s side airbag has been Sensors that can detect a the passenger’s front airbag if...
Page 27 Main Menu Table of Contents Additional Information About Your Airbags How Your Front Airbags Work During a frontal crash, your seat belt restrains your lower body and torso, and the front airbag helps protect your head and chest. Although both airbags normally inflate within a split second of each other, it is possible for only one airbag to deploy.
Page 28 Main Menu Table of Contents Additional Information About Your Airbags The total time for inflation and Dual-Stage Airbags Dual-Threshold Airbags deflation is one-tenth of a second, so Your front airbags are dual-stage Your front airbags are also dual- fast that most occupants are not airbags.
Page 29 Main Menu Table of Contents Additional Information About Your Airbags Advanced Airbags Your front airbags are also advanced airbags. The main purpose of this feature is to help prevent airbag- caused injuries to short drivers and children who ride in front. For both advanced airbags to work DRIVER’S SEAT...
Page 30 Main Menu Table of Contents Additional Information About Your Airbags When the airbag is turned off, an Moving the front seat forcibly How Your Side Airbags Work indicator in the center of the back against cargo on the seat or dashboard will come on indicating floor behind it.
Page 31 Main Menu Table of Contents Additional Information About Your Airbags Only one airbag will deploy during a If the Side Airbag Off Indicator Side Airbag Cutoff System side impact. If the impact is on the To reduce the risk of injury from an comes on (see page ), have the passenger’s side, the passenger’s...
Page 32 Main Menu Table of Contents Additional Information About Your Airbags If you see any of these indications, How the SRS Indicator Works How the Side Airbag Off The SRS indicator alerts the airbags and seat belt tensioners Indicator Works you to a potential problem may not work properly when you This indicator U.S.
Page 33 Main Menu Table of Contents Additional Information About Your Airbags How the Passenger Airbag Off If no one is riding in the front seat, The Passenger Airbag Off indicator Indicator Works the airbag will be automatically shut may also come on and off repeatedly off.
Page 34 Main Menu Table of Contents Additional Information About Your Airbags Airbag Service Any airbag An airbag ever inflates. The SRS indicator alerts you to a Your airbag systems are virtually that has deployed must be Take your vehicle to an problem.
Page 35 This could make the dealer. driver’s seat position sensor or the front passenger’s weight sensors ineffective. If it is necessary to remove or modify a front seat to accommodate a person with disabilities, first contact Honda Automobile Customer Service at (800) 999-1009.
Page 36: Protecting Children
Main Menu Table of Contents Protecting Children General Guidelines All Children Must Be Restrained Each year, many children are injured or killed in vehicle crashes because Children who are unrestrained they are either unrestrained or not or improperly restrained can be properly restrained.
Page 37 Main Menu Table of Contents Protecting Children General Guidelines All Children Should Sit in a Back The Passenger’s Front Airbag Small Children Seat Poses Serious Risks Placing a forward-facing child seat in According to accident statistics, Front airbags have been designed to the front seat of a vehicle equipped help protect adults in a moderate to children of all ages and sizes are...
Page 38 Main Menu Table of Contents Protecting Children General Guidelines To remind you of the passenger’s U.S. Models DASHBOARD front airbag hazards, and that SUN VISOR children must be properly restrained in a back seat, your vehicle has warning labels on the dashboard (U.S.
Page 39 Main Menu Table of Contents Protecting Children General Guidelines If You Must Drive with Several If a Child Requires Close If a child requires close physical Children Attention attention or frequent visual Your vehicle has a back seat where Many parents say they prefer to put contact, we strongly recommend children can be properly restrained.
Page 40: Protecting Children General Guidelines
Main Menu Table of Contents Protecting Children General Guidelines Additional Safety Precautions Use childproof door locks to Lock all doors and the tailgate Never hold an infant or child on prevent children from opening the when your vehicle is not in use. If you are not wearing a This can prevent children Children who play in vehicles can...
Page 41: Protecting Infants And Small Children
Main Menu Table of Contents Protecting Infants and Small Children Protecting Infants Two types of seats may be used: a Child Seat Placement seat designed exclusively for infants, A rear-facing child seat can be placed or a convertible seat used in the rear- in any seating position in the back facing, reclining mode.
Page 42 Main Menu Table of Contents Protecting Infants and Small Children In any situation, we strongly Protecting Small Children Child Seat Placement recommend that you install the child We strongly recommend placing a seat directly behind the front forward-facing child seat in a back passenger’s seat, move the seat as seat, not the front.
Page 43 Main Menu Table of Contents Protecting Infants and Small Children, Selecting a Child Seat If it is necessary to put a forward- Selecting a Child Seat In seating positions and vehicles not facing child seat in the front, move When buying a child seat, you need equipped with LATCH, a LATCH- the vehicle seat as far to the rear as to choose either a conventional child...
Page 44 Main Menu Table of Contents Selecting a Child Seat, Installing a Child Seat Installing a Child Seat movement can be expected and The child seat should meet U.S. or After selecting a proper child seat, should not reduce the child seat’s Canadian Motor Vehicle Safety and a good place to install the seat, effectiveness.
Page 45: Installing A Child Seat
Main Menu Table of Contents Installing a Child Seat Installing a Child Seat with LATCH Your vehicle is equipped with LATCH (Lower Anchors and Tethers for Children) at the outer LOWER ANCHORS second row seats. The lower anchors are located between the seat-back and seat bottom, and are to be used only with a child seat designed for use with LATCH.
Page 46 Main Menu Table of Contents Installing a Child Seat Push and pull the child seat ANCHOR forward and from side to side to verify that it is secure. Flexible type TETHER STRAP HOOK Other LATCH-compatible seats Lift the head restraint (see page have a flexible-type connector as ), then route the tether strap shown above.
Page 47 Main Menu Table of Contents Installing a Child Seat Installing a Child Seat with a Lap/ Shoulder Belt When not using the LATCH system, all child seats must be secured to the vehicle with the lap part of a lap/ shoulder belt.
Page 48 Main Menu Table of Contents Installing a Child Seat To deactivate the locking mechanism and remove a child seat, unlatch the buckle, unroute the seat belt, and let the belt fully retract. After confirming that the belt is Push and pull the child seat locked, grab the shoulder part of forward and from side to side to the belt near the buckle and pull...
Page 49 Main Menu Table of Contents Installing a Child Seat Installing a Child Seat with a Second Seat Installation: Third Seat Installation: Tether Your vehicle has attachment points for a tether-style child seat to be installed on the second or third row as shown.
Page 50 Main Menu Table of Contents Installing a Child Seat Lift the head restraint, then route Attach the tether strap hook to the the tether strap over the seat-back tether attachment point, and tighten between the legs of the head the strap according to the child seat restraint.
Page 51: Protecting Larger Children
Main Menu Table of Contents Protecting Larger Children When a child reaches the Checking Seat Belt Fit recommended weight or height limit for a forward-facing child seat, the Allowing a child age 12 or under child should sit in a back seat on a to sit in front can result in injury booster seat and wear a lap/shoulder or death if the passenger’s front...
Page 52 Main Menu Table of Contents Protecting Larger Children Does the shoulder belt cross Booster seats can be high-back or Using a Booster Seat between the child’s neck and arm? low-back. Whichever style you select, make sure the booster meets federal Is the lap part of the belt as low as safety standards (see page ) and...
Page 53 Main Menu Table of Contents Protecting Larger Children When Can a Larger Child Sit in Of course, children vary widely. And If you decide that a child can safely Front while age may be one indicator of ride up front, be sure to: The National Highway Traffic Safety when a child can safely ride in front, there are other important factors you...
Page 54 Main Menu Table of Contents Protecting Larger Children Additional Safety Precautions Do not put any accessories on a Devices intended to Do not let a child wear a seat belt seat belt. This could result improve a child’s comfort or across the neck.
Page 55: Carbon Monoxide Hazard
Main Menu Table of Contents Carbon Monoxide Hazard Your vehicle’s exhaust contains With the tailgate open, air flow can carbon monoxide gas. You should pull exhaust gas into your vehicle’s have no problem with carbon interior and create a hazardous Carbon monoxide gas is toxic.
Page 56: Safety Labels
Main Menu Table of Contents Safety Labels SUN VISOR These labels are in the locations DASHBOARD shown. They warn you of potential U.S. models U.S. models only hazards that could cause serious injury. Read these labels carefully. If a label comes off or becomes hard to read, contact your dealer for a replacement.
Page 57: Instruments And Controls
Main Menu Instruments and Controls This section gives information about Control Locations ......Detachable Seat Belt Anchors ..the controls and displays that Instrument Panel ......Mirrors ..........contribute to the daily operation of Gauges ..........Power Windows ......your vehicle. All the essential Odometer/Trip Meter ....
Page 58: Control Locations
Main Menu Table of Contents Control Locations INSTRUMENT PANEL (P.57) SHIFT LEVER (A/T) GAUGES (P.66) (P.160) AUDIO SYSTEM (P.106) POWER DOOR LOCK SWITCHES (P.78) CLIMATE CONTROL SYSTEM (P.100) MIRROR CONTROLS (P.89) POWER WINDOW SWITCHES (P.90) HOOD RELEASE HANDLE (P.148) FUEL FILL DOOR PARKING BRAKE REAR A/C CONTROL RELEASE...
Page 59: Instrument Panel (P
Main Menu Table of Contents Instrument Panel PARKING BRAKE SEAT BELT REMINDER INDICATOR (P.58) AND BRAKE SYSTEM VSA ACTIVATION INDICATOR (P.60) INDICATOR (P.59) BRAKE LAMP INDICATOR (P.62) SIDE AIRBAG CRUISE CONTROL CUTOFF INDICATOR (P.63) INDICATOR (P.58) LOW TIRE PRESSURE MALFUNCTION INDICATOR INDICATOR (P.61) LAMP...
Page 60: Instrument Panel
Main Menu Table of Contents Instrument Panel The instrument panel has many Malfunction Indicator Supplemental Restraint indicators to give you important Lamp System Indicator information about your vehicle. See page This indicator comes on briefly when you turn the ignition switch to ON Seat Belt Reminder Low Oil Pressure (II).
Page 61 Main Menu Table of Contents Instrument Panel Anti-lock Brake System Immobilizer System U.S. Canada (ABS) Indicator Indicator This indicator normally comes on for This indicator comes on for a few a few seconds when you turn the seconds when you turn the ignition Parking Brake and Brake System Indicator ignition switch to ON (II), and when...
Page 62: Instrument Panel Indicators
Main Menu Table of Contents Instrument Panel Indicators Vehicle Stability Assist VSA Activation Indicator (VSA) System Indicator On EX-L models On EX-L models This indicator normally comes on for This indicator has three functions: a few seconds when you turn the ignition switch to ON (II).
Page 63 Main Menu Table of Contents Instrument Panel Indicators Low Tire Pressure Tire Pressure Monitor Tire Pressure Monitoring Indicator System (TPMS) Indicator This indicator normally comes on for The appropriate tire indicator will This indicator normally comes on for a few seconds when you turn the come on along with the low tire a few seconds when you turn the ignition to ON (II).
Page 64 Main Menu Table of Contents Instrument Panel Turn Signal and Brake Lamp Indicator Door and Tailgate Open Monitor Hazard Warning If a brake light does not work, the Indicators The left or right turn signal indicator indicator comes on BRAKE LAMP blinks when you signal a lane change when you push the brake pedal with or turn.
Page 65 Main Menu Table of Contents Instrument Panel ‘‘Daytime Running High Beam Indicator Washer Level Indicator Lights’’ Indicator This indicator comes on with the Canadian models only Canadian models only This indicator comes on when you high beam headlights. For more This indicator comes on when the turn the ignition switch to ON (II) information, see page...
Page 66 Main Menu Table of Contents Instrument Panel A/T Temperature VTM-4 Indicator Indicator This indicator monitors the This indicator normally comes on for temperature of the automatic a few seconds when you turn the transmission fluid. The indicator ignition switch to ON (II). If this should come on for a few seconds indicator comes on at any other time, when you turn the ignition switch to...
Page 67 Main Menu Table of Contents Instrument Panel Maintenance Required Indicator For the first 6,000 miles (9,600 km) Your dealer will reset this indicator after the Maintenance Required after completing the scheduled SELECT/RESET BUTTON Indicator is reset, it will come on for maintenance.
Page 68 Main Menu Table of Contents Gauges Odometer TACHOMETER SPEEDOMETER FUEL GAUGE TEMPERATURE The odometer shows the total GAUGE distance your vehicle has been driven. It measures miles in U.S. models and kilometers in Canadian models. It is illegal under U.S. federal law and Canadian provincial regulations to TRIP METER disconnect, reset, or alter the...
Page 69 Main Menu Table of Contents Gauges Temperature Gauge Outside Temperature Indicator If the outside temperature is This shows the temperature of the incorrectly displayed, you can adjust On EX and EX-L models engine’s coolant. During normal This indicator displays the outside it up to 5°F ( 3°C) warmer or operation, the pointer should rise...
Page 70 Main Menu Table of Contents Gauges Check Fuel Cap Indicator If the system still detects a loose or (odometer/outside temperature missing fuel cap, the Malfunction Indicator Lamp (MIL) comes on. message) If your fuel cap is loose or missing, a Turn the engine off and check or ‘‘CHECK FUEL CAP’’...
Page 71: Controls P
Main Menu Table of Contents Controls Near the Steering Wheel MOON ROOF HEADLIGHTS/TURN SIGNALS HORN HAZARD WARNING BUTTON (P.92) (P.71) (P.73) VTM-4 LOCK LIGHT CONTROL (P.164) SWITCH (P.97) VSA OFF SWITCH PASSENGER AIRBAG (P.172) OFF INDICATOR (P.31) CRUISE CONTROL REAR WINDOW DEFOGGER MASTER SWITCH (P.138)
Page 72: Windshield Wipers And Washers
Main Menu Table of Contents Windshield Wipers and Washers The wipers are not activated. Rear Window Wiper and Washer The length of the wiper interval is varied automatically according to the vehicle’s speed. Vary the delay by turning the INT TIME ring.
Page 73: Turn Signal And Headlights
Main Menu Table of Contents Turn Signal and Headlights Turn Signal Push down on the High Beams To turn on the high left lever to signal a left turn and up beams, push the lever forward until to signal a right turn. To signal a lane you hear a click.
Page 74 Main Menu Table of Contents Headlights, Instrument Panel Brightness Automatic Lighting Off Feature The lights will turn on again when Instrument Panel Brightness On EX and EX-L model you unlock or open the driver’s door. This feature turns off the headlights, If you unlock the door, but do not INSTRUMENT PANEL BRIGHTNESS CONTROL KNOB...
Page 75 Main Menu Table of Contents Hazard Warning Button, Rear Window Defogger Hazard Warning Button EX and EX-L models LX model HAZARD WARNING BUTTON The rear window defogger will clear Make sure the rear window is clear Push the red button to turn on the fog, frost, and thin ice from the and you have good visibility before hazard warning lights (four-way...
Page 76: Steering Wheel Adjustment
Main Menu Table of Contents Steering Wheel Adjustment Make any steering wheel adjustment Push the lever up to lock the before you start driving. steering wheel in that position. Make sure you have securely locked the steering wheel in place by trying to move it up and down.
Page 77 (BLACK) ever have to get a key replaced. Use immobilizer system. They will not only Honda-approved key blanks. work to start the engine if the circuits are damaged. Protect the keys from direct sunlight, high temperature, and high humidity.
Page 78: Immobilizer System
Main Menu Table of Contents Immobilizer System The immobilizer system protects The system may not recognize your As required by the FCC: your vehicle from theft. If an key’s coding if another immobilizer This device complies with Part 15 of the improperly-coded key (or other key or other metal object (i.e.
Page 79: Ignition Switch
Main Menu Table of Contents Ignition Switch If the front wheels are turned, the You will hear a reminder beeper if anti-theft lock may make it difficult you leave the key in the ignition to turn the key. Firmly turn the switch in the LOCK (0) or ACCESSORY (I) position and open steering wheel to the left or right as...
Page 80: Door Locks
Main Menu Table of Contents Door Locks The lock tab on any door locks and Power Door Locks Tailgate unlocks that door. To unlock the To open the tailgate, pull the handle, driver’s door from the outside, turn then lift up. To close the tailgate, use MASTER DOOR LOCK SWITCH the key and release it.
Page 81 Main Menu Table of Contents Childproof Door Locks, Remote Transmitter Childproof Door Locks Remote Transmitter UNLOCK Press this button once to unlock the driver’s door. Push it twice to unlock the other doors and PANIC UNLOCK the tailgate. Some exterior lights will BUTTON BUTTON flash twice each time you press the...
Page 82: Remote Transmitter
Main Menu Table of Contents Remote Transmitter PANIC Press this button for Replacing the Transmitter Battery about 1 second to attract attention; If it takes several pushes on the the horn will sound and the exterior button to lock or unlock the doors, lights will flash for about 30 seconds.
Page 83 Main Menu Table of Contents Remote Transmitter As required by the FCC: This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and BATTERY (2) this device must accept any interference received, including interference that may cause undesired...
Page 84 Main Menu Table of Contents Remote Transmitter, Seat Heaters Seat Heaters In HI, the heater turns off when the If equipped seat gets warm, and turns back on after the seat’s temperature drops. SEAT HEATER BUTTONS SEAT HEATERS In LO, the heater runs continuously. It does not cycle with temperature changes.
Page 85 Main Menu Table of Contents Seats Power Seat Adjustment Driver’s Lumbar Support On EX and EX-L models On EX and EX-L models See pages for important safety information and warnings about how to properly position seats and seat-backs. The controls for the adjustable driver’s power seat are on the outside edge of the seat bottom.
Page 86 Main Menu Table of Contents Seats Manual Seat Adjustments Driver’s Seat Height Adjustment On DX model To adjust the seat forward and To change the seat-back angle of the backward, pull up on the lever under front seat, pull up on the lever on the The height of your driver’s seat is the front seat cushion.
Page 87 Main Menu Table of Contents Seats Adjusting the Second Row Seats Folding the Second Row Seats Third Seat Access The left and right halves can be folded separately. If you are folding the left half of the seat, use the ignition key to release the center seat belt from the detachable anchor (see page Lower the head restraint fully.
Page 88 Main Menu Table of Contents Seats Use the ignition key to release the Adjusting the Third Row Seat Folding the Third Row Seat seat belt from the detachable anchor. See page Unlock the seat-back by pulling the handle. Push the seat-back forward.
Page 89 Main Menu Table of Contents Seats Head Restraints Your vehicle is equipped with head They are most effective when you restraints in all seating positions to adjust them so the back of the help protect you and your occupant’s head rests against the passengers from whiplash and other center of the restraint.
Page 90 Main Menu Table of Contents Seats, Mirrors Detachable Seat Belt Anchors Mirrors SMALL LATCH PLATE Using a seat belt with the detachable anchor unlatched increases the chance of serious injury or death in a crash. Before using the seat belt, make sure the detachable anchor is correctly latched.
Page 91 Main Menu Table of Contents Mirrors Adjusting the Power Mirrors Push the appropriate edge of the Power Mirror Heaters adjustment switch to move the (If equipped) SELECTOR SWITCH mirror right, left, up, or down. When you finish, move the selector switch to the center (off) position.
Page 92: Power Windows
Main Menu Table of Contents Power Windows To open or close the driver’s window DRIVER’S WINDOW MAIN SWITCH partially, push down or pull back on SWITCH the window switch lightly and hold it. Closing a power window on The window will stop when you someone’s hands or fingers can cause serious injury.
Page 93 Main Menu Table of Contents Power Windows AUTO REVERSE If the driver’s If your vehicle’s battery is If the power windows do not operate window senses any obstacle while it disconnected or goes dead, or the properly after resetting, have your is closing automatically, it will driver’s window fuse is removed, the vehicle checked by your dealer.
Page 94 Main Menu Table of Contents Moonroof To tilt up the back of the moonroof, The moonroof has a key-off delay If equipped press and hold the center button function. You can still open and close ). To close the moonroof, the moonroof for up to 10 minutes CLOSE BUTTON press and hold the upper button...
Page 95: Parking Brake
Main Menu Table of Contents Parking Brake Driving the vehicle with the parking brake applied can damage the rear brakes and hubs. PARKING BRAKE PEDAL To apply the parking brake, push the pedal down with your foot. To release it, push on the pedal again. The parking brake indicator on the instrument panel should go out when the parking brake is fully released...
Page 96: Interior Convenience Items
Main Menu Table of Contents Interior Convenience Items ACCESSORY POWER SOCKETS SUN VISORS GLOVE BOX CONSOLE COMPARTMENT BEVERAGE HOLDERS ACCESSORY POWER BEVERAGE HOLDERS BEVERAGE HOLDERS SOCKETS (EX and EX-L models)
Page 97 Main Menu Table of Contents Interior Convenience Items Beverage Holders Accessory Power Sockets Console Compartment Be careful when you are using the These sockets are intended to supply beverage holders. A spilled liquid power for 12 volt DC accessories that is very hot can scald you or your that are rated 120 watts or less (10 passengers.
Page 98 Main Menu Table of Contents Interior Convenience Items Sunglasses Holder Glove Box Sun Visor Open the glove box by pulling the bottom of the handle. Close it with a EXTENSION firm push. Lock or unlock the glove box with the master key. The glove box light comes on only when the parking lights are on.
Page 99 Main Menu Table of Contents Lights Light Control Switch The individual map lights in the The tailgate light comes on when second and third rows cannot be you open the tailgate if the light turned on. switch is in the ON position. When the switch is in the Door The lights go out about 6 seconds...
Page 100 Main Menu Table of Contents Lights Individual Map Lights Turn on the front and second row individual map lights by pushing the lens. Push the lens again to turn it off. You can also operate these lights with the light control switch (see page Tailgate Light The light in the tailgate has an on-off...
Page 101: Comfort And Convenience Features
Main Menu Features The heating and air conditioning Vents, Heating, and A/C ..... Setting the Clock ......systems in your vehicle provide a Air Flow Buttons ....... Rear Entertainment System ..comfortable driving environment in Climate Control ......DVD Specifications ....
Page 102 Main Menu Table of Contents Vents, Heating, and A/C REAR WINDOW FAN CONTROL TEMPERATURE RECIRCULATION DIAL DEFOGGER BUTTON CONTROL DIAL BUTTON LX MODEL FAN CONTROL TEMPERATURE BUTTONS DISPLAY FAN SPEED AIR CONDITIONING BUTTON AIR CONDITIONING BUTTON INDICATOR MODE BUTTON MODE CONTROL DIAL EX and EX-L MODEL REAR A/C RECIRCULATION...
Page 103: Airflow Buttons
Main Menu Table of Contents Airflow Buttons Fan Control Recirculation Button Rear Window Defogger Button , turn this dial clockwise When the indicator in the button is This button turns the rear window On LX models to increase fan speed and increase on, air from the vehicle’s interior is defogger off and on (see page the airflow.
Page 104 Main Menu Table of Contents Airflow Buttons, Vents, Heating, and A/C Air flows from the defroster Using the Heater Turn on the A/C by pressing the vents at the base of the windshield. The heater uses engine coolant to button. The indicator in the button warm the air.
Page 105 Main Menu Table of Contents Vents, Heating, and A/C Dehumidify the Interior To Defog and Defrost To Remove Exterior Frost or Ice Air conditioning, as it cools, removes To remove fog from the inside of the From the Windows moisture from the air. When used in windows: Select .
Page 106: Climate Control
Main Menu Table of Contents Climate Control Automatic Climate Control When you set the temperature to its Semi-automatic Operation On EX and EX-L models lower or its upper limit, the system You can manually select various The automatic climate control runs at full cooling or heating only.
Page 107 Main Menu Table of Contents Climate Control Using the Rear A/C Unit Sunlight and Temperature Sensors EX and EX-L models TEMPERATURE SENSOR AUTO BUTTON SUNLIGHT SENSOR REAR A/C CONTROL BUTTON Press the RR A/C MANUAL button The climate control system has two to enable the rear A/C control panel.
Page 108: Playing The Radio
Main Menu Table of Contents Playing the Radio AM/FM BUTTON STEREO INDICATOR LX MODEL SCAN BUTTON PWR/VOL AUTO SELECT BUTTON KNOB EX-L MODEL EX and EX-L SEEK/SKIP with RES MODELS PRESET BUTTONS TUNE/MODE KNOB TUNE KNOB STEREO INDICATOR PWR/VOL KNOB PWR/VOL KNOB AM/FM BUTTON SCAN...
Page 109 Main Menu Table of Contents Playing the Radio To Play the Radio SEEK The SEEK function Preset Each preset button can The ignition switch must be in the searches up and down from the store one frequency on AM, and two ACCESSORY (I) or ON (II) position.
Page 110 Main Menu Table of Contents Playing the Radio AUTO SELECT If you are press the Treble/Bass Use the TRE/BAS To turn off Auto Select, traveling far from home and can no A. SEL button. This restores the modes to adjust the tone to your longer receive your preset stations, presets you originally set.
Page 111: Radio Reception
Main Menu Table of Contents Radio Reception Radio Frequencies Radio Reception The radio can receive the complete How well the radio receives stations AM and FM bands. is dependent on many factors, such Those bands cover these frequen- as the distance from the station’s cies: transmitter, nearby large objects, and atmospheric conditions.
Page 112 Main Menu Table of Contents Radio Reception As required by the FCC: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Radio signals, especially on the FM Radio reception can be affected by band, are deflected by large objects atmospheric conditions such as such as buildings and hills.
Page 113: Playing A Cd
Main Menu Table of Contents Playing a CD REPEAT INDICATOR CD BUTTON LX MODEL CD SLOT REPEAT BUTTON CD EJECT BUTTON PWR/VOL KNOB SEEK/SKIP BAR RANDOM INDICATOR RANDOM BUTTON EX and EX-L EX-L MODEL PWR/VOL CD EJECT CD SLOT MODELS with RES CD SLOT KNOB...
Page 114 Main Menu Table of Contents Playing a CD, CD Changer To Play a CD SKIP Each time you press and REPEAT To continuously replay With the ignition in the release /( ), the player skips a track, press and release the RPT ACCESSORY (I) or ON (II) position, forward to the beginning of the next button.
Page 115 Main Menu Table of Contents Playing a CD, CD Changer To Stop Playing a CD Operating the CD Changer Press the eject button ( ) to Standard on EX-L model with Navigation remove the CD. If you eject the CD, System but do not remove it from the slot, Optional on LX model...
Page 116 Main Menu Table of Contents CD Changer Operating the In-Dash CD Loading CDs in the Changer EX and EX-L models To select the CD changer, press the Changer Press and release any of the CD button. The disc and track The audio system has an in-dash CD numbered buttons on the CD numbers will be displayed.
Page 117 Main Menu Table of Contents CD Changer If you stop loading CDs before all six Removing CDs from the Changer If you press the eject button while positions are filled, and you do not To remove the disc that is currently listening to the radio or tape, or with press any of the numbered button, playing, press the eject button.
Page 118: Protecting Your Cds
Main Menu Table of Contents Protecting Your CDs General Information Protecting CDs When using CD-R discs, use only When a CD is not being played, store high quality CDs labeled for audio it in its case to protect it from dust use.
Page 119: Cd Player Error Messages
Main Menu Table of Contents CD Player Error Messages If you see an error message in the display while playing a CD, find the Error Message Cause Solution cause in the chart to the right. If you cannot clear the error message, take Press the EJECT button and pull out the CD.
Page 120: Cd Changer Error Messages
Main Menu Table of Contents CD Changer Error Messages If you see an error message in the Error Message Cause Solution display while playing a CD, find the cause in the chart to the right. If you cannot clear the error message, take Press the magazine EJECT button and pull it the vehicle to your dealer.
Page 121 Main Menu Table of Contents Playing a Tape TAPE DIRECTION REPEAT TAPE BUTTON LX MODEL BUTTON INDICATOR PWR/VOL KNOB SKIP BAR PLAY/PROG DOLBY BUTTON EX-L MODEL BUTTON with RES EX and EX-L REW BUTTON FF BUTTON MODELS TAPE DIRECTION PWR/VOL PWR/VOL INDICATOR KNOB...
Page 122 Main Menu Table of Contents Playing a Tape To Play a Tape Dolby noise reduction turns on To switch to the radio or CD player Optional on LX models when you insert a tape. The while a tape is playing, press the The ignition switch must be in indicator comes on.
Page 123 Main Menu Table of Contents Playing a Tape REPEAT Press the RPT button Caring for the Tape and Player If the tape is loose, tighten it by to continuously play a song or The tape player picks up dirt and turning the hub with a pencil or your passage.
Page 124: Remote Audio Controls
Main Menu Table of Contents Remote Audio Controls Three controls for the audio system , use the CH If you are playing a CD CH BUTTON are mounted in the steering wheel button to skip to the beginning of the hub.
Page 125: Radio Theft Protection
Main Menu Table of Contents Radio Theft Protection On EX and EX-L models If your vehicle’s battery is discon- If the code card is lost, a dealer can Your vehicle’s audio system will nected or goes dead, the audio access your code with the your radio’s disable itself if it is disconnected system will disable itself.
Page 126: Setting The Clock
Main Menu Table of Contents Setting the Clock LX MODEL EX and EX-L CLOCK CLOCK BUTTON MODELS CLOCK BUTTON H BUTTON M BUTTON RESET If your vehicle’s battery is You can quickly set the time to the EX and EX-L models disconnected or goes dead, you will nearest hour.
Page 127: Rear Entertainment System
Main Menu Table of Contents Rear Entertainment System EX-L MODEL REAR CONTROL REAR CONTROL PANEL SELECTOR KNOB ENABLED INDICATOR FRONT CONTROL REAR POWER REAR SPEAKERS PANEL ENABLED BUTTON OFF ICON INDICATOR REAR SYSTEM DISPLAY DVD BUTTON REPEAT RANDOM PLAY PAUSE SEEK/SKIP BUTTON BUTTON...
Page 128 Main Menu Table of Contents Rear Entertainment System Your vehicle is equipped with a rear To Turn On the System Rear Speakers entertainment system that includes a Press the REAR PWR button. To When you turn on the system, the DVD player for the enjoyment of the turn on the rear controls (ceiling rear speakers are automatically...
Page 129 Main Menu Table of Contents Rear Entertainment System To Select Rear Entertainment Operating the DVD Player from DVD EJECT DVD SLOT from the Front Control Panel the Front Control Panel BUTTON To operate the rear entertainment The DVD player in your Rear system from the front panel, turn the Entertainment System can play DVD RR CTRL knob clockwise.
Page 130 Main Menu Table of Contents Rear Entertainment System PAUSE Press the PAUSE button EJECT Press the eject button to REAR CONTROL to pause the DVD. Press the button remove the DVD from the drive. PANEL again or press PLAY to resume. Pause works only with the DVD player.
Page 131 Main Menu Table of Contents Rear Entertainment System Using the Rear Control Panel SEEK/SKIP SOURCE REAR CONTROLS Use these buttons to select the MENU SELECTION BUTTONS OFF BUTTON BUTTON entertainment source (radio, tape BUTTON CHANNEL player, CD player/CD changer, or BUTTON DVD player/Auxiliary device).
Page 132 Main Menu Table of Contents Rear Entertainment System To Play a CD from the Rear To Play a DVD from the Rear SEEK/SKIP Press the Control Panel Control Panel button to skip to the beginning If a CD is loaded in the main CD The video screen is for use by rear of the next chapter.
Page 133 Main Menu Table of Contents Rear Entertainment System Using the Remote Control SOURCE SELECTION You can use the remote control to BUTTONS select the entertainment source (radio, tape player, CD player/CD changer, or DVD player/Auxiliary device). The selected source will be shown in the display.
Page 134 Main Menu Table of Contents Rear Entertainment System MENU and TITLE Buttons release the SUBTITLE or AUDIO RETURN (T/C) Button In the Some DVDs have menus that allow button to scan through all available MENU selection mode, pressing the you to select a dubbed language, RETURN button for less than two languages.
Page 135 Main Menu Table of Contents Rear Entertainment System Replacing the Remote Control As required by the FCC: This device Storing the Remote Control Batteries When you are not using the remote complies with Part 15 of the FCC rules. control, store it in holder in the front Operation is subject to the following two seat-back pocket.
Page 136: Dvd Specifications
Main Menu Table of Contents DVD Specifications Playable DVDs DVD Player Error Messages If you see an error message in the display while operating the DVD player, find the cause in the chart. If you cannot clear the error message, take your vehicle to a dealer.
Page 137 Main Menu Table of Contents Rear Entertainment System Wireless Headphones The audio for the rear entertainment Replacing Batteries system is sent to the wireless headphones that come with the system. When using the headphones, make sure you wear them correctly: L (left) and R (right) are marked on the sides of the frame.
Page 138 Main Menu Table of Contents Rear Entertainment System Auxiliary Input Jacks HEADPHONE CONNECTORS COVER VOLUME DIALS BATTERY AUXILIARY INPUT JACKS Remove the battery. Install the new Auxiliary input jacks and headphone The system will accept auxiliary battery in the earpice as shown in connectors for the rear inputs from standard video games the diagram next to the battery slot.
Page 139: Security System
Main Menu Table of Contents Security System On EX and EX-L models The security system will not set if SECURITY SYSTEM INDICATOR The security system helps to protect the hood, the tailgate, or any door is your vehicle and valuables from theft. not fully closed.
Page 140: Cruise Control
Main Menu Table of Contents Cruise Control Cruise control allows you to maintain Using the Cruise Control a set speed above 25 mph (40 km/h) CRUISE CONTROL MASTER BUTTON without keeping your foot on the RESUME/ACCEL accelerator pedal. It should be used for cruising on straight, open highways.
Page 141 Main Menu Table of Contents Cruise Control Changing the Set Speed To slow down in very small Cancelling the Cruise Control You can increase the set cruising amounts, tap the SET/DECEL You can cancel the cruise control in speed in any of these ways: button.
Page 142: Homelink Universal Transceiver
Main Menu Table of Contents HomeLink Universal Transceiver If your garage door opener was Training HomeLink On EX and EX-L Models The HomeLink Universal manufactured before April 1982, you Before you begin If you just Transceiver built into your vehicle may not be able to program received your vehicle and have not can be programmed to operate up to...
Page 143 Main Menu Table of Contents HomeLink Universal Transceiver If you are training the second or Press and hold the remote control Plug in the garage door opener third buttons, go directly to step 1. button and one of the HomeLink motor, then test the HomeLink buttons at the same time.
Page 144 Main Menu Table of Contents HomeLink Universal Transceiver Training With a Rolling Code Press and hold the button on TRAINING BUTTON System HomeLink for 3 to 4 seconds. For security purposes, newer garage door opening systems use a ‘‘rolling’’ Press and hold the HomeLink or variable code.
Page 145 Main Menu Table of Contents HomeLink Universal Transceiver Erasing Codes Customer Assistance As required by the FCC: To erase the codes stored in all three If you have problems with training This device complies with Part 15 of the buttons, press and hold the two the HomeLink Wireless Control FCC rules.
Page 146 Main Menu...
Page 147: Before Driving
Main Menu Before Driving Before you begin driving your Break-in Period ......vehicle, you should know what Fuel Recommendation ....gasoline to use and how to check the Service Station Procedures ..levels of important fluids. You also Refueling ........need to know how to properly store Opening and Closing the luggage or packages.
Page 148 Main Menu Table of Contents Break-in Period, Fuel Recommendation Break-in Period Fuel Recommendation Use of gasoline with these additives Help assure your vehicle’s future Your vehicle is designed to operate may adversely affect performance, reliability and performance by paying and cause the Malfunction Indicator on unleaded gasoline with a pump extra attention to how you drive octane number of 86 or higher.
Page 149 Main Menu Table of Contents Service Station Procedures Refueling SLIT Gasoline is highly flammable and explosive. You can be burned or seriously injured Pull when handling fuel. Stop the engine and keep heat, sparks, and flame away. Handle fuel only outdoors. Wipe up spills immediately.
Page 150: Handle P
Main Menu Table of Contents Service Station Procedures Opening the Hood To Close the Hood HOOD RELEASE HANDLE CLIP SUPPORT ROD LATCH Park the vehicle, and set the If the hood latch handle moves To close the hood, lift it up slightly to parking brake.
Page 151 Main Menu Table of Contents Service Station Procedures Oil Check Engine Coolant Check RESERVE TANK UPPER MARK LOWER MARK DIPSTICK Wait a few minutes after turning the Remove the dipstick again, and Look at the coolant level in the engine off before you check the oil. check the level.
Page 152: Fuel Economy
Main Menu Table of Contents Fuel Economy Improving Fuel Economy Try to maintain a constant speed. Always maintain your vehicle Every time you slow down and according to the maintenance speed up, your vehicle uses extra schedule. See Owner’s fuel. Use the cruise control when (see page appropriate.
Page 153: Accessories And Modifications
Be sure electronic accessories do crash in which you can be hurt not overload electrical circuits Accessories or killed. Your dealer has Honda accessories (see page ) or interfere with that allow you to personalize your Follow all instructions in this proper operation.
Page 154 Or, Lowering the vehicle with a non- if the airbags inflate, the objects Honda suspension kit that If you plan to modify your vehicle, could be propelled inside the vehicle and hurt someone.
Page 155: Carrying Cargo
Main Menu Table of Contents Carrying Cargo Your vehicle has several convenient storage areas: GLOVE BOX Glove box DOOR POCKETS REAR COMPARTMENT Front door and seat-back pockets Rear cargo area, including the second and third row seats when folded flat Console compartment Rear compartment Roof-rack (if installed)
Page 156 Main Menu Table of Contents Carrying Cargo Steps for determining correct load (1,158 750 (5 150) = 408 lbs.) Load Limits The maximum load for your vehicle limit: is 1,158 lbs (525 kg). This figure Determine the combined weight includes the total weight of all Locate the statement, ‘‘the of luggage and cargo being loaded combined weight of occupants and...
Page 157 Main Menu Table of Contents Carrying Cargo Carrying Items in the Passenger Carrying Cargo in the Cargo Area If you use an accessory roof rack, Compartment or on a Roof Rack the roof rack weight limit may be Store or secure all items that could Distribute cargo evenly on the lower.
Page 158 Main Menu Table of Contents Carrying Cargo bags. The hooks on each side of the tailgate and on the underside of the cargo area storage compartment lid are for plastic grocery bags. To use the hook on the storage compartment lid, open the lid, and attach the cord to one of the shafts of the third seat center head restraint.
Page 159: Driving
Main Menu Driving This section gives you tips on Driving Guidelines ......starting the engine under various Starting the Engine ....... conditions, and how to operate the Automatic Transmission ....automatic transmission. It also VTM-4 System ......includes important information on Tire Pressure Monitoring parking your vehicle, the braking System (TPMS)
Page 160: Driving Guidelines
Main Menu Table of Contents Driving Guidelines Your vehicle has a higher ground Do not modify your vehicle in any Check that any items you may be clearance that allows you to travel way that would raise the center of carrying are stored properly or over bumps, obstacles, and rough fastened down securely.
Page 161: Starting The Engine
Main Menu Table of Contents Starting the Engine Apply the parking brake. If the engine does not start within 15 seconds, or starts but stalls In cold weather, turn off all right away, repeat step 4 with the electrical accessories to reduce accelerator pedal pressed halfway the drain on the battery.
Page 162: Automatic Transmission
Main Menu Table of Contents Automatic Transmission Shift Lever Position Indicators If the malfunction indicator lamp Shifting comes on along with the ‘‘D’’ indicator, there is a problem in the automatic transmission control system. Avoid rapid acceleration, and have the transmission checked by your dealer as soon as possible.
Page 163 Main Menu Table of Contents Automatic Transmission Do this: Park (P) This position mechani- Neutral (N) Use Neutral if you To shift from: cally locks the transmission. Use need to restart a stalled engine, or if Press the brake pedal and Park whenever you are turning off or it is necessary to stop briefly with P to R...
Page 164 Main Menu Table of Contents Automatic Transmission Drive (D ) This position is When driving downhill with a Engine Speed Limiter similar to D, except only the first trailer. If you exceed the maximum speed three gears are selected. Use D for the gear you are in, the engine when towing a trailer in hilly terrain, First (1)
Page 165 Main Menu Table of Contents Automatic Transmission Shift Lock Release Put a cloth on the edge of the Shift Push down on the key while you Do this if pushing on the brake pedal Lock Release slot cover next to pull the shift lever towards you and pulling the shift lever does not the shift lever.
Page 166 Main Menu Table of Contents VTM-4 System The variable torque management To Engage the VTM-4 Lock To Disengage the VTM-4 lock, 4WD (VTM-4) system automatically The vehicle must be stopped with one of the following: transfers varying amounts of engine the engine running.
Page 167 Main Menu Table of Contents Tire Pressure Monitoring System (TPMS) Your vehicle is equipped with a tire Low Tire Pressure Each tire, including the spare, should pressure monitoring system (TPMS) Indicator be checked monthly when cold and that turns on every time you start the When the tire pressure monitoring set to the recommended inflation engine and monitors the pressure in...
Page 168 Main Menu Table of Contents Tire Pressure Monitoring System (TPMS) Tire Pressure Monitor Tire Pressure Monitoring Each wheel is equipped with a tire System (TPMS) Indicator pressure sensor mounted inside the The appropriate tire indicator and The indicator comes on and stays on tire behind the valve stem.
Page 169: Parking Tips
Main Menu Table of Contents Parking Tips Always use the parking brake when Parking Tips Make sure the parking brake is you park your vehicle. Make sure Make sure the windows are closed. fully released before driving away. the parking brake is set firmly or Driving with the parking brake your vehicle may roll if it is on an Turn off the lights.
Page 170: Braking System
Main Menu Table of Contents Braking System Your vehicle is equipped with disc Check the brakes after driving Braking System Design brakes at all four wheels. A power through deep water. Apply the The hydraulic system that operates assist helps reduce the effort needed brakes moderately to see if they feel the brakes has two separate circuits.
Page 171 Main Menu Table of Contents Braking System, Anti-lock Brakes (ABS) Brake Wear Indicators Anti-lock Brakes (ABS) Activating the Anti-lock Brakes If the brake pads need replacing, you The anti-lock brake system (ABS) ABS INDICATOR will hear a distinctive, metallic helps prevent the brakes from screeching sound when you apply locking up, and helps you retain the brake pedal.
Page 172: Anti-Lock Brakes (Abs)
Main Menu Table of Contents Anti-lock Brakes (ABS) ABS Indicator A vehicle with ABS may require a Important Safety Reminders If the ABS indicator comes on, the ABS does not reduce the time or longer distance to stop on loose or anti-lock function of the braking distance it takes to stop the uneven surfaces, such as gravel or...
Page 173: Vehicle Stability Assist (Vsa) System
Main Menu Table of Contents Vehicle Stability Assist (VSA) System The vehicle stability assist (VSA) VSA Activation Indicator VSA System Indicator system helps to stabilize the vehicle during cornering if the vehicle turns When VSA activates, you will see the If the VSA system indicator comes more or less than desired.
Page 174 Main Menu Table of Contents Vehicle Stability Assist (VSA) System If the indicator does not come on VSA is turned on every time you VSA Off Switch when the ignition switch is turned to start the engine, even if you turned it ON (II), there may be a problem off the last time you drove the with the VSA system.
Page 175: Towing A Trailer
Main Menu Table of Contents Towing a Trailer Your vehicle has been designed to Load Limits tow a trailer, as well as for carrying passengers and their cargo. To safely tow a trailer, you should observe the load limits, use the proper equipment, and follow the guidelines in this section.
Page 176 Main Menu Table of Contents Towing a Trailer Connect the fully loaded trailer to Gross Vehicle Weight Rating Estimating Loads (GVWR) The maximum The best way to confirm that all the hitch. allowable weight of the vehicle, all loads are within limits is to check occupants, all cargo and the tongue them at a public scale.
Page 177 Main Menu Table of Contents Towing a Trailer Total Trailer Weight and Tongue Load Limits: BOAT TRAILERS Equipped with transmission cooler and power steering fluid cooler. Number of Occupants Max. Trailer Weight Max. Tongue Load 4,500 lbs (2,045 kg) 450 lbs (205 kg) 4,500 lbs (2,045 kg) 450 lbs (205 kg) 4,500 lbs (2,045 kg)
Page 178 Main Menu Table of Contents Towing a Trailer Checking Loads To accurately check your loads at the public scale, the vehicle and trailer should be fully loded, and all occupants should stay in the vehicle while the attendent watches the scale.
Page 179 Towing Equipment and Hitch Accessories We strongly recommend that you Towing generally requires a variety have your dealer install a Honda of supplemental equipment. To hitch and use the required fluid ensure the best quality, we coolers. Using non-Honda equipment...
Page 180 Towing a Trailer Trailer Brakes Safety Chains Spare Tires Honda requires that any trailer with Always use safety chains when you When towing a trailer, we a total trailer weight of 1,000 lbs (455 tow a trailer. Make sure the chains recommend that you carry a full-size kg) or more has its own brakes.
Page 181 Main Menu Table of Contents Towing a Trailer We recommend that you have your Trailer Lights dealer install a Honda wiring harness GROUND LEFT TURN SIGNAL and converter. This harness has (BLACK) (GREEN/WHITE) been designed for your vehicle. BACK-UP LIGHT...
Page 182 Main Menu Table of Contents Trailer Driving Tips When preparing to tow, and before Your vehicle tires and spare are in For your safety and the safety of driving away, be sure to check the good condition and properly others, take time to practice driving inflated.
Page 183 Main Menu Table of Contents Trailer Driving Tips If you must stop when facing uphill, Making Turns and Braking Backing Up Make turns more slowly and wider use the foot brake or parking brake. Always drive slowly and have than normal. The trailer tracks a Do not try to hold the vehicle in someone guide you when backing up.
Page 184 Main Menu Table of Contents Towing Your Vehicle Behind a Motorhome Your vehicle can be towed behind a Press on the brake pedal. Move Extended Towing motorhome at legal highway speeds the shift lever through all its If you tow more than 8 hours in one up to 65 mph (100 km/h).
Page 185 Main Menu Table of Contents Off-Highway Driving Guidelines Your vehicle has been designed Important Safety Precautions primarily for use on pavement. But To avoid loss of control or rollover, its higher ground clearance and four- be sure to follow all precautions and Improperly operating this wheel drive VTM-4 system allow you recommendations.
Page 186 Main Menu Table of Contents Off-Highway Driving Guidelines Check Out Your Vehicle Accelerating and Braking Avoiding Obstacles Before you leave the pavement, be For better traction on all surfaces, Debris in the road can damage your sure to do all scheduled maintenance accelerate slowly and gradually build suspension or other components.
Page 187 Main Menu Table of Contents Off-Highway Driving Guidelines Crossing a Stream If you decide it is safe to drive If You Get Stuck Before driving through water, stop through water, choose a suitable If you get stuck, engage the VTM-4 and make sure that: speed and engage the VTM-4 Lock.
Page 188 Main Menu Table of Contents Off-Highway Driving Guidelines You should never use a jack to try to Towing a Trailer Off-Road get unstuck. Your vehicle could You may be able to safely tow a easily slip off the jack and hurt you lightweight trailer (such as a or someone else.
Page 189: Maintenance
Main Menu Maintenance This section explains why it is Maintenance Safety ...... important to keep your vehicle well Maintenance Schedule ....maintained and how to follow basic Maintenance Record ....maintenance safety precautions. Fluid Locations ......Adding Engine Oil ......This section also includes Changing the Oil and Filter ..
Page 190: Maintenance Safety
Main Menu Table of Contents Maintenance Safety All service items not detailed in this with the battery or compressed air. Injury from moving parts. section should be performed by a not run the engine unless certified technician or other qualified instructed to do so.
Page 191: Maintenance Schedule
Main Menu Table of Contents Maintenance Schedule Maintenance Schedule Which Schedule to Follow Trailer towing, driving with a roof The maintenance schedule assumes Service your vehicle according to the top carrier, or driving in you will use your vehicle as normal time and mileage periods on one of mountainous conditions.
Page 192 Main Menu Table of Contents Maintenance Schedule Servicing Your Vehicle We recommend the use of Honda According to state and federal Your authorized dealer knows your parts and fluids whenever you have regulations, failure to perform vehicle best and can provide maintenance done.
Page 193 Main Menu Table of Contents Maintenance Schedule Owner’s Maintenance Checks Brakes Check the fluid level You should check the following monthly. See page items at the specified intervals. If you are unsure of how to perform Tires Check the tire pressure any check, turn to the appropriate monthly.
Page 194 Main Menu Table of Contents Service the items listed at the indicated distance (or time, if given). Follow the Normal Maintenance miles x 1,000 Schedule if the severe driving km x 1,000 conditions specified in the Severe Check engine oil and coolant Check oil and coolant at each fuel stop Conditions Maintenance Schedule on Check tires...
Page 195 Main Menu Table of Contents Service the items listed at the indicated distance (or time, if given). Follow the Severe Maintenance miles x 1,000 Schedule if you drive your vehicle km x 1,000 MAINLY under one or more of the Check engine oil and coolant Check oil and coolant at each fuel stop following conditions:...
Page 196 Main Menu Table of Contents At every 7,500 miles (12,000 km) up to 15,000 miles (24,000 km) or every 6 months, then every 15,000 miles (24,000 km) or 1 year. Follow this schedule for rear differential fluid replacement if you use your vehicle for off-highway driving, trailer towing, mainly in stop-and-go driving.
Page 197 Main Menu Table of Contents Maintenance Record (for Normal and Severe Schedules) You or the servicing dealer can record all completed maintenance here, whether you follow the schedule for normal conditions (page ) or severe conditions (page ). Keep the receipts for all work done on your vehicle. 3,750 mi Signature or dealer stamp mi/km...
Page 198 Main Menu Table of Contents Maintenance Record (for Normal and Severe Schedules) 63,750 mi Signature or dealer stamp mi/km 93,750 mi Signature or dealer stamp mi/km 102,000 km 150,000 km Date Date 67,500 mi mi/km 97,500 mi mi/km 108,000 km 156,000 km Date Date...
Page 199 Main Menu Table of Contents Maintenance Record (for Normal and Severe Schedules) 123,750 mi Signature or dealer stamp mi/km 198,000 km Date 127,500 mi mi/km 204,000 km Date 131,250 mi mi/km 210,000 km Date 135,000 mi mi/km 216,000 km Date 138,750 mi mi/km 222,000 km...
Page 200: Fluid Locations
Main Menu Table of Contents Fluid Locations BRAKE FLUID ENGINE OIL DIPSTICK (Gray cap) (Orange loop) WASHER FLUID (Blue cap) COOLANT RESERVOIR AUTOMATIC TRANSMISSION FLUID DIPSTICK POWER STEERING (Yellow loop) FLUID (Red cap) ENGINE OIL FILL CAP RADIATOR CAP...
Page 201: Adding Engine Oil
5W-20 lubricant for your vehicle. It is engine’s performance and longevity. highly recommended that you use Always use a premium-grade 5W-20 Honda Motor Oil in your vehicle for detergent oil displaying the API optimum engine protection. Make Certification Seal. This seal indicates...
Page 202 Main Menu Table of Contents Adding Engine Oil, Changing the Oil and Filter Synthetic Oil Changing the Oil and Filter You may use a synthetic motor oil if Always change the oil and filter it meets the same requirements according to the recommendations in given for a conventional motor oil: it the maintenance schedule.
Page 203: Changing The Oil And Filter
Main Menu Table of Contents Changing the Oil and Filter Put a new washer on the drain bolt, Turn off the engine, let it sit for OIL FILTER then reinstall the drain bolt. several minutes, then check the oil Tighten it to: level on the dipstick.
Page 204: Engine Coolant
Main Menu Table of Contents Engine Coolant Always use Honda All Season If the reserve tank is completely Adding Engine Coolant Antifreeze/Coolant Type 2. This empty, you should also check the coolant is pre-mixed with 50 percent coolant level in the radiator.
Page 205 Main Menu Table of Contents Engine Coolant, Windshield Washers The coolant level should be up to Windshield Washers the base of the filler neck. Add Check the fluid level in the coolant if it is low. windshield washer reservoir at least monthly during normal use.
Page 206: Automatic Transmission Fluid
Shut off the engine. the fluid level. It should be Have the transmission flushed and between the upper and lower refilled with Honda ATF-Z1 as Remove the dipstick (yellow loop) marks. soon as it is convenient. from the transmission, and wipe it...
Page 207 FILLER BOLT should drain and refill it with tighten it securely. Tightening Honda ATF-Z1 (Automatic torque: Transmission Fluid), then drive 33 lbf·ft (45 N·m , 4.6 kgf·m) the vehicle for a short distance.
Page 208: Brake Fluid
DOT 4 fluid, from a sealed container, as a temporary schedule. replacement. Using any non-Honda brake fluid can cause corrosion and decrease the life of the system. Have the brake system flushed and refilled with Honda Heavy Duty Brake Fluid DOT 3 as soon as possible.
Page 209: Power Steering Fluid
Honda PSF as soon as possible. LOWER LEVEL Check the level on the side of the reservoir when the engine is cold.
Page 210 Main Menu Table of Contents Lights Unclip the end of the hold-down Headlight Aiming CONNECTOR The headlights were properly aimed wire from its slot. Pivot it out of when your vehicle was new. If you the way, and remove the bulb. regularly carry heavy items in the trunk, readjustment may be required.
Page 211 Main Menu Table of Contents Lights Replacing a Front Turn Signal/ Insert the socket back into the Parking Light Bulb headlight assembly. Turn it clockwise to lock it in place. Turn on the lights to make sure the new bulb is working. Remove the socket from the headlight assembly by turning it one-quarter turn counterclockwise.
Page 212 Main Menu Table of Contents Lights Replacing Rear Bulbs Install a new bulb into the socket, Replacing a Back-up Light Bulb and reinstall the socket into the light assembly. Open the tailgate. Open the tailgate. Place a cloth on the edge of the cover. Remove the Remove the two screws, then pull covers by carefully prying on the the rear light assembly straight...
Page 213 Main Menu Table of Contents Lights Pull the burned out bulb straight Replacing the High-mount Brake Pull the light assembly out of the out of its socket. Light tailgate. Push the new bulb straight into the socket until it bottoms. Remove the socket from the light assembly by turning it one-quarter Insert the socket back into the...
Page 214 Main Menu Table of Contents Lights Replacing a Front Side Marker Pull the burned out bulb straight Light Bulb out of its socket. Push the new bulb straight into HOLDING CLIP the socket until it bottoms. Insert the socket back into the headlight assembly.
Page 215 Main Menu Table of Contents Floor Mats, Cleaning Seat Belts Floor Mats If you use aftermarket floor mats Cleaning Seat Belts make sure they fit properly and that they can be used with the floor mat LOOP anchors. Do not put additional floor mats on top of the anchored mats.
Page 216: Wiper Blades
Main Menu Table of Contents Wiper Blades Check the condition of the wiper WIPER ARMS blades at least every six months. Replace them if you find signs of cracking in the rubber, areas that are getting hard, or if they leave streaks and unwiped areas when used.
Page 217 Main Menu Table of Contents Wiper Blades Slide the new wiper blade into the BLADE BLADE holder until the tabs lock. Front only: Slide the wiper blade assembly onto the wiper arm. Make sure it locks in place. Lower the wiper arm down against the windshield.
Page 218 Main Menu Table of Contents Tires To safely operate your vehicle, your Inflation Guidelines We recommend that you visually tires must be the proper type and Keeping the tires properly inflated check your tires every day. If you size, in good condition with adequate provides the best combination of think a tire might be low, check it tread, and correctly inflated.
Page 219 Main Menu Table of Contents Tires If you check air pressures when the Recommended Tire Pressures Tire Inspection tires are hot (driven for several The following chart shows the Every time you check inflation, you miles), you will see readings 4 to 6 recommended cold tire pressures for should also examine the tires for psi (30 to 40 kPa, 0.3 to 0.4 kgf/cm )
Page 220 A tire this worn gives very little directional tires, rotate only front-to- your vehicle’s aluminum wheels. Use traction on wet roads. You should back. only genuine Honda wheels weights f or replace the tire if you can see three balancing. or more tread wear indicators.
Page 221 Main Menu Table of Contents Tires Replacing Tires and Wheels Winter Driving Replace your tires with radial tires of Tires marked ‘‘M S’’ or ‘‘All the same size, load range, speed Season’’ on the sidewall have an all- Installing improper tires on your rating, and maximum cold tire weather tread design suitable for vehicle can affect handling and...
Page 222 Main Menu Table of Contents Tires Tire Chains When installing cables, follow the Because your vehicle has limited tire manufacturer’s instructions, and clearance, mount only SAE Class ‘‘S’’ mount them as tight as you can. Traction devices that are the wrong cable-type traction devices, with Make sure they are not contacting size or improperly installed can...
Page 223: Checking The Battery
Main Menu Table of Contents Checking the Battery Check the terminals for corrosion (a If you need to connect the battery to TEST INDICATOR WINDOW white or yellowish powder). To a charger, disconnect both cables to remove it, cover the terminals with a prevent damaging your vehicle’s solution of baking soda and water.
Page 224: Vehicle Storage
Main Menu Table of Contents Vehicle Storage If you need to park your vehicle for Block the rear wheels. Cover the vehicle with a an extended period (more than one ‘‘breathable’’ cover, one made month), there are several things you If the vehicle is to be stored for a from a porous material such as should do to prepare it for storage.
Page 225: Taking Care Of The Unexpected
Main Menu Taking Care of the Unexpected Compact Spare Tire ...... Changing a Flat Tire ....If the Engine Won’t Start ..... Jump Starting ........ If the Engine Overheats ....Low Oil Pressure Indicator ..Charging System Indicator ..Malfunction Indicator ....
Page 226: Compact Spare Tire
Main Menu Table of Contents Compact Spare Tire Use the compact spare tire as a Follow these precautions: INDICATOR LOCATION MARK temporary replacement only. Get your regular tire repaired or replaced, Never exceed km/h). and put it back on your vehicle as soon as you can.
Page 227: Changing A Flat Tire
Main Menu Table of Contents Changing a Flat Tire If you have a flat tire while driving, JACK stop in a safe place to change it. Drive slowly along the shoulder until you get to an exit or an area that is far away from the traffic lanes.
Page 228 Main Menu Table of Contents Changing a Flat Tire BRACKET WHEEL NUT WRENCH JACKING POINT The spare tire is stored Put the wheel nut wrench on the Place the jack under the jacking underneath the rear cargo area. hoist shaft. Turn the wrench point nearest the tire you need to Remove the plastic cover on the counterclockwise to lower the...
Page 229 Main Menu Table of Contents Changing a Flat Tire EXTENSION WHEEL NUT WRENCH BRAKE HUB Use the extension and the wheel Before mounting the spare tire, Lower the vehicle to the ground nut wrench as shown to raise the wipe any dirt off the mounting and remove the jack.
Page 230 Main Menu Table of Contents Changing a Flat Tire Turn the wheel nut wrench clockwise until the flat tire rests against the underbody of the Loose items can fly around the vehicle and you hear the hoist interior in a crash and could click.
Page 231: If The Engine Won't Start
Main Menu Table of Contents If the Engine Won’t Start Diagnosing why the engine won’t Check the transmission interlock. If the headlights dim noticeably or start falls into two areas, depending The transmission must be in Park go out when you try to start the on what you hear when you turn the or Neutral or the starter will not engine, either the battery is dis-...
Page 232: If The Engine Won't Start, Jump Starting
Main Menu Table of Contents If the Engine Won’t Start, Jump Starting Are you using a properly coded Jump Starting To Jump Start Your Vehicle: key? An improperly coded key will Although this seems like a simple Open the hood, and check the cause the immobilizer system procedure, you should take several physical condition of the battery.
Page 233: Jump Starting
Main Menu Table of Contents Jump Starting Start the vehicle. If the starter motor still operates slowly, check that the jumper cables have good metal-to-metal contact. Once the vehicle is running, disconnect the negative cable from your vehicle, then from the booster battery.
Page 234: If The Engine Overheats
Main Menu Table of Contents If the Engine Overheats The pointer of the vehicle’s If you do not see steam or spray, temperature gauge should stay in leave the engine running, and the midrange. If it climbs to the red watch the temperature gauge.
Page 235 Main Menu Table of Contents If the Engine Overheats If there was no coolant in the Start the engine and set the reserve tank, you may need to add temperature control dial to coolant to the radiator. Let the maximum (climate control to engine cool down until the pointer FULL AUTO at 90°F/32°C).
Page 236 Main Menu Table of Contents Low Oil Pressure Indicator, Charging System Indicator Safely pull off the road, and shut Low Oil Pressure Indicator Charging System Indicator off the engine. Turn on the hazard This indicator should never warning lights. If the charging system come on when the engine is indicator comes on brightly Let the vehicle sit for a minute.
Page 237: Malfunction Indicator
Main Menu Table of Contents Malfunction Indicator Malfunction Indicator Lamp If your vehicle battery has been disconnected or gone dead, these If this indicator comes on codes are erased. It takes at least If you keep driving with the three days of driving under various while driving, it means one malf unction indicator lamp on, you can of the engine’s emission control...
Page 238: Brake System Indicator
Main Menu Table of Contents Brake System Indicator Slow down by shifting to a lower Brake System Indicator If this indicator comes on gear, and pull to the side of the road while driving, the brake when it is safe. Because of the long fluid level is probably low in the distance needed to stop, it is reservoir.
Page 239: Emergency Towing
Main Menu Table of Contents Emergency Towing Emergency Towing If your vehicle needs to be towed, call a professional towing service or Towing with only two tires on the organization. Never tow your vehicle ground will damage parts of the 4WD with just a rope or chain.
Page 240 Main Menu Table of Contents Fuses DRIVER’ S SIDE INTERIOR PASSENGER’ S SIDE INTERIOR UNDER- HOOD FUSE BOXES The vehicle’s fuses are located in To open the passenger’s side, pull four fuse boxes. The interior fuse the right edge of the cover. boxes are located under the dashboard on the driver’s and The primary under-hood fuse box is...
Page 241 Main Menu Table of Contents Fuses Checking and Replacing Fuses If something electrical in your BLOWN vehicle stops working, the first thing you should check for is a blown fuse. Determine from the chart on pages , or the diagram on the fuse box lid, which fuse or fuses control that device.
Page 242 Main Menu Table of Contents Fuses If you cannot drive the vehicle If the replacement fuse of the Trailer Fuses without fixing the problem, and you same rating blows in a short time, If a trailer light is burned out, check do not have a spare fuse, take a fuse there is probably a serious if these fuses are blown when you...
Page 243: Fuse Locations
Main Menu Table of Contents Fuse Locations PRIMARY UNDER-HOOD FUSE BOX No. Amps. Circuits Protected Amps. Circuits Protected 20 A Spare Fuse 30 A Rear A/C 30 A Spare Fuse 40 A Heater Motor 20 A Right Headlight 30 A Cooling Fan 7.5 A 15 A...
Page 244 Main Menu Table of Contents Fuse Locations INTERIOR FUSE BOX Driver’s Side Passenger’s Side Amps. Circuits Protected Amps. Circuits Protected Front Front Driver’s Power Window 15 A Fuel Pump 20 A 10 A 20 A Driver’s Power Seat Reclining 7.5 A Heater Control, A/C Clutch 20 A Heated Seat...
Page 245: Technical Information
Main Menu Technical Information The diagrams in this section give Identification Numbers ....Emissions Controls ....... you the dimensions and capacities of Specifications ........ The Clean Air Act ..... your vehicle, and the locations of the DOT Tire Quality Grading ..
Page 246: Identification Numbers
Main Menu Table of Contents Identification Numbers Your vehicle has several identifying numbers in various places. VEHICLE IDENTIFICATION NUMBER The vehicle identification number (VIN) is the 17-digit number your dealer uses to register your vehicle for warranty purposes. It is also necessary for licensing and insuring your vehicle.
Page 247 Main Menu Table of Contents Identification Numbers The engine number is stamped into the engine block. It is on the front. ENGINE NUMBER The transmission number is on a label on top of the transmission. AUTOMATIC TRANSMISSION NUMBER...
Page 248: Specifications
Main Menu Table of Contents Specifications Dimensions Capacities Length 188.0 in (4,775 mm) Fuel tank Approx. Width 76.3 in (1,938 mm) 20.34 US gal (77.0 ) Height 70.6 in (1,793 mm) Engine Change 1.90 US gal (7.2 ) Wheelbase 106.3 in (2,700 mm) coolant Total 2.40 US gal (9.1 )
Page 249 Main Menu Table of Contents Specifications Lights Fuses Headlights 12 V 60 W/55 W (HB2) Interior Driver’s side See page or the fuse label Front side marker lights 12 V (168) attached to the dashboard. Front turn signal lights/ 12 V 27 W/8 W (1157 NA) Passenger’s side...
Page 250 Main Menu Table of Contents DOT Tire Quality Grading (U.S. Vehicles) The tires on your vehicle meet all Treadwear Traction AA, A, B, C U.S. Federal Safety Requirements. The treadwear grade is a compara- The traction grades, from highest to tive rating based on the wear rate of lowest, are AA, A, B, and C.
Page 251 Main Menu Table of Contents DOT Tire Quality Grading (U.S. Vehicles), Tire Labeling Temperature A, B, C Warning: The temperature grade for Vehicle type (P indicates The temperature grades are A (the this tire is established for a tire that passenger vehicle).
Page 252: Tire Labeling
Main Menu Table of Contents Tire Labeling Tire Identification Number Maximum Tire Pressure The tire identification number (TIN) Max Press The maximum air is a group of numbers and letters pressure the tire can that look like the following example hold.
Page 253: Emissions Controls
It is stored in this react to form photochemical ‘‘smog.’’ canister while the engine is off. After In Canada, Honda vehicles comply the engine is started and warmed up, Carbon monoxide does not contri- with the Canadian emission...
Page 254 System remain low, you should use only new combustion and minimize the The exhaust gas recirculation (EGR) Honda replacement parts or their amount of HC, CO, and NOx that system takes some of the exhaust equivalent for repairs. Using lower comes out the tailpipe.
Page 255: Three Way Catalytic Converter
The catalytic converter is referred to as a three-way catalyst, since it acts on HC, CO, and NOx. A replacement unit must be an original Honda part or its equivalent. THREE WAY CATALYTIC The three way catalytic converter...
Page 256: State Emissions Testing
Main Menu Table of Contents State Emissions Testing Make sure the gas tank is nearly, Keep the vehicle in Park. Increase Testing of Readiness Codes If you take your vehicle for a state but not completely full (around the engine speed to 2,000 rpm, and emissions test shortly after the 3/4).
Page 257 Main Menu Table of Contents State Emissions Testing Then drive in city/suburban traffic for at least 10 minutes. When traffic conditions allow, let the vehicle coast for several seconds without using the accelerator pedal or the brake pedal. If the testing facility determines the readiness codes are still not set, see your dealer.
Page 258 Main Menu...
Page 259: Warranty And Customer Relations (U.s. And Canada)
Main Menu Warranty and Customer Relations Customer Service Information ........ Warranty Coverages ....Reporting Safety Defects (U.S. Vehicles) ......Authorized Manuals .....
Page 260: Customer Service Information
Main Menu Table of Contents Customer Service Information Honda dealership personnel are U.S. Owners: In Puerto Rico and the U.S. Virgin trained professionals. They should Islands: American Honda Motor Co. be able to answer all your questions. Honda Customer Service...
Page 261: Warranty Coverages
Restrictions and exclusions apply to Emissions Control Systems Defects Accessory Limited Warranty Honda accessories are covered all these warranties. Please read the Warranty and Emissions these two Performance Warranty under this warranty. Time and 2005 Honda Warranty Information warranties cover your vehicle’s...
Page 262 NHTSA, U.S. Department of Administration (NHTSA) in addition However, NHTSA cannot become Transportation, Washington, to notifying American Honda Motor involved in individual problems D.C. 20590. You can also obtain Co., Inc. between you, your dealer, or other information about motor American Honda Motor Co., Inc.
Page 263: Authorized Manuals (U.s. Only)
Purchasing Factory Authorized Manuals Valid only for sales within the United States. Canadian (U.S.only) owners should contact their authorized Honda dealer. The publications shown below can be purchased from Helm ORDER TOLL FREE: 1-800-782-4356 Incorporated. You can order in any of three ways:...
Page 264: Authorized Manuals
Main Menu Table of Contents Authorized Manuals Service Manual: NOTE: Dealers and Companies please provide dealer or company name, and also the name of the person to whose attention the shipment should This manual covers maintenance and recommended be sent. For purchases outside U.S.A. please write to the address shown procedures for repair to engine and chassis components.
Page 265: Index
Main Menu Index Shift Lever Positions ....Brights, Headlights ......Shift Lock Release ....Bulb Replacement Accessories and Modifications . Brake Lights ..... . 210, ACCESSORY (Ignition Key Back-up Lights ......Position) ........Front Parking Lights ....Accessory Power Sockets ....
Page 266 Main Menu Index Change Oil Driving ........... Customer Service Information ..How to ........Economy ........When to ......192, DVD Player ........Charging System Indicator . 58, DVD Player Error Message ..Checklist, Before Driving .... DANGER, Explanation of ....
Page 267 Main Menu Index Oil Pressure Indicator ..58, Windshield Washers ....GCWR (Gross Combined Weight Oil, What Kind to Use ....Folding the Third Seat ....Rating) ........Four-way Flashers ......Overheating ....... Gearshift Lever Positions .... Specifications ......Fuel ..........
Page 268 Main Menu Index Heater, Seat ........Installing a Child Seat Parking ......... Heating and Cooling ..... LACH ........... Turn Signal ........High Altitude, Starting at ..... Tether Anchorage Points ..Load Limits ........High-Low Beam Switch ....Instrument Panel ......
Page 269 Main Menu Index Malfunction Indicator Lamp . 58, ON (Ignition Key Position) ... Protecting Adults and Teens ..Manual Seat Adjustments ....Onboard Refueling Vapor Additional Safety Precautions . Meters, Gauges ....... Advice for Pregnant Women ..Recovery ........ Modifications .........
Page 270 Main Menu Index Remote Control (RES) ....Safety Labels, Location of ..... Service Manual ......Remote Transmitter ....... Safety Messages ....... Service Station Procedures ..Replacement Information Seat Belts ......... Setting the Clock ......Engine Oil and Filter ....Additional Information ....
Page 271 Main Menu Index How Your Front Airbags Tires ..........Work ......... Air Pressure ......How Your Side Airbags Work . Taillights, Changing Bulbs in ..Checking Wear ......SRS Components ......Taking Care of the Unexpected . Compact Spare ......SRS Indicator ......
Page 272 Main Menu Index Transmission ..........Operation ........Checking Fluid Level ....Viscosity, Oil ........Rear Window Wiper and Fluid Selection ......VTM-4 Lock ........Washer ........Identification Number ....Worn Tires ........Shifting the Automatic ..... Wrecker, Emergency Towing ..Treadwear ........
Page 273: Service Information Summary
ATF (see page Recommended Engine Oil: Brake Fluid: API Premium grade 5W-20 Honda Heavy Duty Brake Fluid detergent oil (see page DOT 3 preferred, or a DOT 3 or DOT 4 brake fluid as a temporary Oil change capacity (including...

Honda 2005 Pilot Owner's Manual

Quick Links

Chapters

Related Manuals for Honda 2005 Pilot

Summary of Contents for Honda 2005 Pilot

Table of Contents
