SmartMow Series-1 User Manual

Robot mower
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SmartMow Series-1
©
The smarter way to mow your lawn!
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Series-1 and is the answer not in the manual?

Questions and answers

Summary of Contents for SmartMow Series-1

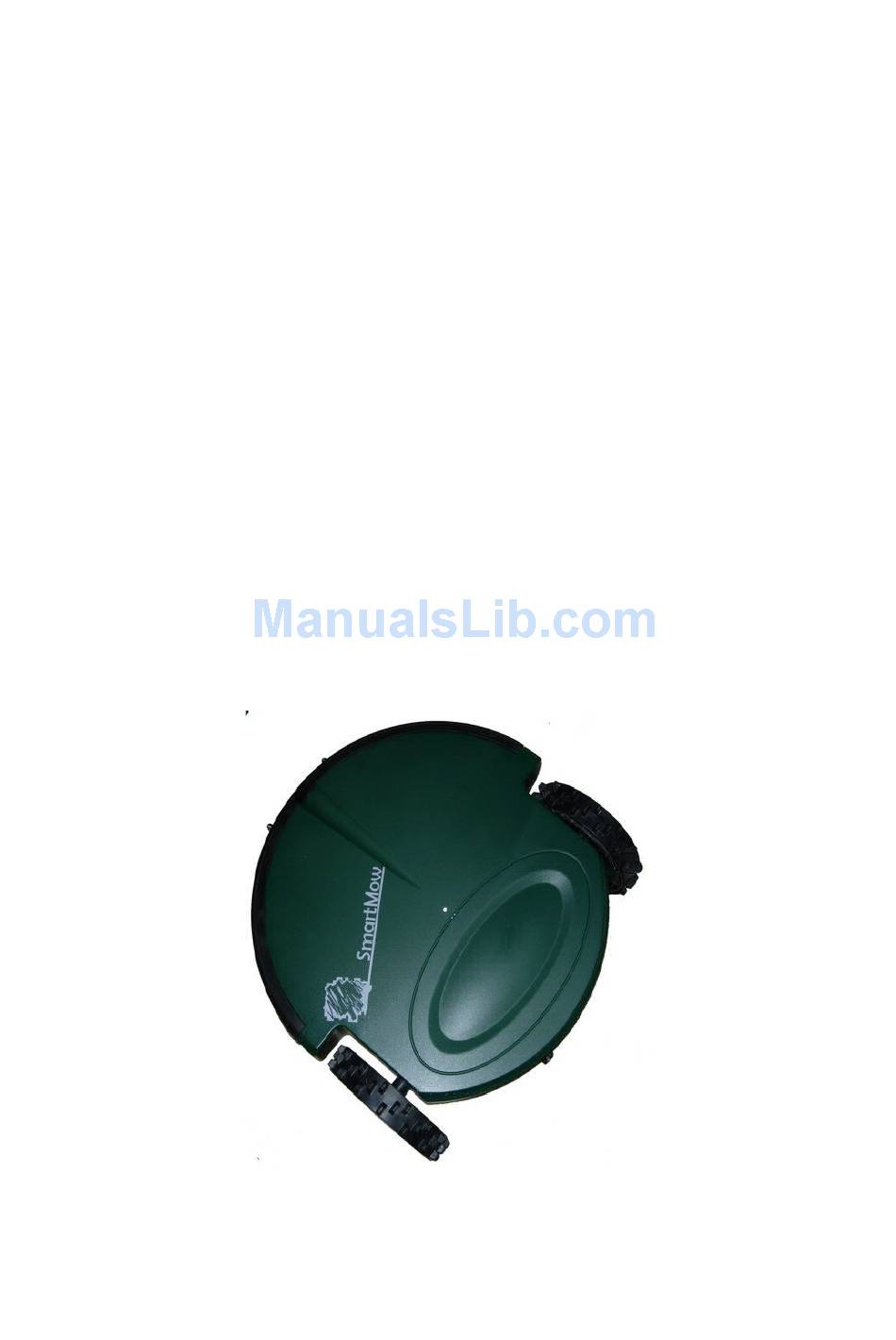

  • Page 1 SmartMow Series-1 © The smarter way to mow your lawn! User Manual...

  • Page 2: Safety Instructions

    2. Do not start your SmartMow on a wet lawn, as it may damage the lawn. 3. Keep SmartMow dry to reduce the risks of fire and electric shock.

  • Page 3: Battery Disposal

    15. Only use the SmartMow charger and base station. 16. The waste battery should be handled in a professional way. 17. Before using the SmartMow, pick up objects like branches, stones and equipment to avoid damages to the SmartMow and personal injury.

  • Page 4: Product Description

    Product Description 1. The robot mower( SmartMow Series-1 ) 2. IC card 3. Base station 4. Power supply 5. Base station stakes 6. Height adjuster 7. Perimeter wire 8. Pegs 9. Remote control 10. Batteries for remote control Optional accessories:...

  • Page 5: Technical Specifications

    Brief introduction of SmartMow Series-1 The SmartMow uses advanced environmental-friendly rechargeable Li- batteries. SmartMow mainly adapts to lawn care of family and public lawns. It moves automatically in circles and lines with high efficiency in a short time. The SmartMow adopts Magnetic Field Induction to make the realization of automatic navigation.
  • Page 6  Important Ensure the minimum distance: 30cm (from the perimeter wire to the  obstacles besides the lawn) Ensure the bending angle of the wire at least 100 degree  Pull the perimeter wire as straight as possible.  Do the following: Fasten and hold the perimeter wire to the ground, below the grass level (we recommend the pegs be used every 1 meter).

  • Page 7: The Base Station

    The base station Important Ensure that the base station is put at the open area where is also easy  to connect to the electricity outlets. Ensure that the base station is placed in clockwise direction along the  perimeter wire Connect the ends of the perimeter wire to holes of the base station.
  • Page 8 Put two pieces of height adjusters at the bottom of the base station. Connect the ends of the perimeter wire to holes of the base station.
  • Page 9 The perimeter wire goes along the wireways and through the center of the bottom. Fix the base station with the stakes.
  • Page 10 Charging of the SmartMow The SmartMow can be charged automatically and manually.  Automatic charging means that when the machine is in work, it self can ...
  • Page 11 Manual charging: Be sure that the power is off. After taking off the rubber- isolator, connect one side of the charger to mower, the other to the electricity outlets. When the charger is in motion, the led of the charger is red, and it turns to green when fully charged.
  • Page 12 Before cutting 1. Pick up debris (branches, stones) before you start to mow your lawn. 2. The robot mower works only in the scope of the area rounded by the perimeter wire. Ensure that you have buried the wire well. 3.
  • Page 13 Now the machine is in motion, use the IC card in the induction place and you will hear a sound and then the mower starts to work. Power off Press the ‘power off’ button to stop the machine. The functions of the remote control 1.
  • Page 14 ▲ Try not to use the remote control when the mower is moving on or near the perimeter wire. ▲ The battery type is 12V27A, and it is for the remote control use only. Adjusting of cutting height The mower has 3 blades working together. The blades are fixed on the adapter with flexible shims.
  • Page 15 The sequence of installation is: blades and adapter, shims, inner hex screws Please fix the screws tightly after adjusting. You can also take apart the outer big wheel to use the inner small ones to adjust the cutting height...
  • Page 16 Instructions for quick operation Prepare the area before cutting, according to the instructions for the perimeter wire and base station. The Perimeter Wire Bury the perimeter wire according to the shape of the lawn. If there are walls, fences or steps besides the lawn, then the minimum distance from the lawn to these obstacles is 30cm;...

  • Page 17: Description Of Operation

    The Base Station Place the base station in the open area where it is easy to connect to electricity outlets. Install the height adjuster first and then connect the two ends of the perimeter wire to the base station. Be sure that the wire goes through the right center of the station’s bottom.

  • Page 18: Troubleshooting

    Reference Information Troubleshooting Problems Possible reasons Solutions The mower moves out of The perimeter wire fails to Be sure the perimeter wire the area rounded by the send signals is connected to the base perimeter wire or moves in station that is in motion, circle searching for the and there is no loose place perimeter wire...
  • Page 19 The guarantee applies only when the SmartMow has been operated in accordance with the instructions and the electricity supply matching that is shown at the base of the appliance.
