Summary of Contents for Alliance Products DALPH1002

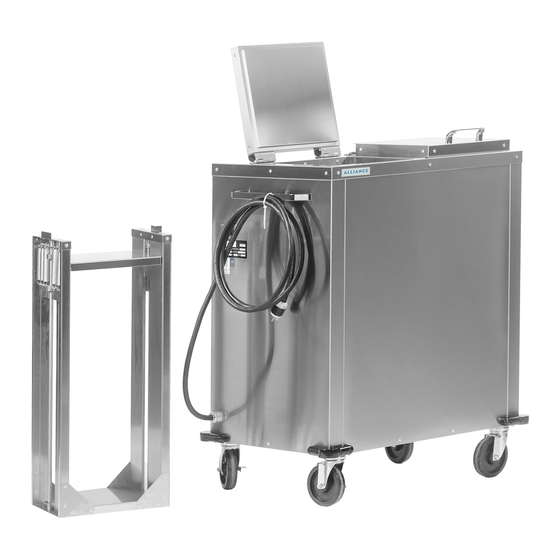

- Page 1 Alliance Products, LLC Murfreesboro, TN 37129 1-800-522-3973 OPERATIONS MANUAL DALPH1002, DALPH1503 PELLET HEATERS PALPH1002, PALPH1503 PLATE HEATERS Rev. 1-28...
-
Page 2: Table Of Contents
GENERAL INFORMATION ….………………………………… 3 RECEIVING INSPECTIONS ……………………………………. 3 INSTALLATION ………………………………………………….. 4 ELECTRICAL ………………………………………………….. START-UP ……...………………………………………………….. 6 CLEANING …….………………………………………………….. 7 TROUBLESHOOTING…………………………………………… 8 PARTS LIST / DIAGRAMS …………………………………….. 9 PREVENTIVE MAINTENANCE ..……………………………… 14 WARRANTY …..…………………………………………………... 15 SERVICE AND ASSISTANCE…...……………………………….. 15 RETURN POLICY …………………………………………………. 16... -
Page 3: General Information
The Alliance Pellet / Plate Heaters are available in two capacities. These units are designed specifically for use with a wide variety of 9” plastic and stainless steel pellets and plates. Alliance Pellet / Plate Heaters Unit No. DALPH1002 DALPH1503 No. of Stacks Capacity per Stack 43 - 50 43 - 50 Total Capacity 86 –... -
Page 4: Installation
Alliance Damaged Goods Policy There are two types of damaged merchandise: A. Visible Damage B. Concealed Damage A. Visible Damage – The product being received is visibly damaged. 1. The receiver should refuse the damaged merchandise. 2. The receiver should sign the packing slip “refused merchandise due to damage”... -
Page 5: Electrical
C. If a spring adjustment is required, proceed as follows. Lift elevating mechanism assembly up and out of the stainless steel cabinet. Set it on the floor. Disconnect but do not remove any unnecessary springs from the elevator carrier and replace mechanism back into the heater. D. -
Page 6: Start-Up
WARNING Unit must not be run continually and must be turned off between meals. Otherwise, unit may shut off automatically requiring service reset. Warranty may be voided if used improperly. START-UP A. Overview These units are designed to heat plastic or stainless steel pellets or plates. The fan motor, heating element, and power indicator light will come on once the unit is turned on. -
Page 7: Cleaning
CAUTION Operators should always wear gloves or use pellet / plate lifters when dispensing. After the unit is turned off, the pellets / plates remaining inside the unit will remain hot for some time. CLEANING CAUTION Make sure unit is unplugged and cool before attempting to clean. The following procedures should be followed during the regular cleaning routine on all of the pellet heaters. -
Page 8: Troubleshooting
TROUBLESHOOTING CAUTION Thermostat adjustment should only be made only by qualified personnel. Complaint Problem Solution A. Unit does not heat but 1. Open high limit thermostat. 1A. Push reset button. fan operates. 1B. Check for causes before restarting equipment. 1C. Replace hi-limit thermostat. 2. -
Page 9: Parts List / Diagrams
On / Off Switch 030P00109 Motor - 208 / 230V, 60hz 1ph. 3200 rpm 012P00101 For DALPH1002 and DALPH1503 Models: Thermostat – Adj. - 250 deg. – 290 deg F 032P00305 For PALPH1002 and PALPH1503 Models: Thermostat – Adj. - 135 deg. – 170 deg F 032P00307 Thermostat –... - Page 10 DALPH1002 / PALPH1002 Exploded View Drawing...
- Page 11 DALPH1503 / PALPH1503 Exploded View Drawing...
- Page 12 Dispenser Assembly Exploded View Drawing...
- Page 13 Wiring Diagram...
-
Page 14: Preventive Maintenance
PREVENTIVE MAINTENANCE Casters 1. Check casters for freedom of movement and proper brake operation. 2. Maintain casters free of debris. (mop strings, paper, plastic, hair nets, etc…) 3. Clean or replace as required. Cord and Plug 1. Inspect plug blades for distortion and replace if any blades are missing, bent or broken. -
Page 15: Warranty
WARRANTY One year on parts – 90 days on labor. Alliance provides to the original purchaser, only, a warranty for the DALPH1002, DALPH1503, PALPH1002, AND PALPH1503. This warranty covers products and parts which prove to be defective in materials or workmanship within one (1) year of the date of shipment from the ALLIANCE factory. -
Page 16: Return Policy
Return Policy No product may be returned to Alliance without Alliance’s prior written approval. Transportation charges are to be prepaid by the Buyer. Returned goods are subject to Alliance’s inspection and acceptance. Alliance may, at its discretion, replace any or all returned items within a reasonable time after Alliance determines that the returned goods are not in accordance herewith: and in such event Alliance shall not be liable for any damage arising from the defective delivery or delay caused thereby.
Need help?
Do you have a question about the DALPH1002 and is the answer not in the manual?
Questions and answers
looking for the replacement wire that goes to the limit and thermostat and also heating coil
The replacement parts for the Alliance Products DALPH1002 are:
- Limit and Thermostat:
- Limit Thermostat: Part No. 032P00307
- Hi-limit Thermostat: Part No. 032P00306
- Heating Coil:
- Heating Element (208V): Part No. 015P00104
This answer is automatically generated
