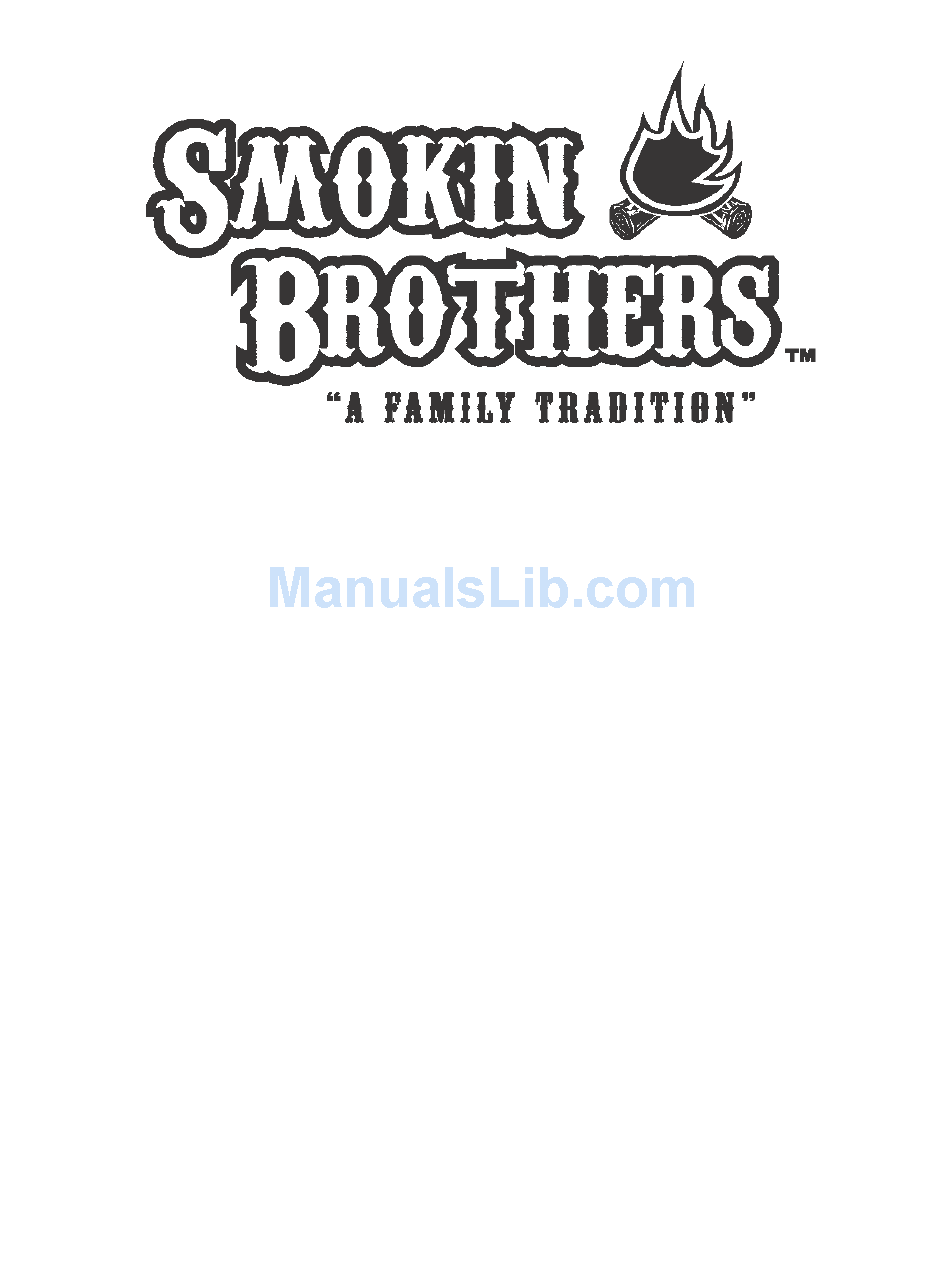

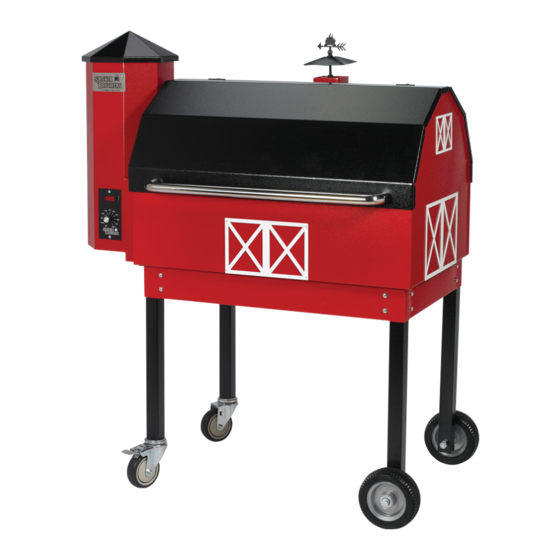

  • Page 1 Wood Pellet BBQ Grills Owner’s Manual...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS WELCOME TO THE SMOKIN BROTHERS FAMILY……………………..PAGE 2 SECTION 1: INTRODUCTION………………………………………………………….PAGE 3 CONTACT INFORMATION……………………………………………...PAGE 3 COMPONENTS…………………….……………………………………..PAGE 4 INTERNAL PARTS ASSEMBLY ……………………………………….PAGE 4 SECTION 2: FIRING INSTRUCTIONS………………………………………..……….PAGE 4 INITIAL FIRING INSTRUCTIONS………………………………PAGE 4 LIGHTING OF YOUR SMOKIN BROTHERS GRILL………...PAGE 5 SHUTTING DOWN OF YOUR GRILL………………………….PAGE 5...

  • Page 3: Welcome To The Smokin Brothers Family

    Smokin Brothers Dealers are available to provide additional Smokin Brothers products. We recommend to use Smokin Brothers 100% unblended pure wood pellets designed to be used in Smokin Brothers Grills. DO NOT USE a heating fuel pellet to cook your food. Smokin Brothers Rubs, Sauces and Accessories are available to enhance your grilling experience.

  • Page 4: Introduction

    INTRODUCTION Residential Wood Pellet Grill Smokin Brothers Grills are proudly Made in America. The major body of this grill has been designed, engineered and manufactured in the United States. Heavy duty American steel has been used for the body of this grill. All components, used to complete the finished product, are being assembled by American workers.

  • Page 5: Components

    • Verify the igniter hot rod, located in the base of the fire pot, is getting hot by visual observance. DO NOT TOUCH THE IGNITER. • Fill the hopper with Smokin Brothers pellets. • Once pellets have filled the auger tube and begin to drop into the fire pot, set the Cook Control Switch to the OFF position.

  • Page 6: Lighting Of Your Smokin Brothers Grill

    • Raise the lid and turn the Cook Control Switch to Smoke. • Allow your Smokin Brothers Grill to cool down like this for 5-10 minutes. • Smokin Brothers digital control is equipped with a built in cool down sequence that runs the combustion fan for 10 minutes after the Cook Control Switch has been turned OFF.

  • Page 7: Warning

    COOKING TIPS Your Smokin Brothers Grill is an extremely versatile cooking machine. If it can be smoked, baked, grilled or roasted, you can do it on your Smokin Brothers Grill! Use only one grill to do everything. Here are some Basic principles to remember when cooking on your Smokin Brothers Grill.

  • Page 8: Maintaining And Cleaning

    • Refer to our Smokin Brothers Cookbook • Contact Smokin Brothers through our contact information on the web We take great pleasure in supporting our Smokin Brothers Family on their desire to be adventurous in their cooking and grilling experience with our wood pellet grill. Share with Smokin Brothers your grilling accomplishments and be rewarded if your recipes are used and shared on the Smokin Brothers website.

  • Page 9: Note Warranty Disclaimer

    • User has abused or failed to maintain the unit under normal residential use. • Failure to disconnect electric before storing or repairing the unit. Smokin Brothers shall not be held liable under this or any implied warranty for incidental or consequential damages.
  • Page 10 User’s Guide SM OK I N B ROTHERS P ELLET GRI LL Digital Control...
  • Page 11 Automatically Restarting the Grill ..........17 Cooling Down the Grill ............17 Understanding Idle Fuel Feed Rate and Smoke Settings..... 18 Error Modes and Messages ............. 19 Product Service and Support ............21 Wiring Diagram ..............21 Troubleshooting ..............22 Contacting Smokin Brothers ............ 26...

  • Page 12: Forward

    Disclaimer Smokin Brothers, Inc. makes no representations or warranties with respect to the contents hereof and specifically disclaims any implied warranties of merchantability or fitness for any particular purpose.

  • Page 13: How It Works

    How It Works Cook Mode In Cook Mode, the temperature of the grill is constantly monitored and a microprocessor operates the draft fan and fuel feed auger to maintain a constant grill temperature. Smoke Mode In Smoke Mode, the fuel feed rate is set manually by the operator.

  • Page 14: Understanding The Display

    Microprocessor In Cook Mode, the temperature of the grill is constantly Control monitored and a microprocessor operates the draft fan and fuel feed auger to maintain a constant grill temperature. Manual Control In Smoke Mode, the fuel feed rate is set manually by the operator.

  • Page 15: Connecting The Grill To Ac Power

    If you adjust the Smoke Control switch while in the Cook Mode, the idle fuel feed rate setting is displayed for 3 seconds. Flashing “C10” The grill is cooling down. The cool down timer is displayed and decremented ("C10", "C 9", "C 8"...). Flashing “ErH”...

  • Page 16: Cooking

    temperature setting, the grill operates in Cook Mode. High Temperature If the current grill temperature is greater than 615 degrees, Limit Error (ErH) a flashing “ErH” is displayed indicating a high limit error and the grill shuts down. Refer to the “Error Modes and Messages”...

  • Page 17: Smoking

    High Temperature If the Cook Control switch is set to High, the grill operates at Setting higher than 375 degrees. If the grill is unable to attain 450 degrees due to ambient temperature and humidity, fuel type and quality, and/or thermal characteristics of the grill, the auger feeds fuel continuously allowing the grill to operate at its Maximum Temperature.

  • Page 18: Automatically Restarting The Grill

    Automatically Restarting the Grill Low Temperature If the current grill temperature drops below 120 degrees Auto Restart while operating in Smoke Mode or Cook Mode, the grill enters Auto Restart Mode. Auto Restart Error The grill will perform a single automatic restart. If the grill Check (ErL) fails the initial restart or successfully restarts then later falls below 120 degrees, a flashing “ErL”...

  • Page 19: Understanding Idle Fuel Feed Rate And Smoke Settings

    The draft fan remains on for 10 minutes. A count down timer is displayed. The counter starts at "C10" and is decremented every minute. Once the 10 minute count down timer expires: The display is blank. The draft fan turns off. The fuel feed auger pulses on for 10 seconds to clear burned pellets from the auger tube.

  • Page 20: Error Modes And Messages

    In Cook Mode, whenever the grill temperature is at or above the set temperature, the auger runs at the idle fuel feed rate. If the grill temperature is below the set temperature the auger runs at the on fuel feed rate. We recommend the “P6”...
  • Page 21 Auto Restart If the current grill temperature is less than 120 degrees, Error (ErL) the grill enters Auto Restart Mode. If the grill fails to restart, a flashing “ErL” is displayed indicating an Auto Restart Error. If the grill successfully restarts and later falls below 120 degrees, a flashing "ErL"...

  • Page 22: Product Service And Support

    Product Service and Support Wiring Diagram Digital Control Purple Black White Orange White White White Power Cord Igniter Auger Draft Fan...

  • Page 23: Troubleshooting

    Troubleshooting WARNING! Always disconnect the grill from AC power before accessing the control for service or working under the grill. Removing the control from the grill, installing the control into the grill, or working under the grill while the grill is connected to AC power could result in shock or could damage the control.
  • Page 24 Digital Control Control AC line fuse is blown. Display is Blank Replace control’s fuse F1 with provided spare fuse or a replacement fuse. A blown AC line fuse may be caused by several conditions including shorted grill component lead wires, a jammed auger, or a failing igniter. 3A 250V fast blow 5x20mm Fuse: Littelfuse part number 235003...
  • Page 25 Fire Goes Out Set Cook Control switch to the Off position and allow grill to cool. No fuel in hopper. Fill hopper with good, dry fuel. No fuel in firepot. Verify the control is properly connected to auger. Clear auger if jammed. Replace auger and/or auger motor if defective.
  • Page 26 Adverse operating conditions. Shield grill from cold wind and/or rain. Grill may not be able to attain 450 degrees in an extremely cold operating environment. Temperature detector is defective. Replace temperature detector. Control is defective. Contact Double D Supply Company customer service. Unexpected Auger idle fuel feed rate is too high.

  • Page 27: Contacting Smokin Brothers

    Sikeston, MO 63801 Telephone: 1.573.471.5513 1.877.474.5536 On the Web: www.doubledbbq.com www.smokinbrothers.com By email: barbeque@smokinbrothers.com Trained technicians are available to answer questions. Excellent dependable, reliable, and efficient service will be provided. Another Source: Smokin Brothers Dealer Retail Outlet Where your grill was purchased.

  • Page 28: Warranty
