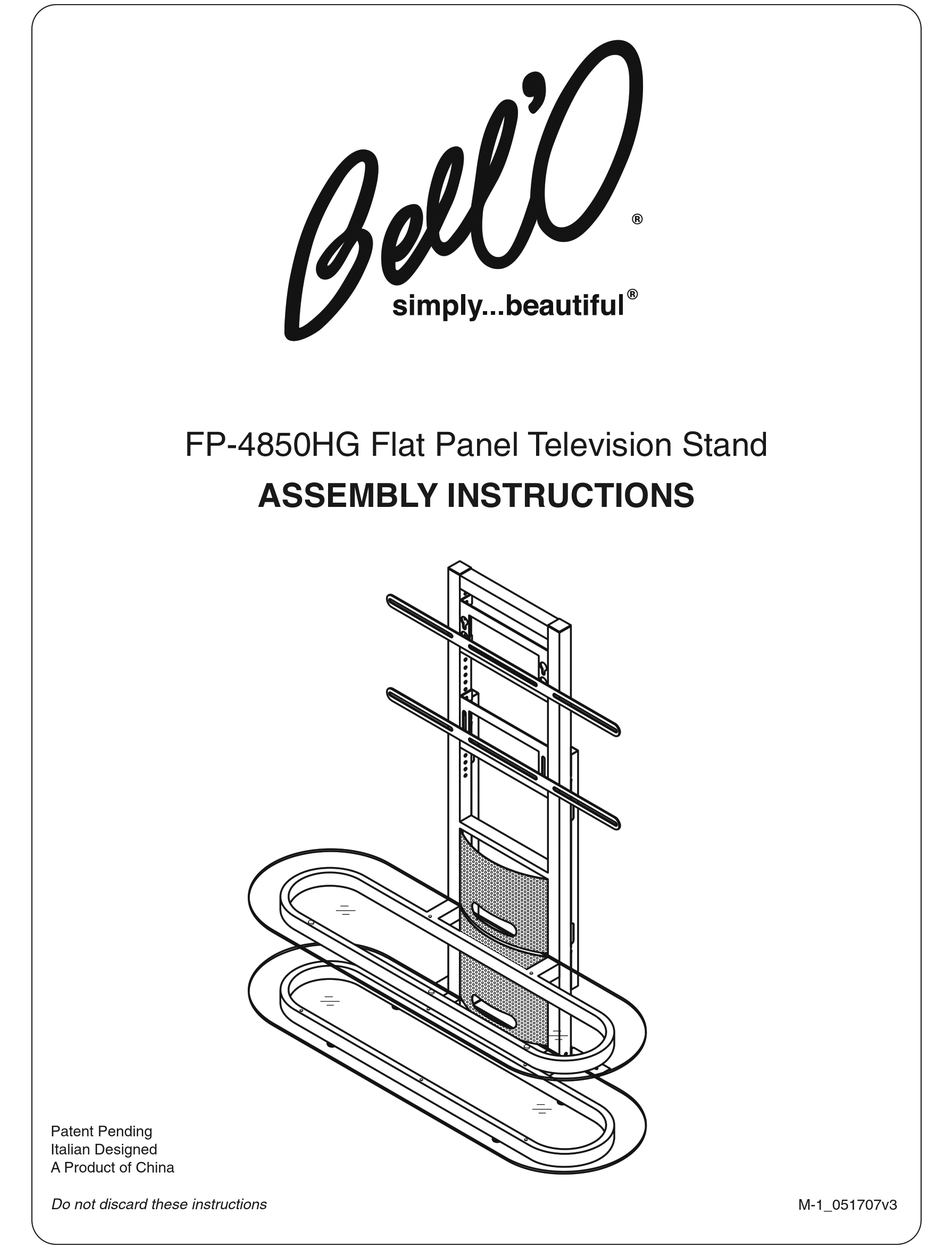

- Page 1 ASSEMBLY INSTRUCTIONS FP-4850HG Flat Panel Television Stand Patent Pending Italian Designed A Product of China Do not discard these instructions M-1_051707v3...
- Page 2 Parts List SKETCH SKETCH QTY. QTY. 60 mm Round 60 mm 4 mm ell’O International Corp. will not be responsible for failure to assemble as directed or for the improper assembly, use or handling of this stand. FOR YOUR SAFETY, PLEASE FOLLOW THESE PRECAUTIONS: ! ALWAYS REMOVE THE TV AND OTHER EQUIPMENT FROM THE FURNITURE PRIOR TO MOVING THE ASSEMBLED UNIT.
- Page 3 Assembly Instructions NOTE: TWO PEOPLE ARE RECOMMENDED TO ASSEMBLE THIS TABLE. Fig. 1 A. PLACE the Bottom Shelf Frame (C) on the floor upside-down, with the four holes in the frame bottom facing upward. This shelf frame is the same size as the top shelf frame, but has four holes in the underside of the frame and four holes in each of the rear side bars. B.
- Page 4 Fig. 3 G. PLACE five Glass Pads (7) onto the Bottom Shelf Frame (C). (Place three glass pads along the front, and two along the rear of the Frame as shown in Fig. 3). PLACE the remaining two Glass Pads on the rear of the Top Shelf Frame (B).
- Page 5 Fig. 4 J. Working from the rear of the assembly, PLACE two plastic T-Pins (6) through the rear holes in the two Glass Shelves to help prevent the shelves from falling out of place. K. INSERT the two CMS ® (Cable Management System) Covers (J) into the vertical slots located in the rear of the Flat Panel Mounting System Post (A).You can easily manage and hide the unsightly wires and cables of the TV and other A/V components by removing these covers, running the cables, then re-attaching the covers.
- Page 6 Mounting the Television NOTE: TWO PEOPLE ARE RECOMMENDED TO MOUNT THE TV TO THE STAND Fig. 5 Rear of Flat Panel TV L. CHOOSE the correct size Flat Panel TV Mounting Bars (F or G) that BEST FITS THE SIZE OF YOUR TV. Two sizes of Mounting Bars (27"...
- Page 7 Fig. 6 Q. USING TWO PEOPLE TO HOLD THE TV, INSERT the TOP Mounting Bar (F) into the desired keyholes located in the TOP Bracket of the Flat Panel Mounting System Post (A) as shown in Fig. 6. R. INSERT the extending bolts of the BOTTOM Mounting Bar (G) in the BOTTOM Bracket slots as shown in Fig. 6 and SECURE by tightening all Round Nuts (5) by hand.
- Page 8 Warranty One (1) Year Limited Warranty All Bell’O International products are warranted, with the exception of glass, to the original purchaser at the time of purchase and for a period of one (1) year thereafter. Glass is warranted to the original purchaser at the time of purchase and for a period of thirty (30) days thereafter.
