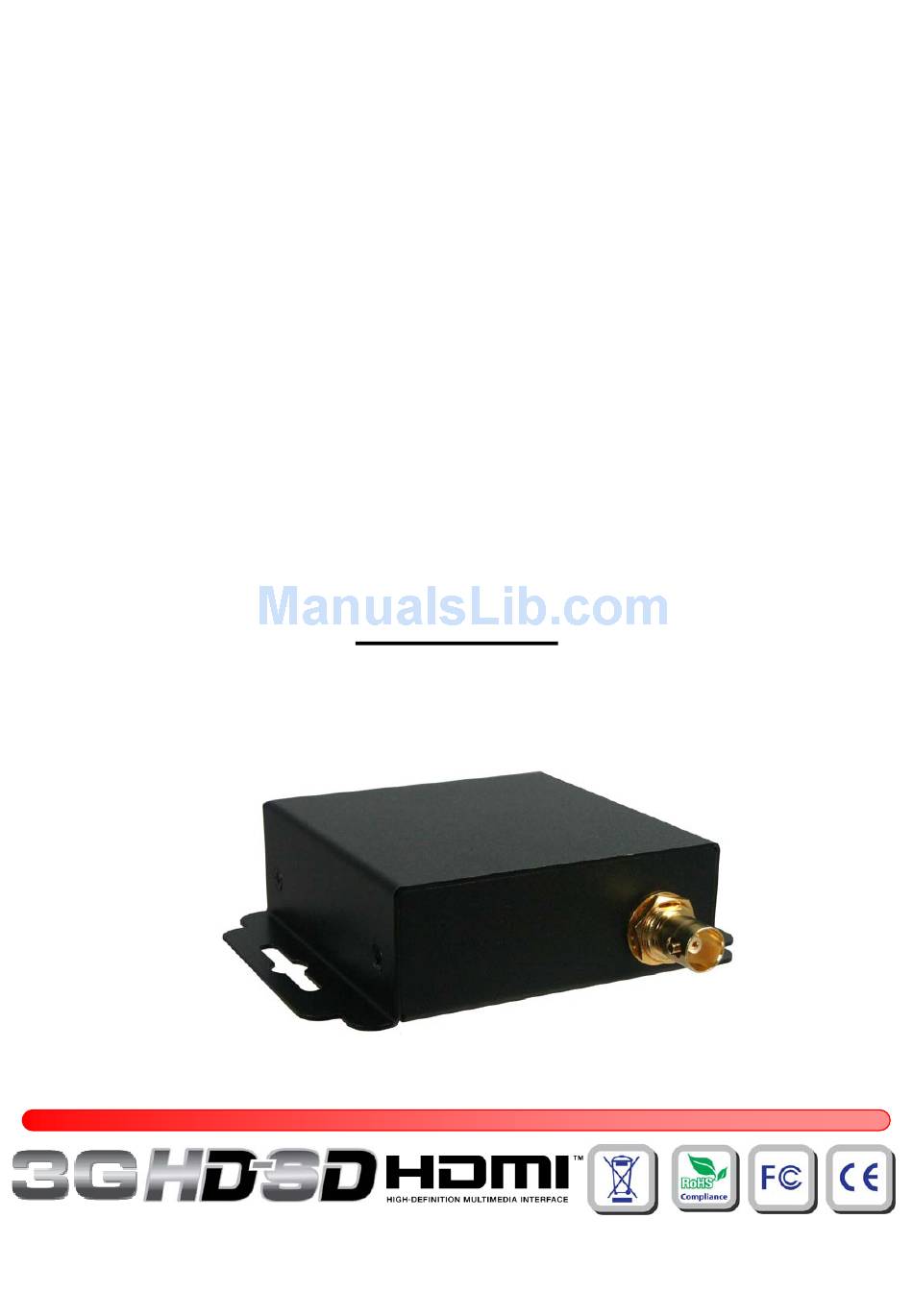

CV-523
HDMI 1.3 to 3G/HD/SD-SDI
Mini Converter
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CV-523 and is the answer not in the manual?

Questions and answers

Summary of Contents for Seller CV-523

  • Page 1 CV-523 HDMI 1.3 to 3G/HD/SD-SDI Mini Converter User Manual...

  • Page 2: Safety And Notice

    However, like all electronic equipments, the CV-523 should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.
  • Page 3 Plus, with up to 8 channels audio support, 7.1 channel or 5.1 channel audio becomes available. The CV-523 offers low jitter SDI output for daisy chain. With the use of CV-523, the most popular uncompressed video interface in the consumer world is readily available for professional SDI...
  • Page 4 Inter-locked power supply Power supply 5V 4A DC Power consumption 3 Watts [max] Operation temperature 0~40°C [32~104°F] Storage temperature -20~60°C [-4~140°F] Relative humidity 20~90% RH [no condensation] 1x CV-523 Package Contents 1x 5V power supply unit 1x User Manual ~ 3 ~...

  • Page 5: Supported Resolutions

    Supported Resolutions 3G-SDI Output 1080p @ 50/ 59.94 / 60Hz SMPTE 424M, SMPTE 425M HD-SDI Output 720p @ 50Hz SMPTE 296M -3 720p @ 60 / 59.94Hz SMPTE 296M -1, -2 1080i @ 50Hz SMPTE 274M -6 1080i @ 60 / 59.94Hz SMPTE 274M -4, -5 1080p @ 24 / 23.98Hz SMPTE 274M -10, -11...

  • Page 6: Panel Description

    Panel Description Front Panel SWITCH HDMI INPUT 1. DIP Switch 2. HDMI input 3. Interlocked +5V power jack 4. Signal LED Rear Panel 3G/HD/SD-SDI OUTPUT 5. 3G/HD/SD-SDI output DIP Switch A 2-pin DIP switch is used for user interface, and users can access this switch from the bottom of the unit. Pin OFF ( ): Pin ON ( ): Pin #1...

  • Page 7: Edid Learning

    EDID Learning 1. Please make sure the DIP switch is at On-On [ - ]. 2. Connect the HDMI display to the HDMI port of CV-523. 3. Power on CV-523. 4. After LED turns to light, the EDID Learning procedure is completed.

  • Page 8: Limited Warranty

    1 year from the date of purchase from the SELLER or an authorized dealer. Should this product fail to be in good working order within 1 year warranty period, The SELLER, at its option, repair or replace the unit, provided that the unit has not been subjected to accident, disaster, abuse or any unauthorized modifications including static discharge and power surge.
