Summary of Contents for SLD Security & Communications EDC-141E

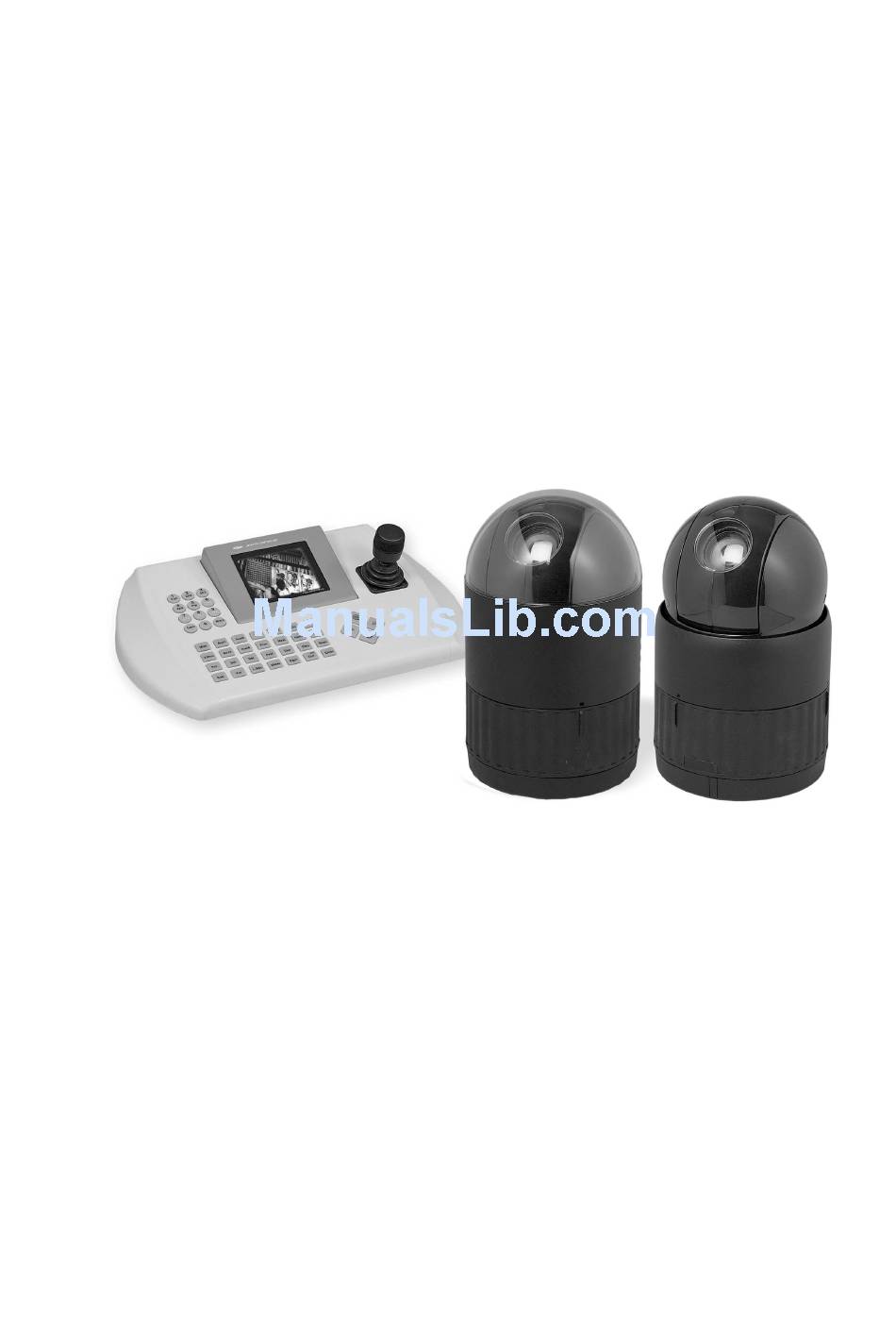

- Page 1 Installation and Operating Manual Fastrax Dome Video Camera for Ceiling and Wall Mounting EDC-141E, EDC-142E, EDC-143E...
-
Page 2: Table Of Contents
Contents Introduction ..........................................3 Features ........................................... 3 Installation and Configuration ....................................5 Package Contents........................................5 Basic Configuration of Fastrax II Dome Camera System ............................6 2.2.1 Single Multiplexer........................................7 2.2.2 Single User with Two Multiplexer ....................................8 2.2.3 Two Multiplexer with Slave Keyboard Controller ................................ 9 2.2.4 Two Multiplexer with Slave Keyboard Controller (method 2) ............................ -
Page 3: Introduction
Safety Instructions • Read these safety instructions and the operation manual first before you install and commission the camera. • Keep the manual in a safe place for later reference. • Protect your camera from contamination with water and humidity to prevent it from permanent damage. Never switch the camera on when it gets wet. Have it checked at an authorized service center in this case. - Page 4 Figure 1 - Typical System Configuration Figure 2 - Assemble bubble ring ass’y Note: It is recommended to remove camera window for improving picture quality when you assemble bubble ring ass’y.
-
Page 5: Installation And Configuration
2. Installation and Configuration 2.1 Package Contents The package contains the following. 1x Fastrax II E (Dome Camera) 1x Bubble Ring 1x Instruction Manual (This Document) 3x Assembly Screws for Attaching Fastrax II E 3x Plastic Anchor 1x 10Pin Connector 2x12Pin Connector CAUTION: Be sure to have caution labels(E version only) on both body and base of the camera. -
Page 6: Basic Configuration Of Fastrax Ii Dome Camera System
2.2 Basic Configuration of Fastrax II Dome Camera System Figure 4- Basic installation diagram The dome camera must be installed by qualified service personnel in accordance with all local and federal electrical and building codes. The system should be installed according to Figures 4 through 9. -
Page 7: Single Multiplexer
2.2.1 Single Multiplexer Figure 5 - Single Multiplexer... -
Page 8: Single User With Two Multiplexer
2.2.2 Single User with Two Multiplexer Figure 6 - Two Multiplexer... -
Page 9: Two Multiplexer With Slave Keyboard Controller
2.2.3 Two Multiplexer with Slave Keyboard Controller Figure 7 - Two Multiplexer with Slave Keyboard Controller... -
Page 10: Two Multiplexer With Slave Keyboard Controller (Method 2)
2.2.4 Two Multiplexer with Slave Keyboard Controller (method 2) Figure 8 - Two Multiplexer with Slave Keyboard Controller (method 2) -
Page 11: Setting Unit For Termination
Figure 9 - Layout of Switches 2.3 Setting Unit for Termination The device which is connected at end of line, whether it is a dome camera or keyboard controller, must be terminated by setting the appropriate DIP switch. Without proper termination, there is potential for control signal errors. Total length of the cable for communication should not exceed 1.2km. Terminated Not terminated Figure 10 - Setting Unit for Termination... -
Page 12: Setting Address(Id) Of Dome Camera
Figure 11 - Termination Diagram 2.4 Setting Address (ID) of Dome Camera To prevent damage, each dome camera must have a unique address (ID). When installing multiple dome cameras using a multiplexer, it is suggested that the dome camera address matches the multiplexer port number. If you wan to set the address more than 999, you should connect the service provider. -
Page 13: Setting Protocol Of Dome Camera
2.5 Setting Protocol of Dome Camera If a dome camera is to be installed with a Fastrax keyboard controller, select F2 protocol. Consult service personnel if a dome camera is installed with device other than a keyboard controller. Function S4-1 Enable Disable Alarm... -
Page 14: Connection
2.6 Connections • Connecting to the RS-485/-422 The dome camera can be controlled remotely by an external device or control system, such as a control keyboard, using RS-485 half-duplex, RS-422 duplex or simplex serial communications signals. Connect Marked Rx+, Rx- to Tx+ and Tx- of the RS-485 control system. If control system is RS-422, connect Rx+ (Tx+), Rx+ (Tx-) and Rx+, Rx- of the dome camera to Tx+, Tx- and Rx+, Rx- of the control device respectively. -
Page 15: Program And Operation
3. Program and Operation 3.1 Selecting Dome Camera Before you program or operate a dome camera, you must select the dome camera by pressing the dome camera No. + CAM successively. Example: Pressing 1, 0 and CAM key sequentially will select dome camera 10. The selected dome camera ID will be displayed on the LCD monitor of the keyboard controller. -
Page 16: Auto Scan
3.4 Auto Scan (First Item of the Main menu / Shortcut: Scan) The Auto scan supports up to 8 programmed angles at user-programmable speeds. Follow these steps to program Auto Scan: AUTO SCAN SETUP SCAN 01 : AUTOSCAN01 SPEED(MODE) : FAST VECTOR START ANGLE : 127.1, 027.7 X7 END ANGLE : 157.7, 080.7 X13... -
Page 17: Preset
3.5 Preset (Second Item of the Main menu / Shortcut: Prst) If you need to view specific locations routinely, you should program presets. A preset is a programmed video scene with automatic pan, tilt, zoom, focus and iris settings. Once programmed, entering the number and pressing a preset button on your controller automatically calls up the preset. In addition, presets may be assigned to alarm actions or as the „home”... -
Page 18: Shortcut Preset Program
3.6 Shortcut of Preset Program Select a view to be stored (direction of the camera, zoom and focus), then press No. (1 to 240), and then press Pgm, Prst subsequently. The current view will be stored to the selected preset number if position is empty. If selected preset number is not empty, „PRESET EXISTING” message will be displayed on the monitor and ask to overwrite. -
Page 19: Pattern
4. To add a stored preset as a Tour, twist the Zoom handle or press Zoom Key (Programmed preset will scroll). To remove a stored preset from the Tour, press the Home key, blank position mark (===) will be displayed. You can overwrite the programmed position. 5. -
Page 20: Alarm
3.9 Alarm (This menu shows on only specific model, Fifth Item of Main menu) ALARM SETUP NO PRIO PRS OUT HOLD LATCH 001 OFF OFF 001 OFF OUT1 240 NO OUT1 001 NC OUT4 001 OFF OFF 001 OFF OUT1 240 NO OUT1 001 NC... -
Page 21: Privacy Zone
Pages can be scrolled through by pushing the Joystick to the left or right on the first or last column of the menu. Pushing the Joystick to left on the „NO” column (01 ~ 08) of the menu to scroll to the previous page. Push the Joystick to right on the „END” column to go to the next page. 1. -
Page 22: Camera
3.12 Camera (Eighth Item of Main menu) NOTE: The menu features will vary depending on the camera module installed in your dome camera. CAMERA SETUP FOCUS CONTROL WB CONTROL AE CONTROL LINE LOCK CONTROL SHARPNESS BACK LIGHT : OFF DIGITAL ZOOM : OFF/2x/4x/ MAX NIGHT SHOT CONTROL (optional) SAVE AND EXIT(ESC TO CANCEL) SHARPNESS... -
Page 23: Ae Control
• AE CONTROL AE SETUP MODE : FULL AUTO SLOW SHUTTER : MANUAL IRIS : F2.4 GAIN : 0 DB BRIGHT : 14 SHUTTER : 1/60 SAVE AND EXIT(ESC TO CANCEL) MODE FULL AUTO / MANUAL / SHUTTER PRIO / IRIS PRIO / BRIGHT SLOW SHUTTER AUTO / MANUAL ----- AUTO effects only FULL AUTO mode... -
Page 24: Dome Setup
3.13 Dome Setup (Ninth Item of Main menu) CONFIGURATION MENU HOME FUNCTION SETUP OSD DISPLAY VIEW ANGLE SETUP INITIALIZE DATA ORIGIN OFFSET DOME RESET SYSTEM INFORMATION EXIT(ESC TO EXIT) • HOME FUNCTION SETUP After a dome control menu item has been selected, follow the directions below to set the function. HOME FUNCTION SETUP HOME FUNCTION : NONE... -
Page 25: View Direction
CAMERA TITLE : 8 CHARACTER CAN BE SET VIEW DIRECTION : ON / OFF DOME OSD DISPLAY : ON / OFF AREA DISPLAY : ON / OFF TILT OVER ANGLE : ON / WITH BUBBLE / W/O BUBBLE FILP : ON / OFF •... -
Page 26: Flip
• FLIP Allows the dome camera to automatically turn 180 degrees when the camera tilts to its lower position. When camera reaches floor alone moving object, it will stop. Release the Joystick handle instantly and then pull down to run flip fucntion. The speed of following object will be same speed as previous. -
Page 27: Troubleshooting
4. Troubleshooting If problems occur, verify the installation of the camera with the instructions in this manual and with other operating equipment. Isolate the problem to the specific piece of equipment in the system and refer to the equipment manual for further information. Problem Possible Solution Verify that power is connected to all pieces of equipment in the system. -
Page 28: Short-Cut Key
Stabilizer off 150 + ON Image Reverse on 150 + OFF Image Reverse off 7. Specifications Type EDC-142E EDC-141E EDC-143E EDP No. 74081 74086 74091 Speed range at manual control (tilt) 0.1° to 90°/sec. (Proportional to the zoom position) Speed range at manual control (pan) 0.1°... - Page 29 Type EDC-142E EDC-141E EDC-143E EDP No. 74081 74086 74091 Rotation range 360° (endless) Preset positioning 240 presets with 16-character labels each. 0.75sec. max. preset recall time Backlash 0.2° Patterns 4 patterns: 1x up to 240sec., or 3x up to 240sec. in total Tours Up to 8 User programmable guard tours with vector scan.
-
Page 30: Dimensional Drawings
Universal Keyboard for Matrix Switcher 8. Dimensional Drawings ∅ 23 wire connection hole ∅ 125 ∅ 125 Dimensions: mm SLD Security & Communications The Old Forge, Ockham Lane, Ockham, Surrey GU236PH England Phone +44.1483225633 · Fax +44.1483225634 sales@sld.co.uk · www.sld.co.uk...
