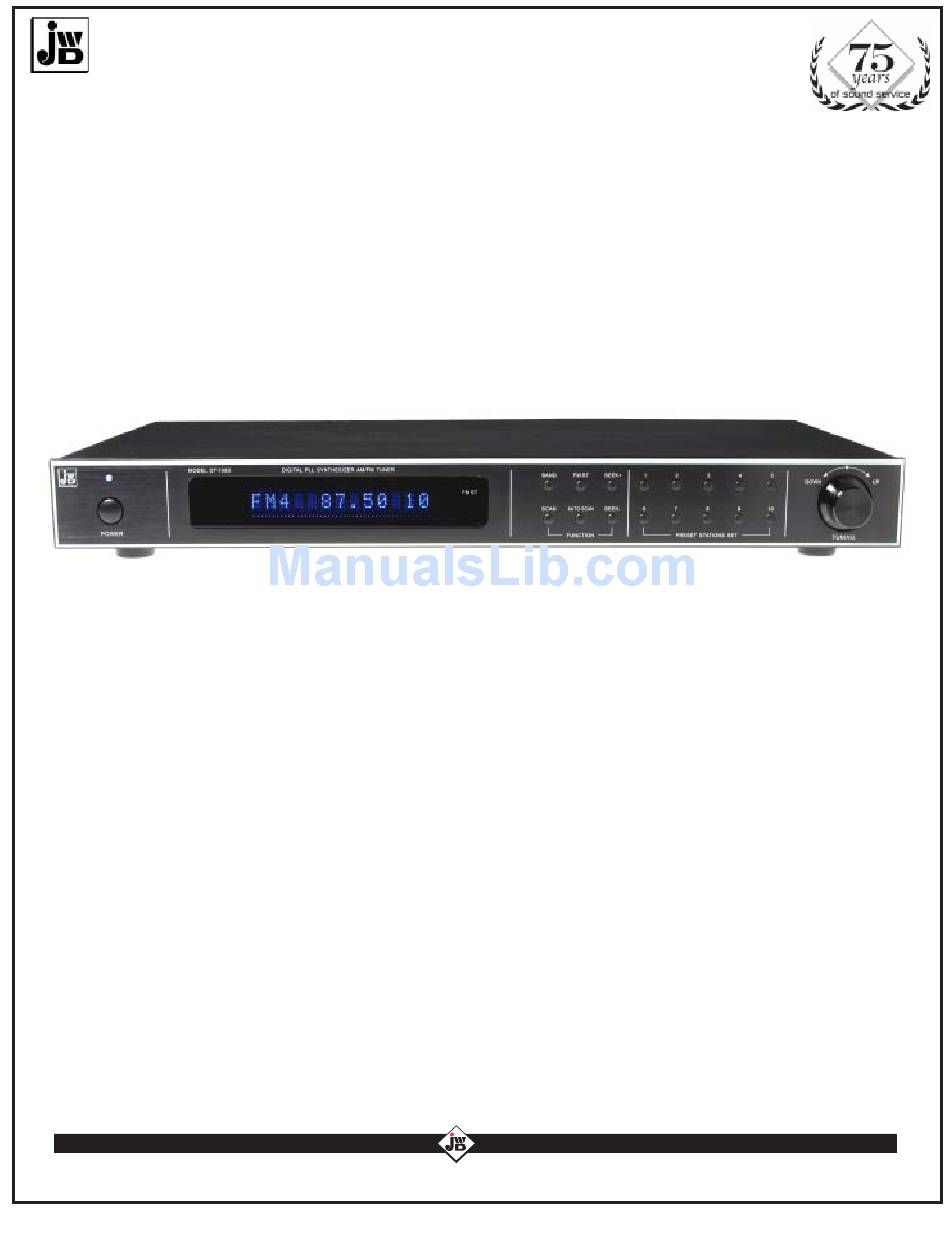

The Mark of the Professional... OPERATING INSTRUCTIONS Model DT-100D AM/FM PLL Synthesized Digital Tuner with Music-On-Hold N E W T E C H N O L O G Y O L D R E L I A B I L I T Y J.W. - Page 2 The Mark of the Professional... The J. W. Davis DT-100D Tuner has been specifically engineered with features for commercial and industrial applications. The monaural output combines incoming stereo signals ensuring full frequency response distribution throughout each speaker’s coverage area. The memory keys allow the desired AM/ FM stations to be preset to discourage tampering.
- Page 3 The Mark of the Professional... SIGNAL The mono signal output of the DT-100D tuner is accessed from either of the two RCA jacks located on the rear panel. The enclosed RCA patch cord should be connected between either of the RCA output jacks then to an Aux/Line input on the amplifier.
-
Page 4: Power Supply
The Mark of the Professional... DT-100D SPECIFICATIONS FM SECTION Range …...….…….…………….…..…………....87.5MHz~108MHz(0.1MHz steps) Usable sensitivity……………...……………………………………………………….….15dBu 50dB quieting sensitivity………..………………………………………………………...17dBu Signal to noise ratio…………………..……….…………………………………………..53dBu Stereo separation (@ 1kHz)…………...……………………….……………….…..….43dBu AM SECTION Range ……………………………..…………....530kHz~1710kHz(10 kHz steps) Sensitivity (20 dB quieting)……………..……….…………….…..……………………..23dB Signal to noise ratio (@ 50uV)…………….………….…………..……………………….40dB AUDIO SECTION Line Output …………………………………..……….…….…...……..1V (variable) at 10kΩ... - Page 5 The Mark of the Professional... This Page Intentionally Left Blank N E W T E C H N O L O G Y O L D R E L I A B I L I T Y J.W. Davis & Company •...
- Page 6 The Mark of the Professional... Other JWD Electronics Products DA-120M Master Series Amplifier • 120 Watts Power • 17 Selectable Inputs • 6 Inputs Dipswitch Controlled Selectable 400Hz Output Filter DA-60M Master Series Amplifier • 60 Watts Power • Balanced 600Ω...
