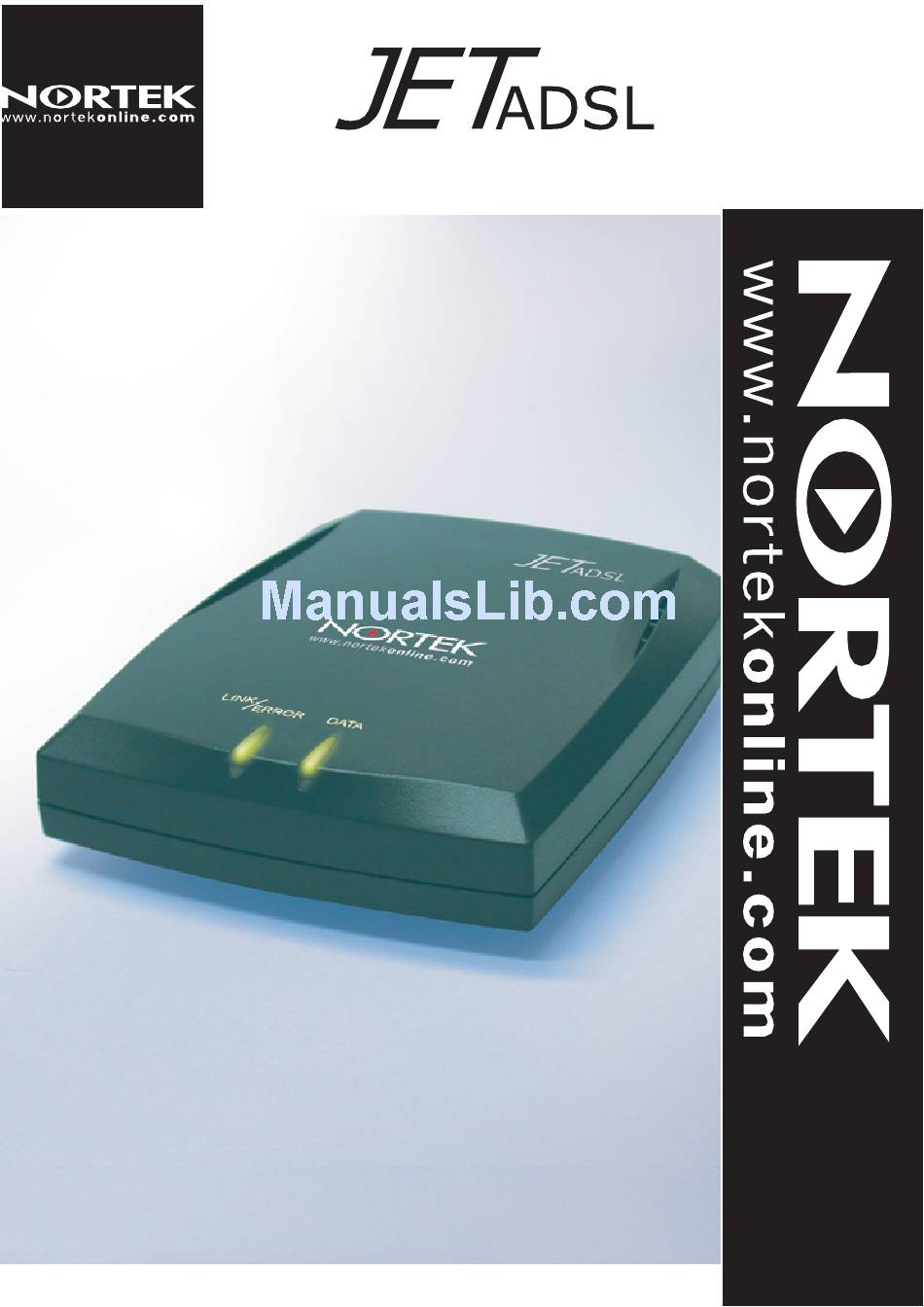

  • Page 1 Manuale Utente User's Guide...

  • Page 2: Table Of Contents

    .............2 Capitolo 1: Introduzione Nozioni sull’ ADSL ................2 Protocolli e selezione driver..............2 Specifiche ..................3 ....4 Capitolo 2: installazione del modem e del software Installazione del modem ..............4 Installazione del software ..............4 Capitolo 3: personalizzazione dei parametri di comunicazione...................11 ....12 Capitolo 4: Pannello di controllo GlobespanVirata .....14...

  • Page 3: Capitolo 1: Introduzione

    4. Point to Point Protocol Over Ethernet (PPPoE) – RFC 2516 Il modem ADSL Nortek jet è in grado di funzionare in tre diverse modalità: WAN, LAN, e ATM. Nota: tutte e tre le modalità sono in grado di lavorare con il protocollo ATM ma la modalità...

  • Page 4: Specifiche

    Windows 98 SE Windows Me Windows 2000 Windows XP Specifiche Il modem ADSL Jet Nortek è conforme alle seguenti specifiche: • Conferme alle specifiche Universal Serial Bus (USB) Revisione 1.1 • Autoalimentato da porta USB (non è richiesta alimentazione esterna) •...

  • Page 5: Capitolo 2: Installazione Del Modem E Del Software

    Capitolo 2: installazione del modem e del software Prima di procedere all’installazione del modem assicurarsi che il sistema operativo in uso supporti il protocollo che si desidera installare in base alla tabella sopra riportata. Contattare il proprio ISP per conoscere il protocollo da utilizzare Installazione del modem Inserire il cavo rettangolare del cavo USB nella porta approritata del proprio PC...
  • Page 6 il sistema riconoscerà automaticamente una nuova periferica sul vostro PC. Cliccare su cancel. (Windows 98/98SE) (Windows Me) (Windows 2000) (Windows XP) inserire il dico CD Rom in dotazione e cliccare su Setup.exe per iniziare la procedura di installazione. Una schermata avvertirà dell’inizio della procedura guidata.

  • Page 7: Capitolo 3: Personalizzazione Dei Parametri Di Comunicazione

    Capitolo 3: personalizzazione dei parametri di comunicazione. Dal proprio PC cliccare su Start – Programmi – GlobespanVirata DSL Modem – Configure. Una notifica avvertirà che la procedura sta iniziando. Da questo programma effettuare le necessarie configurazioni di VPI, VCI, Encapsulation type e Modulation type per terminare cliccare su next.

  • Page 8: Capitolo 4: Pannello Di Controllo Globespanvirata

    Capitolo 4: Pannello di controllo GlobespanVirata Il pannello di controllo GlobespanVirata USB ADSL è il metodo più rapido per configuare e verificare la funzionalità del proprio modem. All’apertura del pannello attendere almeno 2 secondi per verificarne la funzionalità. Esistono 2 metodi per accedere al pannello di controllo: Dal pannello di controllo di Windows (Start –...
  • Page 9 la cartella “System Info” fornisce importanti informazioni sulla release del driver, del firmware e del pannello di controllo. La cartella “Configuration” permette di vedere o modificare il tipo di modulazione in uso.

  • Page 10: Capitolo 5: Assistenza Gratuita Via Email E Via Web

    Tel. : +39.051.86.59.450 Fax : +39.051.86.52.384 Dichiarazione di Conformità Nortek Spa attesta che i prodotti distribuiti a marchio NORTEK sono conformi alle Direttive Europee : 99/5/CE del 9 Marzo 1999 riguardante le apparecchiature radio e le apparecchiature terminali di comunicazione e il reciproco riconoscimento della loro conformità...
  • Page 11 Chapter 1: Overview ............. 16 About ADSL .......................16 Protocol and Device Driver Selection ............16 Features ......................18 Chapter 2: ADSL Nortek jet ModemInstallation and Software Setup ..................19 Modem Installation ..................20 Software Setup ....................20 Chapter 3: Customizing Communication Settings....26 Chapter 4: GlobespanVirata Control Panel Application..27 Chapter 5: Free Support through Email &...

  • Page 12: Chapter 1: Overview

    G.992.2 (G.lite), and CAP (T1 TR-59) and ITU G.992 Annexes A,B and C as applicable. Protocol and Device Driver Selection The ADSL Nortek jet Modemcan be easily connected to a USB port on the PC via a standard USB cable. The ADSL Nortek jet Modemis fully software upgradeable so that new features and updates may be added by simply loading a new version of the device driver onto your ADSL modems employ ATM (Asynchronous Transfer Mode) framing.
  • Page 13 the internet. PPPoE combines the Point-to-Point Protocol commonly used in dialup connections, with the Ethernet protocol, which supports multiple users in a local area network. The PPP Protocol information is encapsulated within an Ethernet frame. Three types of device drivers are provided for the GlobespanVirata ADSL USB modem, WAN, LAN, and ATM.

  • Page 14: Features

    Features The ADSL Nortek jet Modemprovides the following features: • Compliant with Universal Serial Bus Specification Revision 1.1 • USB bus-powered; an external power supply is not required • Supports three device drivers: Microsoft NDIS 4.0 WAN Miniport, NDIS 4.0 LAN Miniport or NDIS 5.0 ATM Miniport...

  • Page 15: Setup

    The choice depends upon your DSL service provider. • IP Address Settings – the Nortek software installation process allows the server to dynamically assign IP Address settings. If your application requires static setting of specific address information you will need to know:...

  • Page 16: Modem Installation

    Modem Installation Insert the rectangular end of a USB cable into the USB port of your PC. Insert the square end of the USB cable into the USB port of the Modem. Software Setup Note: For Windows 98/98SE applications, you may need the Windows 98/98SE CD ROM to complete the installation.
  • Page 17 Insert the installation CD into the CD drive and double click Setup.exe to start the installation procedure. A notification message will appear indicating that the setup process has begun. The “Welcome!” window provides an opportunity to quit the setup process to exit all Windows programs before continuing.
  • Page 18 Enter the VPI, VCI, Encapsulation type and Modulation type from the “Communication Settings” window and click on Next. Note: Encapsulation types vary depending upon the application. The “Ready to Install” window will be displayed. You may review the current settings and click on Next or Back to change the settings.
  • Page 19 10. To Specify the directory of Windows 98/98SE like as “F:\Win98” (“F” is CD-ROM Drive letter), then click OK. 11. A message will be displayed confirming reboot of the system and then click Yes. [For WAN&LAN applications] 12. After reboot system, the “Location information” window will appear, then enters your country/region and telephone number.
  • Page 20 [For Windows 2000 applications] 6. A message will be displayed confirming reboot of the system. Select “Yes, reboot the computer now” and then click Close. 7. After reboot system, the “Digital Signature Not Found” window may appear warning that the installation software is not a digitally signed version.
  • Page 21 [For Windows XP applications] 6. A message will be displayed confirming reboot of the system. Select “Yes, reboot the computer now” and then click Close. 7. After reboot system, system will found a new hardware, select “Install the software automatically (Recommended)”. Then click Next.

  • Page 22: Chapter 3: Customizing Communication Settings

    Chapter 3: Customizing Communication Settings Once the ADSL Nortek jet Modemand software have been installed the communication settings may be easily updated by performing the following steps. From your PC desktop click Start – Programs – GlobespanVirata DSL Modem – Configure.

  • Page 23: Chapter 4: Globespanvirata Control Panel Application

    Chapter 4: GlobespanVirata Control Panel Application The ADSL Nortek jet Modemcontrol panel program provides a quick and easy way to configure and check the performance of the modem and the ADSL connection. When open, the monitor window updates every 2 seconds.
  • Page 24 The “System Info” tab displays the release number of the GlobespanVirata DSL modem driver, the firmware release number, and the control panel version that you are currently using. The “Configuration” tab offers driver appropriate Modulation type to view or modify.

  • Page 25: Chapter 5: Free Support Through Email & Web

    99/5/EC of 9 March 1999 on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity 89/336/EC of 3 May 1989 on electromagnetic compatibility. 73/23/EC of 19 February 1973 on safety Nortek reserves the right to change the product specifications, without prior notice.
