Summary of Contents for ProVisual PTZ-501C
-

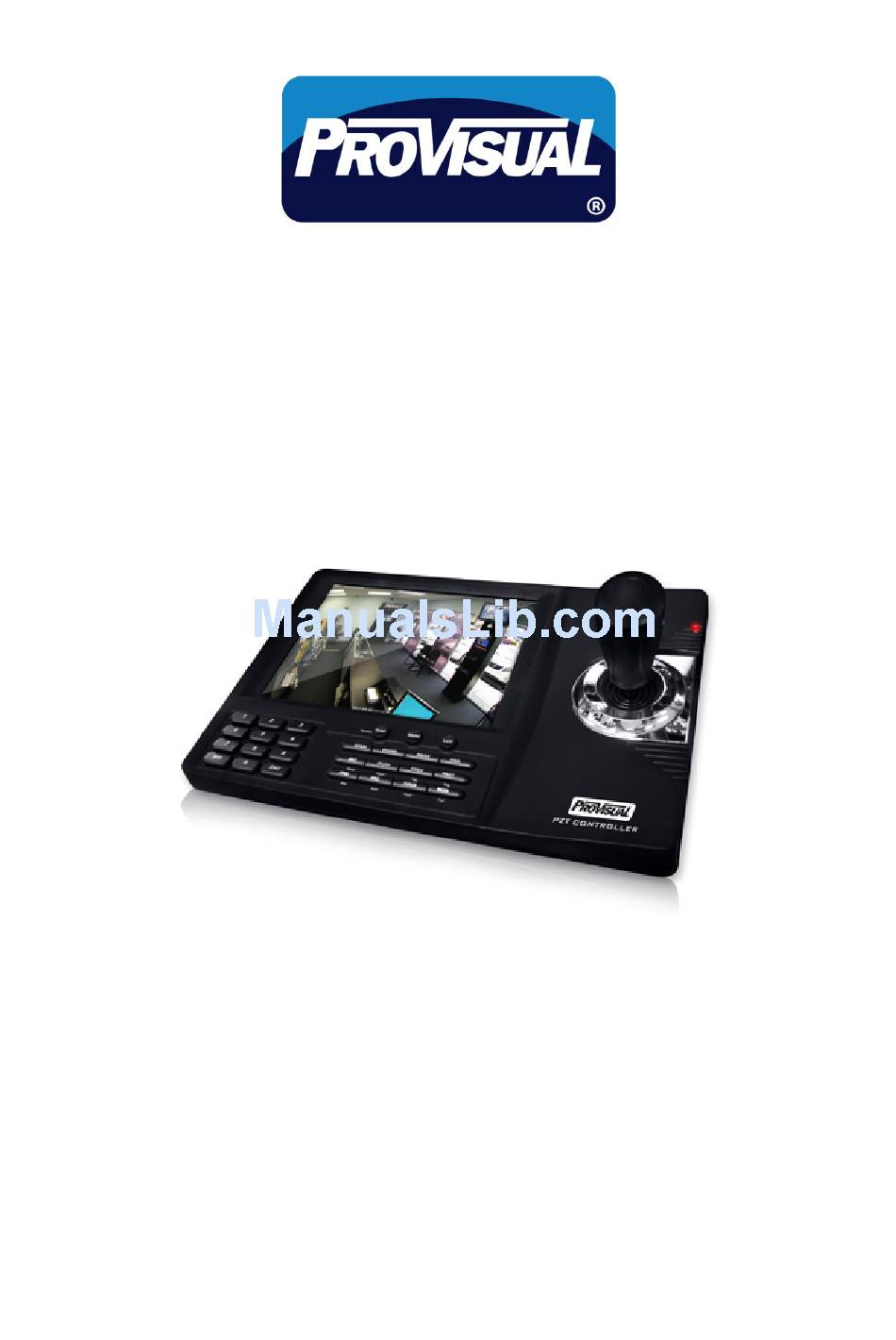

Page 1: User Manual
PTZ-501C ProVisual PTZ Keyboard Controller User Manual www.provisualusa.com... -
Page 2: Table Of Contents
ProVisual PTZ-501C – PTZ Keyboard Controller Manual www.provisualusa.com Contents 1 - Summary ......................................3 1.1 - Notice ......................................3 1.2 - Function And Characteristic ................................. 3 1.3 - Technical Data....................................3 - Keyboard Connection ..................................3 2. 2 - Connect Matrix .................................... 4 2. -
Page 3: Summary
ProVisual PTZ-501C – PTZ Keyboard Controller Manual www.provisualusa.com 1 - Summary The keyboard is a universal keyboard of security monitoring series, which can control the ball-type integrated camera of all kinds protocols matrix, which has been equipped with the navigation key which can control the revolving of the camera and the zoom magnification of lens;... -
Page 4: Connect Matrix
ProVisual PTZ-501C – PTZ Keyboard Controller Manual www.provisualusa.com With VGA input, the keyboard can working with a display; can connect with DVR, PC ECT. The max input resolutions 1280X720, 1024X768, 800X600, USB Interface, use to connect with the PC. By this connect way, the keyboard can working as an aim object. -
Page 5: Keyboard Connections In The System
ProVisual PTZ-501C – PTZ Keyboard Controller Manual www.provisualusa.com Figure 2-3.1 12V A+ B- A+ B- Dome DC 12V-36V 2.4 - Keyboard Connections In The System Indirect control the dome when connect with matrix (as figure 2-4.1). Contrariwise will control the domes directly, Parallel connect the keyboard and dome to the bus of RS-485,all the keyboard can control any dome among them, under this way, the add of the main keyboard should be “1”... -
Page 6: Operation Instruction
ProVisual PTZ-501C – PTZ Keyboard Controller Manual www.provisualusa.com Figure 2-4.2 Keyboard 1 Keyboard 2 Keyboard 3 Dome 1 Dome 2 Dome 3 Dome 4 Dome 5 Dome 6 Dome 7 Dome 8 Keyboard 4 TFT display screen 3 - Operation Instruction Figure 3-1.1... -
Page 7: Electrify
ProVisual PTZ-501C – PTZ Keyboard Controller Manual www.provisualusa.com 3.1 - Electrify Keyboard will self-check, and press MENU to display the detail information about the Baud rate, Protocol and camera ID. Navigation key should be nil when keyboard is self-checking Attention 。... -
Page 8: Set Dome Function
ProVisual PTZ-501C – PTZ Keyboard Controller Manual www.provisualusa.com 3.6 - Set Dome Function 3.6.1 - Preset Pre set： 【SET】+【N】 + 【PRESET】 Adjust preset： 【N 】+【PRESET】 【N】for the number of the pre-set. 3.6.2 - Pattern ●Design path setup： 【SET】+【N 】+【PATTERN】+path+【SET】+ 0 +【 PATTERN】... -
Page 9: Keyboard Parameter Setup
ProVisual PTZ-501C – PTZ Keyboard Controller Manual www.provisualusa.com • Save setting After finishing the setting, press the 【ENTER】keyboard to save; TFT will display “Success”. • Back previous menu Press 【PREV】keyboard, or turn the joystick to left, it will back to previous menu1 4.1 - Keyboard Parameter Setup... -
Page 10: Keyboard Baud Rate Setup
ProVisual PTZ-501C – PTZ Keyboard Controller Manual www.provisualusa.com 5 - Press 【PREV】or use the shake toward to LEFT to back to previous menu. 4.1.2 - Keyboard Baud Rate Setup Enter the main menu as the TFT picture (4.1.1-1) show. Press【1】will show on the TFT as picture (4.1.1-2) Press【2】select the Baud Rate setting, as Picture (4.1.2-1) -
Page 11: Dome Scan Setup
ProVisual PTZ-501C – PTZ Keyboard Controller Manual www.provisualusa.com Item 1: Save preset: item 2: Show the preset; Item 3: clear the preset Press【1】 enter the preset, you can input the preset NO as picture (4.2.1-3) show Preset num: (1-128) Figure 4.2.1-3 Press PREV to back After enter the preset menu you can use navigate key control the dome directly, and input the preset NO to save as the picture 4.2.1-4 show. -
Page 12: Pattern Setup
ProVisual PTZ-501C – PTZ Keyboard Controller Manual www.provisualusa.com Press ENTER sure Press PREV to back Figure 4.2.2-2 While enter the dome limit setting menu, move the dome to the suitable position, and press 【Enter】to save and will show “Success" and back to previous menu. -
Page 13: Protocol Setup
ProVisual PTZ-501C – PTZ Keyboard Controller Manual www.provisualusa.com auto skip to the second TOUR setting. If you have already set it, you can skip it. And it will show the “Success” and back to the previous menu. Select the Item 2 as picture (4.2.4-2), you need input the tour preset, and in the second item you need put in the speed information, the range is (1-127);... -
Page 14: System Setting
ProVisual PTZ-501C – PTZ Keyboard Controller Manual www.provisualusa.com 4.4 - System Setting (Can select the key 4) as picture 4.4 PAL/NTSC 1. System mode： ON/OFF 2. Buzzer： 000~255 3. Key time/s： 000~100 4. LCD Backlight： Mouse/PCKEY/NONE 5. USB Mode： 000~255 6. -
Page 15: Appendix
ProVisual PTZ-501C – PTZ Keyboard Controller Manual www.provisualusa.com 5 - Appendix 5.1 - RS485 Bus General Knowledge ● RS485 Bus General Character According to RS485 industrial standards, RS485 Bus is of half-duplexed data transmission cables with characteristic impedance as 120. - Page 16 ProVisual PTZ-501C – PTZ Keyboard Controller Manual www.provisualusa.com when the cables are long in the connection. The reliability of control signals are decreased with the phenomena that the dome dose not responds to or just responds at intervals to the controller, or dose continuous operation without stop.
-
Page 17: Keyboard Shortcut Instruction
ProVisual PTZ-501C – PTZ Keyboard Controller Manual www.provisualusa.com 5.2 - Keyboard Shortcut Instruction WORKING OPERATION SHORTCUT FUNCTION MODE OBJECT 【POWER】 Keyboard ON/OFF 【MENU】 Keyboard System information display 【N】+【CAM】 Input Dome ID, press 【CAM】to select object High speed dome dome. 【TELE】... -
Page 18: Keyboard Menu Index
ProVisual PTZ-501C – PTZ Keyboard Controller Manual www.provisualusa.com Preset num: (1-128) Press PREV to back 6 - Keyboard Menu Index 1. Save preset Preset num: (1-128) 2. Show preset Press PREV to back Clear preset Preset num: (1-128) Press PREV to back Set KB ID(1-64):- 1.
