Summary of Contents for Peak Performance PKC0BK

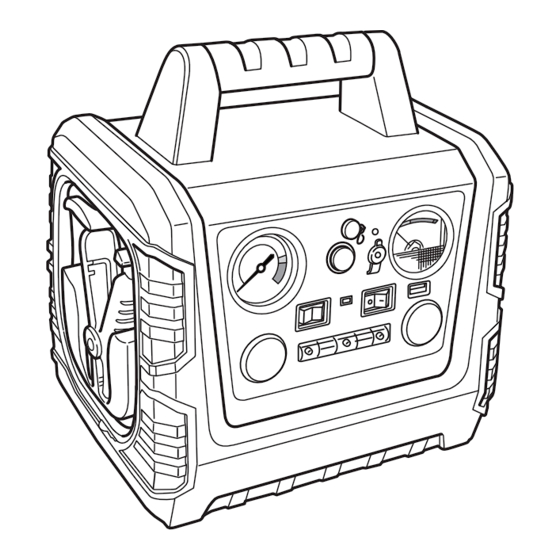

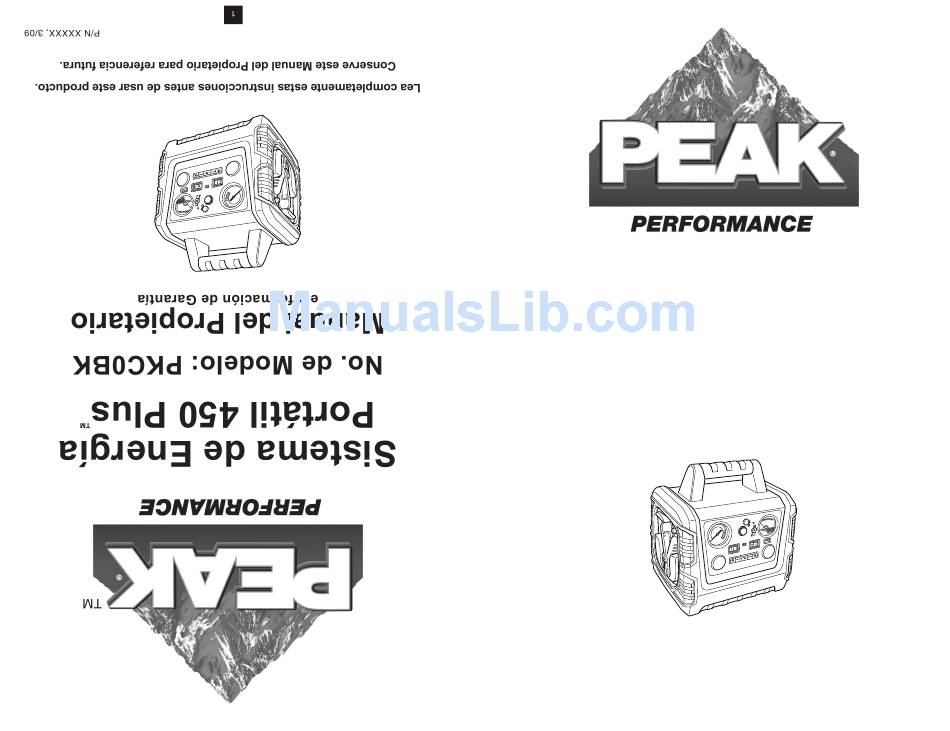

- Page 1 Portable Power System 450 Plus Model No.: PKC0BK Owner’s Manual and Warranty Information Read these instructions completely before using this product. Retain this Owner’s Manual for future reference. P/N XXXXX, 3/09...
-
Page 2: Table Of Contents
CONTENTS SAFETY PRECAUTIONS ........................... 2 Portable Power System Safety ......................2 Battery Jump-Starting Safety ......................2 INTRODUCTION ............................3 FEATURES ..............................4 OPERATION ............................... 4 Checking Portable Power System Battery Status ................4 Low Charge Alert (LCA) ........................5 Charging Portable Power System Battery ..................5 110/120-Volt AC Charging ....................... -
Page 3: Introduction
• Never jump-start a frozen battery, as it could explode. • Perform all jump-starting procedures in a safe, dry, well-ventilated area. • Do not expose battery to fi re or intense heat since it can explode. • Before recycling or disposing of a battery, protect exposed terminals with heavy-duty electrical tape to prevent shorting (shorting can result in personal injury or fi... -
Page 4: Features
FEATURES • Built-in 450 amp battery jump-starter (900 peak amps) with quick storing cables and clamps • Built-in 260 psi air compressor and quick storing hose to infl ate vehicle tires and sport leisure equipment • Built-in 200 watt power (400 peak watts) inverter for powering AC appliances •... -
Page 5: Low Charge Alert (Lca)
Low Charge Alert (LCA) On the front of the unit there is a Low Charge Alert port. There is a red plug in this port. With the plug removed, when the battery needs to be charged a continuous tone will sound telling you the battery level is low and the Portable Power System needs to be charged. -
Page 6: Air Compressor Operation
Turn off ignition and all vehicle accessories. Make sure the Portable Power System is fully charged and jump-starter ON/OFF switch is in the OFF position. Turn any additional functions of your Portable Power System off. Securely connect the red positive (+) booster clamp to the positive (+) terminal of the vehicle’s battery. Securely connect the black negative (-) booster clamp to the grounding point such as the metal frame of the vehicle. -
Page 7: Operating An Ac Device
Some rechargeable devices are equipped with a separate charger that can be connected to the AC outlet. Certain other rechargeable devices are manufactured with built-in chargers (see device’s manual). In this case, these particular devices may cause internal damage to the inverter and should not be used. -
Page 8: Troubleshooting
TROUBLESHOOTING Problem Cause Remedy No AC inverter Portable Power System Recharge the Portable Power System immediately. power output charge is below 12 volts Excessive current drawn Reduce load to maximum of 200 watts. by appliance being operated Inverter not warmed up Turn off the appliance and inverter. -
Page 9: Care And Maintenance
12-Volt Rechargeable, 18 Ah, Sealed, Lead-Acid, AGM (Absorbed Glass Mat) Battery Compressor: 260 PSI (18 bar) Reading Gauge Inverter: 200 Watt (Peak: 400 Watt/0.3 sec.) 12V Power Socket: 12-Volt, 10-Amp Max. USB Power Outlet: 5 Volts/500mA Max. Worklight: Three non-replaceable LEDs ChargingTime: AC Charging –... -
Page 10: Limited Warranty
Manufacturer warrants to the original consumer, or purchaser, that the PEAK® Portable Power System 450 Plus PKC0BK will be free from defects in material and workmanship for ninety (90) days from the date of sale to the original purchaser. Manufacturer hereby excludes and disclaims any and all other warranties, expressed or implied, beyond those warranties specifi...
