Summary of Contents for Rittal SSC mini4

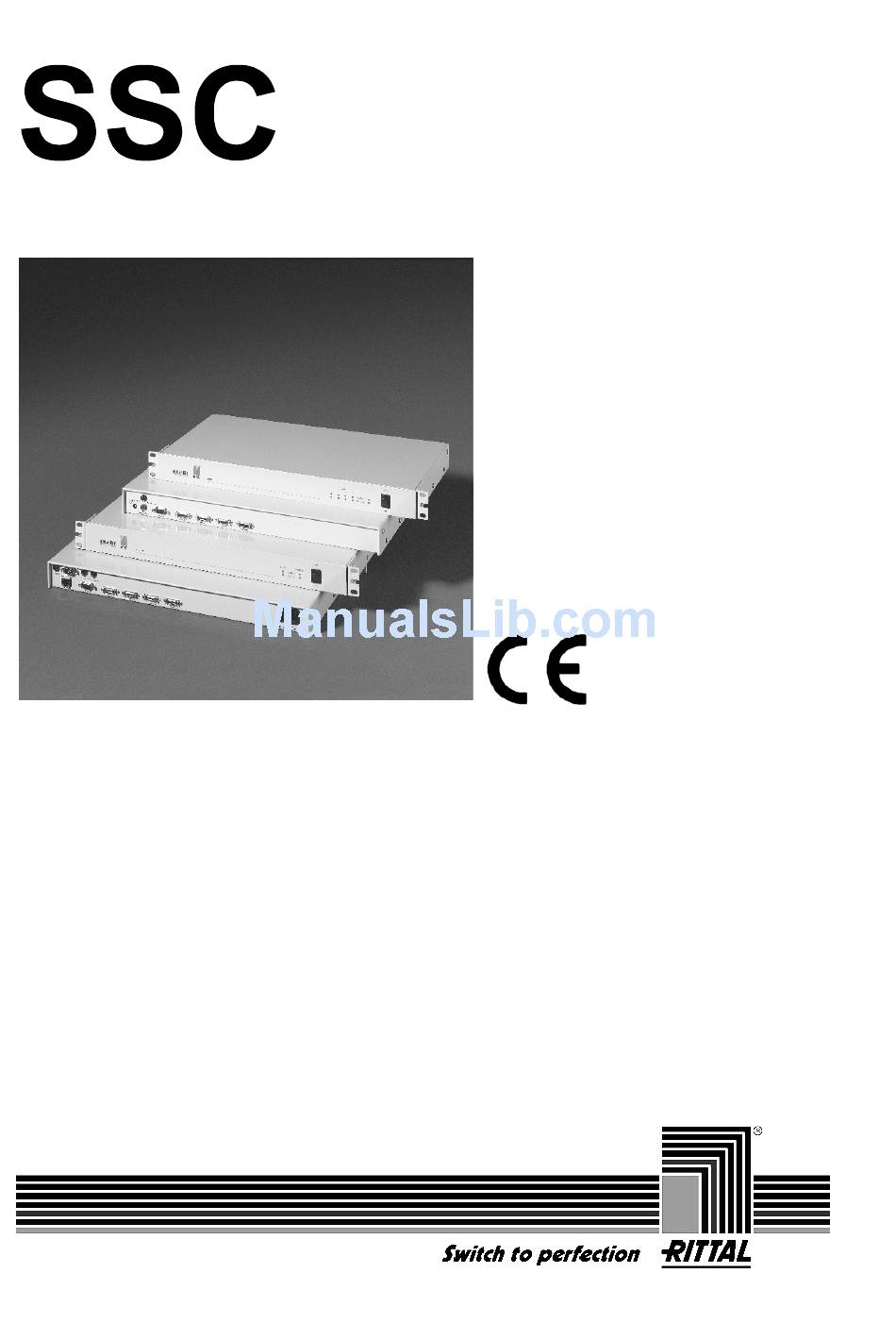

- Page 1 DK 7551.000 mini4 Drawing number: A 26784 00 DK 75 Language: english Status: Date: 22.05.01 User Manual Rittal Server Switch Control SSC...
- Page 2 OTES AUTION O AVOID THE RISK OF SHOCK AZARD DO NOT OPEN THE EQUIPMENT OR REMOVE PROTECTIVE COVERS F THE EQUIPMENT REQUIRES SERVICING PLEASE INFORM OUR TECHNICAL SUPPORT TEAM EAD THE INSTRUCTION MANUAL CAREFULLY BEFORE YOU OPERATE THE EQUIPMENT OLLOW ALL WARNINGS AND OPERATING INSTRUCTIONS EITHER ON THE EQUIPMENT OR IN THE INSTRUCTION MANUAL TORE THE INSTRUCTION MANUAL IN A SAFE PLACE "C...
-
Page 3: Table Of Contents
A Description ………………………………………………………………………………….. P. 4 General……………………………………………………………………………………. P. 4 Larger applications……………………………………………………………………….. P. 4 Functions………………………………………………………………………………….. P. 4 System requirements……………………………………………………………………. P. 5 Power supply……………………………………………………………………………… P. 5 B Operation …………………………………………………………………………………….. P. 5 Delivery condition / default settings…………………………………………………….. P. 5 Switching………………………………………………………………………………….. P. 5 Function mode……………………………………………………………………………. P. 6 B 3.1 Configuration………………………………………………………………………………... -
Page 4: A Description
Server Switches. This manual describes the SSC mini4. The SSC mini4 fulfils the requirements that are made of a complete server switch and has all of the basic functions of a modern switching system. The mini4 enables you to control 4 computers from one workstation. If an existing SSC mini4 is to be expanded the (more than 4 computers) mini4 serves as a slave for this expansion;... -
Page 5: A 4 System Requirements
A 4 System requirements The SSC mini4 does not have any particular requirements in terms of server software or hardware, due to its design as a hardware solution. Please ensure that the monitor at the switch supports the resolutions and sync modes of all the computers connected to the switch. -
Page 6: B 3 Function Mode
=> Keyboard combination for server selection Hotkey change If there is a conflict between the hotkeys of the software you use and those of the SSC mini4, you can alter these here. You can choose between the 5 alternatives listed below. -
Page 7: B 3.2 Function
(all others) AutoScan: All of the channels on the SSC mini4 are queried regardless if a server is connected or switched on. The ACTIVE SERVER LED of the channel that is currently active begins to flash. After about 10 seconds the function switches automatically to the next channel. -
Page 8: B 3.3 Ending The Function Mode
When all of the connections to the SSC mini4 have been made, switch on the server and the SSC mini4. Switch on the server first, because otherwise the SSC mini4 will not be power supplied if no main power supply is used. -
Page 9: D Power On / Led Displays
D Power On / LED displays Switch on the SSC mini4 using the rocker switch on the front of the equipment. The green CONNECT LED glows and signals that the equipment is ready for operation. The SSC mini4 initialises keyboard and mouse. The yellow ACTIVE LED flashes. When initialisation is complete, this LED glows constantly. -
Page 10: G Rack Mounting
As the switch is a “Class III” device the grounding of the casing is not necessary. · If an external power supply should be necessary, the SSC mini4 is optional intended to be supplied by a listed Direct Plug-In Power Unit marked “Class 2” and rated + 5Vdc/300 – 500mA. - Page 11 As the switch is a “Class III” device the grounding of the casing is not necessary. · If an external power supply should be necessary, the SSC mini4 is optional intended to be supplied by a listed Direct Plug-In Power Unit marked “Class 2” and rated + 5Vdc/300 – 500mA.
- Page 12 73/23/EEC Guideline regarding Electrical operating supplies for the use within determined Tension limits, changed RL 93/68/EEC. Examining basis: EN 60950:2000 (1992 + A1, A2, A3, A4, A11) Address: RITTAL GmbH & Co. KG Auf dem Stützelberg D-35745 Herborn EMail: info@rittal.de Internet: http://www.rittal.de...
- Page 13 Rittal GmbH & Co. KG * P.O Box 1662 * D-35726 Herborn Telefon (02772) 505-0 * Telefax (02772) 505-2319 eMail: Info@rittal.de * Internet: http://www.rittal.de...
