SPORTSCAM USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SPORTSCAM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mediacom SPORTSCAM

Summary of Contents for Mediacom SPORTSCAM

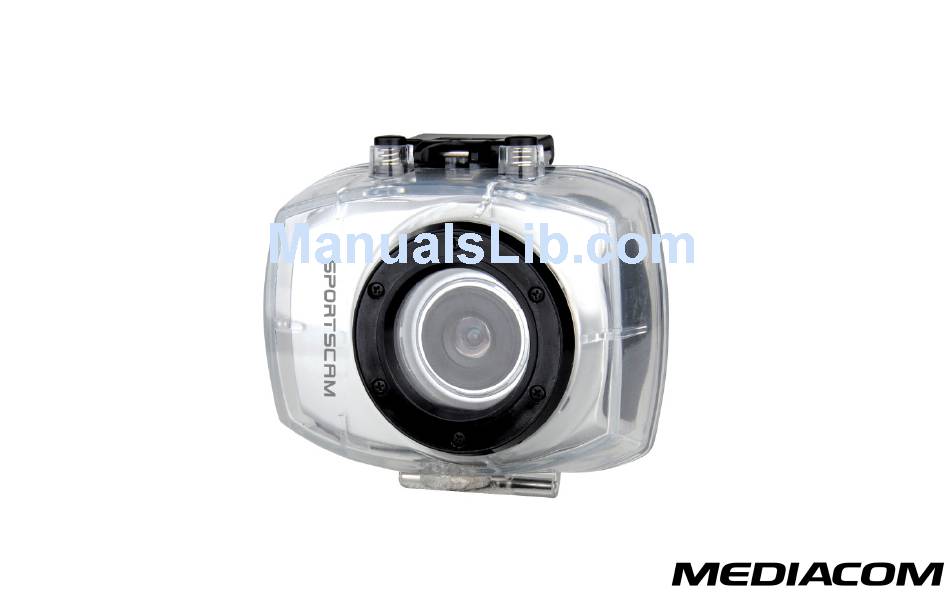

  • Page 1 SPORTSCAM USER MANUAL...

  • Page 2: Mounting Accessories

    Mounting Accessories Mounting Accessories Mounting Accessories Mounting Accessories...
  • Page 3 Functions Thank you for purchasing this camera! With high-performance chips, this product can produce high-definition videos with excellent continuity of dynamic images. It supports H.264 HD video format and can create sharp photos for you. The unique ultraportable design is adopted for this video camera and it is applicable in various fields to enable your daily life convenient, safe and colorful.
  • Page 4 when it is used on the beach or near water, because water, sand particles, dust or component containing salt may damage the video camera. Keep the video camera contaminated free of dust and chemical materials. Place it in a cool, dry and well ventilated place.

  • Page 5: Product Introduction

    The external SD memory card is made of precision electronic components. The following situations may cause loss or damage of your data: 1. Improper use of the memory card 2. The memory card is bent, dropped or collided. 3. Place it under high temperature or moist environment or expose to sunshine directly. 4.

  • Page 6: System Requirements

    Support high-speed USB2.0 It supports Micro SD cards with a capacity expansion up to 32G. This product supports video output and live playback functions. Videos can be output to high-definition TVs for playing clear and sharp pictures. System Requirements System Requirements Operating System Microsoft Windows2000, XP, Vista, 7, 8 Intel Pentium III of more than 800MHz or other CPU with equivalent...

  • Page 7: Introduction To Appearance And Keypad

    Introduction to Appearance and Keypad Infrared light a lens TFT LCD...
  • Page 8 r Key USB interface Reset key...

  • Page 9: Charge The Built-In Lithium Battery

    e __ _____ 1. Charge the built-in lithium battery Indicator Light for charging is To charge the camera, connect it to the computer. Then, the charge indicator light (red) will be on. After the camera is fully charged, the charge indicator light will be off. In general, it can be fully charged after 2-4 hours.

  • Page 10: Use Of Memory Card

    2. Use of Memory Card 1. Push the Micro SD card into the card slot according to the concave lettering beside the slot of memory card till it is completely inserted. 2. To take out the Micro SD card, gently press the end of the memory card inward and it will pop up. MicroSD card Note: No built-in memorizer is available in this video camera.
  • Page 11 3. Startup/Shutdown 3.1 Startup: Press and hold the POWER button for 2 seconds. The screen of the display is activated and the camera is turned on. 3.2 Shut down: Press the POWER Key once under idle condition, and the camera will be shut down. . 3.3 Auto Screen-off: When the idle time of the camera reaches the automatic screen-off time, it will automatically turn off the screen to save power.

  • Page 12: Indicator Light

    4. Conversion Between Function Modes The camera has three modes: video recording mode, photo mode and playback mode. These modes can be switched over by clicking the icon in the upper left corner of the LCD display after startup. Video recording mode Photo mode Vehicle mode Playback mode...

  • Page 13: Video Recording Mode

    6. Video recording mode After turning on the DV camera, it will directly get to the video recording mode. You can start recording videos by pressing the shutter button in the preview state. To stop video recording, just press this shutter button again.

  • Page 14: Photo Mode

    7. Photo mode: After turning on the DV camera, it will directly get to the video recording mode. To switch to the photo mode, click the mode icon in the upper left corner of the LCD display. You can shoot a photo by pressing the shutter button in the preview state.

  • Page 15: Vehicle Mode

    8. Vehicle mode: 1 Mode icon: indicating currently in the vehicle mode. 2 Video size: available in FHD/HD(60FPS)/HD(30FPS)/VGA 3 Recording time: indicating the length of remaining time to be recorded. 4 Icon of setting time and date. 5 click this icon, the camera can be flipped 180 degrees to take video normally.

  • Page 16: Playback Mode

    9. Playback mode: 9.1 After turning on the camera and enabling the Preview state, press the Playback icon ( ) in the lower right corner of the LCD display to activate the menu ( ). Click the to switch to the file list mode.
  • Page 17 Playback movie clips: In the playback mode, click it to pause. After selecting the fast playback function , click it to fast rewind. Click STOP to exit the playback mode to return to the list mode. 9.3 Playback photos: After turning on the camera and enabling the Preview state, press the Playback icon ( ) in the lower right corner of the LCD display to activate the menu ( ).
  • Page 18 9.4 File deletion: After clicking the Delete File icon , the screen will appear as shown in the right figure: Click YES to delete the current file immediately, or click NO to cancel the deletion operation.
  • Page 19 Connecting the camera to a high-definition TV: Connect the camera to a high-definition TV with a HD cable (as shown below). Then video signals from the camera will be automatically output to the high-definition TV, and you can enjoy HD videos and photos that you have recorded on the high-definition TV.

  • Page 20: Application Of Remote Control

    Application on the personal computer___ ____ Connect the camera to a PC The camera is provided with the plug and play function . Connect the device to the computer with USB line under turning-on state, then it will be switched into the movable hard disk mode. Icon of movable disk will appear on the window of “my computer”.
  • Page 21 2 Use of remote control: Using the remote control will help you realize video recording, photo snapping and shutting down functions without operating the camera itself.While using the remote control, place its signal transmitter port toward the infrared signal receiver light of the camera. Then you can record videos, take photos or shut down the camera by pressing the corresponding buttons.
  • Page 22 Waterproof Case Using Notice Before sealing the waterproof case, keep the camera housing’s rubber seal clean, a single hair or grain of sand can cause a leak. You can test by closing the case without inserting the camera. Submerse the case completely in water for about a minute.

  • Page 23: Technical Parameters

    Technical parameters Image sensor 5M pixels (CMOS) Function mode Video recording, photo, removable disk Camera lens F3.1 f=2.9mm Digital zooming Shutter Electronic shutter LCD display screen 2.4-inch touch screen Image resolution 12M (4000 × 3000), 10M (3648x2736), 8 M (3264x2448), 5M (2560×1920) VGA: 640x480 (120 frames / sec), HD: 1280x720 (60 frames/sec.) HD: 1280x720 Video resolution (30 frames/sec), FHD: 1920x1080 (30 frames/sec.)
  • Page 24 Standard packaging Camera User manual USB cable Remote control waterproof case Helmet Mount 3M Sticker...
