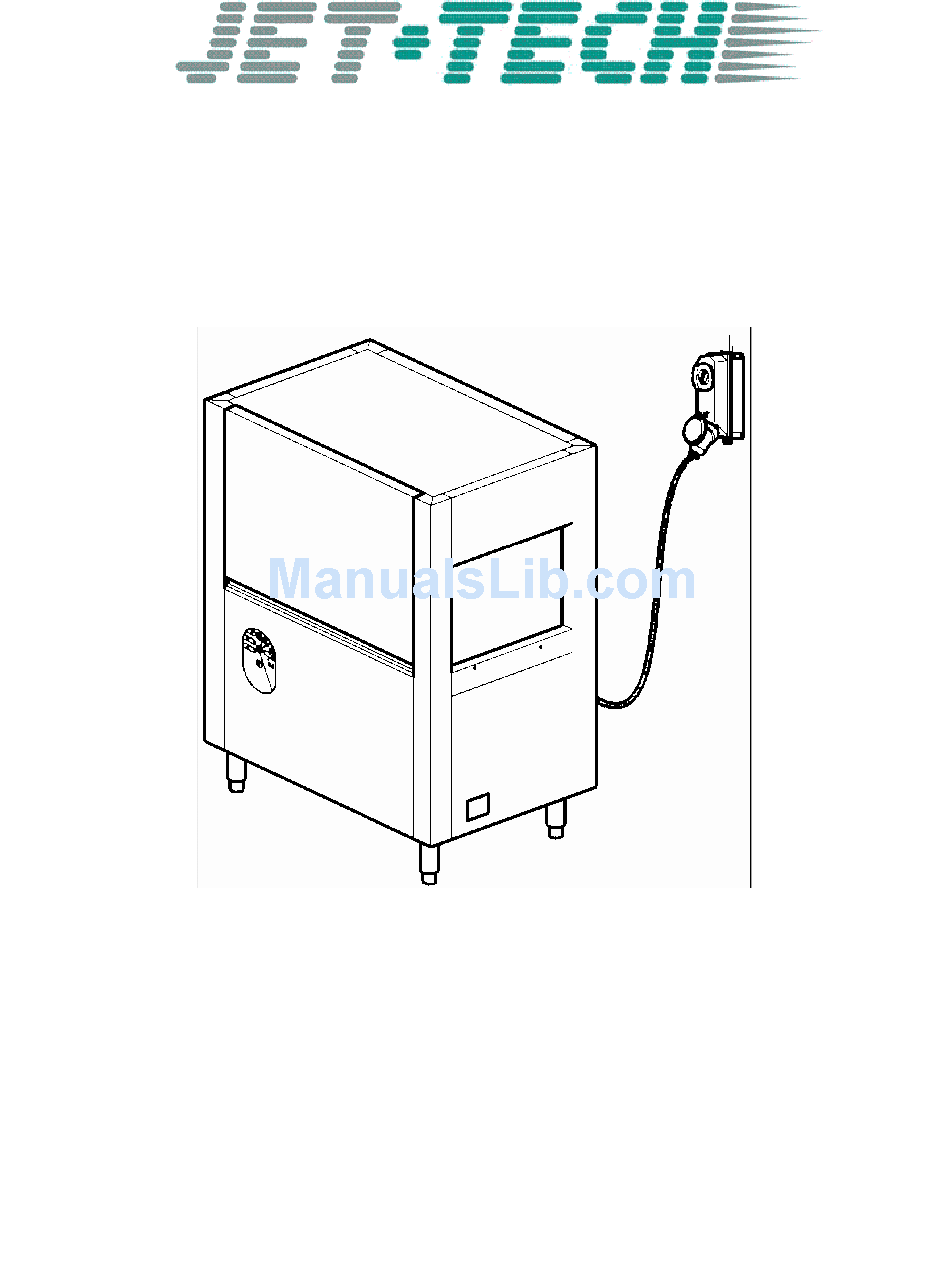

- Page 1 FX-44 Operation Manual...
-
Page 2: Table Of Contents
CAP.1 INTRODUCTION ......................2 CAP.2 DISHWASHER HANDLING AND TRANSPORT............3 Transport and packing ......................3 Handling ..........................3 CAP.3 DANGER ZONES AND SAFETY MECHANISMS ............3 Danger of burns: ......................... 3 Hazardous electric current: ....................3 Safety devices:........................3 CAP.4 INSTALLATION ...................... -
Page 3: Cap.1 Introduction
CAP.1 INTRODUCTION This manual provides important instructions about safe installation, use and maintenance of the dishwasher, so it is crucial that you read it carefully. Careful installation and accurate and constant maintenance will ensure you years of safe operation and perfect washing results of your dishwasher. -
Page 4: Cap.2 Dishwasher Handling And Transport
CAP.2 DISHWASHER HANDLING AND TRANSPORT Transport and packing The dishwasher must be transported using suitable means. The appliance must be packed in a cardboard box on a wooden pallet. Handling The hitch points are indicated on the packing box. The dishwasher must be handled using a lift trolley. Do not sling the dishwasher with ropes. -
Page 5: Cap.4 Installation
CAP.4 INSTALLATION 4.1 Removal from packing and positioning: Make sure that the dishwasher is in perfect condition. In case of signs of damage, report them to the seller and haulage contractor. In case of doubt concerning the dishwasher conditions, do not use it before having it checked by an authorised service centre. The installation must be performed exclusively by qualified technicians, according to the manufacturer’s instructions. -
Page 6: Plumbing Connections
4.3 Plumbing connections: To connect the dishwasher to the water network make sure that: There is a “gate valve” that is able to interrupt the water supply when necessary or in case of repair. A supply pipe has been envisaged for each user in order to avoid any load or pressure drops. A pressure reducer complete with by-pass has been installed upstream, if the static pressure is greater than 345 kPa (50 psi). -
Page 7: Adjusting The Controls
Turn on the machine by pressing the line button and the machine will start to charge water. Wait for the water to come out of the rinse arms. Caution: if the tank door is not closed, the machine will not charge the water, so check the door by looking inside the machine baskets outlet. -
Page 8: Adjusting The Amount Of Rinse Aid
Warning for machines without measuring devices: “This machine must be operated with an automatic detergent feeder and, if applicable, an automatic chemical sanitizer feeder, including a visual means to verify that detergents and sanitizers are delivered or a visual or audible alarm to signal if detergents and sanitizers are not available for delivery to the respective washing and sanitizing systems. -
Page 9: Detergent Measuring Device (Optional) Adjustment
The on time can be modified by acting on the following buttons: The measuring device operation is disabled when the value 0 is set. The set time will be automatically saved. To exit this mode just keep the A button pressed until the machine-off dashes are displayed. -
Page 10: Commissioning The Detergent And Rinse Aid Measuring Device
“detergent” with the on time expressed in seconds specified. The on time can be modified by acting on the following buttons: The set time will be automatically saved. To exit this mode just keep the C button pressed until the machine-off dashes are displayed. -
Page 11: Checks And Inspections
The word off switches to on. Keep it on until it is apparent that the detergent delivery pipe has become filled. Again pressing the button go to the wording “rinse aid pump”. Fill the rinse aid measuring device pipes following the same instructions provided for the detergent measuring device. 4.11 Checks and inspections: Check the adjustment screw of the towing system while verifying that it is possible to stop the baskets from going forward with just the force of your hands. -
Page 12: Prevention Measure Recommendations
4.12 Prevention measure recommendations: We recommend you carefully follow the instructions below in order to maintain the dishwasher in perfect and safe operational conditions: Use the appliance only for the purpose it has been designed for. Any other use is considered improper and dangerous. Use baskets suitable for dishes to load and unload the machine. -
Page 13: Using The Dischwascher
Using the dishwasher: Turn the machine on with button A. Water will start charging and then heating automatically turns on. 2) Wait until the machine is ready for washing. When button D lights up green, the machine will be completely ready and then it will be possible to start washing. -
Page 14: Machine Use Precautions
Machine use prec autions : Use industrial-type detergent, possibly without foam. Do not introduce bare hands into the washing water. Arrange cups and glasses upside down inside the baskets. Arrange the dishes in the appropriate basket on the support pins, with the internal surface positioned upward. Arrange silverware and teaspoons with the handles positioned downward. -
Page 15: Dos And Do Nots With The Dishwasher
If the appliance is not used for a prolonged time, lubricate the steel surfaces using liquid paraffin. Have the booster and washing pump drained completely by an expert so as to prevent ice formation. If the machine is not working correctly or in case of failure, contact an authorised service centre. DOS AND DO NOTS WITH THE DISHWASHER MAKE SURE that the water hardness is correct MAKE SURE that the dishes have been pre-cleaned...
