Summary of Contents for Matrix CUBE
- Page 1 MATRIX 24Bit /192kHz ASRC Stereo Audio Processor MATRIX 2-Channel 24-bit 192-kHz ASRC Desktop Digital Audio Processor CUBE User Guide...
-
Page 2: Table Of Contents
MATRIX 24-Bit /192kHz High Performance Stereo Audio Processor Thank you for purchasing MATRIX digital audio processor! This manual booklet provides you with general information that you need before installing and using your audio processor. Enjoy the infinite pleasure brought you by the remarkable performance of CUBE. -
Page 3: Features
Features ● All the following features enable CUBE to explore every small detail in the music for you, and provide you a tactile sensation of its sound performance, with its ultra-high resolution and signal-to-noise ratio, to fully meet your demands for a high-quality Hi-Fi. -

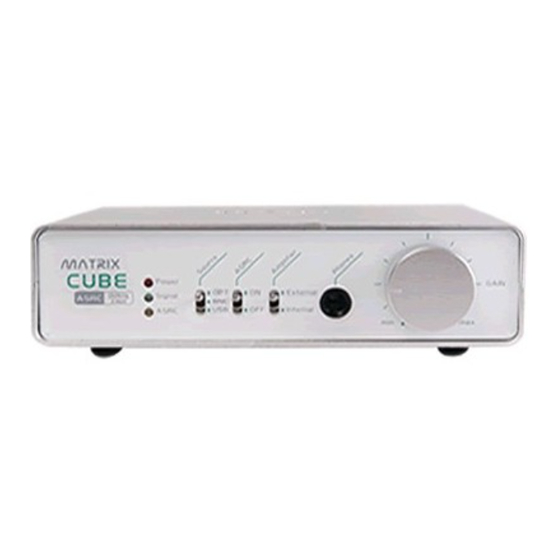

Page 4: Front Panel
MATRIX 24-Bit /192kHz High Performance Stereo Audio Processor Front Panel ● Power Light Signal Indicator ASRC Sampling Rate Increase Indicator Input Channel Switch ASRC Sampling Rate Increase Switch Amplifier Switch Headphone Plug-jack Volume Control Knob Back Panel ● Amplifier L Analog Input... -
Page 5: Settings & Usage
Turn on the power on the back panel, and the power LED will turn red. The initialization completes after about 0.3 second. Then it will enter into the normal working state. If you don't use CUBE for a long time, please turn it off and unplug the power cable. LED Display RED: Power light. -
Page 6: Troubleshooting
AC-3, DTS decoders. USB Driver CUBE’s USB interface works under Win 2K / Win XP / Vista / 7, Linux, Mac OS X, but it does not support AC-3, DTS stream signal transmission. To improve this, installation of the USB driver provided by MATRIX is suggested. -
Page 7: Technical Specifications
MATRIX 24-Bit /192kHz High Performance Stereo Audio Processor PROBLEMS CAUSES SOLUTIONS Power OFF Unplugged into a proper AC Make sure the power Power is turned off cable is connected to a proper AC and turn it ON Signal Digital input cable disconnected or... -
Page 8: Customer Service
NOTE: Specifications subject to changes without prior notice. Customer Service ● From the date of purchase, MATRIX provides you a one-year warranty. This warranty only covers the malfunction of our products caused by the quality problems of the original components or manufacturing issues.
