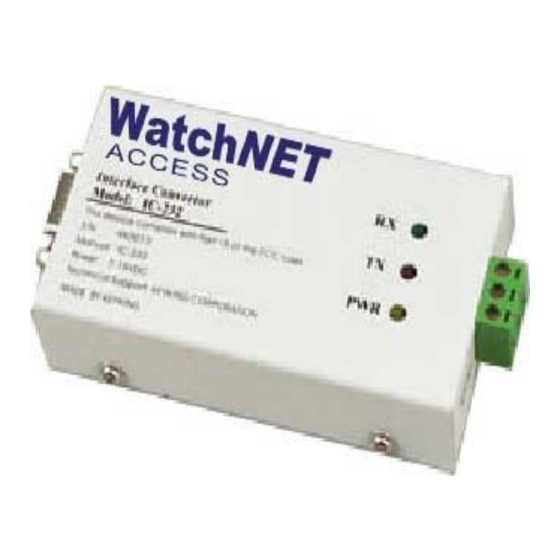

WAA-232-485 Converter Operation Manual
WAA-232-485 Converter
Operation Manual v1.0
3 5 1 F E R R I E R S T R E E T • M A R K H A M , O N • L 3 R 5 Z 2
P H O N E : 4 1 6 - 4 1 0 - 6 8 6 5 / T O L L F R E E : 1 - 8 6 6 - 3 3 1 - 3 3 4 1 • F A X : 9 0 5 - 7 5 2 - 0 1 8 6
W W W . W A T C H N E T A C C E S S . C O M / I N F O @ W A T C H N E T D V R . C O M
Advertisement
Table of Contents
Summary of Contents for WatchNet WAA-232-485

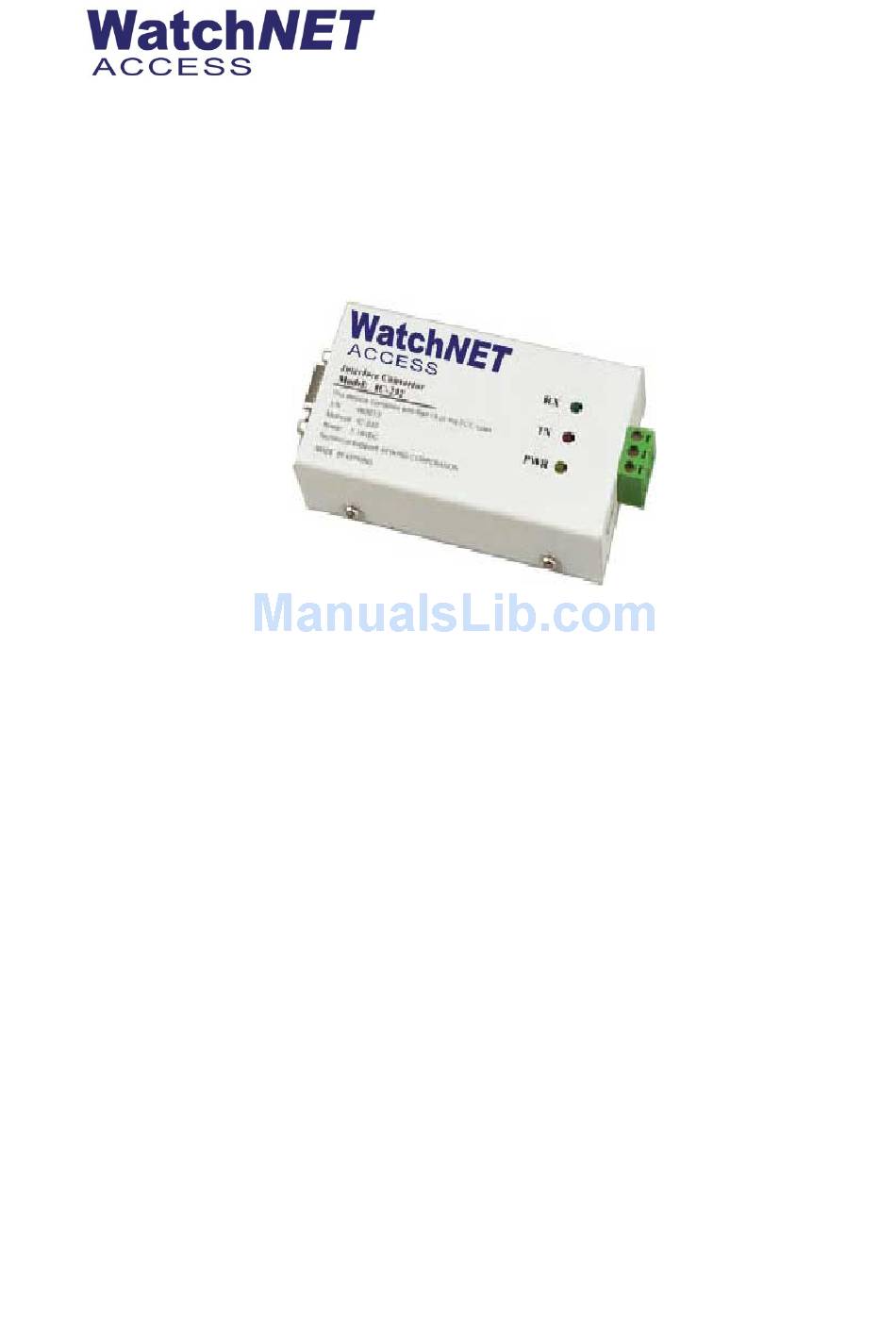

- Page 1 WAA-232-485 Converter Operation Manual WAA-232-485 Converter Operation Manual v1.0 3 5 1 F E R R I E R S T R E E T • M A R K H A M , O N • L 3 R 5 Z 2 P H O N E : 4 1 6 - 4 1 0 - 6 8 6 5 / T O L L F R E E : 1 - 8 6 6 - 3 3 1 - 3 3 4 1 •...
-
Page 2: System Features
1 set of WAA-232-485 can be used to support 32 -128 controllers networked at the same time. Note: Do not use the same source of power supply for the WAA-232-485 and the electrical door lock to avoid electrical sparkle interference. - Page 3 Switch setting and baud rate regulation A) DIP 1-3: the switches 1, 2, 3 are used to set the baud rate. The baud rate is set based on the controller that is connected to the converter WAA-232-485. WAC-XDY controllers support 9,600 bps only.
