Summary of Contents for SEVIC SV150110

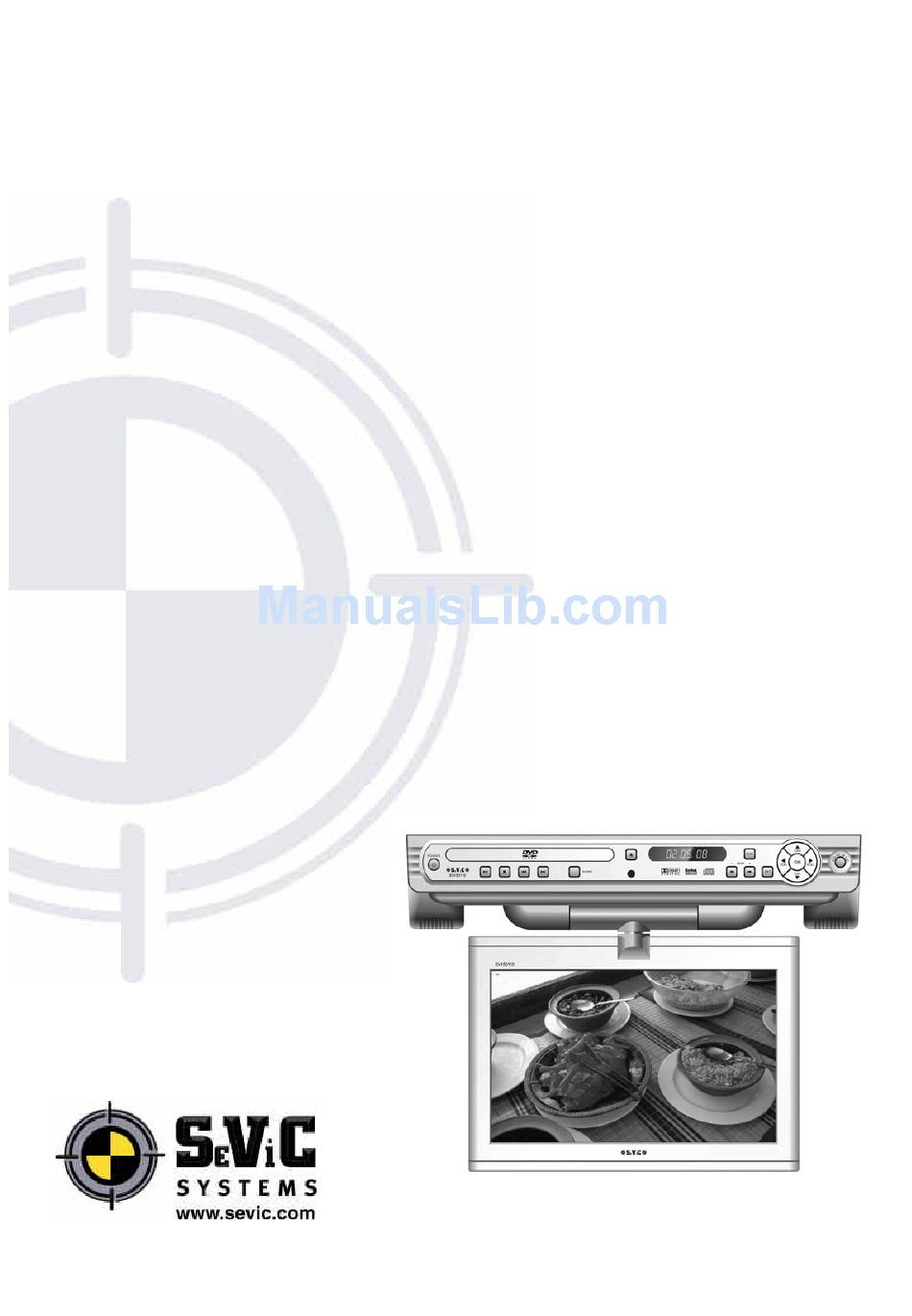

Page 1 KITCHEN CENTER 1 SV150110 - User’s Manual - - 1...
Page 2: Table Of Contents
Table of Contents Important Safety Instruction---------------------------------------------------------------------- Characteristic Features ---------------------------------------------------------------------------- Disc Information -------------------------------------------------------------------------------------- Front Panel --------------------------------------------------------------------------------------------- Rear Panel and Display Panel-------------------------------------------------------------------- Remote Control --------------------------------------------------------------------------------------- System Connections -------------------------------------------------------------------------------- Connecting To External AV Signal Source ----------------------------------------------------- Connecting To TV Signal Input Source--------------------------------------------------------- Connecting To Antenna ------------------------------------------------------------------------------------- Connecting To the Power Adapter ------------------------------------------------------------------------ Connecting to DVB-T Antenna------------------------------------------------------------------------------- DVD Play Operation ----------------------------------------------------------------------------------...
Page 3: Important Safety Instruction
Important Safety Instructions The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of un-insulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
Page 4: Important Safety Instructions
Important Safety Instructions NOTES IMPORTANT FOR LASER PRODUCTS Read, heed and follow all 1. CLASS 1 LASER PRODUCT instructions to ensure correct Visible laser radiation when open and 2. DANGER: interlock failed or defeated. Avoid direct exposure to and safe installation and beam.
Page 5 FCC Notice NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
Page 6: Characteristic Features
Characteristic Features Kitchen Center 1 – 10.2" Amplifier Function Watch your favourite movies and TV Built-in 2x5w stereo amplifier with left shows while cooking a meal… or taking and right speakers. a bath! Kitchen Center 1 fits neatly underneath your kitchen cabinet, Advanced Playing Function shelves in the garage or bathroom.
Page 7: Disc Information
Disc Information Disc Formats Supported By This Player PLAYBACK TIME/ DISC LOGO DIAMETER PLAYABLE SIDES 1 3 3 m i n ( S S- S L ) 2 4 2 m i n ( S S -D L ) 12cm 2 6 6 m i n ( D S- S L ) 4 8 4 m i n ( D S - D L ) 41 min (SS-SL)
Page 8: Front Panel
Front Panel Front Panel Drawing 5.  Button 1. POWER Button Press to enter or exit the STANDBY When DVD disc is playing, press this mode. button once to go to beginning of the current track/chapter. Press it twice to 2.
Page 9 Front Panel EJECT Button value of the hour or minute upward and Press to open or close the disc tray. downward. 14. SET Button 9. Remote Sensor Press to enter and exit the alarm setup Receives remote control signal for menu.
Page 10: Rear Panel And Display Panel
Rear Panel and display panel Rear Panel Drawing 1. ANT INPUT Jack 5. Left/Right AUDIO Input Jack To connect an external antenna to Connection for audio input. receive the TV p rogram in TV mode. 6. VIDEO Input Jack 2. DVB-T Antenna Jack Connection for video input.
Page 11: Remote Control
Remote Control Preparation Using Of Remote Control Point the remote control towards the Refer to the drawing and remove the main unit when operating. The remote empty battery receptacle. control works best at a distance less than 7m and at an angle of up to 60°to the front of the unit.
Page 12: Remote Control
Remote Control Remote Control Drawing 1. POWER Button turn subtitle off when a DVD disc with Press access exit multi-subtitles is playing. STANDBY mode. 3. DVD Button 2. SUBTITLE Button Press to enter DVD mode. Press to select a subtitle language or - 12 -...
Page 13 Remote Control 4. TV Button In DVD mode, press to activate fast Press to enter TV mode. forward playback. 5. AV Button 13. (PLAY) Button Press to enter external AV source input Press to start playback in DVD mode. mode. 14.
Page 14 Remote Control EJECT Button Press to turn On/Off the LCD screen Press to open or close the disc tray. display. 28. LCD/SETUP Button 20. AUDIO Button Press once to enter the PICTURE Press access various audio setup menu. Then press the button to languages when the DVD disc contains enter the TV SETUP menu in TV mode.
Page 15: System Connections
System Connections  Do not connect the power cord until all other connections have been made.  Each time you restart the unit, it remembers the last function used.  Please make all the connections before installing the unit in the kitchen. Connecting To External AV Signal Source Connections should be made as follows: Connect the L/R audio cables according to the marks on the rear panel of the unit:...
Page 16: Connecting To Antenna
System Connections Connecting To Antenna Connect the supplied AM/FM antennas to listen to the radio.  In order to improve the signal, move AM loop antenna away from system and other equipment.  Extend FM antenna fully.  Keep the FM antenna as horizontal as possible after connection. ...
Page 17: Connecting To The Power Adapter
System Connections Connecting To the Power Adapter This unit is powered via the switching power adapter (supplied). See the below figure for details: 1. Connect the AC adapter to jack marked with “DC 12V IN” on the rear panel of the unit.
Page 18: Dvd Play Operation
DVD Play Operation Preparation Install the unit in the kitchen; refer to page 38 for details. After connecting the unit to the AC power, turn on the unit’s power by pressing the POWER button on the front panel or the remote control. Press the DVD button on the remote control or the SOURCE button on the front panel to shift to DVD mode.
Page 19 DVD Play Operation Subtitle A DVD disc can be recorded with up to 32 subtitles. Press the SUBTITLE button on the remote control during playback to select the one you prefer. NOTE: This function is only available for DVD discs that are recorded with multi- subtitles.
Page 20 DVD Play Operation MPEG4 Playback Load a MPEG4 disc in the disc tray, the player will search and play disc automatically. The screen displays the Root Folder. Use the, buttons to select a desired folder. Then you can press any of the buttons below to confirm your selection: , ENT, OK or (PLAY) button.
Page 21: Dvd Playback Functions
DVD Playback Functions Stop During playback, press the (STOP) button once to stop playback of a disc. Press the (PLAY) button and the DVD Player will resume playback of the disc from the point where it was stopped. Pause Press the(PAUSE) button on remote control or the (PLAY/PAUSE) on the front panel to pause playback.
Page 22 DVD Playback Functions Search By Time During DVD disc playback, press the GOTO button on the remote control once, there will be a menu displayed on the screen. You can set or select items for your preference. Use the , direction buttons to select items, press the OK button to enter and use the ...
Page 23: Dvd System Setup
DVD System Setup DVD Setup You can customize the set up menu to your own preference. Press the “DVD/DVB SETUP” button on the remote control to display the setup menu. The menu will include “General Setup Page”, “Speaker Setup Page”, “Dolby Digital Setup”, “Video Setup Page”, and “Preference Page”.
Page 24: Lcd Setup
DVD System Setup Dynamic Use this item to adjust linear dynamic compression rate to get different signal compression effects. Video Setup Sharpness Use this setting to adjust the sharpness level . Brightness Use this setting to adjust the brightness level. Contrast Use this setting to adjust the contrast level.
Page 25: Tv Function
TV Function Connect the antenna to the antenna jack on the rear panel. After connecting the antenna, connect the power supply cord. If the player is in standby mode, press the POWER button to turn on the power. Press the TV button on the remote control or the SOURCE button on the front panel to shift to TV mode.
Page 26 TV Function Use the ▼, ▲ buttons t o select the it em you want to set. Use the ►, ◄ buttons t o select the it em and enter it. First use the ▼,▲ buttons to highlight the T V SETUP, and then press the ► button on the remote control to exit from the setup menu, and press the ◄...
Page 27 TV Function The auto memory will take a few minutes. The unit will search channels from the lowest channel to the highest channel in the standard channel list. When tuning operations are complete the unit will exit and store the channels by sequence in the memory.
Page 28: Av Function
AV Function AV Function The player has an additional AV input so it can function as a monitor for a DVD player, video cassette player, satellite receiver, video game, etc. When an AV source is connected, press the AV button on the remote control or the SOURCE button on the front panel to enter external input AV mode.
Page 29: Radio Function
Radio Function Radio Function Operation Press the FM/AM button on the remote control or the SOURCE button on the front panel to enter FM or AM radio mode. Then press and hold the / (SEEK+/SEEK-) buttons for about 1.5 seconds to start searching forward/backward from the current frequency.
Page 30: Dvb-T Setup
DVB-T Setup Preparation Connect the unit to the power. Press the DVB-T button on the remoter control or the SOURCE button on the front panel to shift to DVB-T mode. Press the DVD/DVB SETUP button on the remote control to enter the DVB-T setup menu.
Page 31 DVB-T Setup Time Setting Press the ,  direction buttons to select Time Setting, press the OK/ENT button to enter the Time Setting menu, the screen will display as below: In this menu, press the ,buttons to select menu items, press OK/ENT button to enter. Press the EXIT button to return.
Page 32 DVB-T Setup 1. Menu Language Select Menu Lang, press the button to enter the item, and then press the ,  buttons to select different menu language, press the OK/ENT button to confirm selection. During setting, press the EXIT button to return. 2.
Page 33 DVB-T Setup Advance Setting Press the , buttons to select Advance Setting, press the OK/ENT button to enter, the screen will display as below: In the menu, use the number buttons to input the pin code, press the OK button to confirm. The default code is:888888 When input the PIN code, press the OK button to enter the menu shown as below: In the menu, press the ,buttons to select items.
Page 34 DVB-T Setup 4. Clear Channels Press the , button to select Clear Channels, then press the OK/ENT button to clear all the channels, or press EXIT button to return. Channel Setting Select the Channel Setting, press the OK/ENT button to confirm and enter the channel setting menu, as shown below: In the channel setting menu, press the ,direction buttons to select the item you want to set up, press...
Page 35 DVB-T Setup 3. TPS Select the TPS, use the number buttons to input, press the  button to delete the incorrect input. Press the  button to enter the character or number list. In the list, press the direction buttons to select character or number, press the OK button to confirm the input.
Page 36 DVB-T Setup Channel List Select the Channel List, press the OK/ENT button to confirm and enter, the screen will display as below: For the first time setting, you should add some programs into the channel list. Press the OK/ENT button to start playback, press the  button to select TV or Radio, press theright direction button to display a menu.
Page 37 DVB-T Setup In the channel list, the set program will be displayed with the name and Index. You can go on with some operation on the set program. First press the  button, then use the , buttons to select Add, Modify, Delete, Lock/Unlock or Move.
Page 38 DVB-T Setup Select EPG, press the OK/ENT button to enter, the screen will display as below: ,buttons select channel, press the OK button to booking channel, press the EXIT button to return. System Info Select System Info, press the OK button to enter, the screen will display as below: In the menu, press the ,direction buttons to select the item, press the OK button to enter.
Page 39: Installation
Installation NOTE: Before installing the unit in the kitchen, please make all the connections. Installing the unit under a cabinet The player unit may be installed in the kitchen with or without the spacer. The suggested mounting position of the unit is under a wall cabinet. See drawings below: NOTE: The dimensions of the player: 7.9cm H x 37.2cmW x 28.7cmD There should be at least 35 mm distance between the unit and the wall.
Page 40 Installation Mark the position of the 4 holes of screw by using the supplied paper template. Drill four holes with diameter of 6.5mm. If the cabinet door overhangs the shelf and obstructs the unit, adjust the unit or the shelf height for clearance. As shown in the above figures, install the unit with the supplied mounting screws and spacers step by step.
Page 41: Troubleshooting
Troubleshooting SYMPTOM CHECK ITEM  Make sure a disc is loaded.  Make sure the disc is loaded with label side up.  Disc should be clean, not dirty or warped.  Player’s region code should be the same as the region The player cannot play.
Page 42: Specifications
Specifications LCD Screen Size 10.2 inches Laser Wavelength Wavelength: 780/650nm Video System Frequency Response 20Hz~20kHz ±2.5dB ≥85 dB Audio Signal-to-Noise ≤-70dB (1KHz) Audio Distortion + Noise ≥ 70dB (1KHz) Channel Separation ≥ 80dB (1KHz) Dynamic Range System Radio 531~1602KHz Frequency Range 87.5~108MHz Power...
Page 43: Warranty
The law courts of Luxembourg are exclusively competent. 10) For all information con tact: SEVIC SYSTEMS Luxembourg S.A., Zone Industrielle Breedewues L-1259 Senningerberg, Luxembourg Phone: (+352) 26 34 57 29 / Fax: (+352) 26 34 57 27 / Email: svc@sevic.com / www.sevic.com - 43 -...
