Summary of Contents for Beef Eater Bugg STAND
-

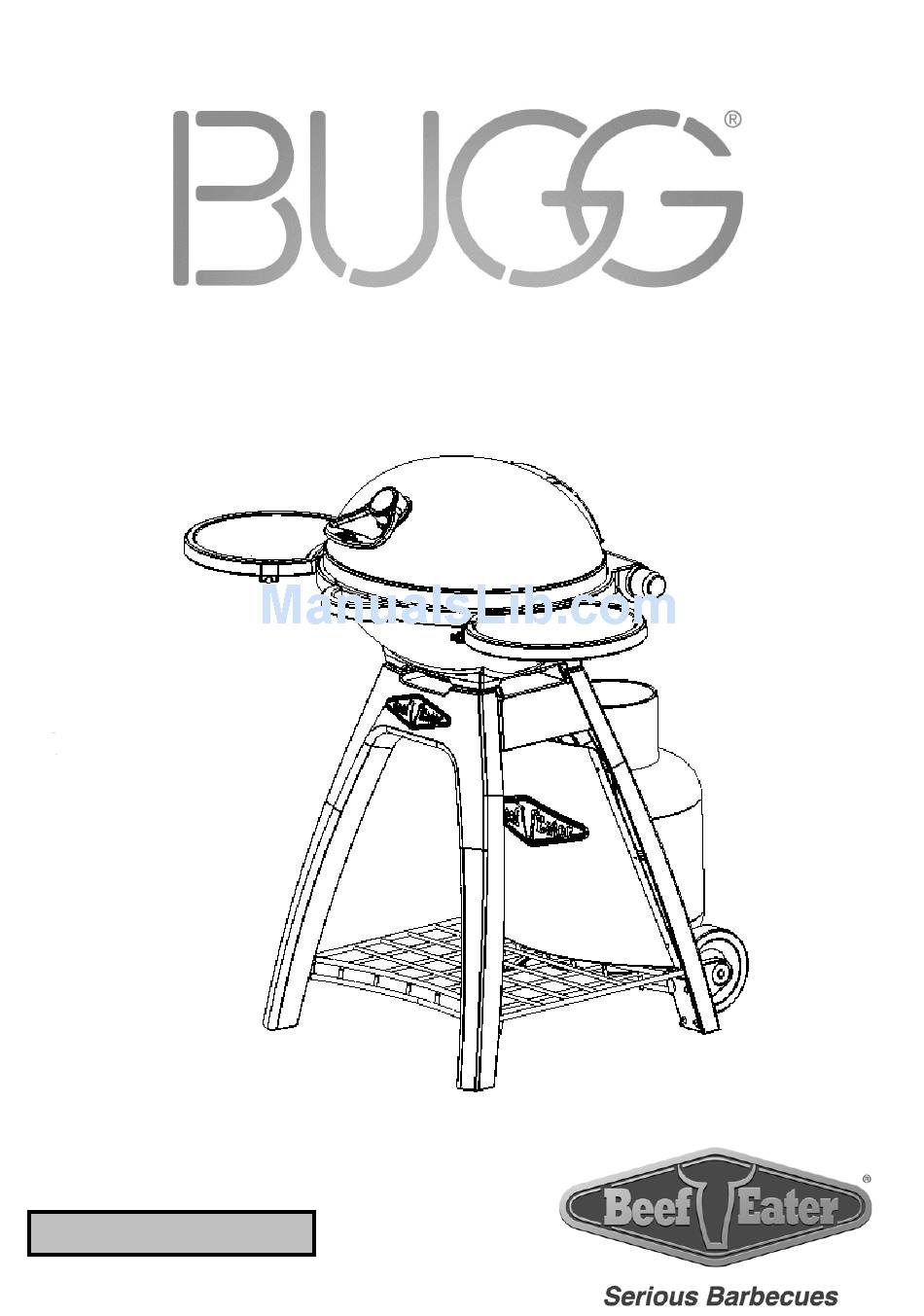

Page 1: Assembly Instructions
STAND Assembly Instructions FOR OUTDOOR USE ONLY... - Page 2 Content: Index Description Quantity Top Connecting Panel Front Shelf Brackets 1R + 1L Wheel Bracket 1R + 1L Cylinder Hook Silicone Feet Wire Shelf Wheel Shaft Hub Caps Cylinder Shield Fasteners Screw , 16mm (black) Screw , 25mm (stainless Steel) Spring Washer Screw, 8mm Circlip...
- Page 3 ASSEMBLY 1. Assemble Front leg: [ 4 x A, 4 x B ] Place the Leg (1) on a padded flat, level surface and assemble the two Front Shelf Brackets (3). Insert two Silicone Feet (6) to the bottom hole, and pull until rest against bottom of leg. 2.
- Page 4 3. Assemble Stand: [ 8 x A, 8 x B ] Attach the Top Connecting Panel (2) with four screws to the Front Leg and four more screws to the Back leg: 4. Assemble the wheels: [2 x D] Wheels (8) are placed on the inside of brackets. Insert the shaft (9) from the Wheel Bracket side inwards, and lock with a Circlip.
- Page 5 5. Fit the Wire Shelf [ 4 x A1, 4 x B ] The Wire Shelf (7) has two plates, and two hooks. The hooks are facing forward, and will engage into the Front Shelf Brackets (3) assembled in step 1. The plates have two holes each through which screws go into Back Leg: 6.
-
Page 6: Warranty
Should any part fail due to defective workmanship or faulty materials within the specified period from the date of purchase, BeefEater or its distributor will repair or, (at distributors option), replace the defective part free of charge. For the exact terms and conditions of the warranty for this product, please refer to page 11 of the Barbecue instructions book. -
Page 7: For Your Records
B05 0004 Instruction trolley Bolt Pack trolley B09 0024 Images in this manual are for illustrative purposes only. Due to constant improvement, BeefEater advises that changes to the design, material, specifications and product configuration may occur at any time without notice. - Page 8 Woodland Home Products 3-5 Birmingham Av, Chester Hill, NSW, Australia, 2162 Phone: 1800 356 660 Facsimile: 02 9724 8899 E-mail: mail@beefeaterbbq.com Website: www.beefeaterbbq.com USA Toll Free: 1866 550 2333 Bugg_Sta_Ins_Au_V0.1...
