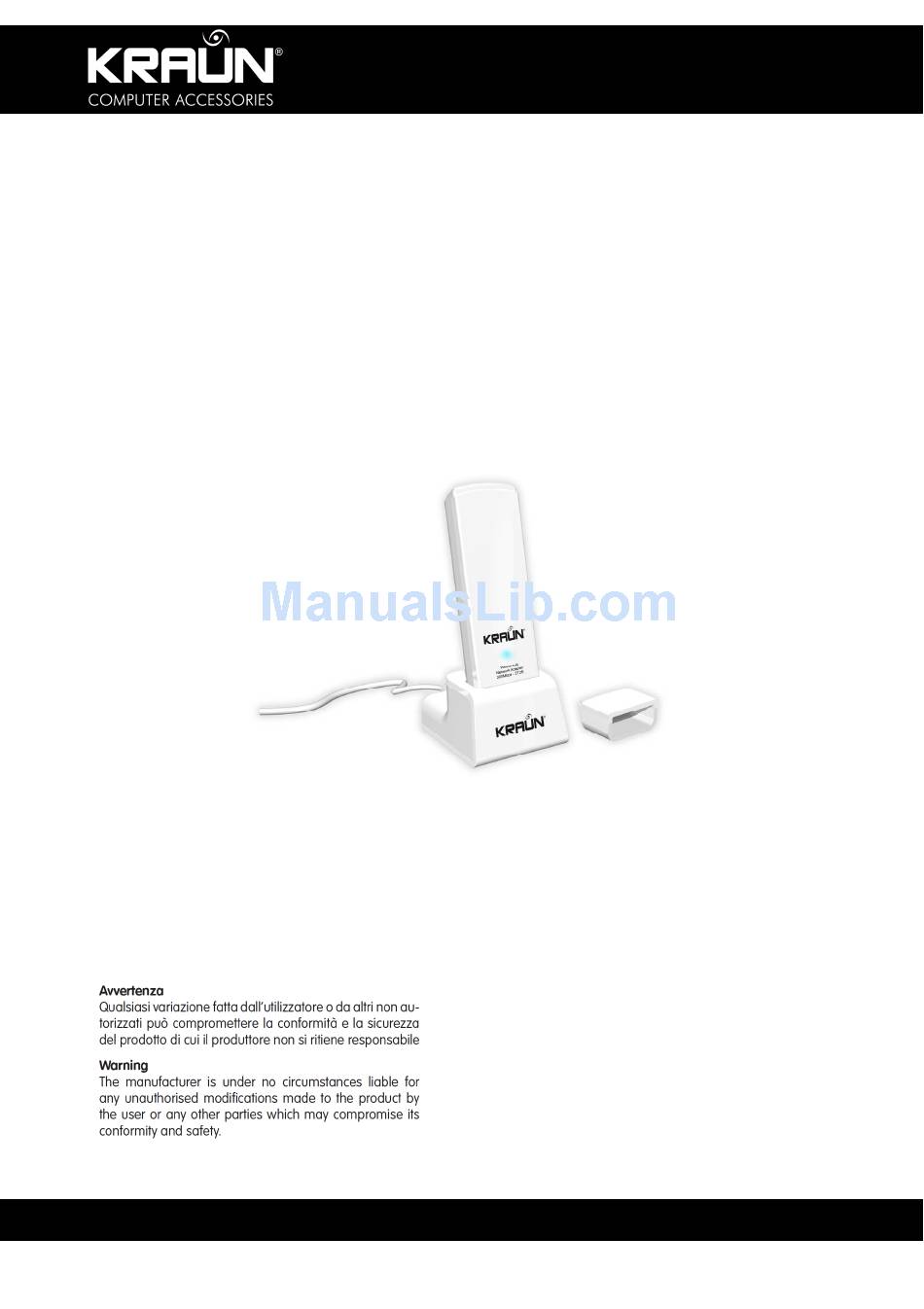

- Page 1 Wireless- - - - N Network Adapter Wireless N Network Adapter Wireless Wireless N Network Adapter N Network Adapter 300Mbps / 2T2R 300Mbps / 2T2R - - - - USB 300Mbps / 2T2R 300Mbps / 2T2R Guida d'utente User Guide Cod. KR.6N...
- Page 2 Wireless-N Network Adapter 300Mbps / 2T2R - USB www.kraun.it...
- Page 3 Wireless-N Network Adapter 300Mbps / 2T2R - USB Dichiarazione di conformità sintetica Ai sensi dell’art. 2 comma 3 del D.M. 275 del 30/10/2002 Si dichiara che questo prodotto è conforme alle normative vigenti e soddisfa i requisiti essenziali richiesti dalle direttive...
-
Page 4: Table Of Contents
Wireless-N Network Adapter 300Mbps / 2T2R - USB Contents Chapter 1 Introduction ..............5 1.1 Product Feature ..............5 1.2 Product Deployment .............6 1.3 Indicator Description .............6 1.4 Package Contents..............6 Chapter 2 Installation Guide ............7 Chapter 3 Client Utility Interface ............ 11 3.1 Station Mode ............... -
Page 5: Chapter 1 Introduction

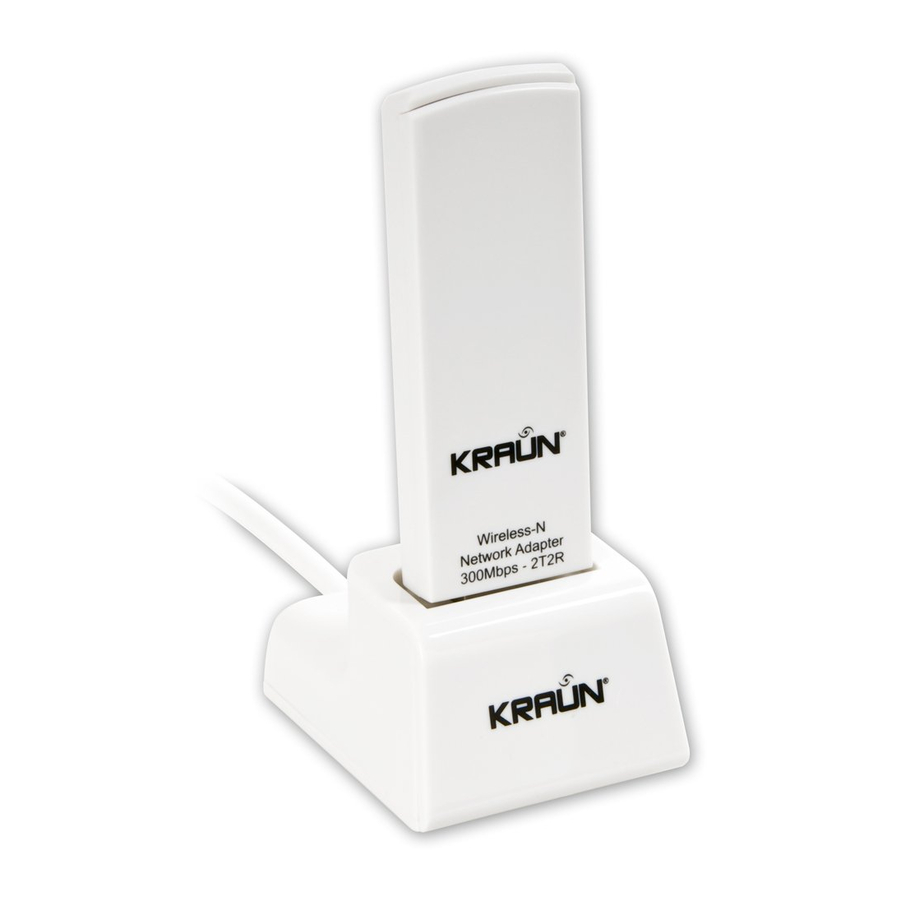

Wireless-N Network Adapter 300Mbps / 2T2R - USB Chapter 1 Introduction KR.6N Wireless USB Adapter complies with IEEE802.11b, IEEE 802.11g standards and provides up to 300Mbps data transmission rate. Operating it as a Soft AP allows you to set up a wireless LAN network quickly and inexpensively. -
Page 6: Product Deployment
Wireless-N Network Adapter 300Mbps / 2T2R - USB 1.2 Product Deployment KR.6N Wireless USB Adapter offers fast, reliable and cost- effective solution for wireless access. Deployment as follows; • For staffs that require a high degree of mobility in the office or if they access to traditional wired or wireless network in any place of the company is required. -
Page 7: Chapter 2 Installation Guide
Wireless-N Network Adapter 300Mbps / 2T2R - USB Chapter 2 Installation Guide This chapter is to assist you to install the device using the Setup Wizard and the Client Utility Interface located on the CD-ROM that came with your device. - Page 8 Wireless-N Network Adapter 300Mbps / 2T2R - USB 3. Insert the included CD-ROM into the CD-ROM drive of your computer. If ‘Autorun’ is enabled on your PC then the Welcome Screen appears. (If it does not, navigate to the Setup program on the CD-ROM and double-click the “Setup.exe”...
- Page 9 Wireless-N Network Adapter 300Mbps / 2T2R - USB 6. Click “Change…” to select an installation path other then the recommended default path, or click “Next” to accept the default. 7. Select “OK”. 8. Click “Next”. www.kraun.it...
- Page 10 Wireless-N Network Adapter 300Mbps / 2T2R - USB 9. During the installation, the following dialogue may appear. Click “Continue Anyway” to continue. There is no security threat to your computer. 10. Click “Finish” to complete the installation. www.kraun.it...
-
Page 11: Chapter 3 Client Utility Interface
300Mbps / 2T2R - USB Chapter 3 Client Utility Interface This software is for the Wireless USB Adapter management. If it does not appear, select “Start”—“All Programs” —“Kraun”—“KR.6N”, or click the shortcut on your PC’s desktop. Note: In Windows XP, you may select the included KR.6N Client Utility Interface or configure the device using the Windows XP internal wireless application. -
Page 12: Status
Wireless-N Network Adapter 300Mbps / 2T2R - USB 3.1.2 Status The Network Status window displays details concerning the Wireless Network Adapter and Network Status, including SSID, Authentication Type, Encryption Type, IP Address, Subnet Mask and Gateway. www.kraun.it... -
Page 13: Site Survey
Wireless-N Network Adapter 300Mbps / 2T2R - USB 3.1.3 Site Survey The Site Survey is used to scan for available wireless networks, showing signal strength and other relevant information, enabling you to select and access an available wireless network for which you have access privileges. -
Page 14: Profile Management
Wireless-N Network Adapter 300Mbps / 2T2R - USB 3.1.4 Profile Management This window saves the general wireless parameters for different profiles, allowing you to quickly connect to the desired wireless network. UP/DOWN: To change the profile sequence list. Connect: To activate the selected profile. - Page 15 Wireless-N Network Adapter 300Mbps / 2T2R - USB (Site Status) (Security Setting) www.kraun.it...
-
Page 16: Statistics
Wireless-N Network Adapter 300Mbps / 2T2R - USB 3.1.5 Statistics Statistics is used to summarize Rx and Tx data packets, including the success and error packet amount. Clear: click this button to renew the statistics. www.kraun.it... -
Page 17: Wps Setting
Wireless-N Network Adapter 300Mbps / 2T2R - USB 3.1.6 WPS Setting WPS setting is enabled only on WPS-compliant devices. PIN: Enter the Pin code and click the “PIN” to automatically connect the wireless adapter with available wireless devices. PBC: Click the “PBC” to complete auto-check and connections between wireless adapter and other wireless device. -
Page 18: Ap Mode
Wireless-N Network Adapter 300Mbps / 2T2R - USB 3.2 AP Mode 3.2.1 AP Mode Topology The device also can serve as an access point to transmit wireless signals and create wireless network, allowing other wireless clients to access the network. -
Page 19: Basic Setting
Wireless-N Network Adapter 300Mbps / 2T2R - USB 3.2.2 Basic Setting This window is used to configure the AP’s basic parameters, including SSID, Wireless Mode and Channel. SSID: Wireless network’s ID name scanned by wireless adapter. Wireless Mode: 802.11b/802.11g/802.11b/g mixed. -
Page 20: Security Setting
Wireless-N Network Adapter 300Mbps / 2T2R - USB 3.2.3 Security Setting This window is used to configure the wireless network’s security authentication, providing WEP, WPA-PSK, WPA2-PSK, and WPA- PSK/WPA2-PSK encryption methods. WEP: 10 or 26 bits Hex, 5 or 13 ASCII support. -
Page 21: Access Control
Wireless-N Network Adapter 300Mbps / 2T2R - USB 3.2.4 Access Control Access Control is based on the MAC address to decide that the specified client connects to the wireless network, or disables it to access the wireless network. Filter Policy: Disabled: To disable the filter function. -
Page 22: About
Wireless-N Network Adapter 300Mbps / 2T2R - USB 3.2.5 About This window displays soft- and firmware version numbers and other details of the device. www.kraun.it... -
Page 23: Appendix One: Acronyms And Terms
Wireless-N Network Adapter 300Mbps / 2T2R - USB Appendix One: Acronyms and Terms WLAN Wireless Local Area Network 802.11 A family of specifications developed by the IEEE for WLAN technology. 802.11a An extension to 802.11 WLAN standard that provides up to 54 Mbps transmission in the 5 GHz UNI radio band. -
Page 24: Appendix Two: Product Specification
Wireless-N Network Adapter 300Mbps / 2T2R - USB Appendix Two: Product Specification IEEE802.11g, IEEE802.11b, Standard IEEE802.11n Port USB2.0 Frequency Range 2.4～2.4835GHz 130Mbps, 117Mbps, 104Mbps, 78Mbps, 52Mbps, 39Mbps, 26Mbps, 13Mbps, 65Mbps, 58.5Mbps, 52Mbps, 39Mbps, 26Mbps, 19.5Mbps, 13Mbps, Transmission Rate 6.5Mbps, 54 Mbps, 48 Mbps, 36 Mbps, 24 Mbps, 18 Mbps, 12 Mbps, 9 Mbps, 6 Mbps, 11 Mbps, 5.5 Mbps, 2 Mbps, 1... -
Page 25: Appendix Three: How To Connect With Psp
Wireless-N Network Adapter 300Mbps / 2T2R - USB Appendix Three: How to connect with PSP 1. Topology of PSP connection with KR.6N 2. To configure PSP in Ad-Hoc mode 2.1 Select Network Settings 2.2 Select Ad-Hoc mode www.kraun.it... - Page 26 Wireless-N Network Adapter 300Mbps / 2T2R - USB 2.3 Select Channel 3. Using the Client Utility Interface scan PSP and double-click to connect the desired wireless network. www.kraun.it...
- Page 27 Wireless-N Network Adapter 300Mbps / 2T2R - USB 4. Using Site Survey, check “enable PSP connection mode” box. www.kraun.it...
- Page 28 Wireless-N Network Adapter 300Mbps / 2T2R - USB 5. To configure Xlink Kai Select “Start”→ “All Programs” → “Xlink Kai Evolution VII” → “Start Kai Config” to configure the user name, password and other parameters as follows. 6. Login Xlink Kai Select “Start”→...
- Page 29 Wireless-N Network Adapter 300Mbps / 2T2R - USB www.kraun.it...
- Page 30 Wireless-N Network Adapter 300Mbps / 2T2R - USB www.kraun.it...
- Page 31 Wireless-N Network Adapter 300Mbps / 2T2R - USB www.kraun.it...
- Page 32 Wireless-N Network Adapter 300Mbps / 2T2R - USB Wireless- - - - N Network Adapter Wireless N Network Adapter Wireless Wireless N Network Adapter N Network Adapter 300Mbps / 1T1R 300Mbps / 1T1R - - - - USB 300Mbps / 1T1R 300Mbps / 1T1R UG_v1.0_10/09_KR.6N...
