Summary of Contents for i Display Six Cell Docking Station

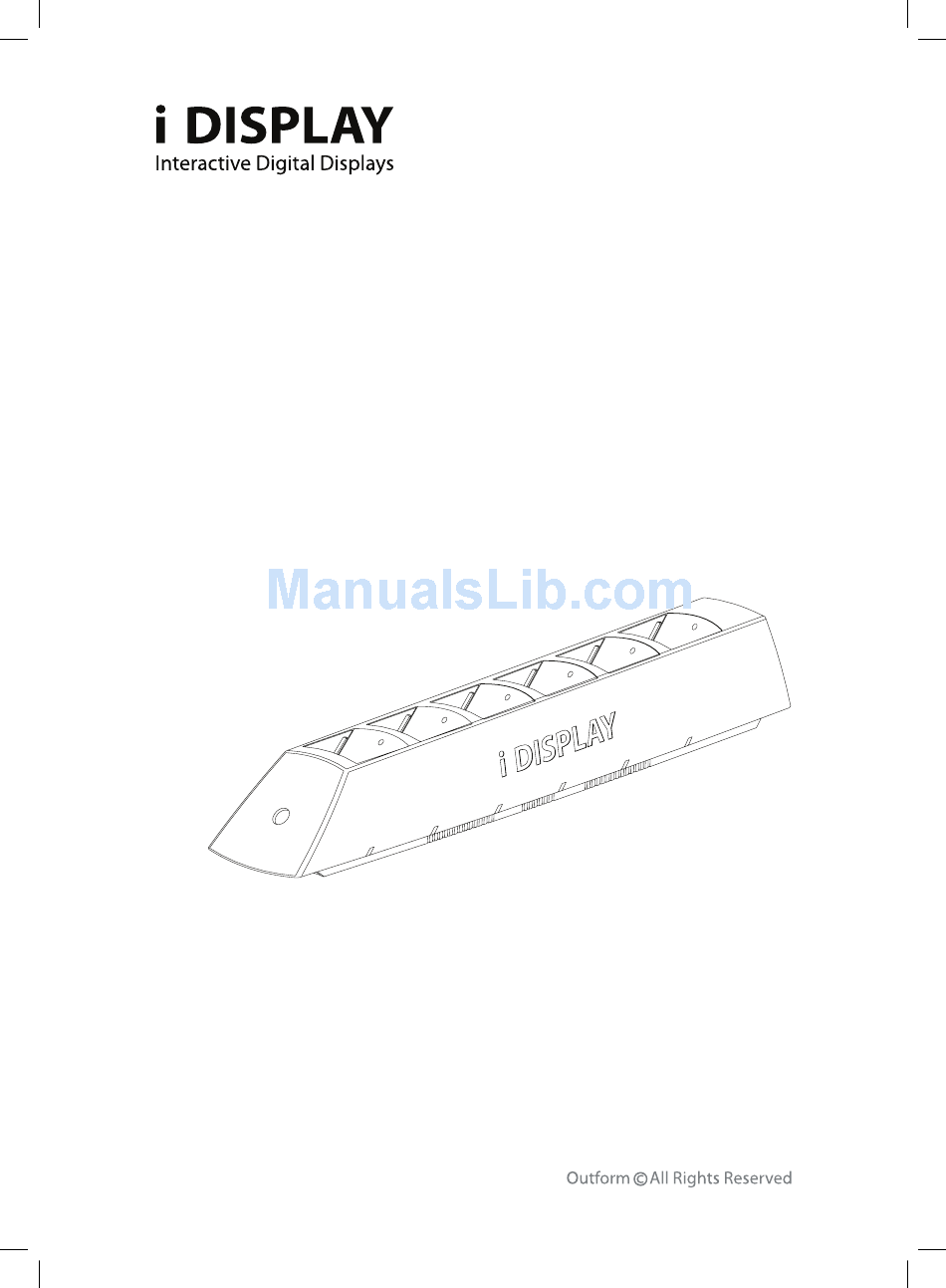

- Page 1 Six Cell Docking Station User Manual...
- Page 2 Index Safety and Warnings Main Supply Main Adaptor FCC Radiation Exposure Statement Warning Overview Components Features Operating Instructions Quick Start Specifications Power Supply Unit Electrical Data Troubleshooting...
- Page 3 Thank you for purchasing an Outform I Display product. Before you start to use your new I Display product, please read the user manual carefully to enjoy I Display performance and a longer service life. Keep this manual in a safe place for future reference.
-
Page 4: Safety And Warnings
Safety and Warnings Main Supply This equipment is designed to operate from a 100-240 Volt, 50/60Hz AC main supply. The use of other power sources may damage this equipment. Check that the voltage marked on the rating plate located at the rear of the power adaptor states 100-240V. -
Page 5: Fcc Radiation Exposure Statement
Consult the dealer or an experienced radio / TV technician for help. In accordance with FCC requirements, changes or modifications not expressly approved by manufacturer could void the user’s authority to operate this product. FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. - Page 6 Overview Components Six Cell Docking Station Power Supply Unit User Manual Features Hole for wall mount The power socket: Power supply LED indicator: charging status indicator Components / Features...
-
Page 7: Quick Start
Operating Instructions Quick Start Remove the 6 cell docking station from the package and place it on a desk. Take out the power adaptor Connect the power cable of the adaptor to the docking station Connect the adaptor to the electricity Important note: •... -
Page 8: Specifications
Specifications Charging time 4-5 hours. Power Supply Unit Power Adaptor: Input 100-240V 50/60Hz, 1.8A Output 12V , 12000mA. Troubleshooting Problem Troubleshooting LED indicator is off 1. Make sure the charging unit is connected to power supply 2. Make sure the battery is inserted to the charging unit in the right direction Specifications / Power Supply Unit / Troubleshooting... - Page 9 For further information or support, please contact: support_iView@i-display.com...
