INSTRUCTION MANUAL

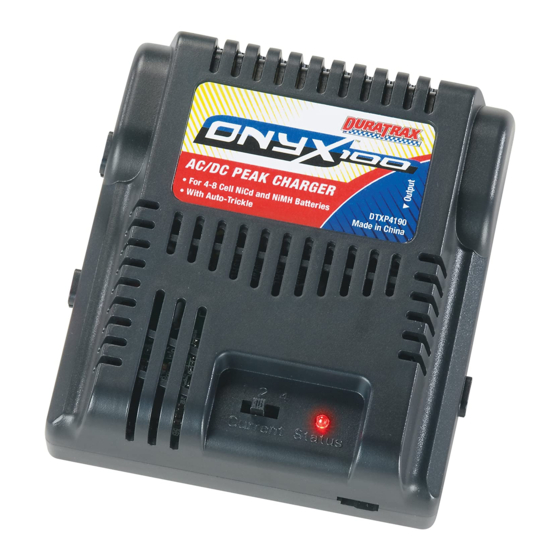

The Onyx 100 charger is perfect for entry-level electric car or boat
modelers who want automatic peak detection charger for NiCd and
NiMH batteries, and that will accept AC or DC input power. Selectable
charge currents range from 1 to 4 amps, for cells as small as 600mAh
"AAA" and as big as sub-C size – good for 1/18
models. A unique jack is built-in which is handy for charging 4, 5, or 8
cell radio batteries! The small size and light weight make the Onyx 100
charger easy to use at home, or to take to the track.
It is strongly recommended to completely read this manual before use! Damage resulting from misuse
or modification will void your warranty.
SPECIFICATIONS
AC input:
DC input:
Battery types:
Battery capacity range:
Fast charge current:
Fast charge termination:
Fast charge safety timer:
Peak sensitivity:
Auto-trickle current:
Controls:
LED indicator:
Output connections*:
Protective devices:
Case size:
Weight:
*
Charge adapters available separately:
™
• Standard to Vendetta
, Mini Quake
®
• Standard to Futaba
Tx Charge Jack (DTXP4151)
• Standard to Airtronics
®
/Hitec
®
• Standard to JR
/Spektrum
®
®
• Standard to Deans
Ultra
SPECIAL FEATURES
• Tiny, lightweight built-in switching AC power supply is great for portability and small pit areas.
• Selectable charge currents of 1A, 2A, and 4 amps with auto-trickle function.
• Peak detection intelligence eliminates the need for tracking the charge state of the battery before charge, and an
automatic trickle charge tops off packs to maximum power.
• An auto-start function with status LED make setup and use a snap.
• Compatible with nickel-cadmium (NiCd) and nickel-metal hydride (NiMH) battery types.
• Includes a built-in socket for charging 4- or 5-cell receiver batteries, and even 8-cell transmitter batteries.
• A DC power lead with alligator clips easily connects to many types of 12V DC power sources.
• Solid-state reverse polarity and current overload safety devices ensure trouble-free operation.
®
110V AC 60Hz
11-15V DC, built-in lead with alligator clips
4-8 NiCd or NiMH Cells (4.8-9.6V, limited to 7 cells on DC)
600-6000mAh
1, 2, or 4A linear (2A limit on AC)
peak detection
90 minutes
8mV
1/20 fast charge setting
auto-start, switchable current selector
red
built-in lead with standard connector
built-in jack for charging 4, 5, or 8 cell radio packs
solid-state reverse polarity and current overload
3.5 x 4.1 x 1.1" (90 x 104 x 29mm)
9.17 oz (260 g)
™
, RS4 Battery (DTXC2210)
®
Tx Charge Jack (DTXP4152)
®
Tx Charge Jack (DTXP4153)
male (GPMM3131)
th
to 1/8
th
scale electric
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Duratax Onyx100
-
Page 1: Instruction Manual
INSTRUCTION MANUAL The Onyx 100 charger is perfect for entry-level electric car or boat modelers who want automatic peak detection charger for NiCd and NiMH batteries, and that will accept AC or DC input power. Selectable charge currents range from 1 to 4 amps, for cells as small as 600mAh “AAA”... -
Page 2: Input Power
IMPORTANT PRECAUTIONS Disconnect the battery and remove input power from the charger immediately if the charger becomes hot!! • Do not attempt to charge any battery types other than NiCd or NiMH as permanent damage to the battery and charger could result. •... -
Page 3: Controls And Connections
CONTROLS AND CONNECTIONS OUTPUT LEAD: The standard connector is compatible with 110V AC INPUT most R/C car batteries. See the SPECIFICATIONS chart on page 1 for a list of additional adapters for charging battery types with different connectors. 12V DC INPUT CURRENT SELECTION SWITCH STATUS LED: Identifies when a battery has been connected... -
Page 4: Starting Charge
STARTING CHARGE Linear current will be supplied to NiCd and NiMH batteries during charge. Once the charger detects that the battery’s voltage has reached peak, it will automatically stop fast charge and start trickle charge. 1. For 6- or 7-cell power batteries, connect the battery to the charger’s output lead. Make sure the polarities of the battery and charger’s leads match (red charger wire to red battery wire, black charger wire to black battery wire). -
Page 5: Error Indicators And Troubleshooting
ERROR INDICATORS AND TROUBLESHOOTING GUIDE Several safety features are included in this charger to protect itself and the battery against certain unwanted conditions, as follows: TROUBLESHOOTING CHART LED ACTION PROBLEM AND SOLUTION Flashes once every 2 seconds 90 minute safety timeout occurred. Charge current setting is too low. Battery might have internal problem and require replacement. - Page 6 OTHER ITEMS AVAILABLE FROM DURATRAX ® ™ DuraTrax Shark 6C 1500mAh Sport NiCd High capacity at a low price equals BIG value — and that’s the perfect description for this 6-cell pack. It’s ideal for sport drivers and backyard bashers, delivering 1500mAh of capacity at a very affordable price.
- Page 7 ® ™ DuraTrax IntelliSpeed Auto Sport Electronic Speed Control The Auto Sport may be a “start-up” ESC, but it also offers traction control, automatic set-up and the ability to handle motors down to 20 turns. Add in the unit’s proportional forward;...
