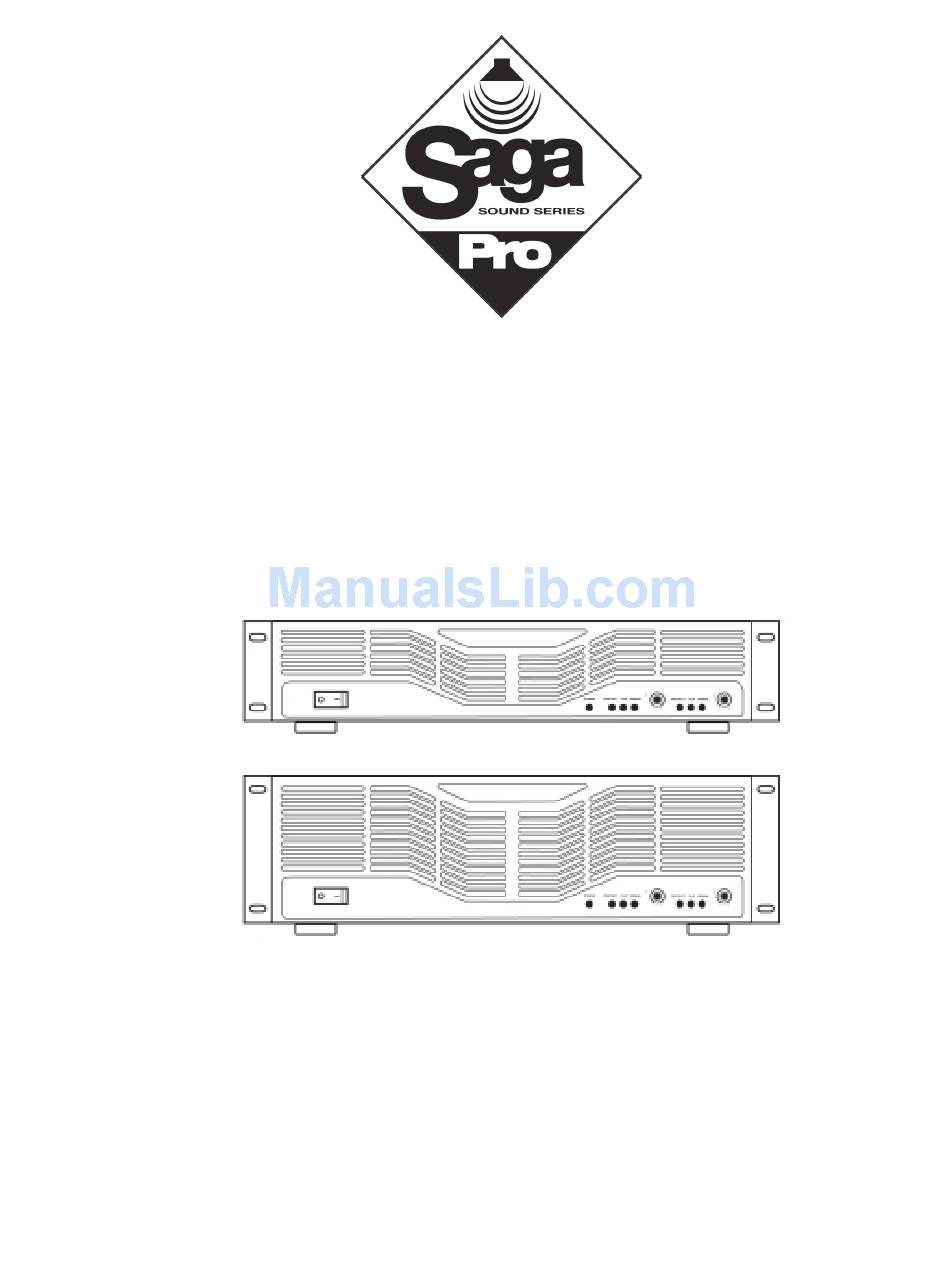

- Page 1 SAGA PRO SERIES STEREO POWER AMPLIFIER OPERATION MANUAL...

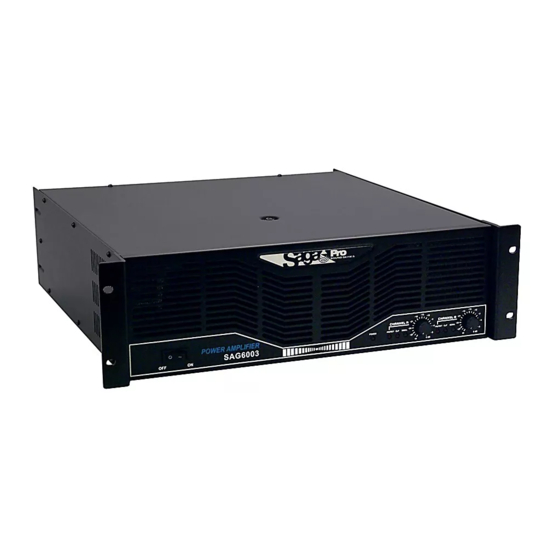

- Page 2 FEATURES • Saga Pro amplifiers deliver the following power ratings: SAG6000: 250 watts @ 4 ohms / 150 watts @ 8 ohms SAG6002: 450 watts @ 4 ohms / 350 watts @ 8 ohms SAG6003: 800 watts @ 4 ohms / 550 watts @ 8 ohms •...
- Page 3 1. Saga Pro Series Front Panel A: Power Switch “I”= on / “O”= off This switch powers the unit on and off. B: Power ON LED indicator This light indicates that the power is on. C: Ch A Input Level Control D: Ch B Input Level Control These controls adjust the input level for their respective channels.
- Page 4 2. Saga Pro Series Rear Panel Ch A Input connector Connect the input source using either the XLR or 1/4” TRS plugs. Ch B Input connector Connect the input source using either the XLR or 1/4” TRS plugs Input Mode switch Use this switch to change the amplifier mode from stereo, mono bridged, or parallel.
- Page 5 3. Saga Pro Series Wiring (1) Stereo mode (3U) (2) Parallel mode (3U)
- Page 7 Packing Dimensions 21.26in x 18.9in x 6.693in 21.26in x 20.87in x 8.268in 5. Saga Pro Series factory typical settings: a. Power switch position at “O” (OFF) b. Ch A/B Volume position at "∞" (MIN) c. Ground/Lift switch position at "┴"...
