Page 1: User Manual

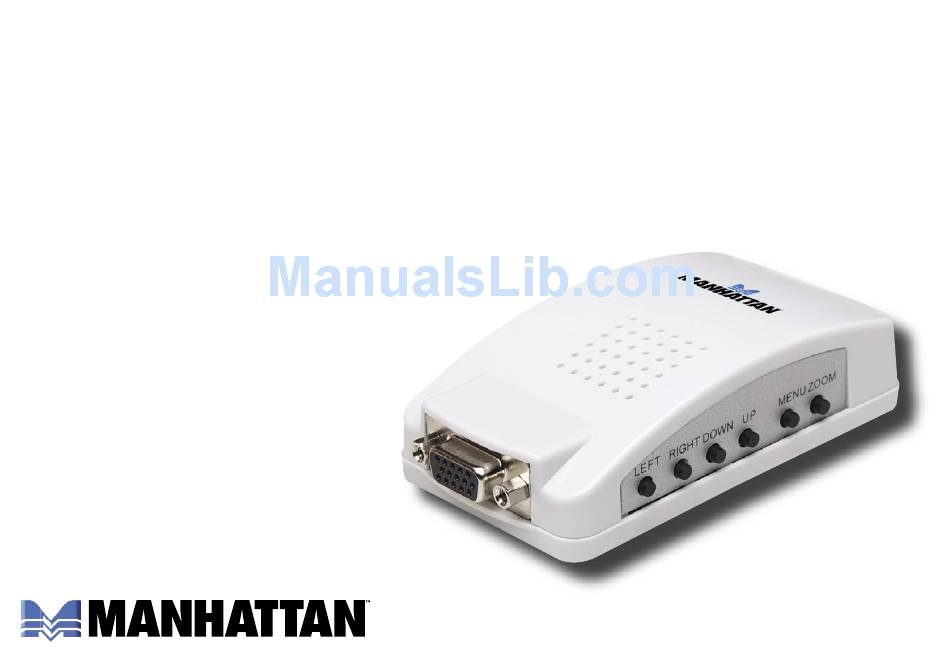

PC TV CONVERTER USER MANUAL MODEL 150095 MAN-150095-UM-0107-01... - Page 2 Thank you for purchasing the MANHATTAN PC TV Converter, Model 150095. ® Just connect a VGA port to almost any TV to view computer-based presentations, games, pictures and movies, or a Web browser. Refer to this manual for easy setup, and enjoy these quality features: •...
- Page 3 MODE & RESOLUTION TABLE This PC TV Converter supports the following VGA display modes: Resolution: 640 x 480 800 x 600 1024 x 768 Vertical Frequency (Hz): 60, 72, 75, 85 56, 60, 72, 75, 85 60, 70, 72, 75 The Zoom function supports the following VGA display modes: Resolution: 640 x 480...
- Page 4 HARDWARE CONNECTIONS & APPLICATIONS...
- Page 5 Button & Switch Functions Left/Right/Down/Up: Moves the picture. Menu: Recalls the menu. Zoom: Zooms the picture. Switch 1 On defaults the video standard to PAL. Switch 1 Off sets the video standard to NTSC. Switch 2 On is for YUV Output. Switch 2 Off defaults to Output.
-
Page 6: Specifications
SPECIFICATIONS • Video standards: NTSC/NTSC-EIAJ/PAL/PAL-M/PAL-N/SECAM (via RGB out) • Resolutions supported: 640 x 480 (up to 85 Hz), 800 x 600 (up to 85 Hz) and 1024 x 768 (up to 75 Hz) • Input port: DB15 (VGA) • Output ports: Composite video (RCA), S-video and HD15 (VGA) •... - Page 7 NOTES...
- Page 8 Are you completely satisfied with this product? Please contact your MANHATTAN dealer with comments or questions. ® Copyright © MANHATTAN All products mentioned are trademarks or registered trademarks of their respective owners.
