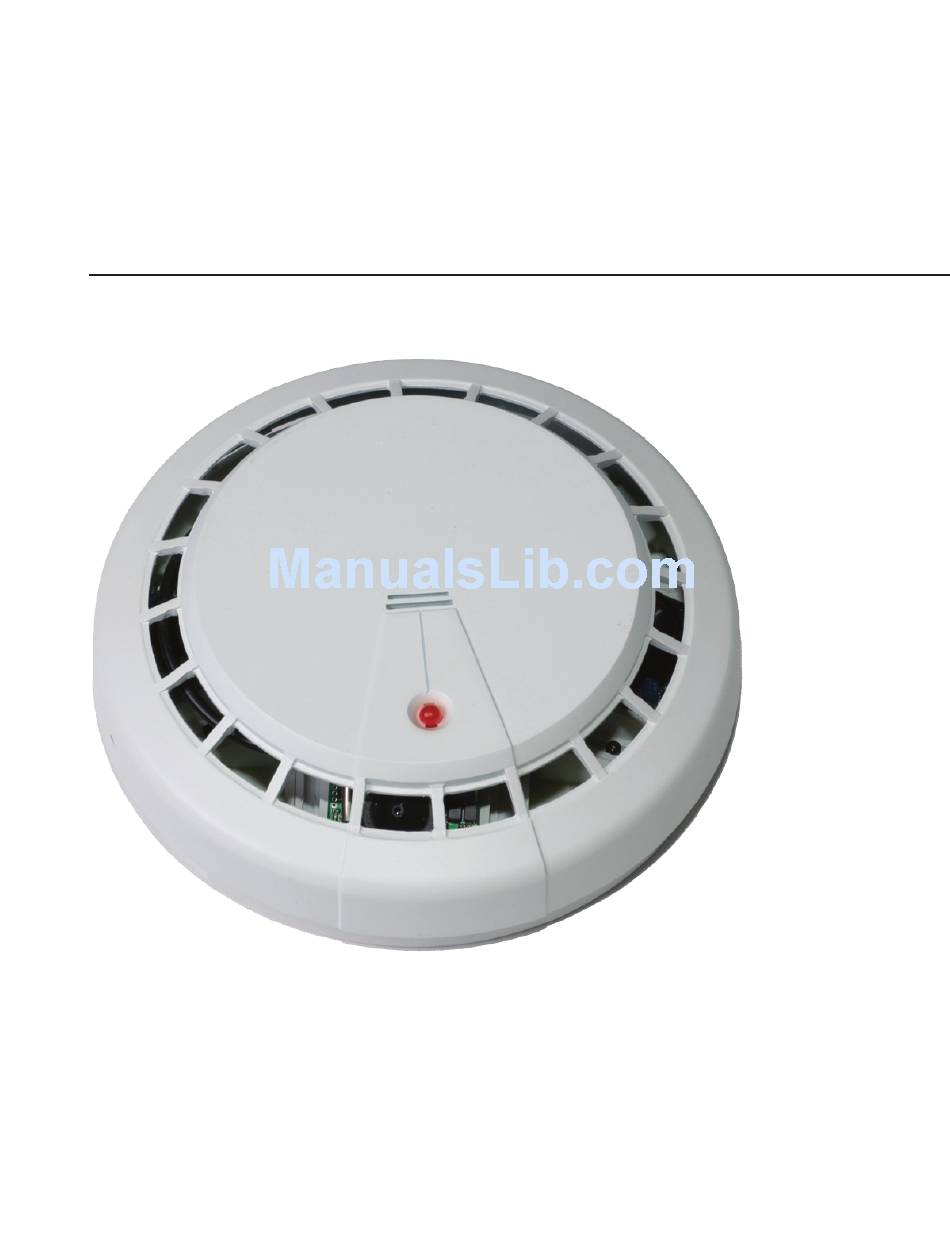

Day/Night Smoke Detector
Camera with DVR

User Manual

Product: COVSMDVR
Please read this manual before installing and using this camera and always follow instructions for proper use.
Save this manual for future reference.
COVSMDVR_SM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the COVSMDVR and is the answer not in the manual?

Questions and answers

Summary of Contents for Hidden COVSMDVR

  • Page 1: User Manual

    Day/Night Smoke Detector Camera with DVR User Manual Product: COVSMDVR Please read this manual before installing and using this camera and always follow instructions for proper use. Save this manual for future reference. COVSMDVR_SM...
  • Page 2 PRECAUTIONS Precautions Do not install the camera where the temperature or humidity is not • within the specified operating range. Do not install the camera under unstable lighting. • Do not use the camera close to an gas or oil leak. •...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Table of Contents SECTION 1 Features ..........1 1.1 System options.
  • Page 4 NOTES...

  • Page 5: Section 1 Features

    SECTION 1: FEATURES Features SECTION 1 Covert camera • 600 lines resolution • 0.5 lux low light rating • 12 VDC powering • AVI digital video recorder (DVR) with SD card storage • Remote control • Power LED Drop Cable 12 VDC Video BNC Power Connector...
  • Page 6 SD Card LED Cable Screws (2) Writer/Reader Module Mounting Screw Holes (2 of 3) Base Assembly Mounting Screw Hole (1 of 3) Camera Mounting Camera Mounting Screw (1 of 2) Screw (1 of 2) Camera Module COVSMDVR with cover removed...

  • Page 7: System Options

    SECTION 1: FEATURES Remote Control Delete Press to delete the file selected in the recordings list. ESC / MODE Press to return to the previous menu, and quick playback. Left / REW Press to move left in the mask area, and 4 levels of fast backward playback.
  • Page 8 SECTION 1: FEATURES Connect Single camera/DVR network with monitor Multiple camera/DVR network with system DVR and monitor...

  • Page 9: Section 2 Installation

    • 2.3 Installing the camera 1. Separate the COVSMDVR cover from the base. Rotate the cover about 1/8 turn counterclockwise, then carefully lift it off the base. CAUTION: After separating the cover from the base, it is still connected by the LED cable. Carefully unplug the LED cable from the base assembly, then set the cover aside.
  • Page 10 SECTION 2: INSTALLATION 2. Position the camera base assembly in the mounting location with the camera lens pointing at your surveillance target. Mark the location of the holes for the mounting screws and drop cable. One mounting screw hole is covered by the SD card module. If necessary, remove the two NOTE screws that secure SD module, then mark the location of the mounting screw hole.
  • Page 11 SECTION 2: INSTALLATION 4. Drill holes into the mounting surface for the fasteners you will use. 5. Drill a ¾" hole through the mounting surface for the camera drop cable. 6. Route the drop cable through the ¾" hole, then secure the camera base assembly to the surface with the fasteners.

  • Page 12: Section 3 Dvr Setup And Usage

    SECTION 3: DVR SETUP AND USAGE DVR Setup and Usage SECTION 3 The DVR control interface appears as an OSD with a SET UP menu that includes: Image Settings • Record Settings • Record Modess • Playback • System Settings • The remote control provided with your camera is used to control DVR.

  • Page 13: Initial Dvr Setup For Recording

    SECTION 3: DVR SETUP AND USAGE 3.1 Initial DVR setup for recording To setup your DVR for recording video, configure the system settings, image settings and record settings, then choose a record mode. System Setting 1. Insert an SD, MMC, or SDHC card (up to 32GB) into the card slot on the back of the camera.

  • Page 14: Image Setting

    SECTION 3: DVR SETUP AND USAGE 4. In the System Setting menu, use the UP or DOWN button to highlight Language, then press ENTER. Highlight the screen language you prefer, then press ENTER again. Options: English, German, Spanish. 5. Use the UP or DOWN button to highlight Time, then press ENTER. In the Time screen, use the UP and DOWN buttons to change the value of the year, if necessary, the press the Right button to move to the next field (month).
  • Page 15 SECTION 3: DVR SETUP AND USAGE 3. Use the UP or DOWN button to highlight (recording) Quality, then press ENTER. In the Quality submenu, use the UP or DOWN button to highlight H (high), M (medium), or L (low), then press ENTER again. (NOTE: Refer to the Specifications section for information on how these settings affect recording capacity.) 4.
  • Page 16 SECTION 3: DVR SETUP AND USAGE 2. To setup a schedule for recording video, use the UP and DOWN buttons to highlight Scheduled Time, then press ENTER. In the Scheduled Time screen, the recording start time is displayed at the top in the format YYYY/MM/DD HH:MM; the end time is displayed below.
  • Page 17 SECTION 3: DVR SETUP AND USAGE by time length. In the Section submenu, select 15min, 30min, or 1hr, then press ENTER to return to close the submenu. 5. To setup motion detection recording, press the DOWN button to highlight Motion Detection, then press ENTER.

  • Page 18: Reinstall The Cover

    SECTION 3: DVR SETUP AND USAGE b. In the Motion Detection screen, press DOWN to highlight Sensitivity, then press ENTER. In the Sensitivity submenu, select H (high), M (medium), or L (low), then press ENTER to return to close the submenu. (NOTE: Try different Sensitivity settings to produce the best performance for your surveillance target.) 6.

  • Page 19: Playing Back Recorded Video

    SECTION 3: DVR SETUP AND USAGE 3. Rotate the cover about 1/8 turn clockwise until it locks into place. 3.3 Playing back recorded video Video recorded by your camera can be played back either by the DVR or by an external device such as a computer.
  • Page 20 SECTION 3: DVR SETUP AND USAGE 3. In the file list screen, use the UP and DOWN buttons to select a file to play, press ENTER to confirm your selection, then press PLAY to watch the file. You can control playback as follows: Press the Left/REW button to rewind the file.

  • Page 21: Section 4 Cleaning

    SECTION 4: CLEANING Cleaning SECTION 4 Clean the camera housing with a mild cleaning solution and a lint free cloth. Remove all foreign particles, such as plastic or rubber materials, attached to the • camera housing. These may cause damage to the surface over time. Dust can be removed from the unit by wiping it with a soft damp cloth.

  • Page 22: Section 5 Specifications

    SECTION 5: SPECIFICATIONS Specifications SECTION 5 Item Specification Image sensor 1/3” CCD sensor Total pixels 768 (H) x 494 (V) Horizontal resolution 600 TV Lines Scanning system 2:1 interlace Sensitivity 0.5 LUX / F 2.0 Lens type Pinhole 3.7 mm S/N Ratio >...
  • Page 23 SECTION 5: SPECIFICATIONS Item Specification Power Consumption 200 mA ± 10% @ 12 VDC Dimensions (L x W x H) 5.59” (dia.) x 1.63” (H) (142 mm (dia.) x 41.5 mm (H)) Weight 5.33 oz ± 0.11 oz (151 g ± 3 g) Day/Night Smoke Detector Camera with DVR...

  • Page 24: Appendix A Troubleshooting

    APPENDIX A: TROUBLESHOOTING Troubleshooting APPENDIX A Before sending the camera for repair, please follow the suggestions listed below and make sure that the camera is installed correctly. If it still does not perform adequately, please consult your supplier or contact your vendor. 1.
