Smartec STM-200 LCD Monitor

User Manual

www.smartec-security.eu

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STM-200 and is the answer not in the manual?

Questions and answers

Summary of Contents for Smartec STM-200

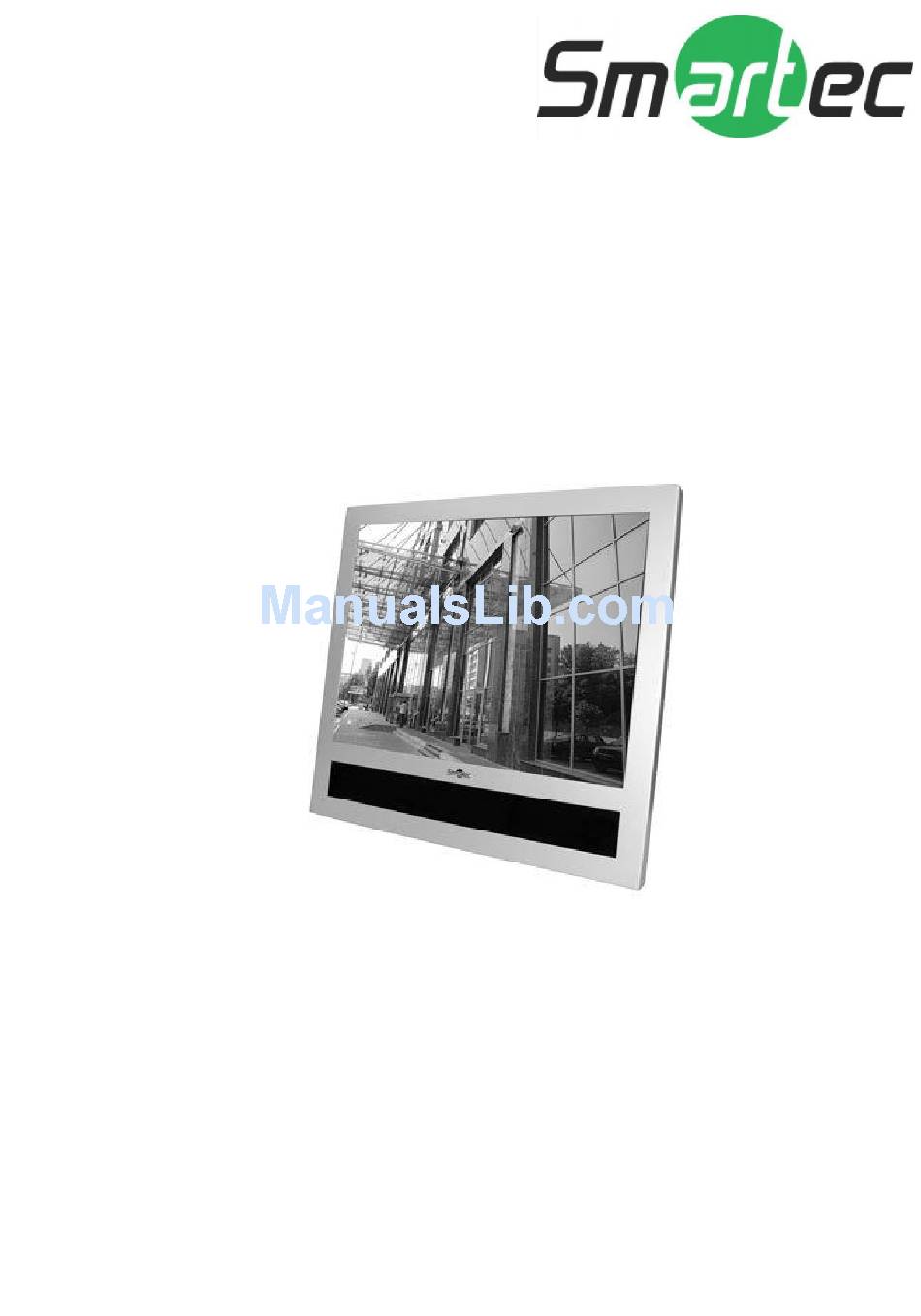

  • Page 1: User Manual

    Smartec STM-200 LCD Monitor User Manual www.smartec-security.eu...
  • Page 2: Limitation Of Liability

    LIMITATION OF LIABILITY THE INFORMATION IN THIS PUBLICATION IS BELIEVED TO BE ACCURATE IN ALL RESPECTS, HOWEVER, WE CANNOT ASSUME RESPONSIBILITY FOR ANY CONSEQUENCES RESULTING FROM THE USE THEREOF. THE INFORMATION CONTAINED HEREIN IS SUBJECT TO CHANGE WITHOUT NOTICE. REVISIONS OR NEW EDITIONS TO THIS PUBLICATION MAY BE ISSUED TO INCORPORATE SUCH CHANGES.
  • Page 3: Warnings And Cautions

    WARNINGS AND CAUTIONS: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECTS THROUGH THE VENTILATION GRILLS OR OTHER OPENINGS ON THE EQUIPMENT. CAUTION: CAUTION CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,...
  • Page 4: Fcc Compliance Statement

    FCC COMPLIANCE STATEMENT FCC INFORMATION : THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A COMMERCIAL ENVIRONMENT.
  • Page 5: Important Safeguards

    IMPORTANT SAFEGUARDS READ INSTRUCTIONS -- All the safety and operating POWER CORDS -- Protect the power cord from being instructions should be read before the appliance is walked on or pinched particularly at plugs, convenience operated. receptacles, and the point where they exit from the apparatus.
  • Page 6: Table Of Contents

    TABLE OF CONTENTS CHAPTER 1. FEATURES DESCRIPTION FEATURES ACCESSORIES CHAPTER 2. FRONT AND REAR PANEL THE FRONT PANEL THE REAR PANEL CHAPTER 3. REMOTE CONTROL CHAPTER 4. SETUP MODE OVERVIEW OSD WINDOW OF MAIN MENU SELECTING SCREEN MODE MOTION SETUP TIME/DATE PICTURE ADJUSTMENT CAMERA TITLE...
  • Page 7: Chapter 1. Features

    CHAPTER 1. FEATURES DESCRIPTION The 20.1" Color TFT-LCD Monitor can display up to two video sources. The monitor features built-in video motion detection (VMD) allowing the monitor image to switch to one or both of the camera images which contains motion. The monitor provides five display modes including full-screen (CAM1 or CAM2), picture-in- picture (PIP) mode and picture-by-picture (PBP) mode.
  • Page 8: Chapter 2. Front And Rear Panel

    CHAPTER 2. FRONT AND REAR PANEL THE FRONT PANEL IR/LIGHT SENSOR Remote control sensor /Light sensor for detecting ambient light.
  • Page 9: The Rear Panel

    THE REAR PANEL AUDIO CA1 IN CA2 IN CA1 OUT CA2 OUT MAIN DC 12V IN DC 12V OUT FUNCTION PART LABEL DC 12V IN Connect the adapter jack to the DC power connector on the back of the monitor DC 12V OUT DC output connector for an external camera.
  • Page 10: Chapter 3. Remote Control

    CHAPTER 3. REMOTE CONTROL Mute Cuts off the sound. Zoom Not available. Not available. Up/Down Keys FREEZE ZOOM Moves up/down in the OSD menu. Increases/decreases audio volume. CAPTURE VOLUME Left/Right Keys Displays sub-menu of selected item in the OSD. MENU Decreases/increases the chosen item.
  • Page 11: Overview

    CHAPTER 4. SETUP MODE OVERVIEW All functions are controlled via the supplied remote control. Pressing the MENU button places the unit into the programming mode. In the programming mode, the arrow buttons are used to move the cursor DOWN, UP, LEFT and RIGHT in the OSD Setup menu.
  • Page 12 SELECTING SCREEN MODE SCREEN MODE is used to select how the camera image is displayed on the screen. There are 5 options available. Use the QUAD button on the remote control to change the SCREEN MODE. ITEMS DESCRIPTIONS MODE 1 Full display of the camera chosen to display on the screen.
  • Page 13 MOTION SETUP This monitor has a motion detection function to support automatic switching from one of the cameras to the other camera with motion. Motion detection is available on both camera inputs. The Motion Sensitivity and other options for motion detection can be adjusted in this setup menu.
  • Page 14 Use the following steps to adjust MOTION SET options. STEP ACTION Press MENU and then move the indication bar to MOTION SET using Press to display sub-menu of MOTION SET. Move the indication bar to CAMERA using and then select the camera (CA1 or CA2) for adjustment of MOTION SET using Move the indication bar to the item (MOTION ENABLE, SENSITIVITY, CAPTURE TIME or DWELL TIME) to be adjusted using...
  • Page 15 DISPLAY The display option on the time and date setup screen allows you to select whether to display the time and date on the screen. The default option is ON. Use the following steps to adjust the DATE/TIME option. STEP ACTION Press MENU and then move the indication bar to DATE/TIME using Press...
  • Page 16 Use the following steps to adjust the picture quality. STEP ACTION Press MENU and then move the indication bar to PICTURE using Press to display sub-menu of PICTURE. Move the indication bar to the item to be adjusted using Adjust the option selected using Press MENU to go to the previous OSD window or exit from the OSD.
  • Page 17 CAMERA ADJUSTMENT The picture quality of each camera can be adjusted by using the CAMERA ADJUST setup menu. This setup menu is composed of 7 options. CAMERA ADJUST CAMERA CONTRAST BRIGHTNESS COLOR TINT * SHARPNESS SEQUENCE 03 SEC *) Tint is only activated in NTSC system. SEQUENCE This option is used to set the dwell time of the selected camera when the monitor is operated in the SEQUENCE mode.
  • Page 18 PIP ADJUSTMENT This setup menu is used to adjust the PIP position and size. PIP SIZE PIP H POS PIP V POS PIP CAMERA PIP SIZE The PIP window size can be adjusted by using the PIP SIZE menu option. Larger PIP window sizes can be obtained by increasing the PIP SIZE value.
  • Page 19 VIDEO SYSTEM Select the video system that is used in your region. Use the following steps to set the video system. STEP ACTION Press MENU and then move the horizontal bar to CONFIGURATION using Press to display sub-menu of CONFIGURATION. Locate horizontal bar at VIDEO SYSTEM and then select NTSC or PAL using Press MENU to go to the previous menu or exit from the OSD menu.
  • Page 20 ADJUSTING OSD WINDOW OVERVIEW Use the OSD Menu to adjust the OSD window. The OSD Position and other options can be adjusted in this setup menu. OSD MENU LANGUAGE ENGLISH BLENDING TIME 40 SEC LANGUAGE Selects OSD language displayed. Use the following steps to change OSD language. STEP ACTION Press MENU and then move the horizontal bar to OSD MENU using...
  • Page 21: Chapter 5. Troubleshooting

    CHAPTER 5. TROUBLESHOOTING Screen is black and power indicator is off. Ensure that the power cord is firmly connected and the LCD monitor is on. · Check PHOTO INPUT adjustment. · No Picture. Check the signal connections. · The image is too light or too dark. Adjust the Brightness and Contrast.
  • Page 22: Chapter 6. Specifications

    CHAPTER 6. SPECIFICATIONS 20.1'' TFT-LCD color monitor Model Items LCD Panel 20.1 inches (510.54mm) TFT LCD Panel Active Display Area 408.0 mm (H) x 306.0 mm (V) Pixel Format 640 (H) x 480 (V), RGB vertical stripe Pixel Pitch 0.6375mm x 0.6375mm Color Depths 8 Bit / 16.7M Colors Contrast Ratio...
