GENERAL
This product is designed to help disinfect the inter-
nal surfaces of heating, ventilation, and air condi-
tioning systems. Bacteria and viruses that are in
the air stream that passes through the system will
also be reduced. The result is an improved level
of indoor air quality for occupants and improved
system hygiene.
The MicroPure® UV system emits ultraviolet(UVC)
radiation at a frequency of 254 nanometers, which
has been proven effective in damaging the DNA of
microorganisms such as viruses, bacteria, yeast
and molds. This process either destroys the micro-
organism or neutralizes its ability to reproduce.
©2007 Dust Free® • All rights reserved. • 213348-00 Rev. 1B 2/07
Model 3600
#09950
PO Box 519
Royse City, TX 75189
PH: 1-972-635-9565
Http://www.dustfree.com

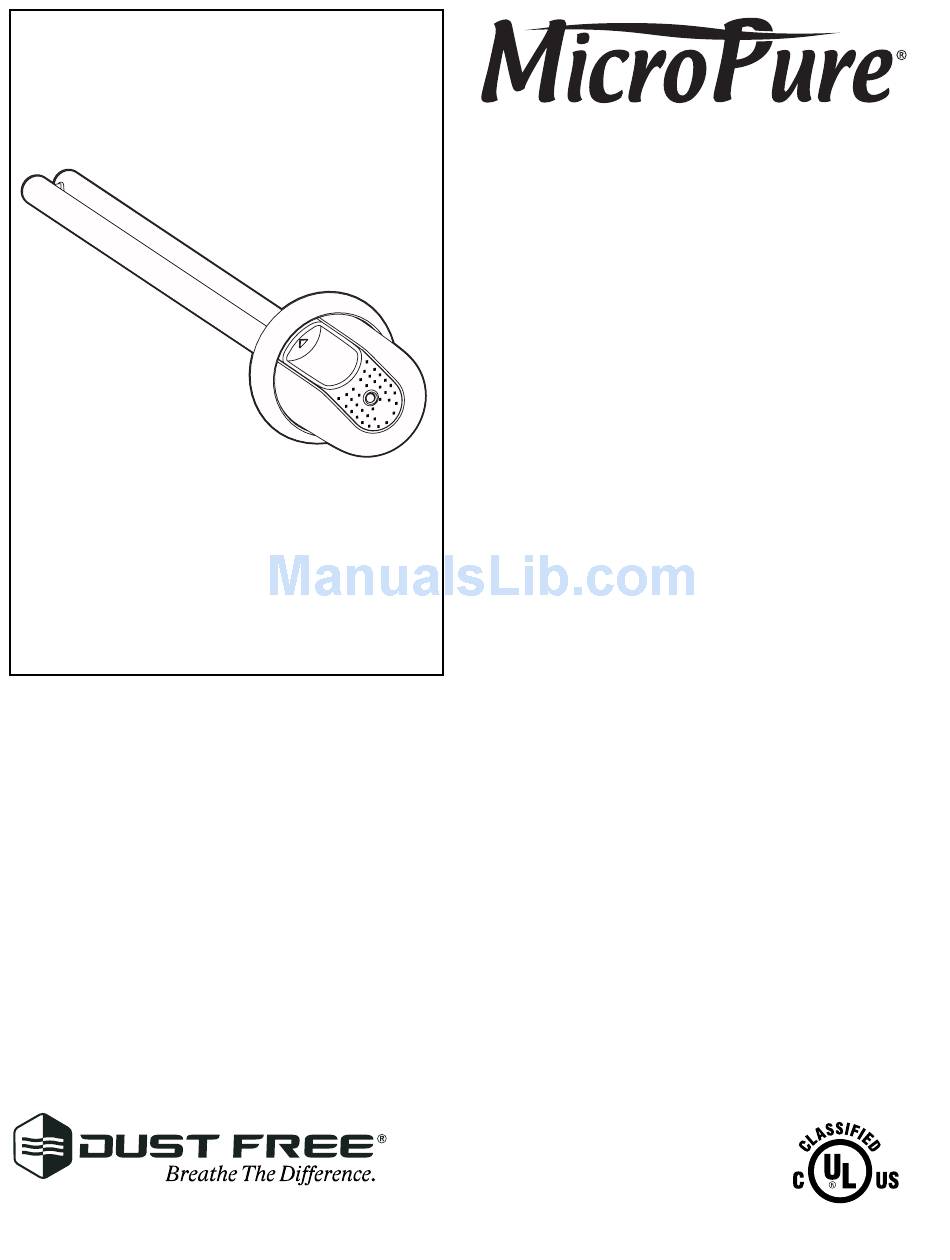

Ultraviolet Light System
Installation & Operation Manual
FEATURES
• Reduces or prevents mold growth on HVAC
coils, allowing them to operate at peak effi-
ciency. Also significantly reduces bacteria,
viruses, fungi, and yeasts in the ductwork.
• High Output, long life UVC bulbs.
• Low maintenance and reduced costs.
INCLUDED INSIDE BOX
®
• MicroPure
ultraviolet light system
• UV bulb
• Mounting ring
• Mounting screws
• Mounting template
• Installation & operation manual
• UV warning label for duct
• Ductboard mounting ring
TOOLS REQUIRED FOR INSTALLATION
• Electric drill
• Phillips screw bit or screwdriver
• 2" drill bit or holecutter
• Eye protection
BEFORE INSTALLING
• Read all instructions carefully. Failure to do
so could damage the equipment or cause
harm to yourself or others.
• Acknowledge all warnings.
• Only qualified technicians should perform
the installation.
Model 3600
E246425
