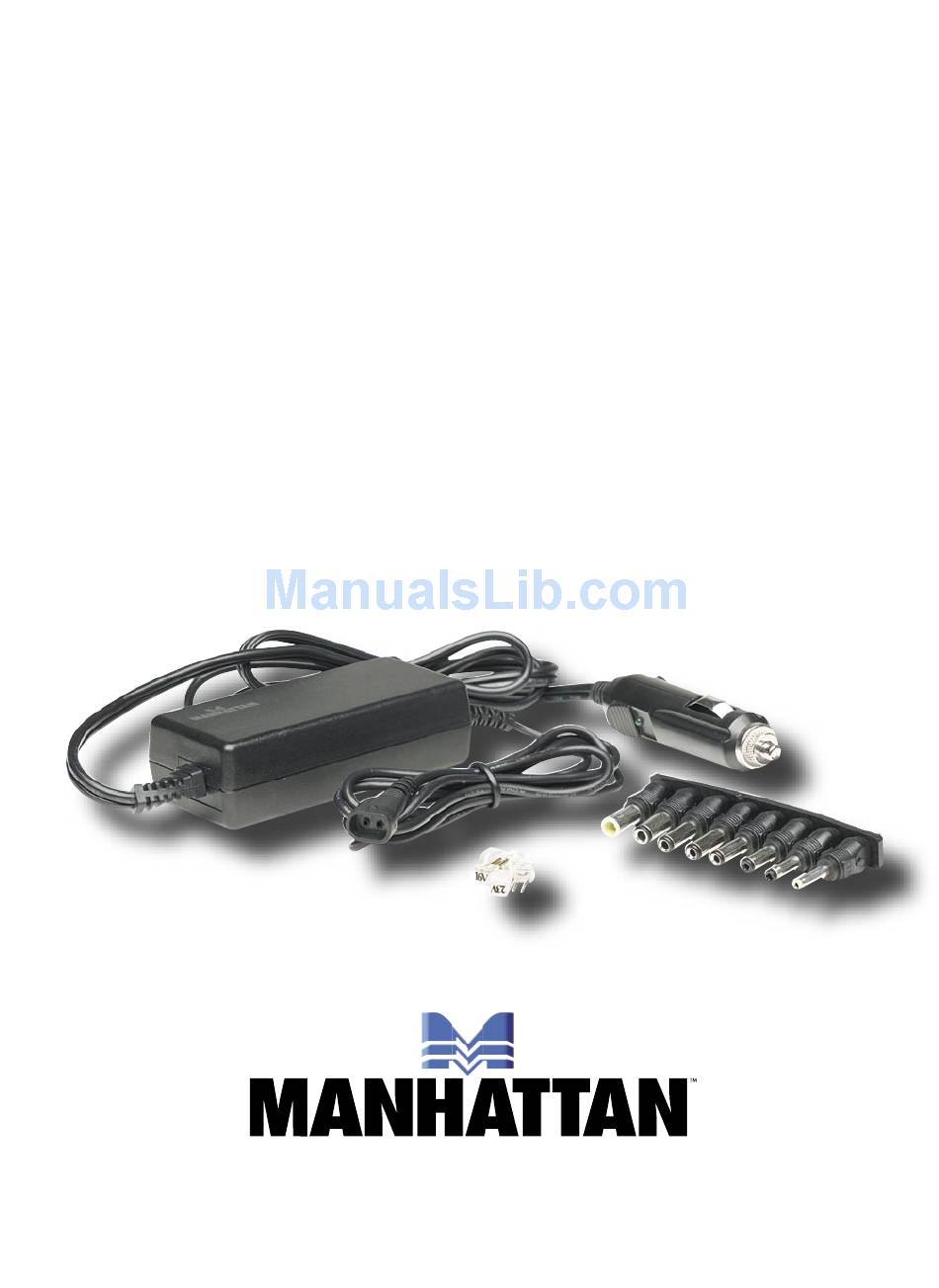

- Page 1 CIGARETTE LIGHTER POWER ADAPTER USER MANUAL MODEL 100830 MAN-100830-UM-0308-01...
-
Page 3: Package Contents
Thank you for purchasing the MANHATTAN Cigarette ® Lighter Power Adapter, Model 100830. With 50 Watts and 10 voltage selectors that allow for adjustable output levels, this handy adapter provides a single, convenient AC source for most any portable device. - Page 4 1. Choose the voltage selector (right) that’s appropriate for use with the device to be connected to the power adapter. Typically, a sticker like the one shown below can be found on the device, indicating the voltage required for operation. If there is not an Example: 19 V exact match in voltage among the 10 included voltage selectors, choose...
- Page 5 2. Choose whichever of the 8 included DC plug tips fits the power adapter input jack on the device to be powered. Next to the jack is a diagram indicating how the DC plug tip needs to be connected to the power adapter cable so the electrical polarity matches.
-
Page 6: Specifications
SPECIFICATIONS • AC input: 100 – 240 V; 50 – 60 Hz • DC output: 15 – 24 V; maximum 1500 mA; 50 W • CE EN60950 and CSA 22.2 No. 950 approvals • Voltage/current settings (maximum): 15 V - 3.3 A 16 V - 3.1 A 17 V - 3.0 A 18 V - 2.8 A... - Page 7 ® of PC Components, Peripherals, Cables and Accessories. Ask your local computer dealer for more information or visit us online at www.manhattan-products.com Copyright © MANHATTAN All products mentioned are trademarks or registered trademarks of their respective owners.
